Arcam

Arcam A5 + Dali Oberon 5 + Cables

Arcam A5 + Dali Oberon 5 + Cables

Regular price £1,299.00
Regular price £1,548.00 Sale price £1,299.00
-16% Sold out
Shipping calculated at checkout.
  • Demo Available
  • 5 year Warranty
  • free deliveryin 3-5 days
  • free qed xt25pre-terminated speaker cables

View full details

Details

Description

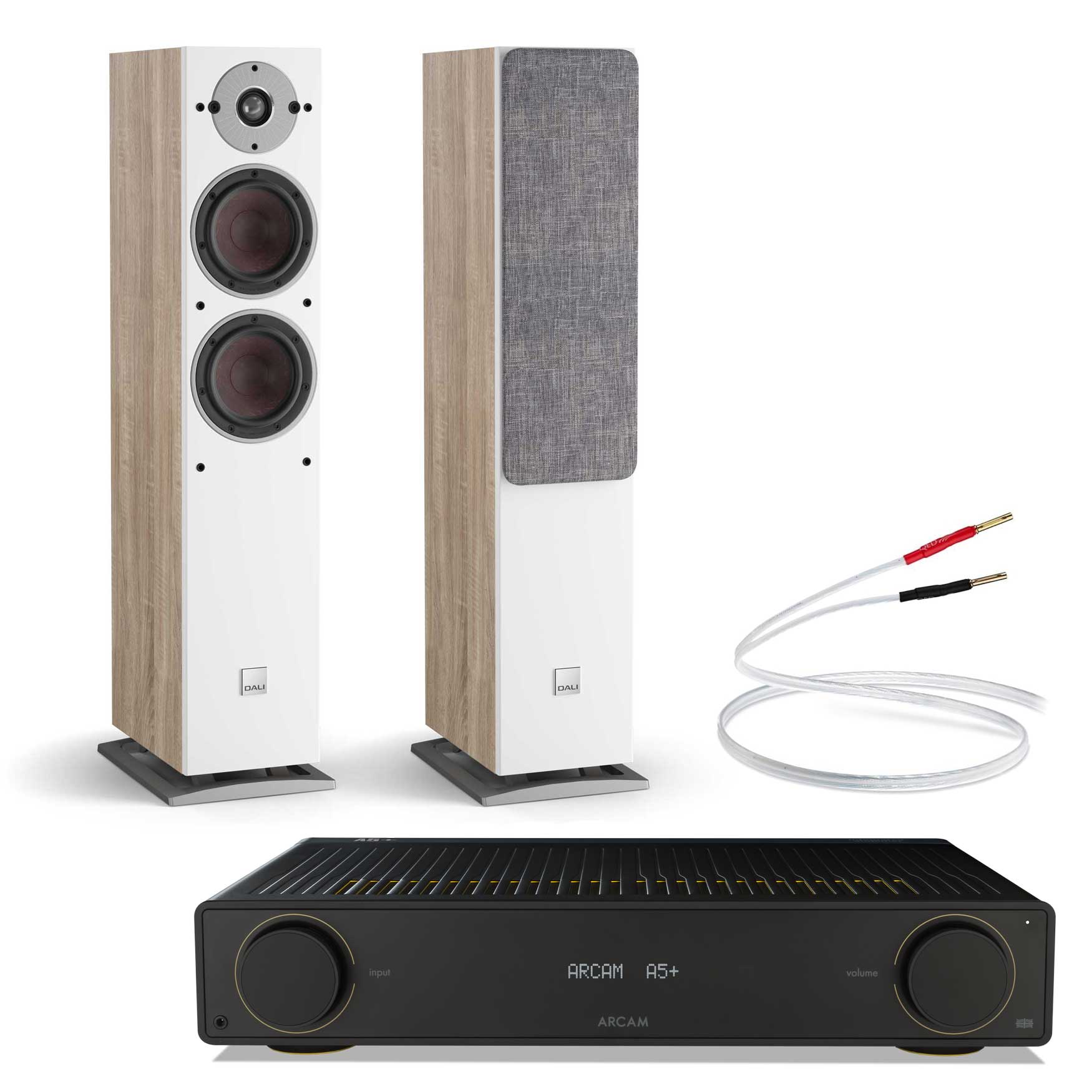

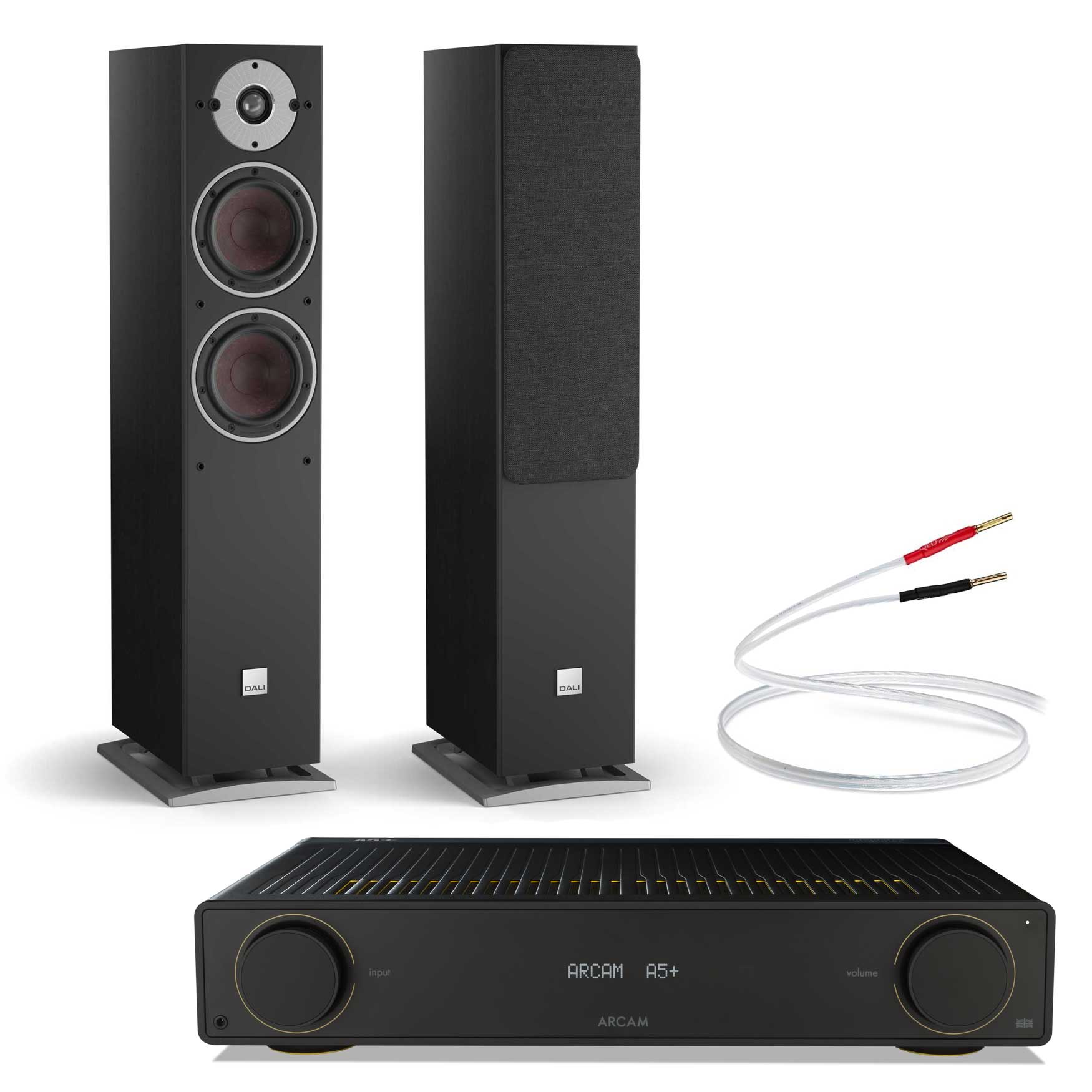

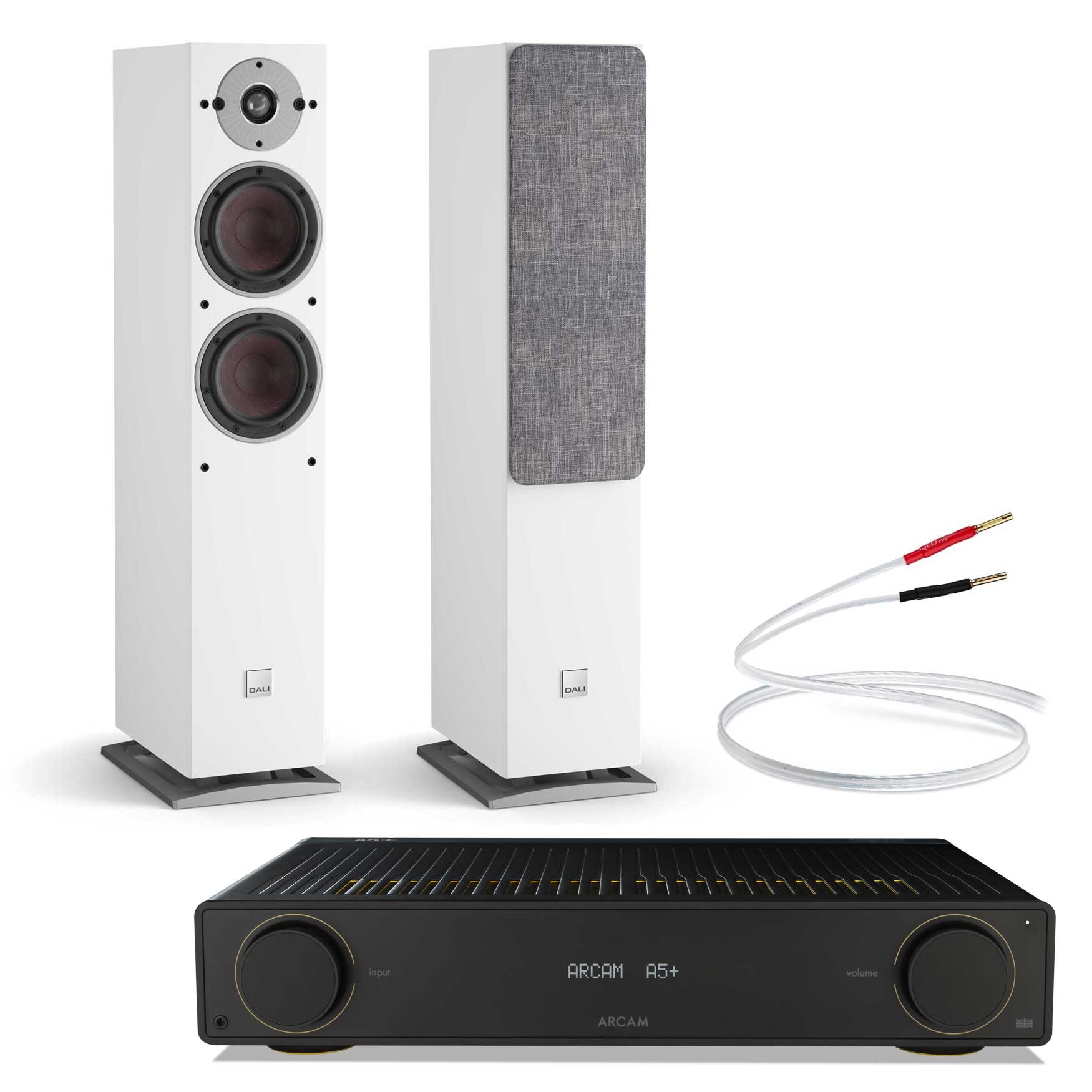

Arcam A5 + Dali Oberon 5 + QED XT25 Cables

The Arcam A5 stereo integrated amplifier offers outstanding value, providing best in class sound quality, versatile connectivity and sleek, premium styling.

Hi-Res Streaming

The Arcam A5 is more than just a stereo amplifier, it also features Bluetooth with Qualcomm AptX Adaptive technology – capable of providing up to 24-bit HD audio when streaming music from your phone or tablet, just add a suitable pair of speakers and you have a ready made Hi-Fi system. You can also connect to Bluetooth headphones for those more private listening sessions.

Generous Power

With a rated output of 2 x 50w RMS the Arcam A5 has sufficient power to drive the vast majority of speakers in a typical living room environment. With ultra-low levels of distortion, the A5 will play happily at high volume levels without sounding harsh or strained.

Vinyl Lover

Re-energise your cherished vinyl collection with the A5, the high-quality built-in phono stage has been carefully designed to extract the absolute most from your record collection and is suitable for turntables with an MM (moving magnet) cartridge.

Versatile connectivity

The A5 makes connecting your external sources simple, a premium built-in DAC (Digital to Analogue Convertor), enables effortless connection to digital audio sources. Boasting two coaxial and one optical input you can easily connect your TV, games console, music streamer etc. The audiophile ESS DAC ensures the best possible sound quality for any digital source. For connecting more traditional analogue sources like an FM tuner, there are three RCA phono inputs available.

Optional matching source components

Arcam offer the CD5 CD player and ST5 streamer should you wish to expand your system further. Both a perfect match aesthetically and sonically.

Dali Oberon 5 Compact Floorstanding Speakers

The Dali Oberon 5 is an exceptional performer - combining Dali ideas, traditions and inventions. Oberon 5 is a compact and elegant floor-standing speaker, housing 2 x 5¼” wood fibre based woofers with SMC and the series’ wide bandwidth 29 mm ultra-lightweight soft dome tweeter.

This slim floor-stander will impress with its ability to deliver deep, punchy bass together with a clear and well defined mid-range and airy high frequencies.

Oberon 5 is easy to integrate into any room, as both the driver materials and geometry applied have been selected to achieve a wide dispersion pattern in the listening area - as a result, you will enjoy a well-integrated sound, even when listening at a significant off-axis angle.

Package includes a Free 3m pair of pre-terminated QED XT25 speaker cables (see below)

Specifications

Specifications

Arcam A5 Specifications

Continuous power output (0.5% THD)



2 channels driven, 8Ω, 20Hz—20kHz

50W

2 channels driven, 1kHz, 4Ω

75W

Harmonic distortion, 80% power, 8Ω at 1kHz

0.003%

Analogue Inputs



Phono (MM) cartridge



Input impedance

47kΩ + 100pF

Frequency response (ref. RIAA curve)

20Hz – 20kHz ± 1dB

Line Inputs



Number of inputs

3

Signal/Noise ratio (A-wtd) 50W, ref. 1V input

106dB

Frequency response

20Hz – 20kHz ± 0.2dB

Digital Inputs



DAC

ESS ES9018

Frequency response

20Hz - 20kHz ± 0.2dB

Total harmonics distortion + Noise

0.0007%

Signal/Noise ratio (A-wtd, ref. 50W, 0dBFS)

109dB

Supported Sample Rates (Optical)

44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz

Supported Sample Rates (Coaxial)

44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz

Bit depth

16-bit – 24-bit

Headphone output



Maximum output level (RMS) into 32Ω/300Ω

2.5/5Vrms

Output impedance

Load range

16Ω – 2kΩ

General



Mains voltage

110–120V or 220–240V, 50–60Hz

Maximum power consumption

350W

Power consumption (standby)

<0.5w

Dimensions W x H x D (including feet and speaker terminals)

431 x 83 x 344mm

Weight (net)

8.0kg

Weight (gross)

11.0kg

Supplied accessories

Mains leads, Remote control, 2 x AAA batteries, quick-start guide

Dali Oberon 5 Specs

Frequency Range (+/-3 dB) [Hz]

39 - 26.000

Sensitivity (2,83 V/1 m) [dB]

88,0

Nominal Impedance [Ω]

6

Maximum SPL [dB]

108

Recommended Amplifier Power [W]

30 - 150

Crossover Frequency [Hz]

2.400 Hz

High Frequency Driver

1 x 29 mm Soft Textile Dome

Low Frequency Driver

2 x 5,25" Wood Fibre Cone

Enclosure Type

Bass Reflex

Bass Reflex Tuning Frequency [Hz]

43,0

Connection input(s)

Single Wire

Recommended Distance From Wall [cm]

15 - 80

Dimensions Incl. Base (HxWxD)

830 x 162 x 283

Weight [kg]

10.8

Accessories Included

Manual
Rubber Feet
Spikes
