Arcam

Arcam SA45 Integrated Streaming Amplifier

Arcam SA45 Integrated Streaming Amplifier

Regular price £4,499.00
Regular price £4,499.00 Sale price £4,499.00
-0% Sold out
Shipping calculated at checkout.
  • FreeNext Day Delivery
  • 5 year Warranty

View full details

Details

Description

Arcam SA45 Integrated Streaming Amplifier

The Arcam SA45 is a true audiophile all-in-one system featuring a high-performance integrated stereo amplifier with a powerful, built-in streaming platform, making it the perfect choice for discerning music lovers. Expertly crafted by Arcam’s engineers, the SA45 features their latest 5th generation Class G amplification, an audiophile ESS DAC featuring the latest Hyperstream iV topology, a new linear toroidal power supply design, fully balanced digital and analogue audio paths and a newly designed user interface and control app.

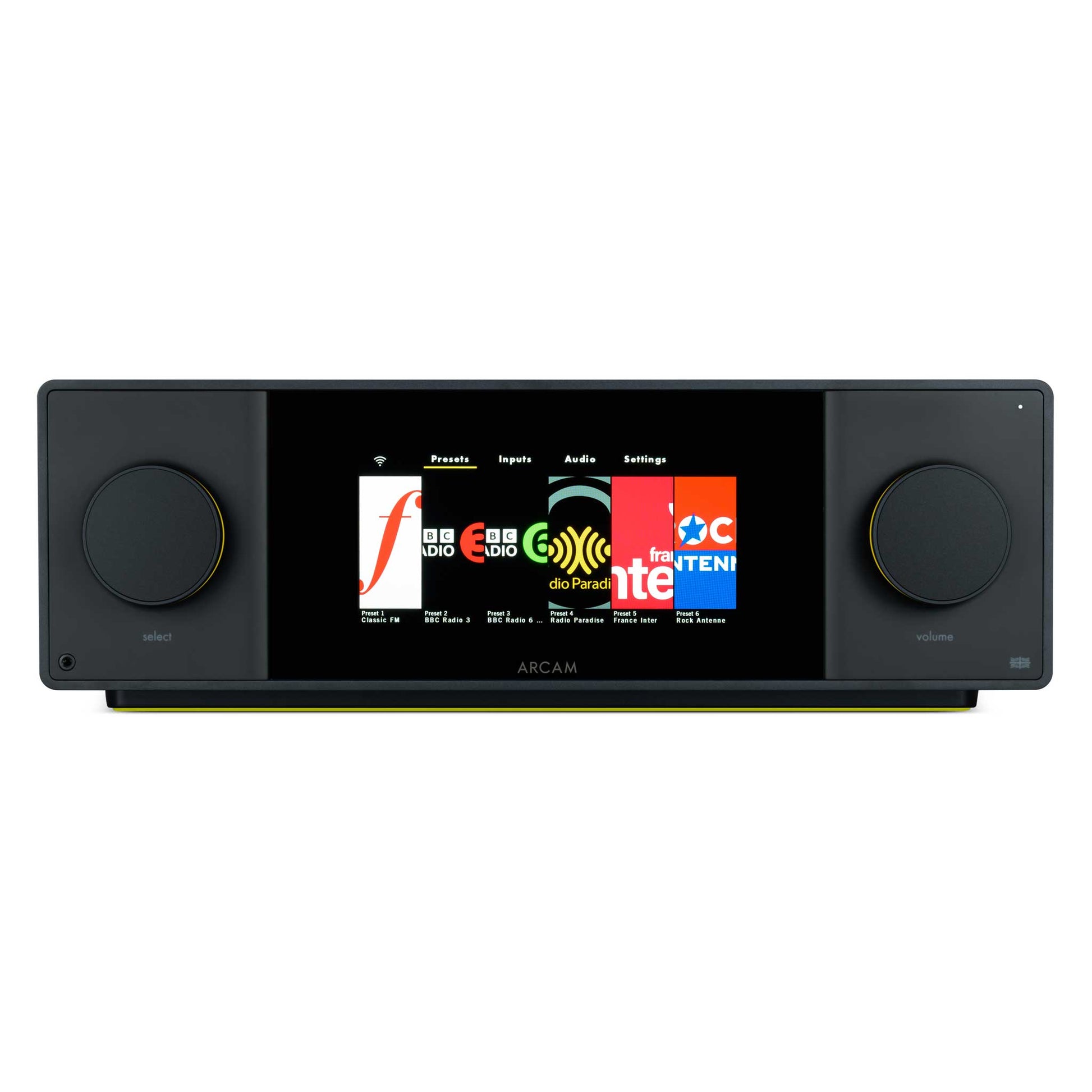

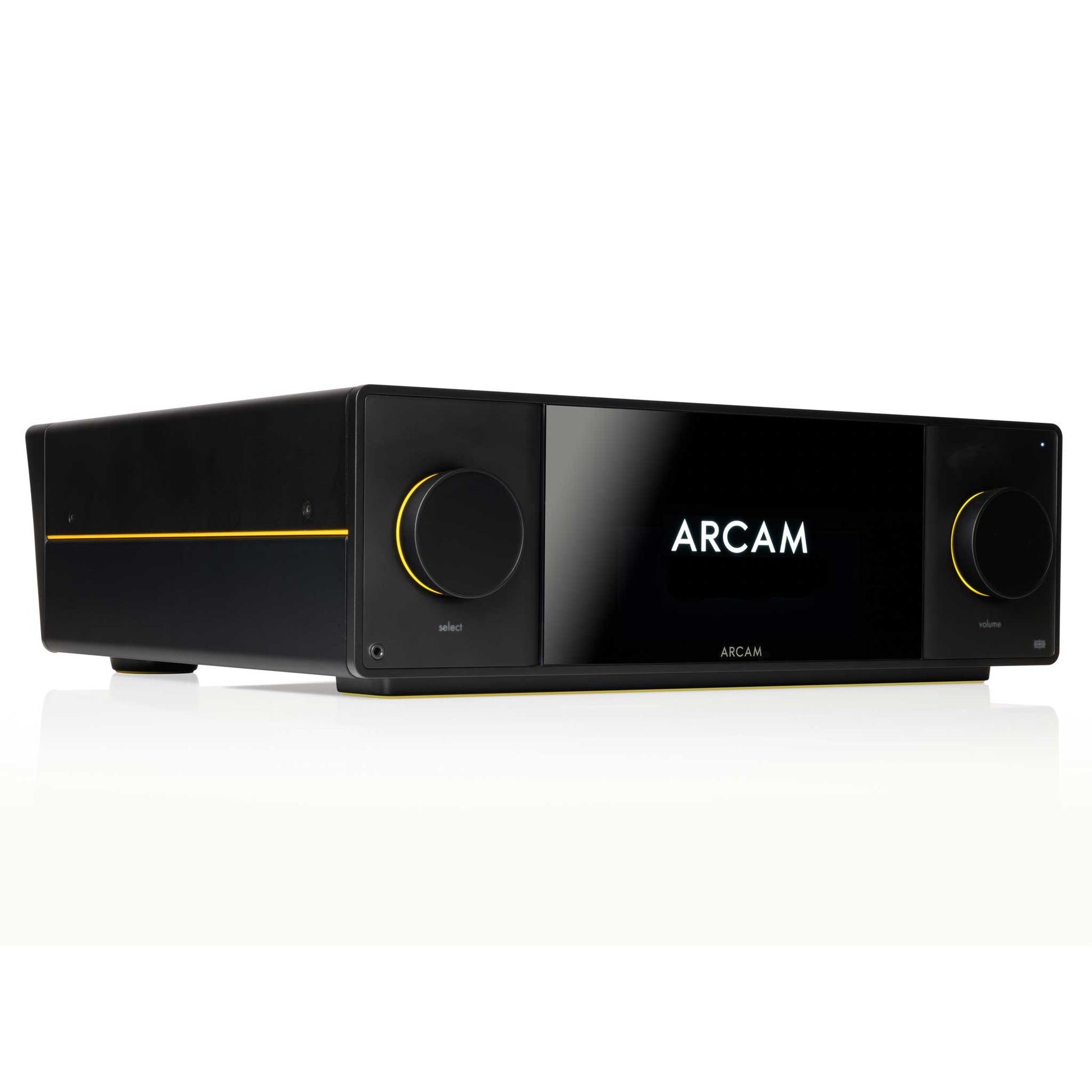

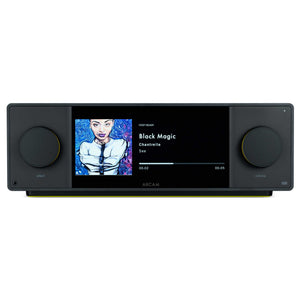

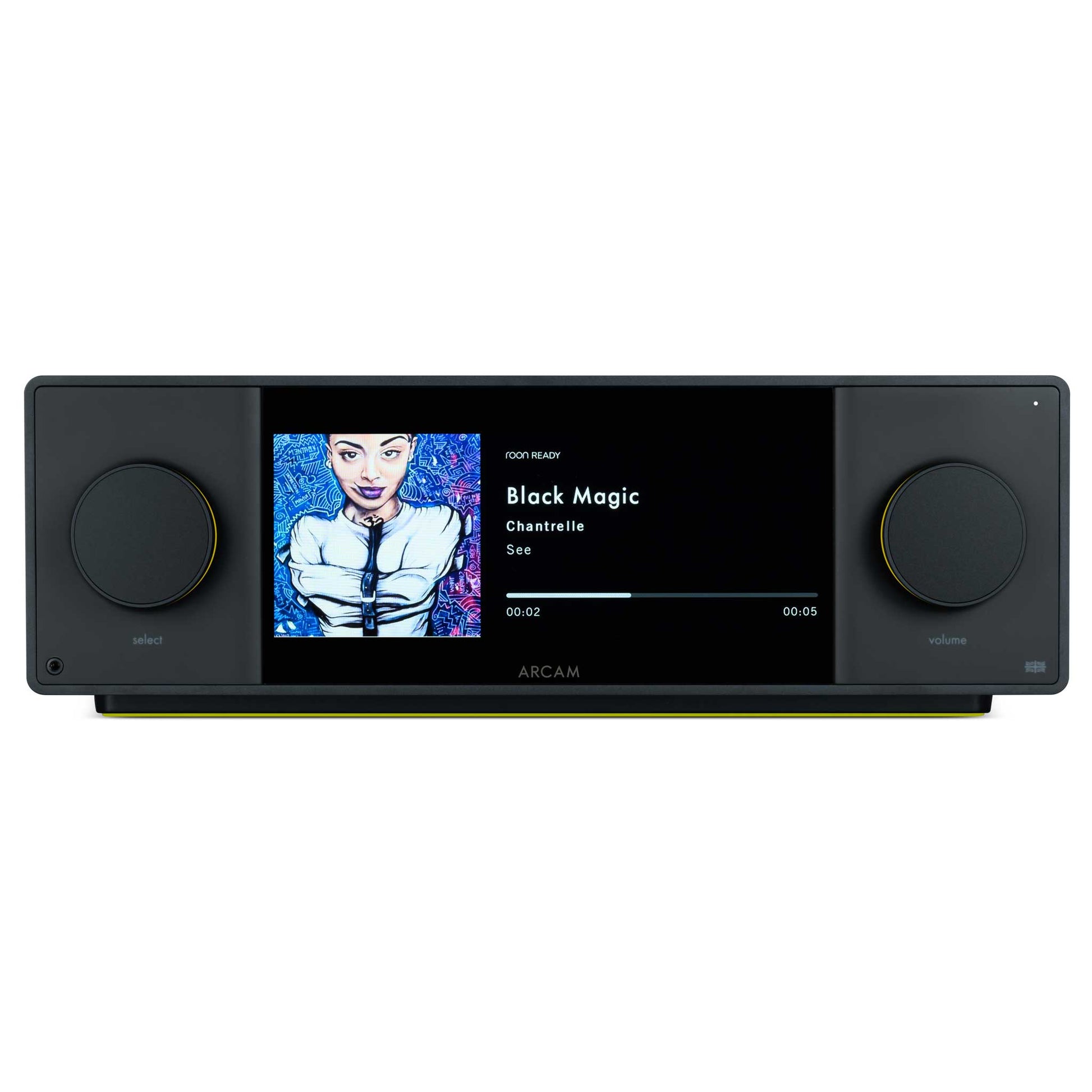

Cosmetically the SA45 is equally striking with a sleek, all-aluminium casing finished in satin black with solid aluminium backlit dials. An impressive 8.8" high-resolution colour display shows album artwork and system status in perfect clarity.

Powerful Class G Amplification

Arcam’s renowned Class G amplifier design provides the SA45 with serious power, boasting a rated output of 2 x 180w RMS into 8 ohms - more than enough power to drive the vast majority of speakers with ease, comfortably filling larger spaces with full-blooded, dynamic, life-like sound. This impressive power combined with ultra-low levels of distortion and excellent efficiency enables the SA45 to play at high volume levels for extended periods without sounding harsh or strained.

Versatile Streaming Features

The SA45 boasts a wide range of music streaming features, simply connect SA45 to your home network via Wi-Fi or ethernet and enjoy access to Apple Airplay, Google Chromecast, Spotify Connect, Tidal Connect, and Roon. Built-in Bluetooth enables simple connectivity for smartphones and tablets. Explore thousands of internet radio stations and podcasts from around the world, all controlled using the intuitive Arcam Radia App.

The Arcam SA45 is an outstanding option for those wanting a one-box high resolution audio solution. With outputs for subwoofers, along with Dirac Live Room Correction, the SA45 has the flexibility to deliver exceptional sound, in any room, with your choice of speakers.

Key Features:

  • All new, ultra–High-Resolution Streaming Platform
  • ARCAM Class G Amplification with 2x 180W FTC Power Output Rating
  • Balanced analogue and digital audio paths
  • High Performance MM & MC Phono inputs
  • HDMI eARC input
  • Dual Subwoofer outputs
  • Dirac Live Room Correction
  • 8.8” High-resolution Colour Display
  • Supports Apple Airplay, Google Cast, Spotify Connect and Tidal Connect
  • Intuitive Arcam Radia Control App
  • Supports up to 32 bit / 384 kHz Hi-Res Audio
  • Roon Ready (firmware update after launch)

Specifications

Specifications

Arcam SA45 Specifications

Continuous power output (0.5% THD)



2 channels driven, 8Ω, 20Hz—20kHz

180W

2 channels driven, 1kHz, 4Ω

300W

Harmonic distortion, 80% power, 8Ω at 1kHz

0.002%

Analogue Inputs



Number of inputs

3 x RCA pairs, 1 x XLR pair

MM and MC Phono Input

1

Signal/Noise ratio (A-wtd) 50W, ref. 1V input

106dB

Frequency response

20Hz – 20kHz ± 0.2dB

Digital Inputs



Digital Audio Inputs

1x HDMI eARC, 2x Coaxial (RCA), 2x Optical (Toslink)

Supported Streaming media

FLAC, WAV (LPCM), AAC, ALAC, AIFF, DSD (up to 256), MP3, MP4, OGG, WMA

Supported Streaming Bit depth

16, 24, 32

Supported Streaming sample rates (kHz)

Up to 384 kHz

Frequency response

20Hz - 20kHz ± 0.2dB

Total harmonics distortion + Noise

0.0007%

Signal/Noise ratio (A-wtd, ref. 50W, 0dBFS)

110dB

Supported Digital input Bit depth

16, 24

Supported Digital input sample rates (kHz)

Up to 192 kHz

Wireless Specifications



Bluetooth Profile 5.4

A2DP Sink/Source, AVRCP, BLE, Snapdragon Sound, AAC, LE Audio, Auracast

Wi-Fi Network

IEEE 8002.11 a/b/g/n/ac (2.4GHz/5GHz)

General



Mains voltage

110–120V or 220–240V, 50–60Hz

Maximum power consumption

1000W

Power consumption (standby)

<0.5w

Dimensions W x H x D (including feet and speaker terminals)

432 x 140 x 390mm

Weight (net)

17.0kg

Weight (gross)

20.0kg

Supplied accessories

Mains lead(s)
Remote control with 2 x AAA batteries
Measurement Microphone
5m USB Cable
Quick Start Guide
Important Safety Instructions
