Audiolab

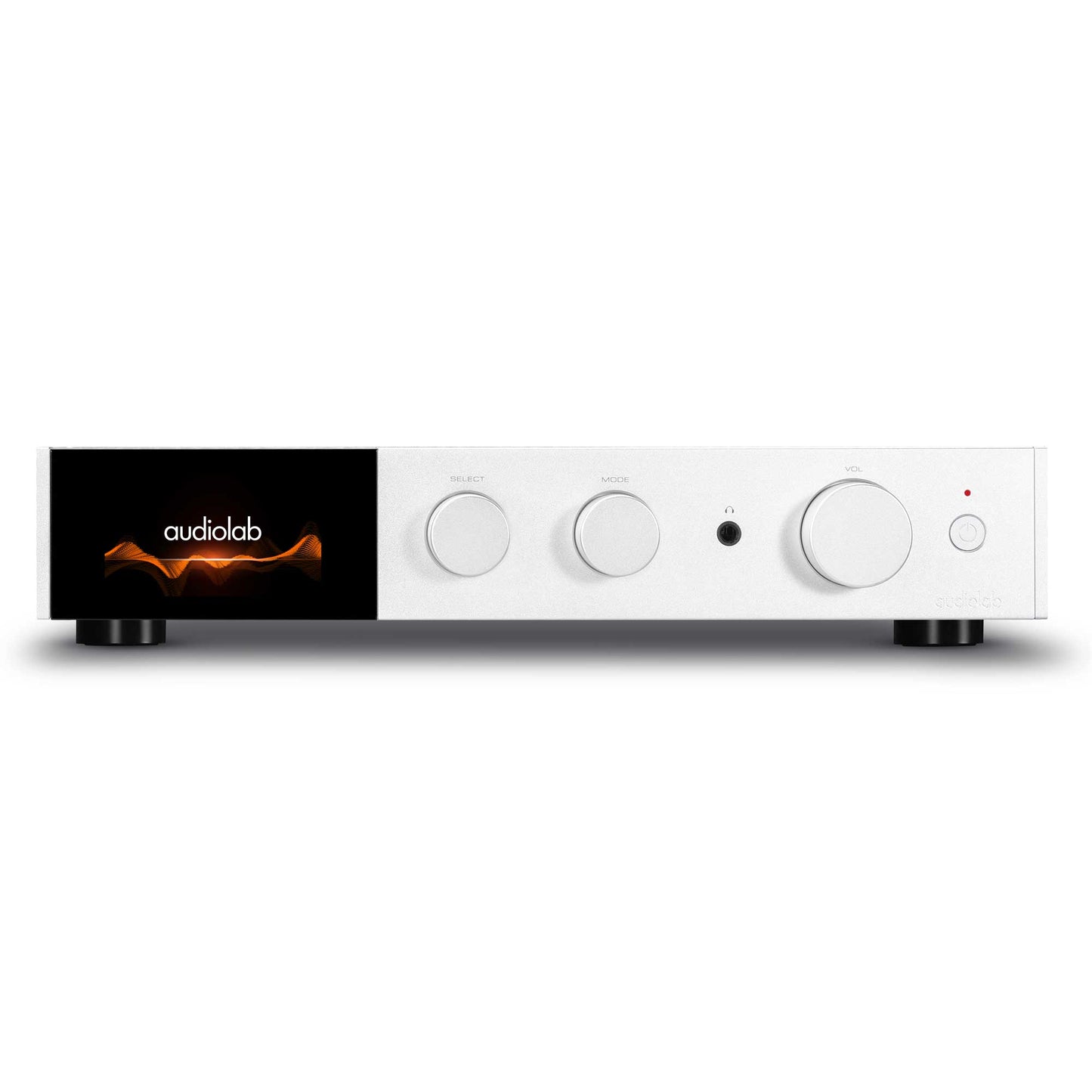

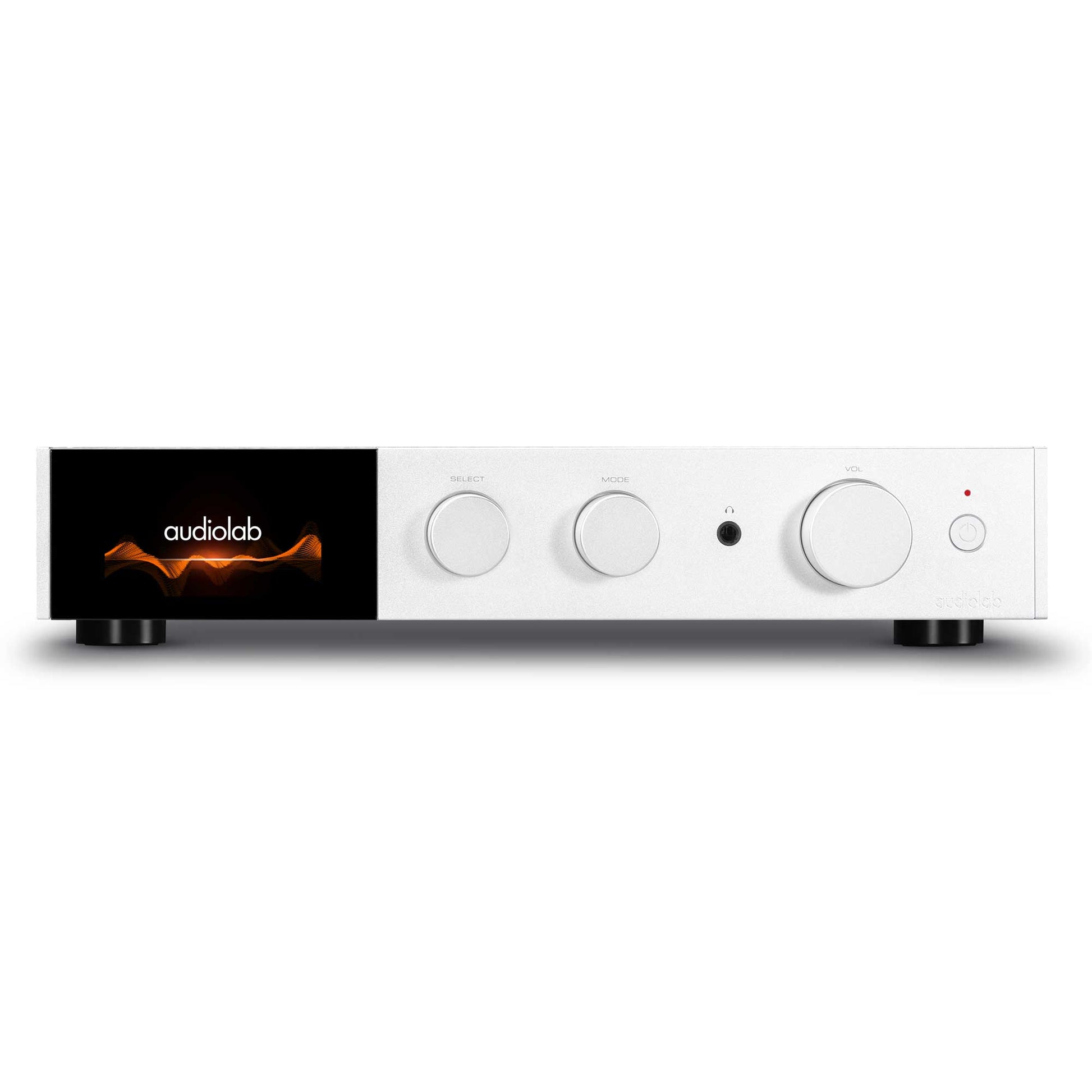

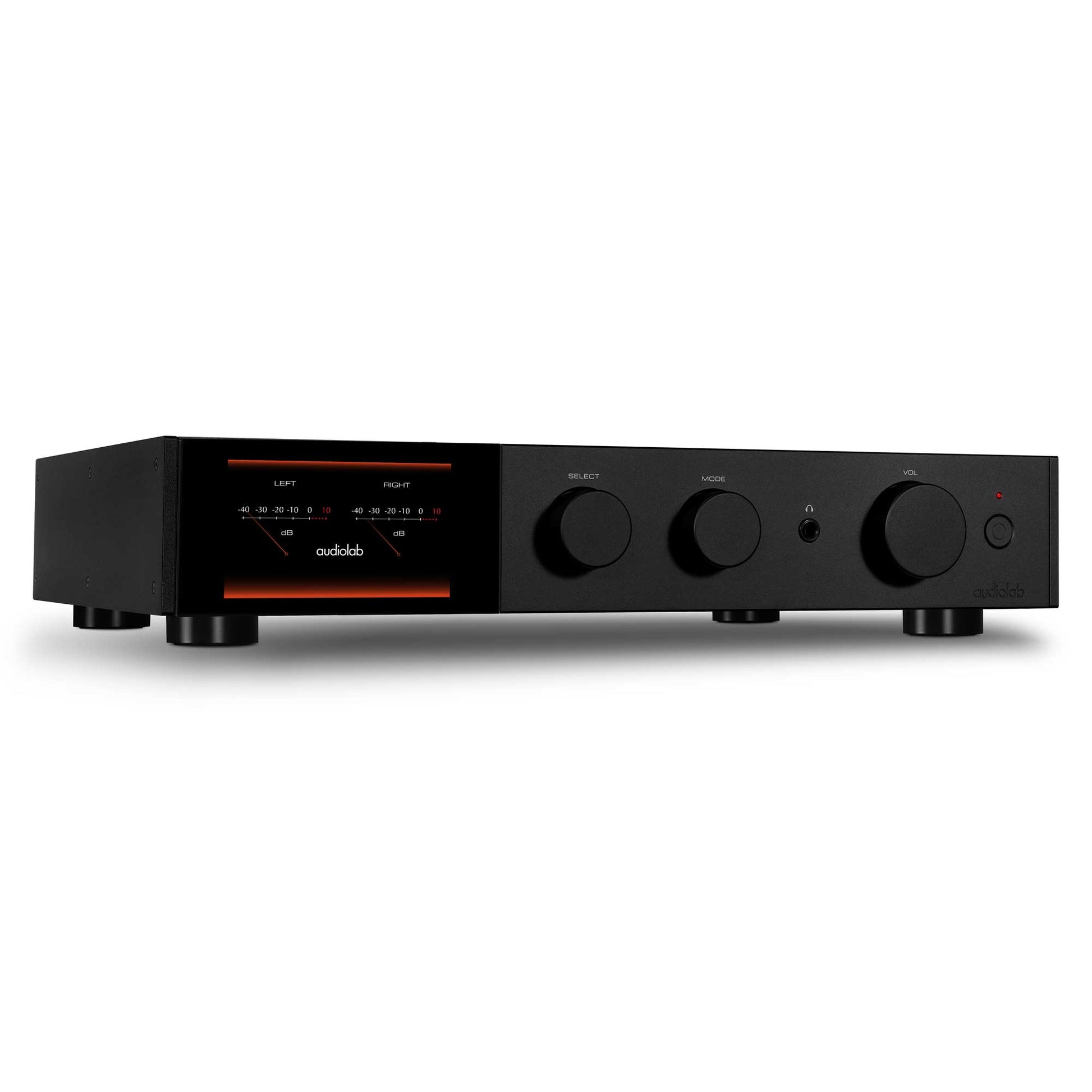

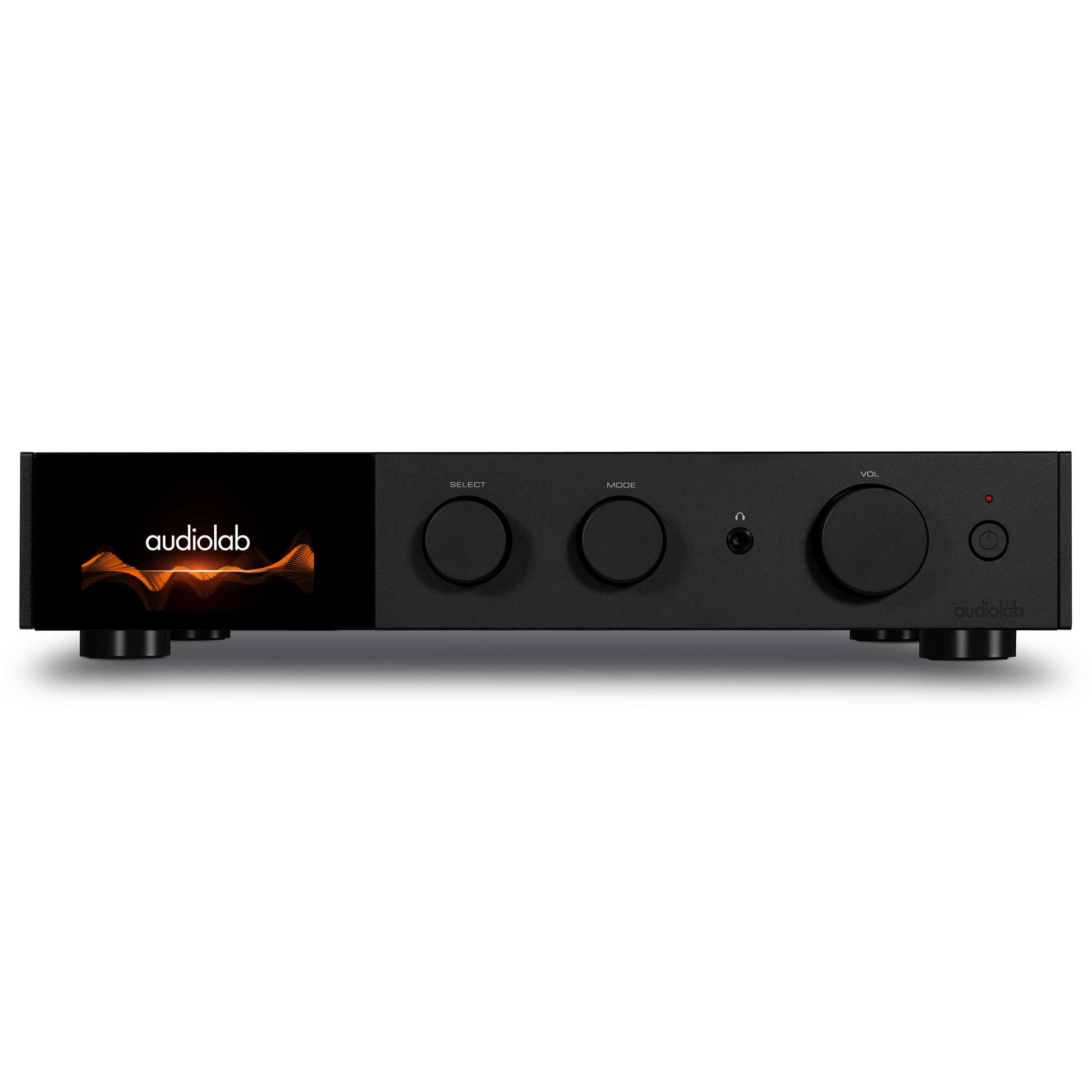

Audiolab 9000A Integrated Amplifier

Audiolab 9000A Integrated Amplifier

Regular price £1,999.00
Regular price Sale price £1,999.00
Sale Sold out
Shipping calculated at checkout.
  • Free Delivery
  • Demo Available
  • 3 year Warranty

View full details

Details

Description

Audiolab 9000A Stereo Integrated Amplifier

Audiolab’s stunning 9000A stereo amplifier makes a superb choice as the beating heart of any high-performance audio system. It's powerful, capable and feature-packed.

Versatility is key to the 9000A’s appeal, loaded with digital and analogue source connection, wireless connectivity for portable devices, an all-new phono stage to cater for vinyl playback and the usual, class-leading amplification for loudspeakers and headphones.

Power in abundance

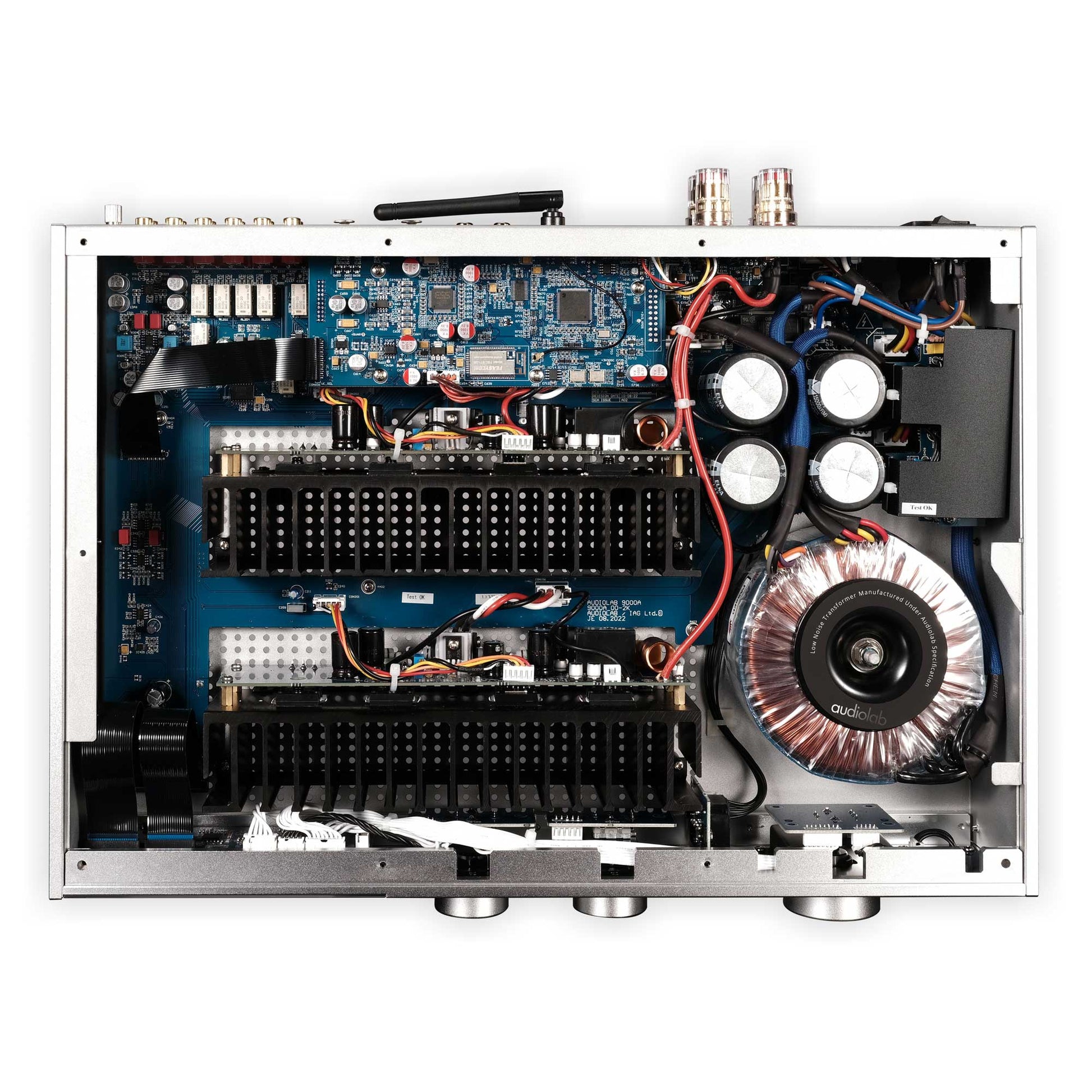

The 9000A’s all-new Class AB power amplifier offers an impressive 100w per channel into 8 ohms, more than enough power to fill the largest spaces and drive the most demanding speakers. Featuring a large toroidal transformer and quad 15,000uF output capacitors, the 9000A always has plenty in reserve.

All about the sound

As well as the impressive power, 9000A also boasts a whole array of premium Audiolab tech including their highly regarded CFB (Complementary Feedback) technology, an ESS 9038PRO flagship 32-bit DAC and state-of-the-art hi-res audio support.

Versatile connectivity

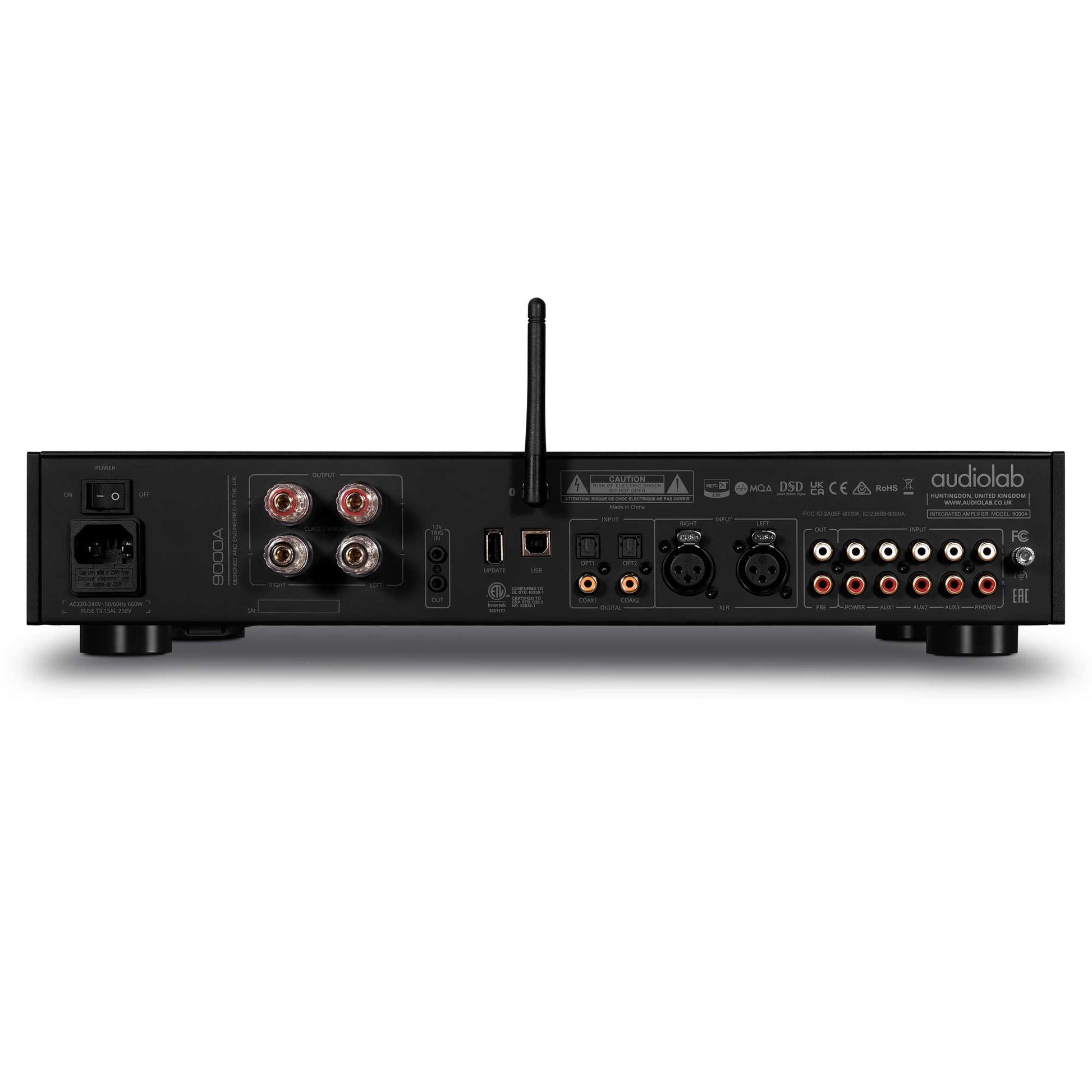

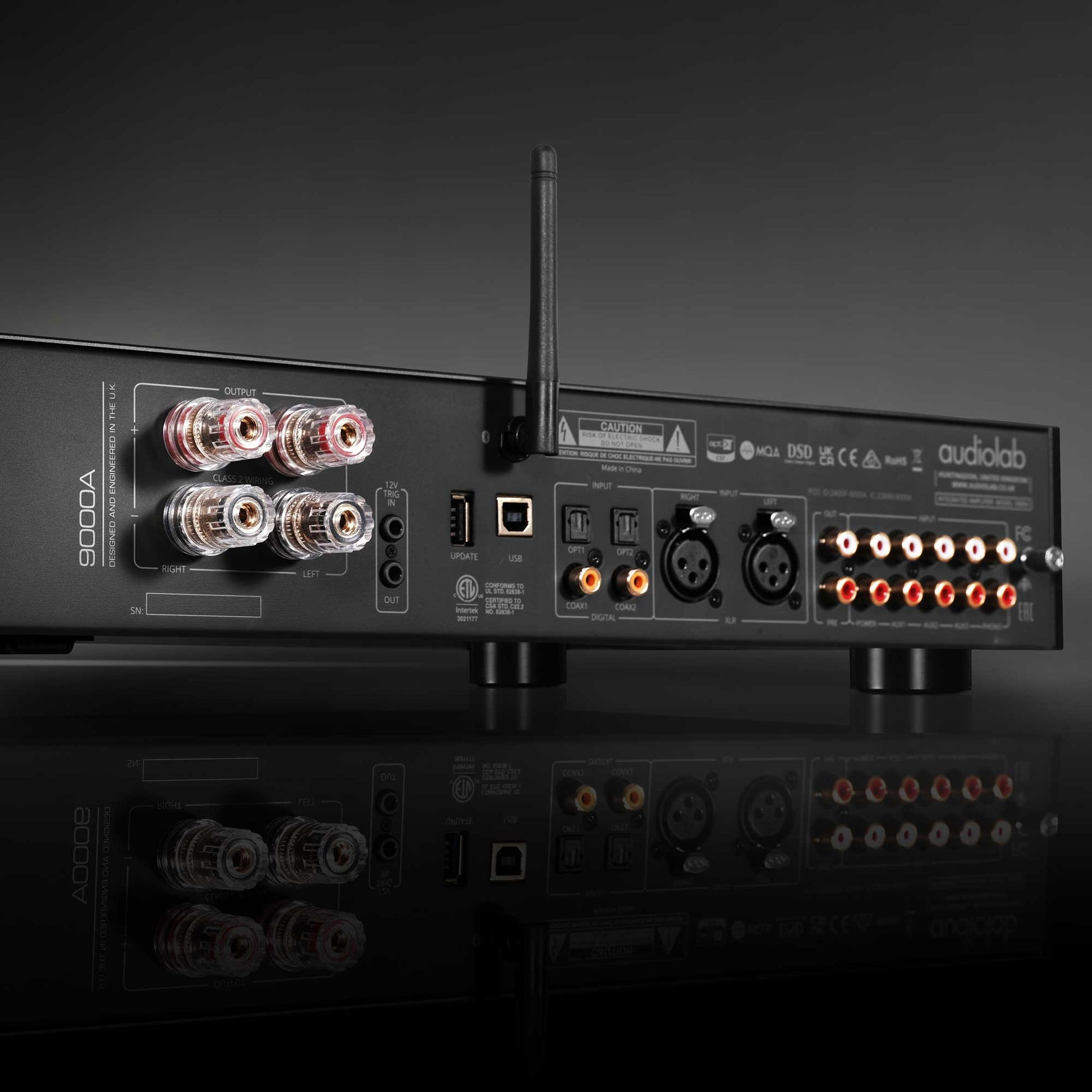

The 9000A incorporates state-of-the art digital-to-analogue signal conversion, enabling digital sources to be connected directly without an external DAC. A USB Type B input caters for PCs, Macs, smartphones, tablets and digital storage devices, alongside four S/PDIF digital inputs – two coaxial and two optical. There are also four line-level analogue inputs – three stereo RCA and one stereo XLR for balanced connectivity – plus an MM phono input for a turntable.

aptX HD Bluetooth built-in

9000A is equipped with Bluetooth aptX HD. Pair your compatible smartphone, tablet or laptop and take advantage of the high-end integrated DAC. Enjoy Hi-Res sound quality, wirelessly, perfect for streaming from your favourite music service.

High performance MM phono stage

Hook up a premium turntable and Audiolab’s 9000A will help you get the best from your precious vinyl collection. A built-in Moving Magnet (MM) phono stage with precision RIAA equalisation sets the 9000A phono stage apart from other lesser designs, unlocking all detail and emotion within those grooves.

Exceptional build and design

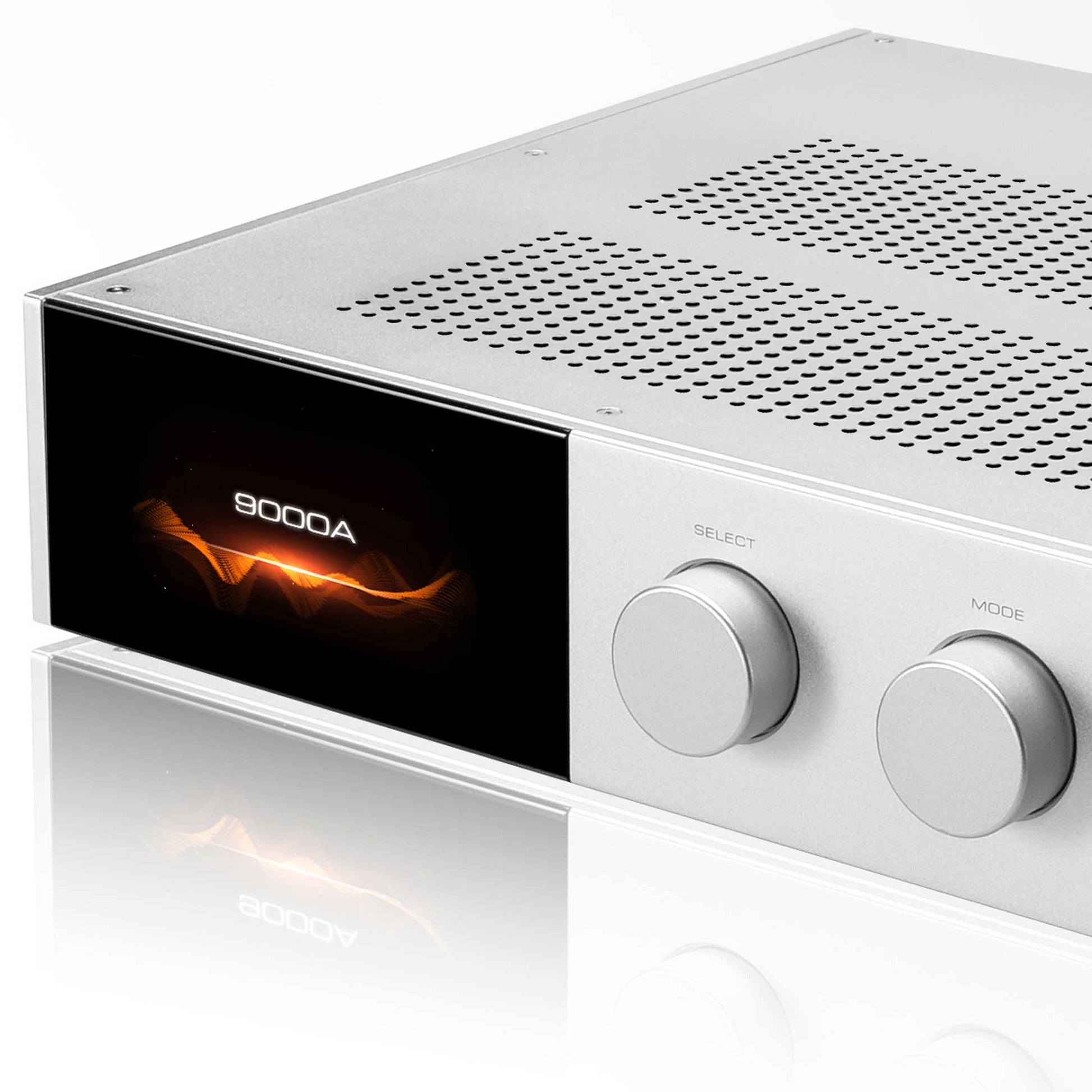

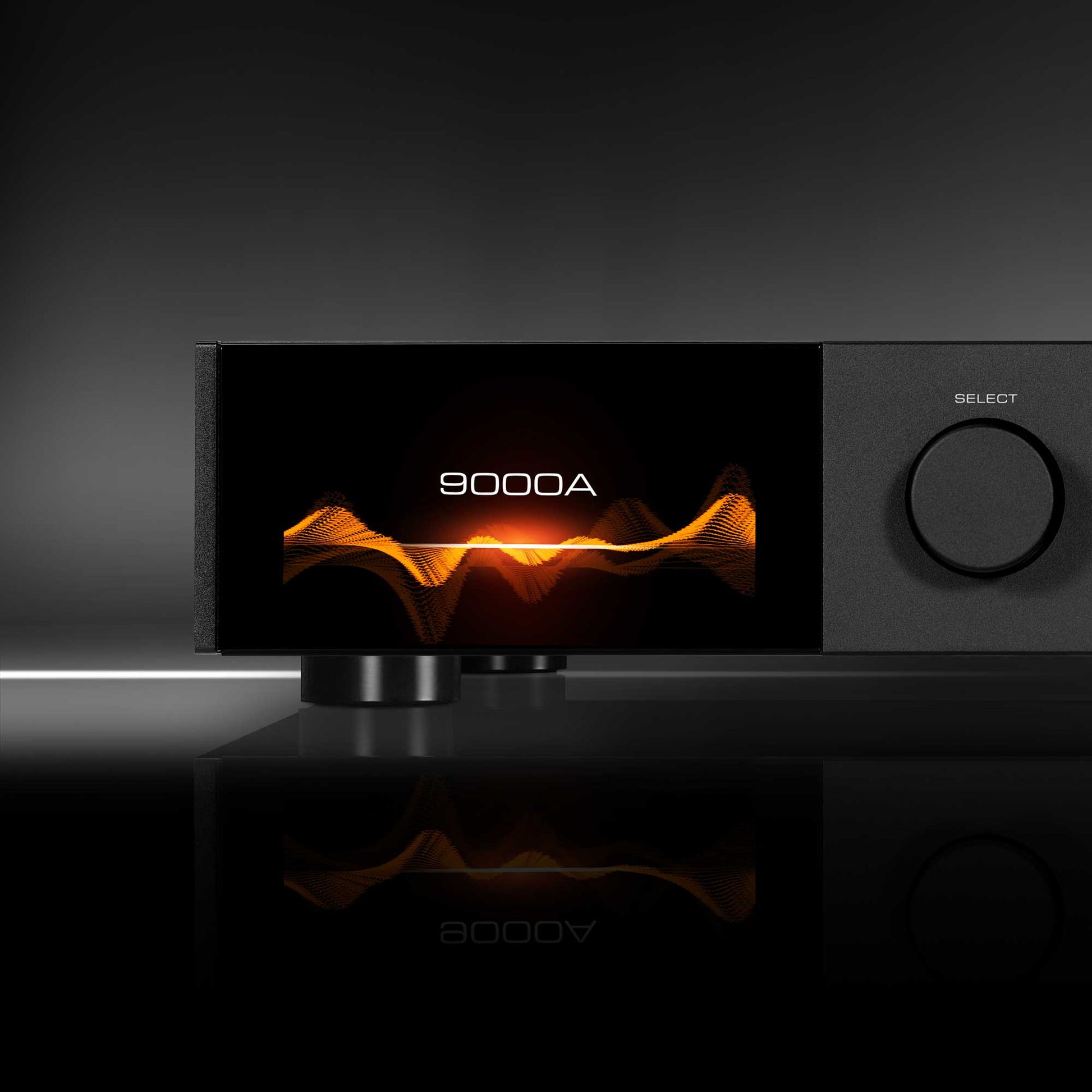

The 9000A introduces a smart new aesthetic, as befits a new flagship range. Solidly built and impeccably finished, the amp’s appearance reflects the crisp elegance and controlled muscularity of its sound. Three rotary controls and an absence of buttons (except for the power switch) give the 9000A’s fascia a clean, assured appearance, augmented with a high quality 4.3in colour screen – like a sharp Saville Row suit complemented by a perfectly appointed accessory

Specifications

Specifications



General Description

Integrated Amplifier

Design Philosophy and Core Technology

2 x 100W (8 ohms) / 2 x 160W (4 ohms) Class AB



ES9038Pro 32-bit DAC



4.3" (800 x 480mm) Large Size Full View IPS LCD



Built-in Certified MQA Full Decoder (PC USB, Coax/Optical)



Bluetooth 5.1 (aptX/aptX HD/AAC/LDAC) Support



Dedicated High-performance, Low-noise MM Phono Stage



Dedicated Current-Feedback Headphone AMP



Integrated / PRE-POWER / PRE Only Modes



USB Upgrade Support

Inputs

3 x Analogue, 1 x XLR, 1 x Phono (MM), 1 x Power Amplifier,



2 x SPDIF (Coax), 2 x SPDIF (Optical), 1 x PC USB (USB B),



1 x Bluetooth (aptX/aptX HD/LDAC), 1 x 12V Trigger

Outputs

1 x PRE Amplifier,1 x Stereo Speaker, 1 x Headphone, 1 x 12V Trigger

Sampling Frequency

Optical / Coaxial: 44.1kHz-192kHz;



PC USB: 44.1kHz-768kHz (PCM) / DSD64, DSD128, DSD256, DSD512

Preamplifier Section



Gain (max.)

+6dB (Line), +53dB (Phono MM)

Input Sensitivity

1Vrms (Line, Volume = 0dB);



2Vrms (XLR, Volume = 0dB), 4.4mV (Phono MM, Volume=0dB)

Input Impedance

10K (Line); 47K // 100pF (Phono MM)

Total Harmonic Distortion (THD)

< 0.0004% (1kHz @ 2V, Volume = 0dB)

Frequency Response

20Hz-20kHz (+/-0.1dB)

Output Voltage

2.3V max. (Volume = 0dB)

Output Impedance

120 ohms

Signal-to-Noise Ratio

> 110dB (Line & XLR, A-weighted); > 80dB (Phono MM, A-weighted)

DAC



D to A Converter

ES9038Pro

Total Harmonic Distortion (THD)

< 0.001% (1kHz @ 0dBFS)

Output Level (0dBFS, 1kHz)

2.1Vrms

Max. Sampling Frequency

Optical, Coaxial: 192kHz;



PC USB: PCM768kHz, DSD512

Signal-to-Noise Ratio (S/N)

> 117dB (A-weighted)

Power Amplifier Section



Gain

+29dB

Rated Power Output

2 x 100W (8 ohms, THD<1%);



2 x 160W (4 ohms, THD<1%)

Frequency Response

20Hz-20kHz (+/-0.3dB)

Total Harmonic Distortion (THD)

<0.002% (1kHz @ 50W / 8 ohms)

Input Sensitivity

1Vrms

Signal-to-Noise Ratio (S/N)

> 110dB (A-weighted)

Max. Output Current

15A

Headphone Amplifier



Total Harmonic Distortion (THD)

< 0.01% (1kHz, 50mW )

Output Impedance

2.35 ohms

Load Impedance

20-600 ohms

General



Standby Power Consumption

<0.5W

Net Weight

9.4kg

Gross Weight

11.2kg

Dimensions (mm) (W x H x D)

444 x 89 x 342

Carton Size (mm) (W x H x D)

514 x 470 x 161

Finish

Black / Silver

Power Requirements

220-240V ~ 50/60Hz;

(depending on region)

100-120V ~ 50/60Hz

Standard Accessories

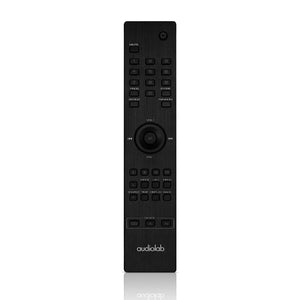

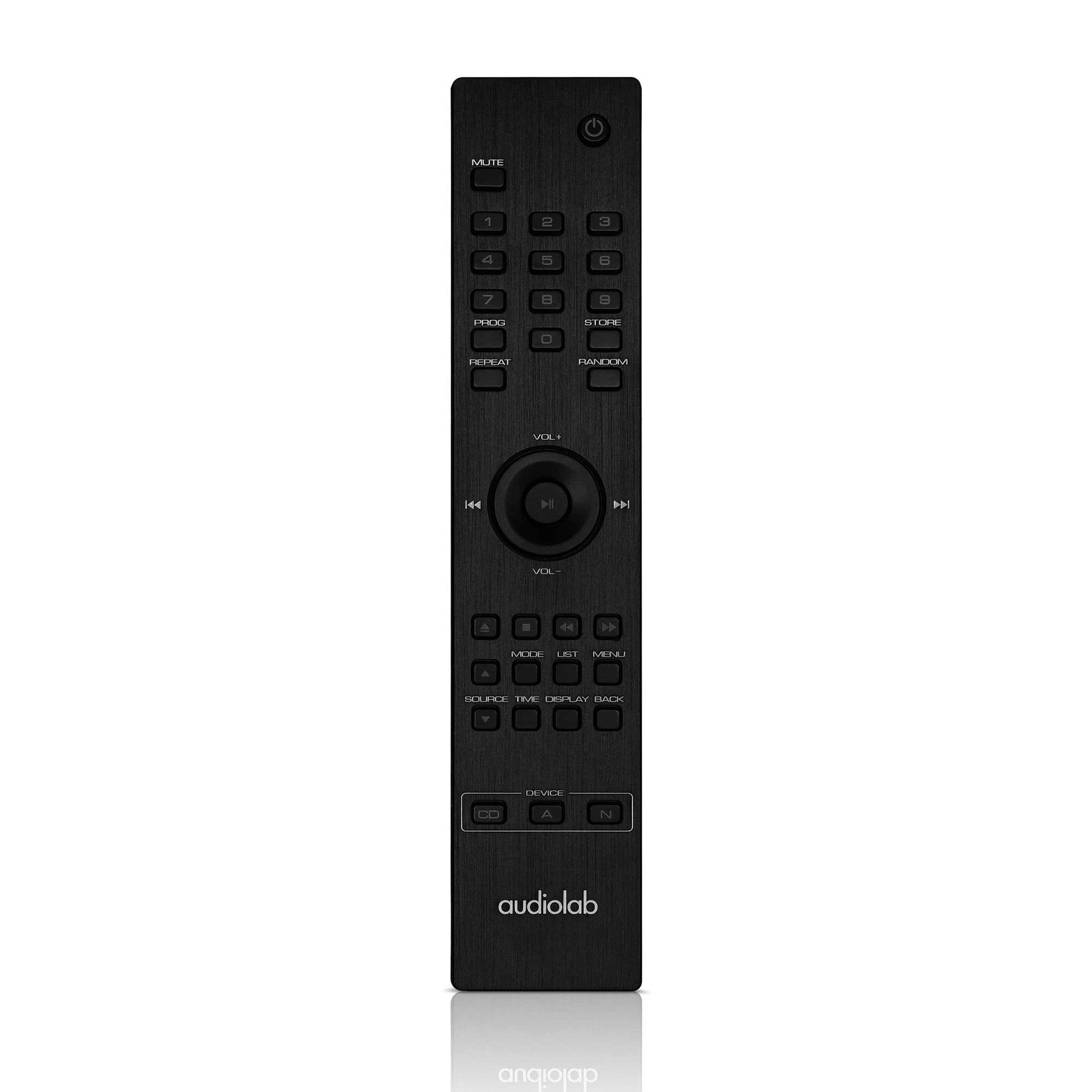

Power Cord, Remote Control, User Manual, Antennas, etc.
