Audiolab 9000P Power Amplifier
Featuring the power amplification from the highly regarded 9000A, the Audiolab 9000P is a dedicated power amplifier that offers not only substantial power but also excellent flexibility. Designed to match perfectly with the 9000Q pre-amplifier this powerhouse will deliver stunning sound quality with excellent dynamic range.
Audiophile Performance
With an impressive 100 watts per channel into 8 ohms, the 9000P delivers powerful, room-filling sound through its Class AB amplifier. This robust performance is made possible by a high-capacity toroidal transformer and quad 15,000uF output capacitors, ensuring a consistent reserve of power. The result? Effortlessly deep bass, dynamic volume capabilities, and rich, full-bodied sound even at lower listening levels. No matter the room size or speaker load, the 9000P rises to the occasion.
Scalable Power
While already remarkable in stereo mode, the 9000P reaches a new level when configured in 'bridged' mode - this effectively creates a monoblock amplifer. Pair two 9000P's together and the power output leaps to an astonishing 300 watts per channel. This upgrade delivers exceptional speaker control, expansive soundstaging, and unparalleled depth even with the most demanding speakers or largest rooms.
Flexible Connectivity

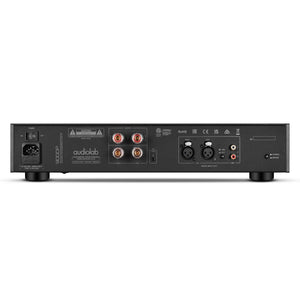

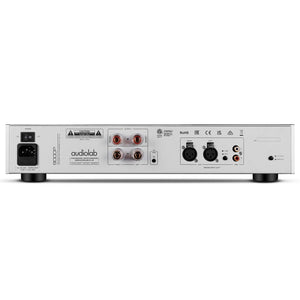

To ensure seamless integration with a variety of pre-amps, the 9000P offers both RCA and studio-grade XLR balanced inputs. Using the XLR balanced inputs enhances resistance to electrical interference, particularly over longer cable runs, ensuring a cleaner, more reliable signal.
Premium Build and Design

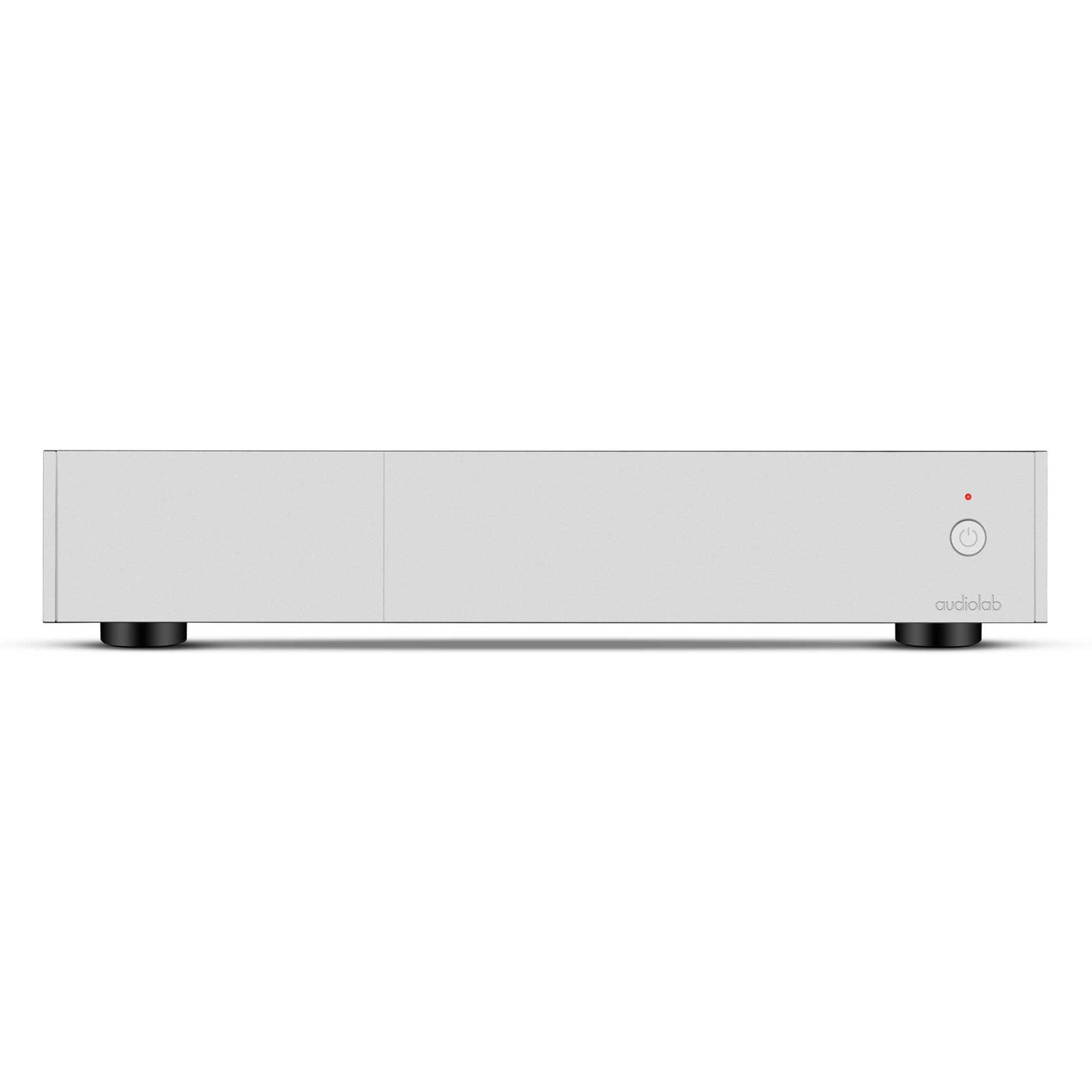

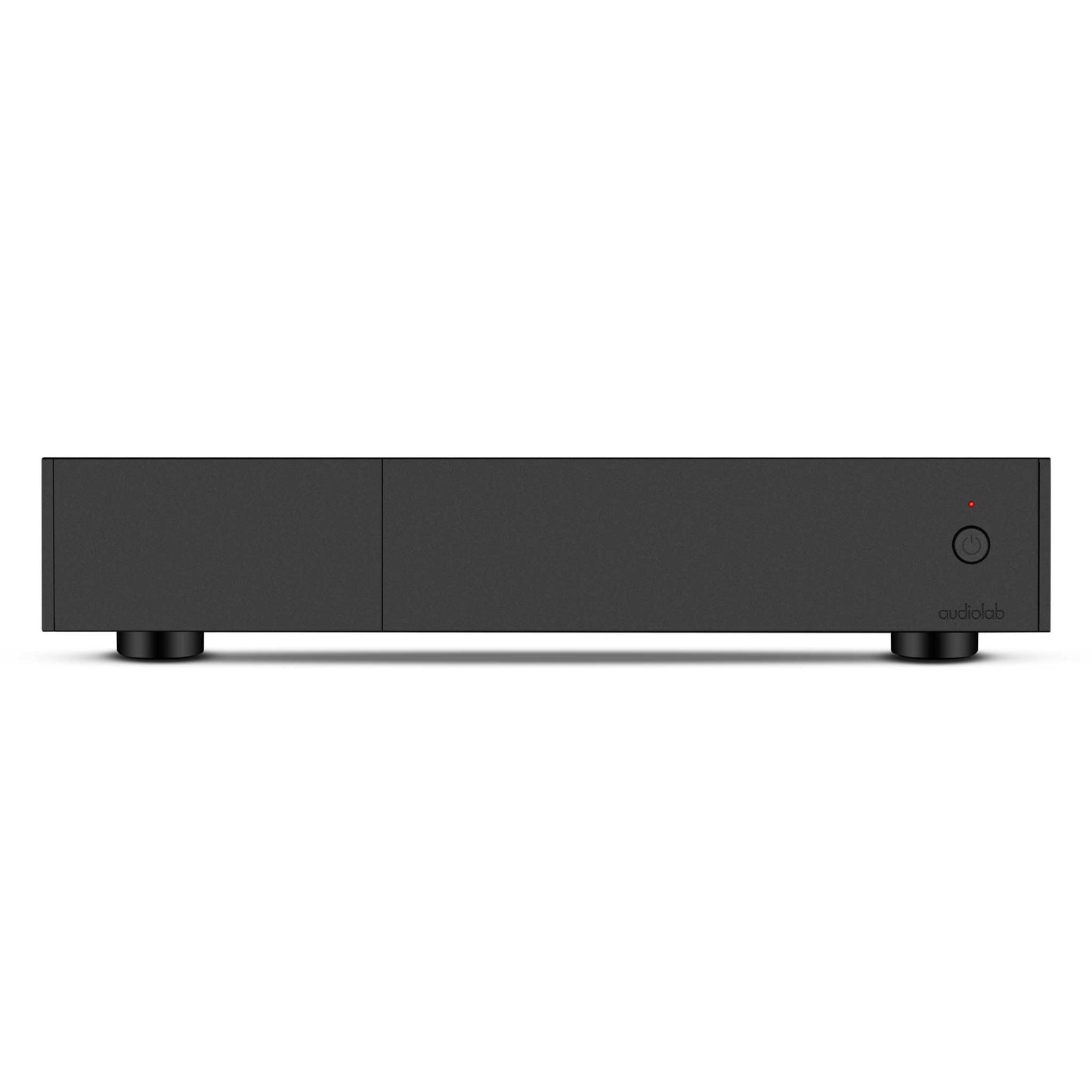

Crafted with full metal construction and an aluminium front panel, the 9000P combines luxurious aesthetics with practical durability. This design minimizes both electrical and mechanical interference while perfectly complementing other Audiolab components. Available in sophisticated black or silver finishes, the 9000P offers style that matches its substance.
Specifications
Specifications
Model |
9000P |
General Description |
Power Amplifier |
Design Philosophy and Core Technology |
Class AB power amplifier |
CFB (Complementary Feedback Technology) |
|
Stereo/Bridge mode |
|
Inputs |
1 x Analogue, 1 x XLR, 1 x 12V Trigger |
Outputs |
1 x Stereo Speaker |
Power Amplifier Section (STEREO) |
|
Gain |
29dB (RCA) / 23dB (XLR) |
Rated Power Output |
Stereo: 2 x 100W (8 ohms, THD <1%) |
Stereo: 2 x 160W (4 ohms, THD <1%) |
|
Bridged (Mono): 300W (8 ohms, THD <1%) |
|
Bridged (Mono): 380W (4 ohms, THD <1%) |
|
Frequency Response |
20Hz - 20kHz (+/-0.3dB) |
Total Harmonic Distortion (THD) |
<0.002% (1kHz) |
Input Sensitivity |
1Vrms (RCA) |
2Vrms (XLR) |
|
Input Impedance |
10k ohms |
Signal-to-Noise Ratio (S/N) |
> 112dB (A-weighted) |
Max. Output Current |
15A |
General |
|
Standby Power Consumption |
<0.5W |
Net Weight |
9.2kg |
Gross Weight |
10.6kg |
Dimensions (mm) (W x H x D) |
444 x 90 x 327 mm |
Carton Size (mm) (W x H x D) |
514 x 165 x 470 mm |
Finish |
Black/Silver |
Power Requirements (depending on region) |
220-240V - 50/60Hz |
100-120V - 50/60Hz |
|
Standard Accessories |
Power Cord, User Manual |
