HiFi Rose RS520 Streaming Audio System

HiFi Rose RS520 Streaming Audio System

Regular price £3,399.00
Regular price £3,399.00 Sale price £3,399.00
-0% Sold out
Shipping calculated at checkout.
  • Free Delivery
  • Demo Available

View full details

Details

Description

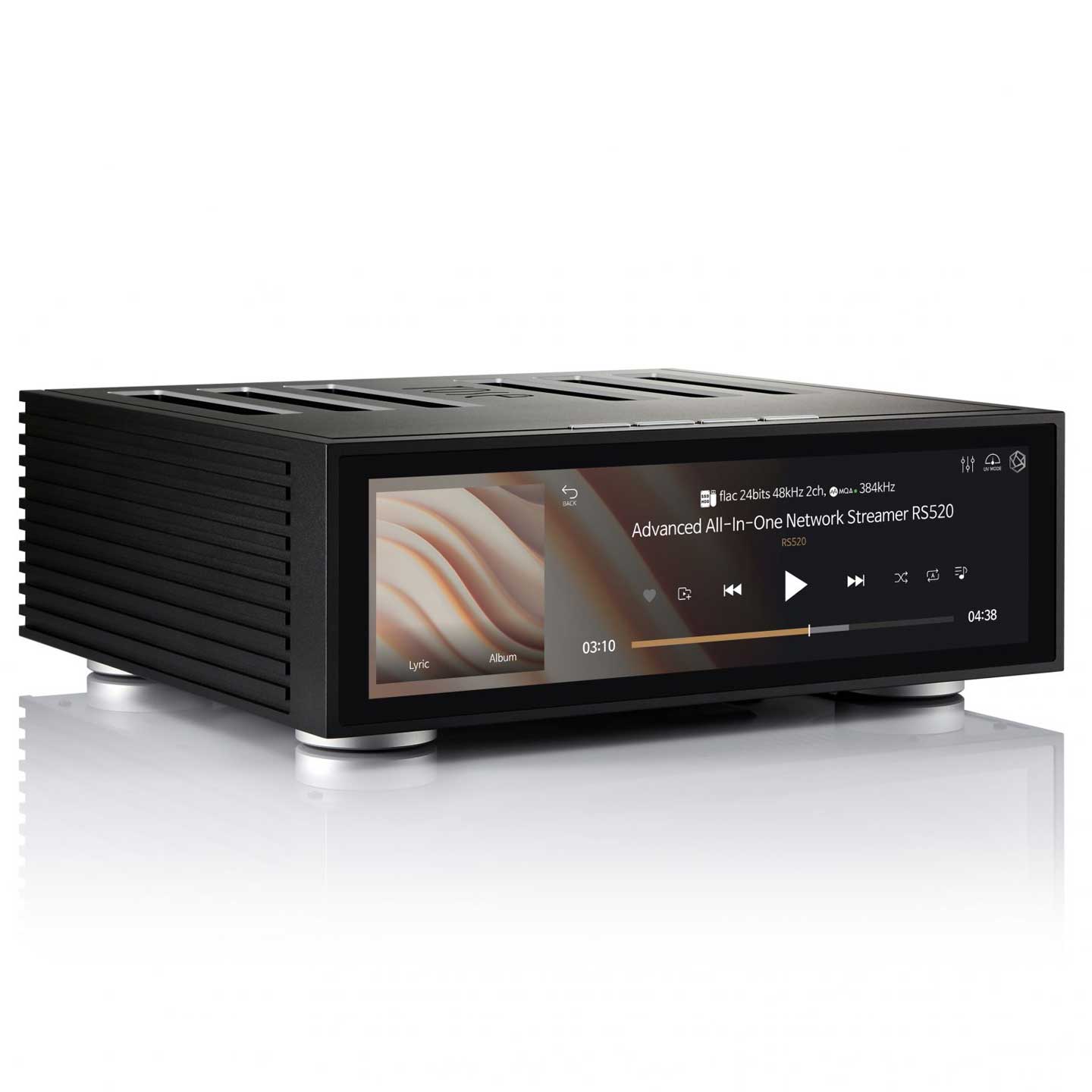

HiFi Rose RS520 Streaming Audio System

The RS520 is a true one-box solution that has been meticulously crafted to deliver a performance that rivals traditional multi-box systems. Thanks to an advanced hybrid amplifier design the RS520 will happily drive even the most demanding speakers, delivering a beautifully balanced, natural sound quality.

Premium Build Quality

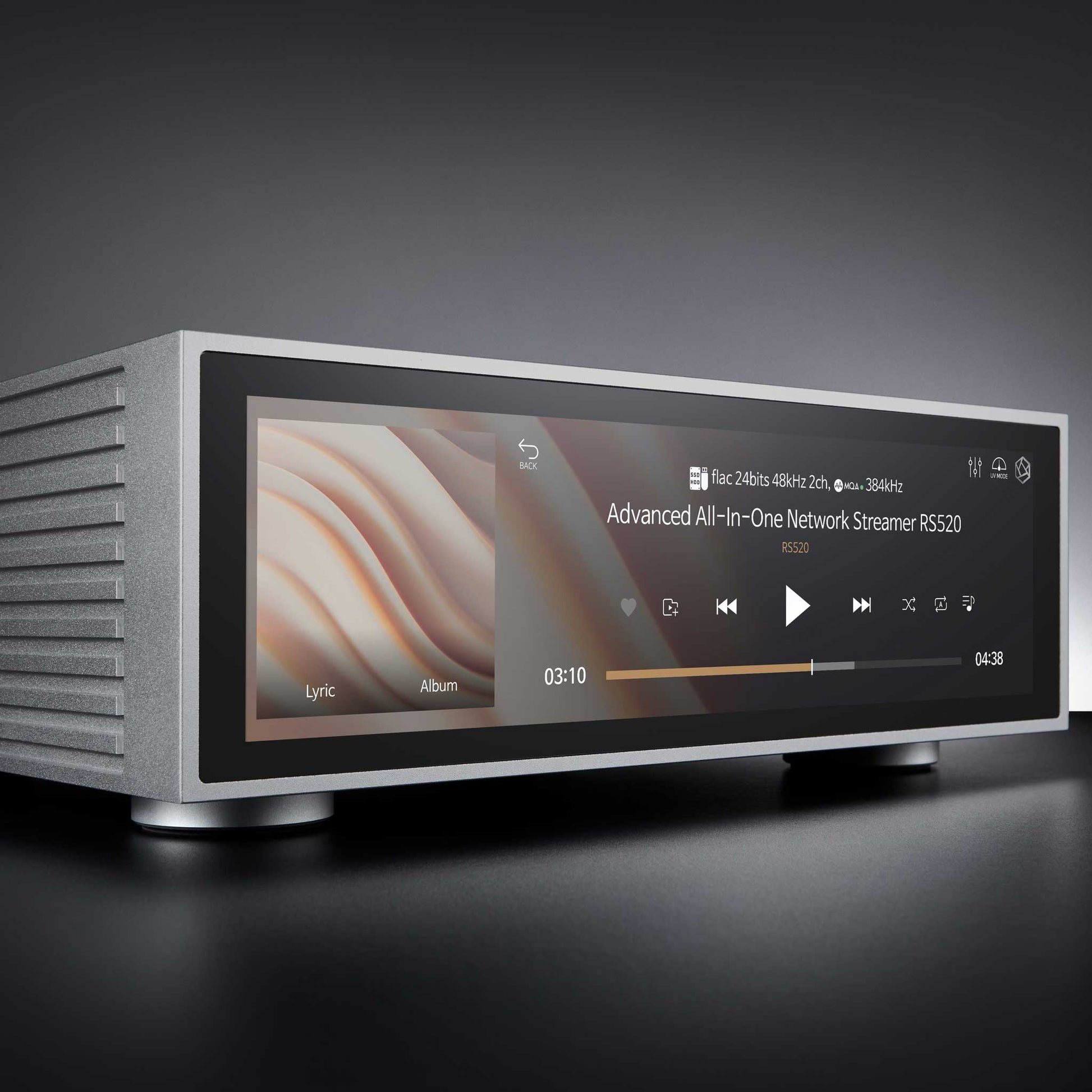

Four surfaces of the RS520’s elegant housing are made from one piece of high-durability aluminium, reducing the number of separate parts required to produce the casework. This “one piece” production method dramatically reduces the risk of vibrations transferring through the body and significantly reduces standing-waves, which can affect the end sound quality.

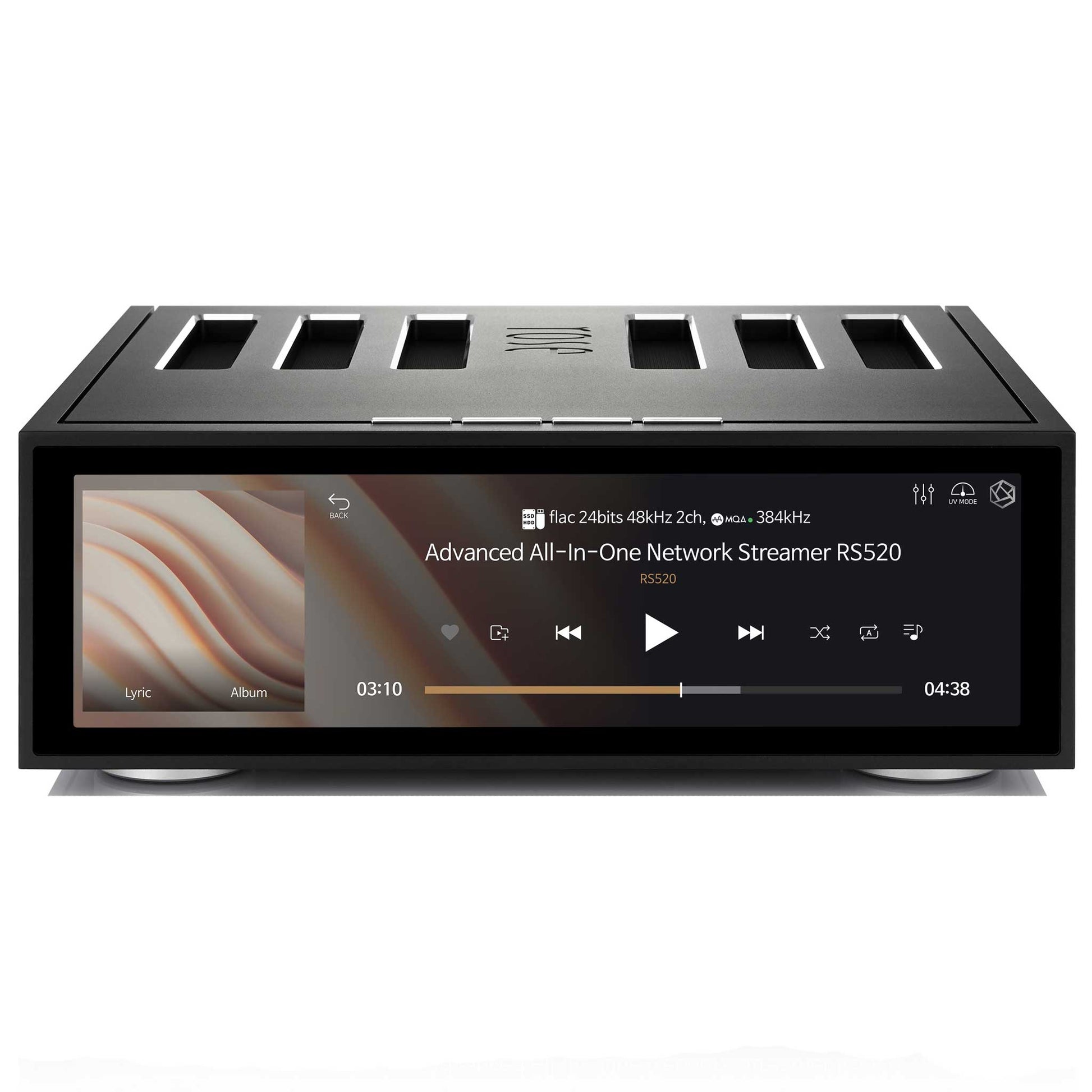

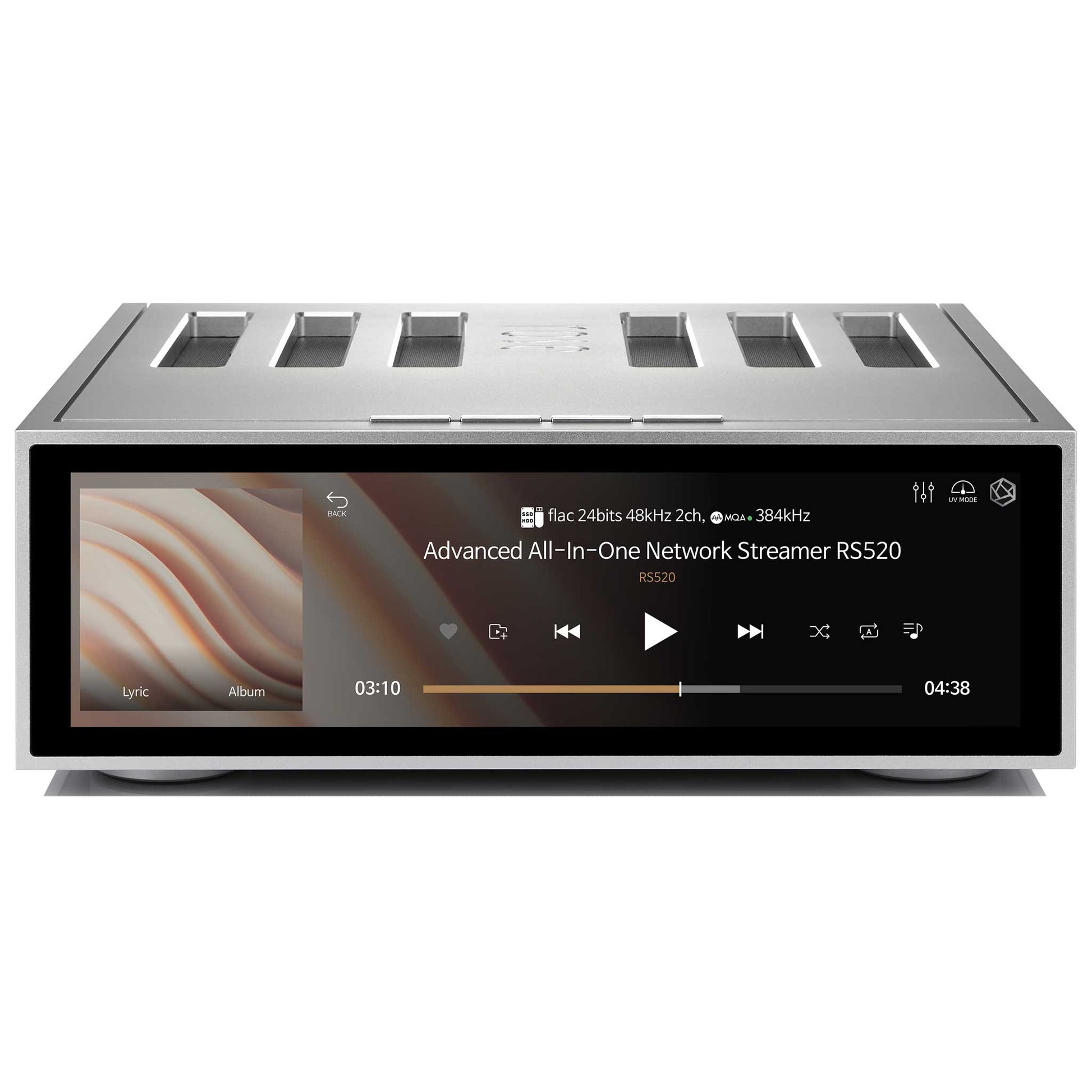

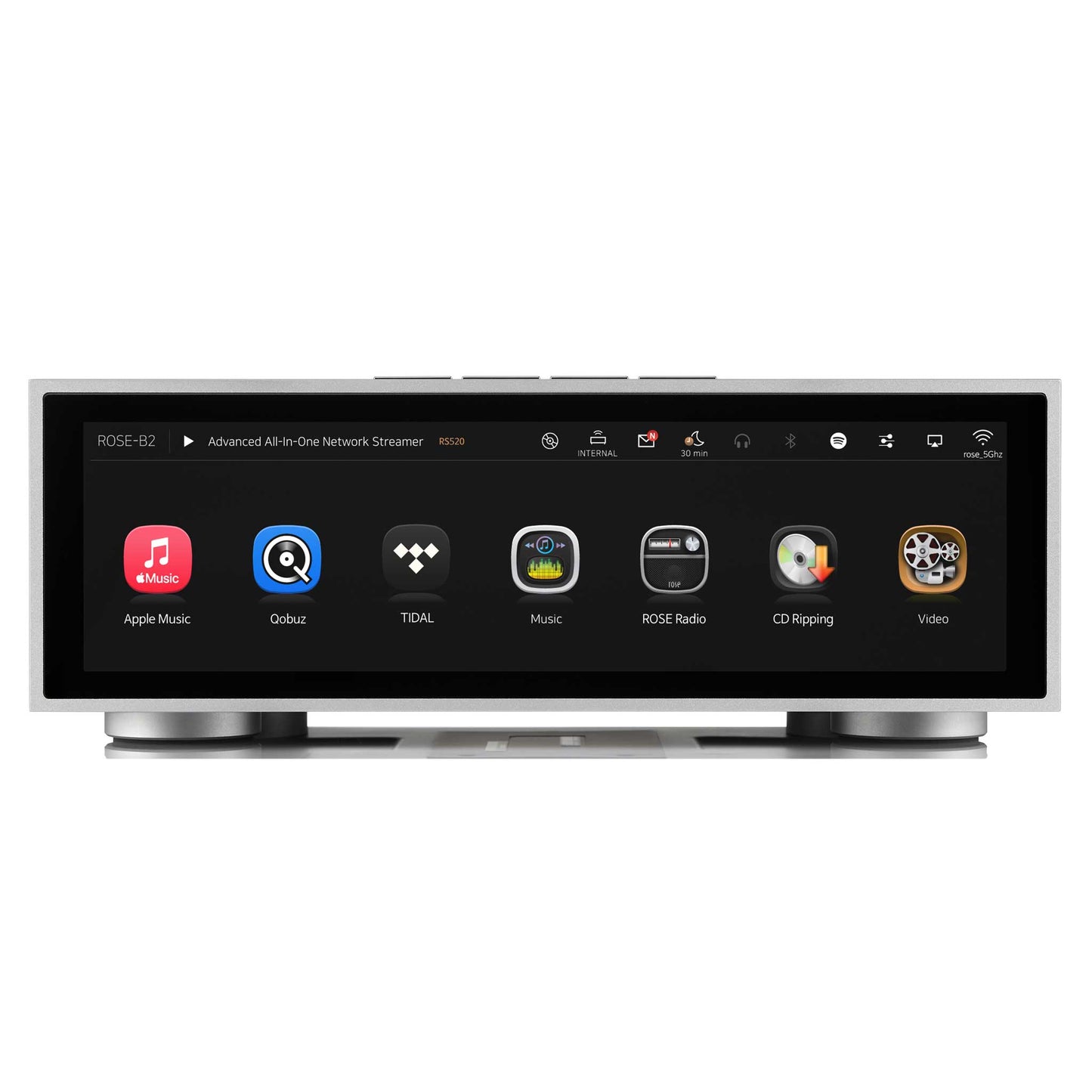

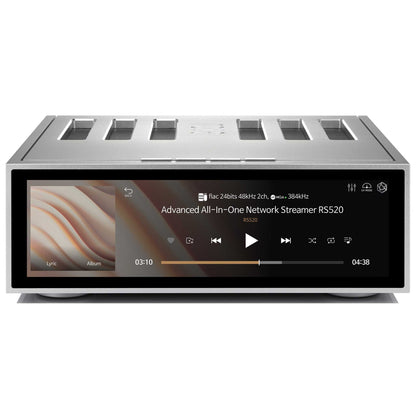

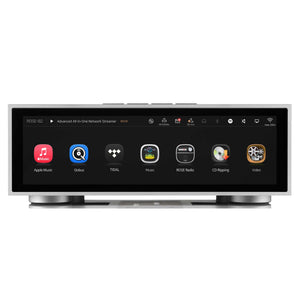

Like other Rose devices, the RS520 is instantly recognisable by its striking 12.6” high resolution colour touch-screen display. This unique design not only looks superb, bringing cover art to life, it also delivers an enjoyable and intuitive way to control and interact with your system. Core transport controls can also be found on top of the RS520, for ease of use.

Engineered for Sound

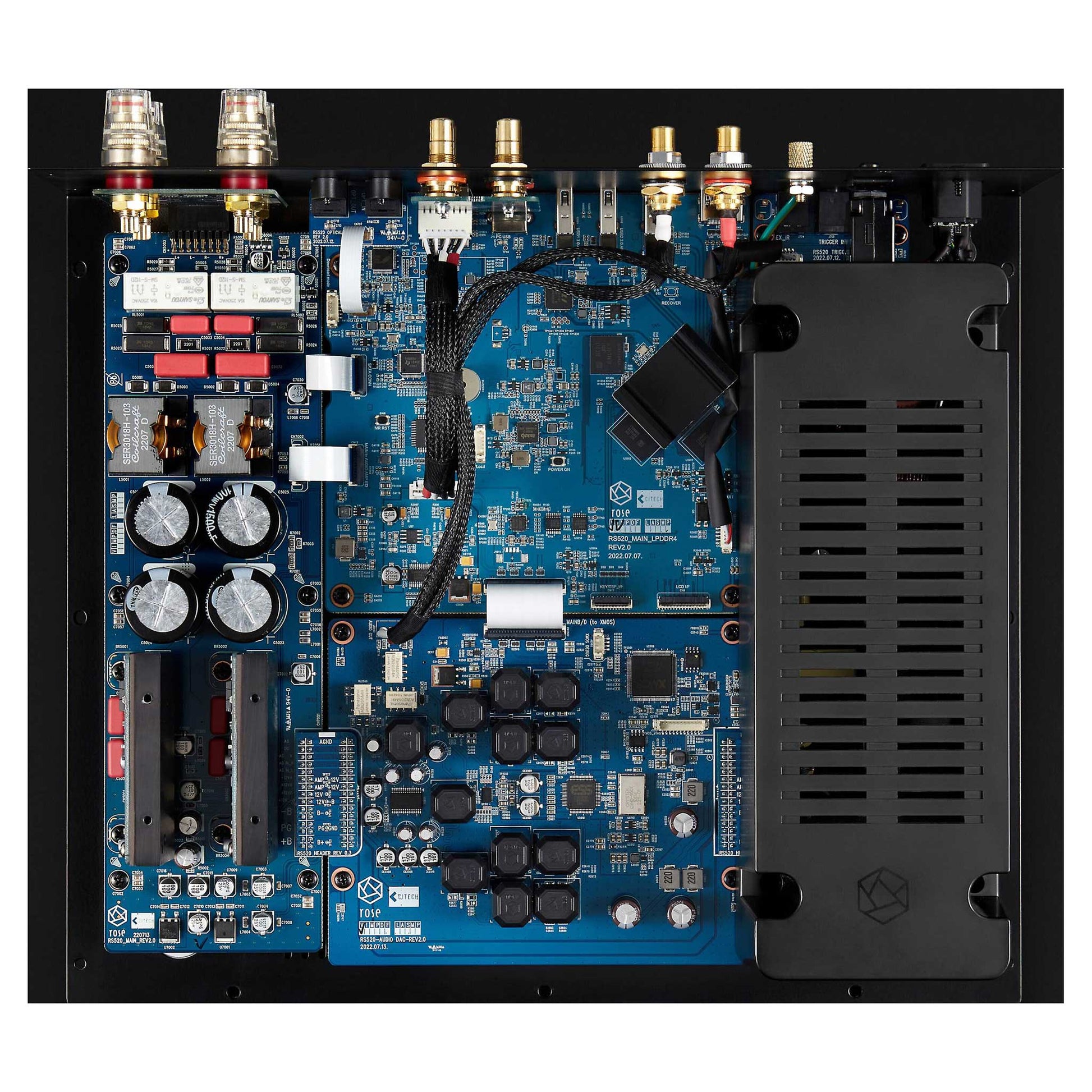

Every aspect of the Rose RS520 has been engineered to deliver the best sound quality possible. Internally, key functions are split across separate boards with individual power feeds for optimised operation. Within the digital stage, Rose have used the class-leading ESS ES9038PRO DAC whilst in the 250W per-channel power amplifier stage, the same Class AD technology found in the RA180 amplifier has been used. This advanced hybrid amplifier technology delivers impressive power with a warm, natural tone, like a pure analogue amplifier.

Powered by Rose OS

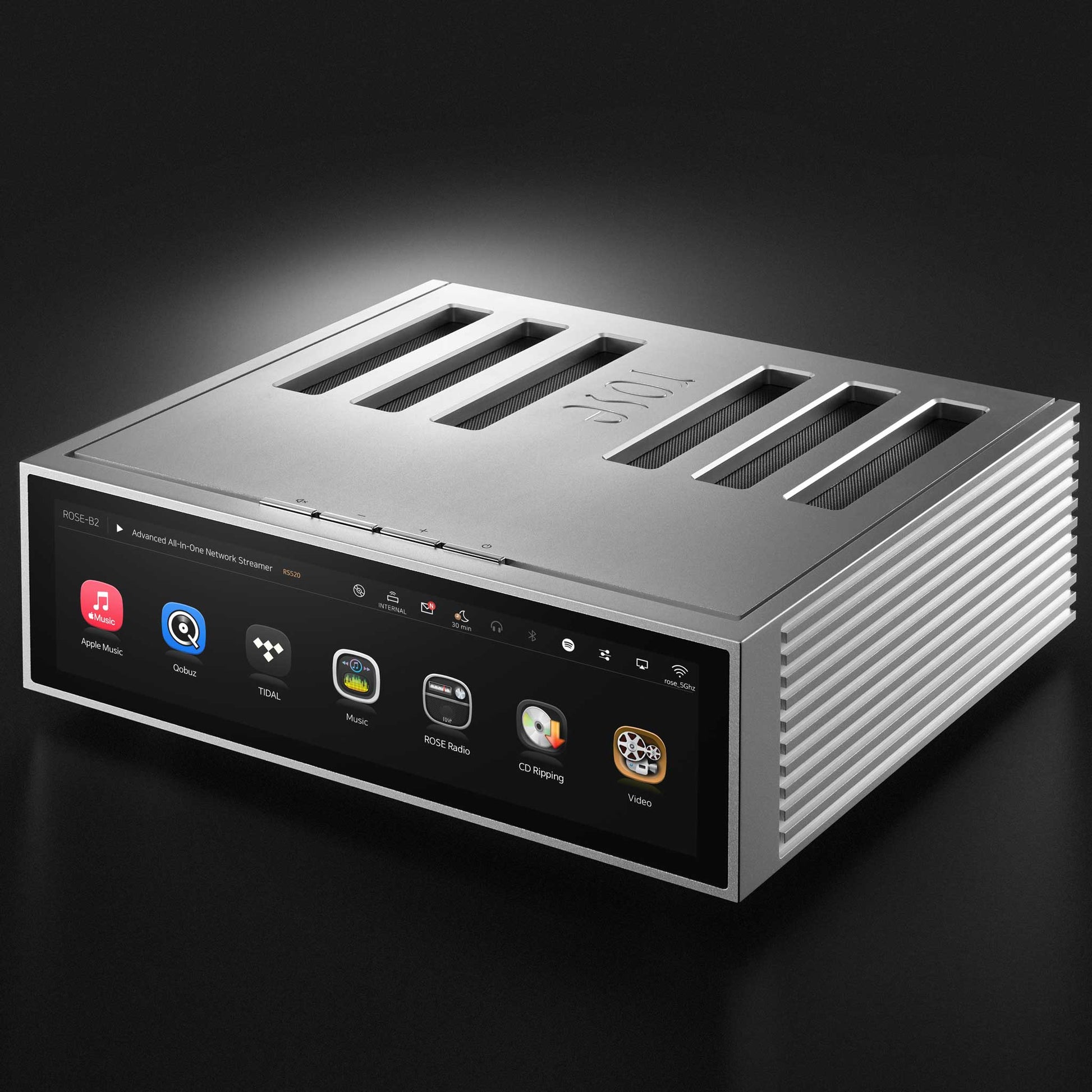

At the centre of each HiFi Rose streamer is Rose OS, a purpose-designed operating system that brings countless features to your fingertips. Incorporating popular streaming services like Tidal, Apple Music, Spotify and Qobuz alongside industry-leading technologies such as Hi-Res Audio playback, Apple AirPlay, DLNA plus Roon and MQA support.

Versatile Connectivity

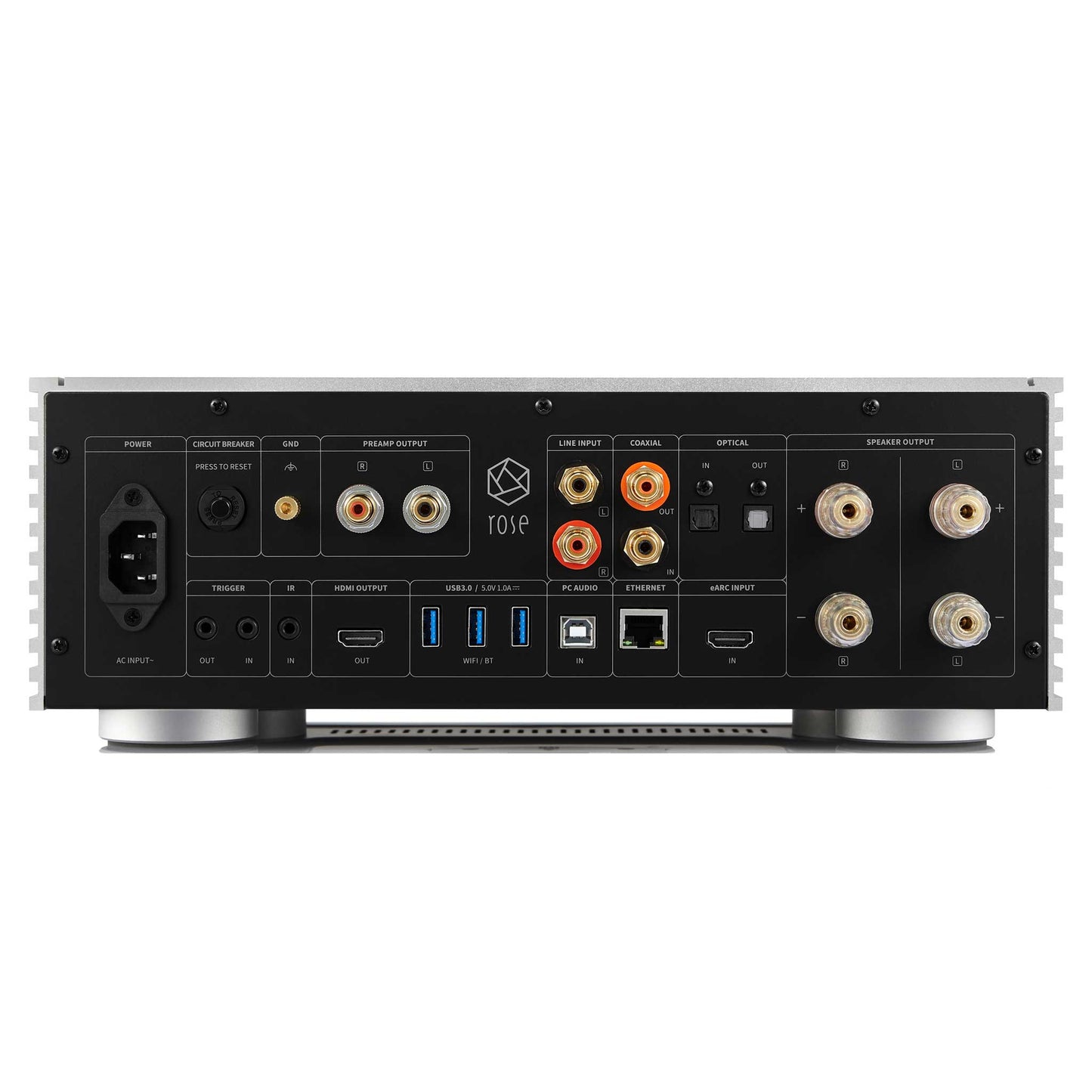

The RS520 offers a plethora of input and output options of both the digital and analogue varieties. If you’re planning on connecting “legacy” digital sources, you have the option of coaxial, optical, and USB connections, plus an HDMI-arc input for connecting the RS520 to a smart TV or projector. Coaxial and optical outputs are also provided should you wish to use the RS520 as a (very capable) standalone streamer, connected to an external DAC. A pair of analogue RCA line inputs can be used for connecting other sources - such as a turntable - to the RS520, and a pair of RCA pre-outs give you the flexibility of adding a subwoofer or using the RS520 as a preamplifier with an external power amplifier of powered speakers.

Stunning Design

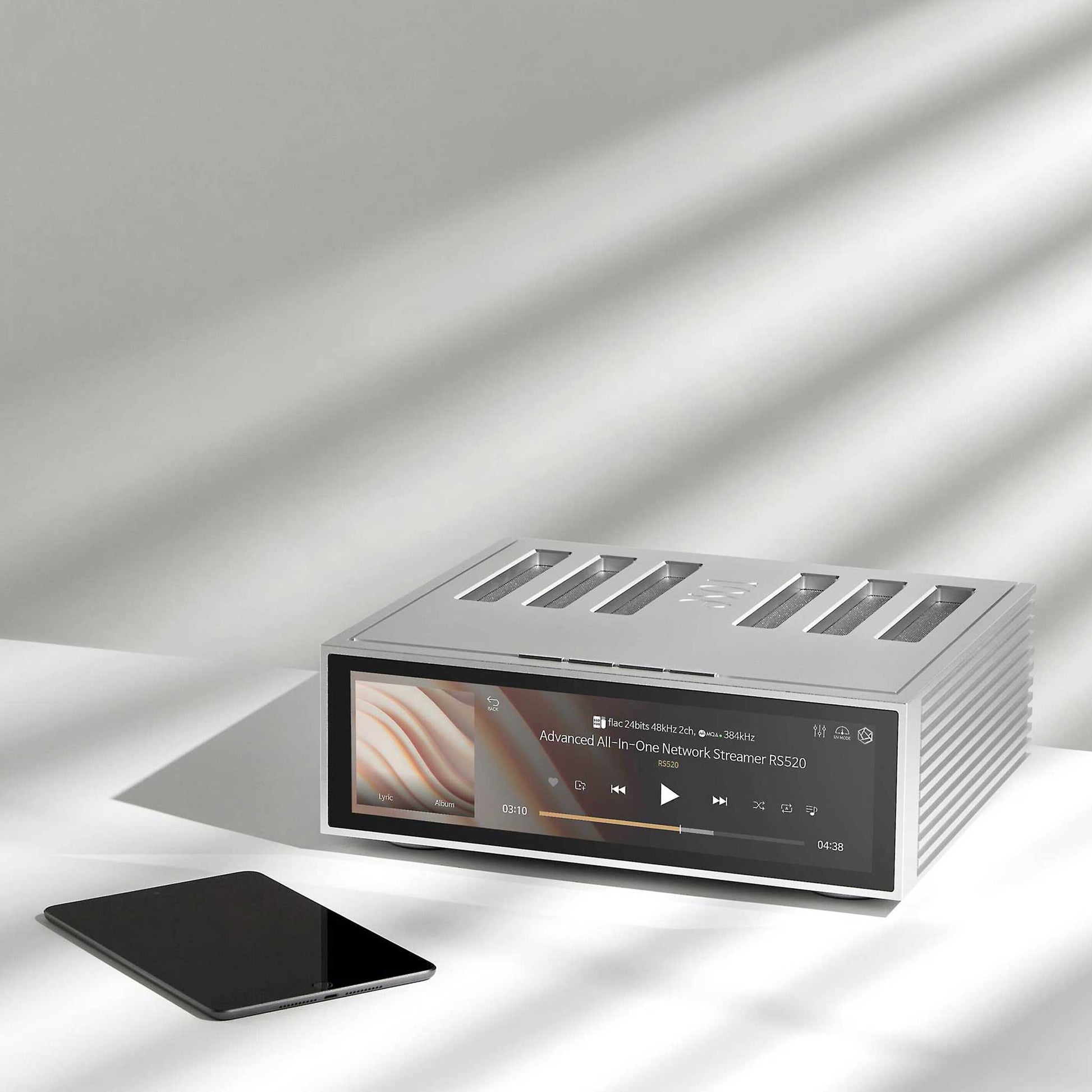

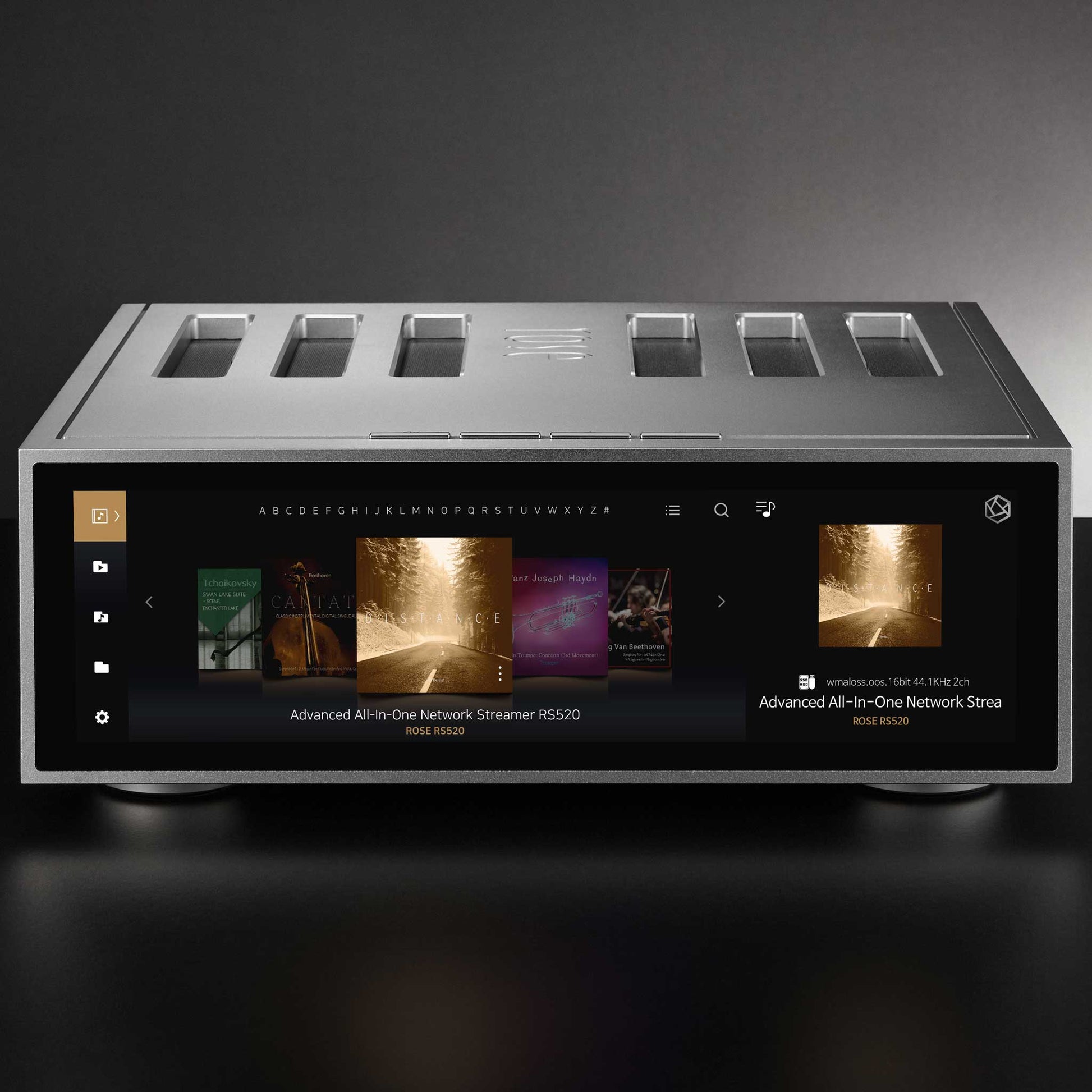

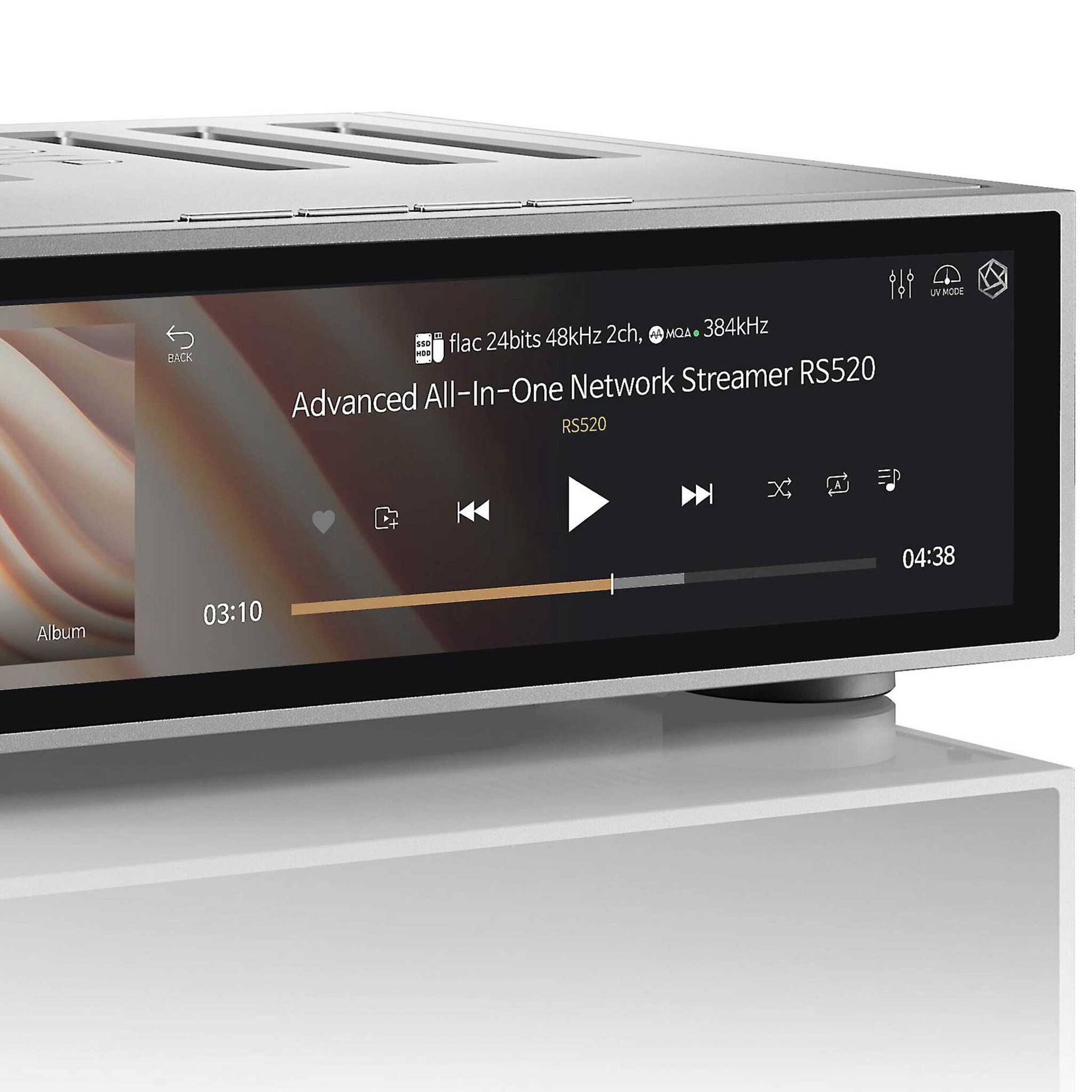

There’s no doubt that the combination of the incredibly-vivid high-res screen and the minimally-sleek aluminium chassis makes the Rose RS520 one of the best-looking Hi-Fi products on the market. It exudes a premium, “high-tech” feel, while also looking modern and minimalist. In addition to its basic settings and album cover art, the RS520’s screen can display a wide range of video and graphic displays, offer a wide degree of customisation in terms of how you want it to look. If you’re a fan of vintage amps with VU meters, then you’ll definitely want to keep one of the VU display functions on while listening to music. You can also make the most of the RS520’s impressive display when it’s not in use with an elegant clock and live weather display.

Specifications

Specifications

Supported Streaming Services

Spotify Connect, Tidal, Qobuz, Apple Music, RoseTube and Rose Podcast Supported

Internet Radio Support

HiFi Rose Internet Radio App

Apple AirPlay Support

Yes

MQA Compatibility

Full MQA Decoding

Roon Support

Roon Ready + Roon Tested

Media Connection Options

USB + SATA

Network Connectivity

Wi-Fi (with dongle) & Ethernet

Audio Codecs Supported

WAV, FLAC, ALAC, AIFF, WMA, MP3, OGG, APE, DFF, DSF, AAC, CDA, AMR, APE, EC3, E-EC3, MID, MPL, MP2, MPC, MPGA, M4A Supported

CPU Specifications

Hexa Core: Dual-core Cortex-A72 up to 1.8GHz / Quad-core Cortex-A53 up to 1.4GHz

GPU

Mali-T864 GPU, OpenGL ES 1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11

Memory

LPDDR4 4GB

Display

12.6" TFT LCD & Capacitive Touch Screen (eDP)

Power Output (4Ω)

(Per-Channel) 250 W

Power Output (8Ω)

(Per-Channel) 250 W

Frequency Response

+1, -3dB (10Hz - 83kHz)

Damping Factor

150

Tone Control

Software Adjustable

Signal To Noise Ratio

(Speaker Output @ 250W) 109 dB

Output Level (Unbalanced):

Max. 2 V

THD +N

(Speaker Output @ 50W) 0.007 %

Output Impedance

(Speaker Output) 0.05 Ω

Oscillator

High Precision Femto Clock

RCA Input(s)

1

Bluetooth Version

V4.2 (USB Dongle)

HDMI Input(s)

eARC Input

Optical Input(s)

1

Coaxial Input(s)

1

USB Digital Input

1 x USB 2.0

DAC Chip

ES9038 PRO

File Limit Support (PCM)

32-bit, 768kHz

File Limit Support (DSD)

DSD512

Digital Output(s)

Coaxial, Optical, USB

HDMI Output(s)

1

Output Options

Switch variable output to fixed level

Variable Analogue Output(s)

1 x RCA Pair

Video Output Formats

ASF, AVI, MKV, MP4, WMV, MPEG-1, MPEG-2, MPEG-4 H.263, H.264, H.265, VC-1, VP9, VP8, MVC,H.264/AVC (Base/Main/High/ High10 profi le @ level5.1 upto 4Kx2K @ 30fps) H.265/HEVC (Main/Main10 profi le @ level 5.1 High-tier up to 4Kx2K @ 60fps) Supported

App Control

Rose Hi-Fi

Dimensions (W x H x D)

346 x 127 x 328 mm

Weight

8.1kg
