Discover True Home Cinema Sound with the JBL MA510
The JBL MA510 AV receiver offers fantastic versatility with support for the latest HDMI specifications as well as comprehensive music streaming facilities.
Immersive Surround Sound
Boasting 5.2 channels, the MA510 supports front and rear left and right speakers, a centre speaker, and up to two active subwoofers. This setup not only surrounds you with sound but also provides crisp, clear dialogue from the dedicated centre speaker. For larger rooms or awkward spaces you can use twin subwoofers to ensure more even bass distribution around the room.
4K/120Hz and 8K compatible HDMI inputs with eARC
Featuring four 4K/120Hz/8K compliant HDMI inputs, the MA510 AVR is the perfect companion for the latest generation games consoles. As part of the HDMI interface support, eARC is now also standard. This enables uncompressed audio transmission from an eARC compatible TV, back to the receiver to ensure that you are getting the best audio quality from any smart TV apps and services you may use.

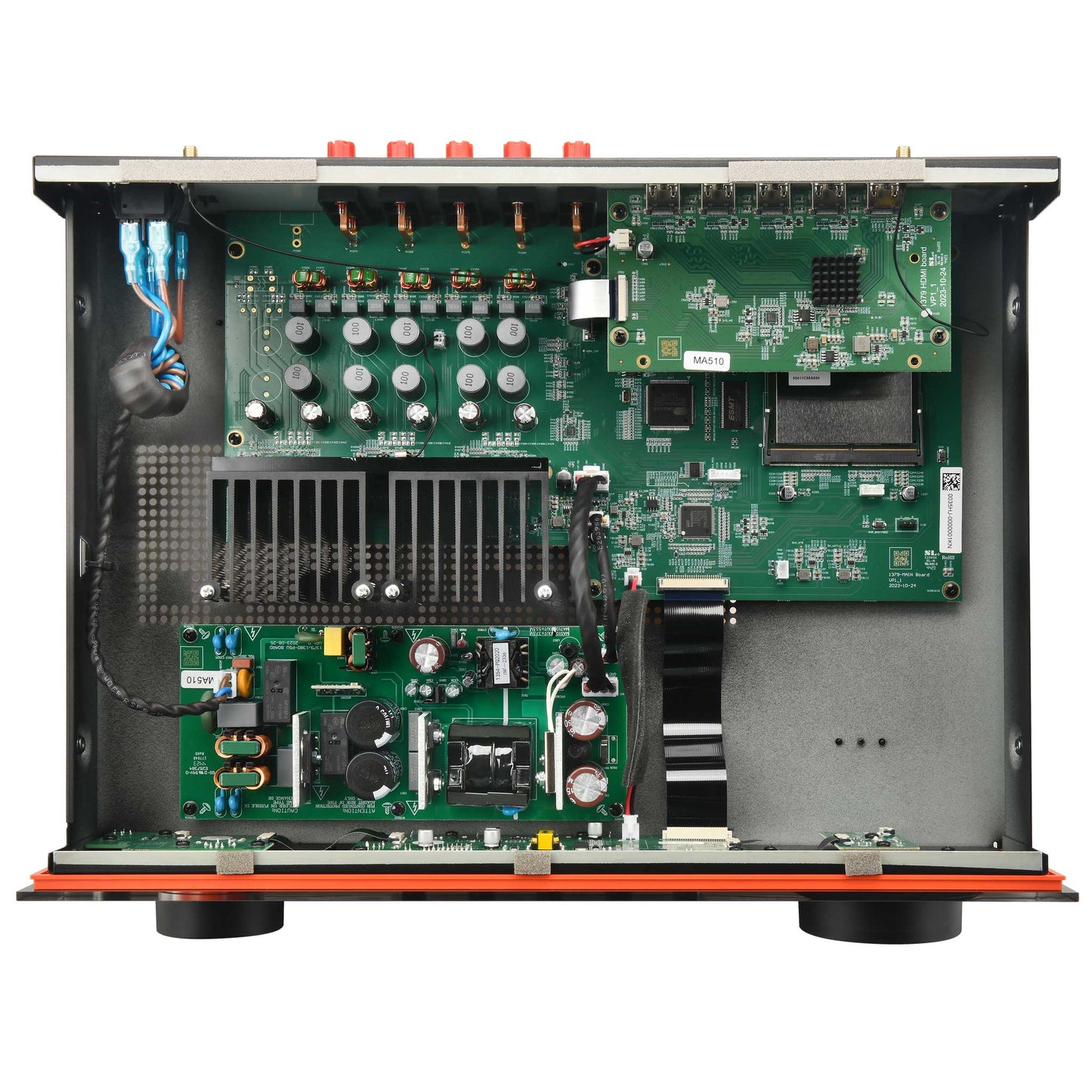

Class D Digital Amplification
The MA510’s fully digital amplification keeps it cool and is energy-efficient. With a power output of 75 watts per channel the MA510 is perfect for medium sized rooms, easily outperforming most soundbars.
Versatile Music Streaming
With Bluetooth, AirPlay 2 and Google Chromecast built-in, you can easily pair the MA510 with your smartphone, tablet, or laptop to stream music wirelessly. Connect the MA510 via the built-in Wi-Fi and enjoy quick and easy access to your stored music or stream from popular services like Spotify, Tidal or Apple Music. When Wi-Fi isn’t available just connect using Bluetooth.
Simple setup with EZ Set EQ App
The free EZ Set EQ app simplifies room equalisation, optimising sound quality for your room. This one-time calibration process takes just a few minutes, collecting room acoustics data from each speaker.
Comprehensive AV System Connectivity

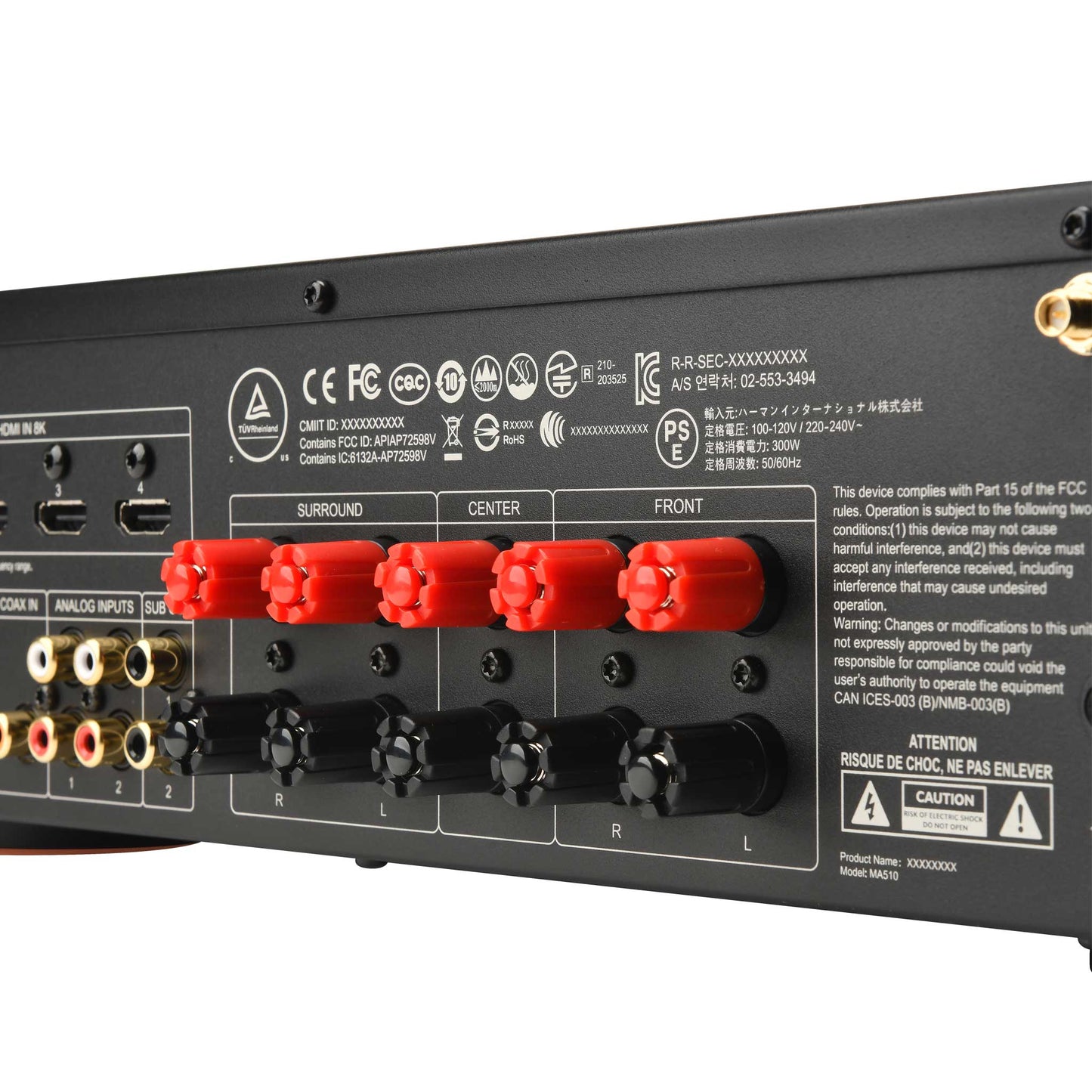

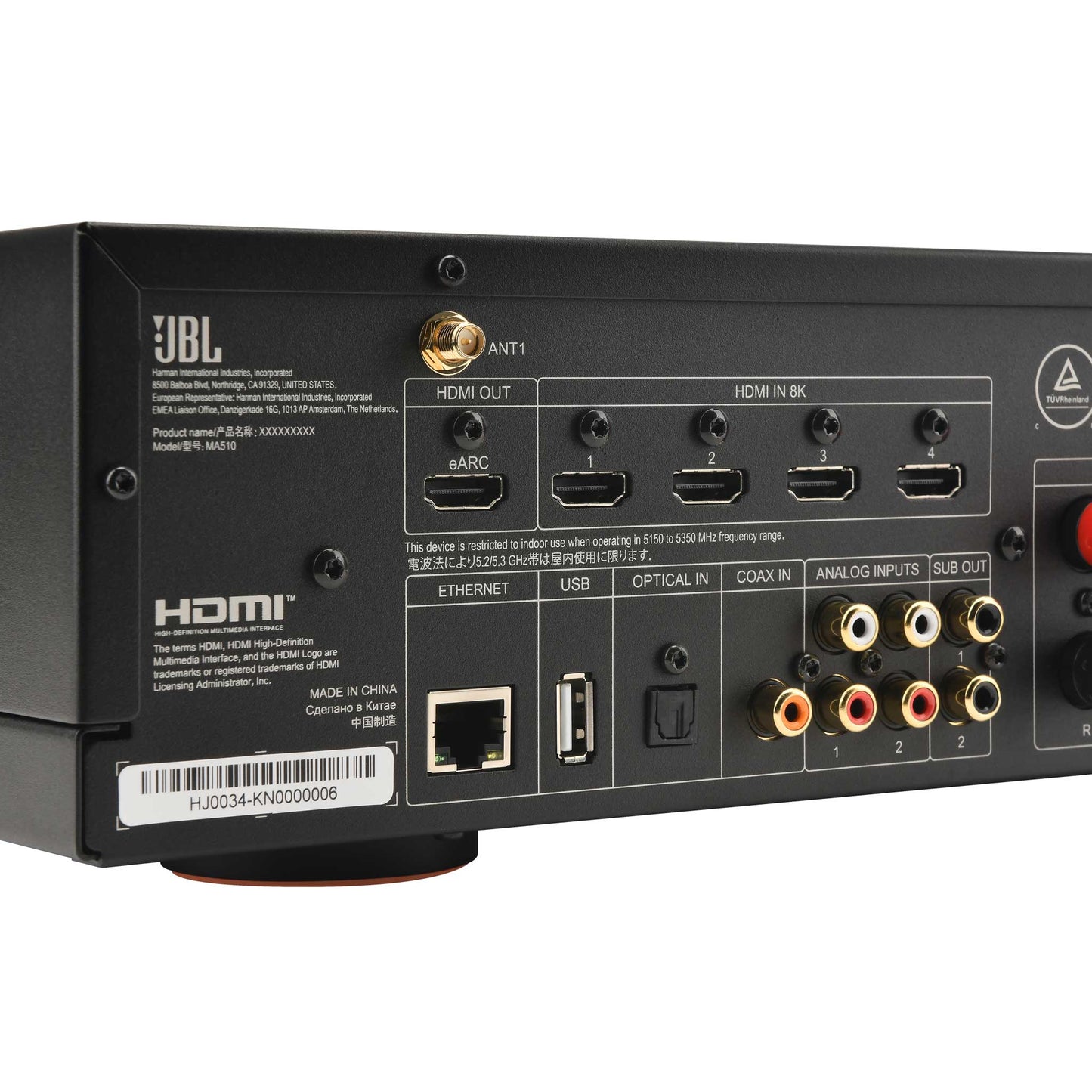

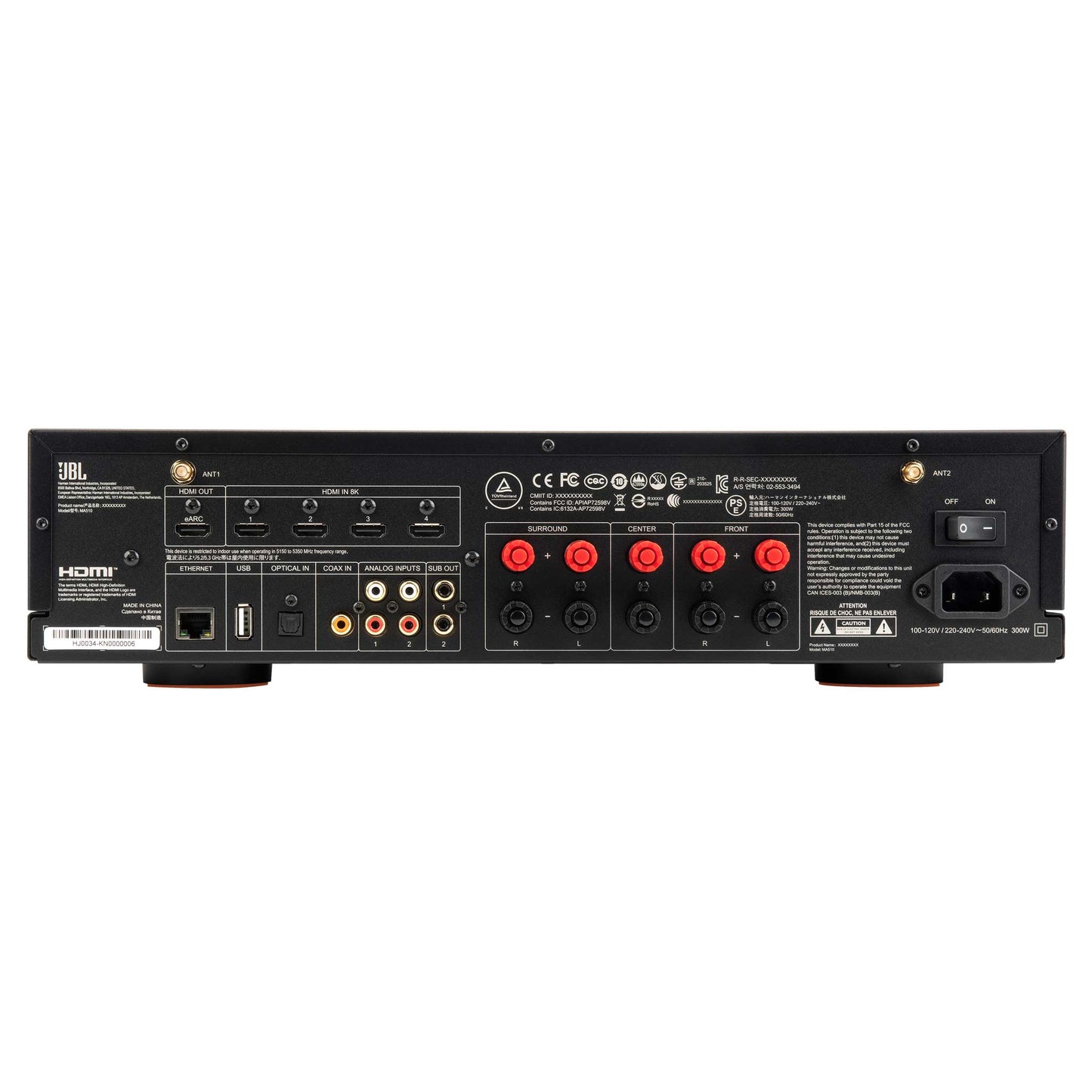

The MA510 is designed to be the hub of your AV system, connecting your TV to your entire AV system. It features four HDMI inputs (latest v2.1) for devices like game consoles, set-top boxes, Blu-ray players and more. Coaxial and optical digital inputs are perfect for adding a CD player or network streamer, while analogue inputs accommodate sources without digital outputs. This JBL AVR offers the flexibility to connect a variety of devices.
Modern, Contemporary Design

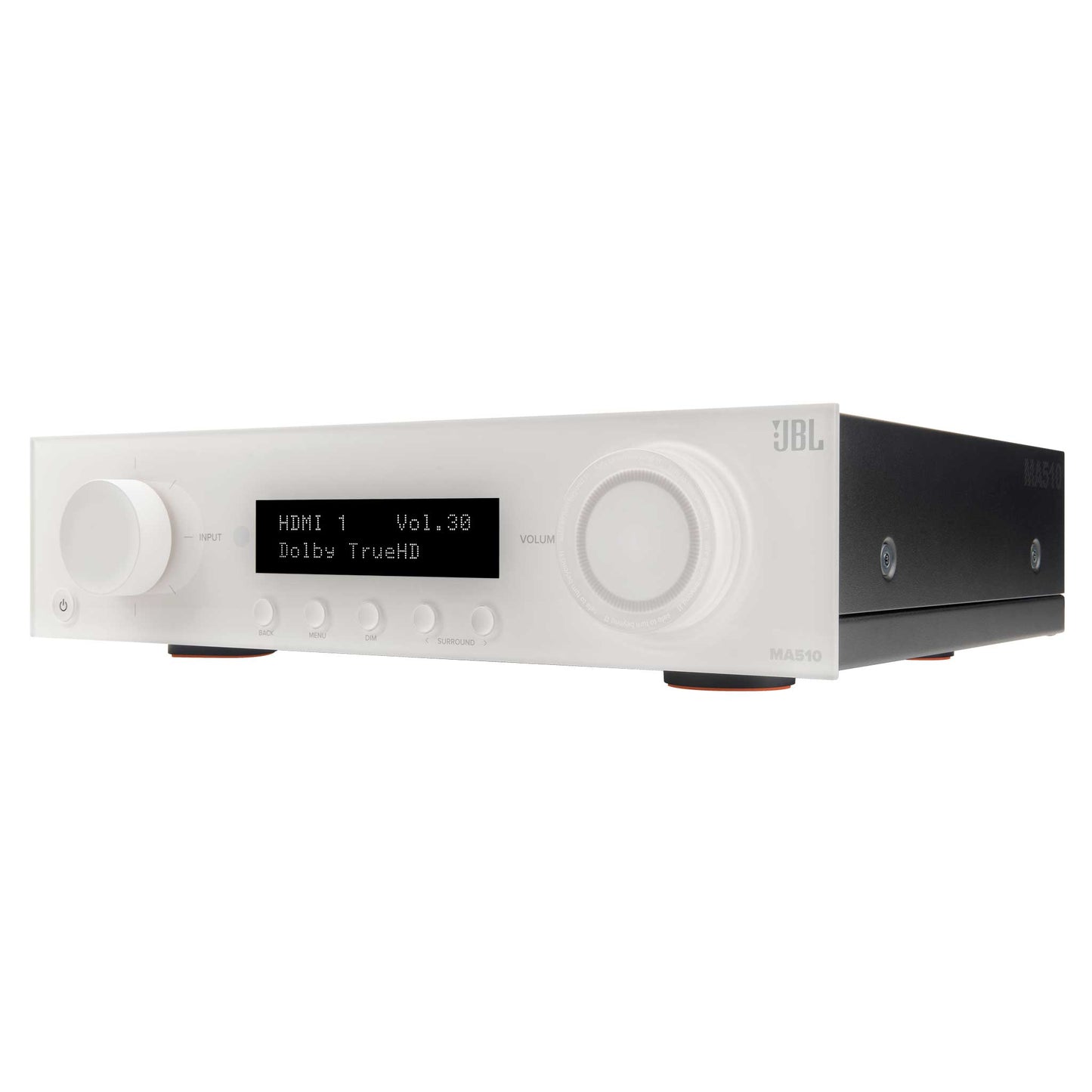

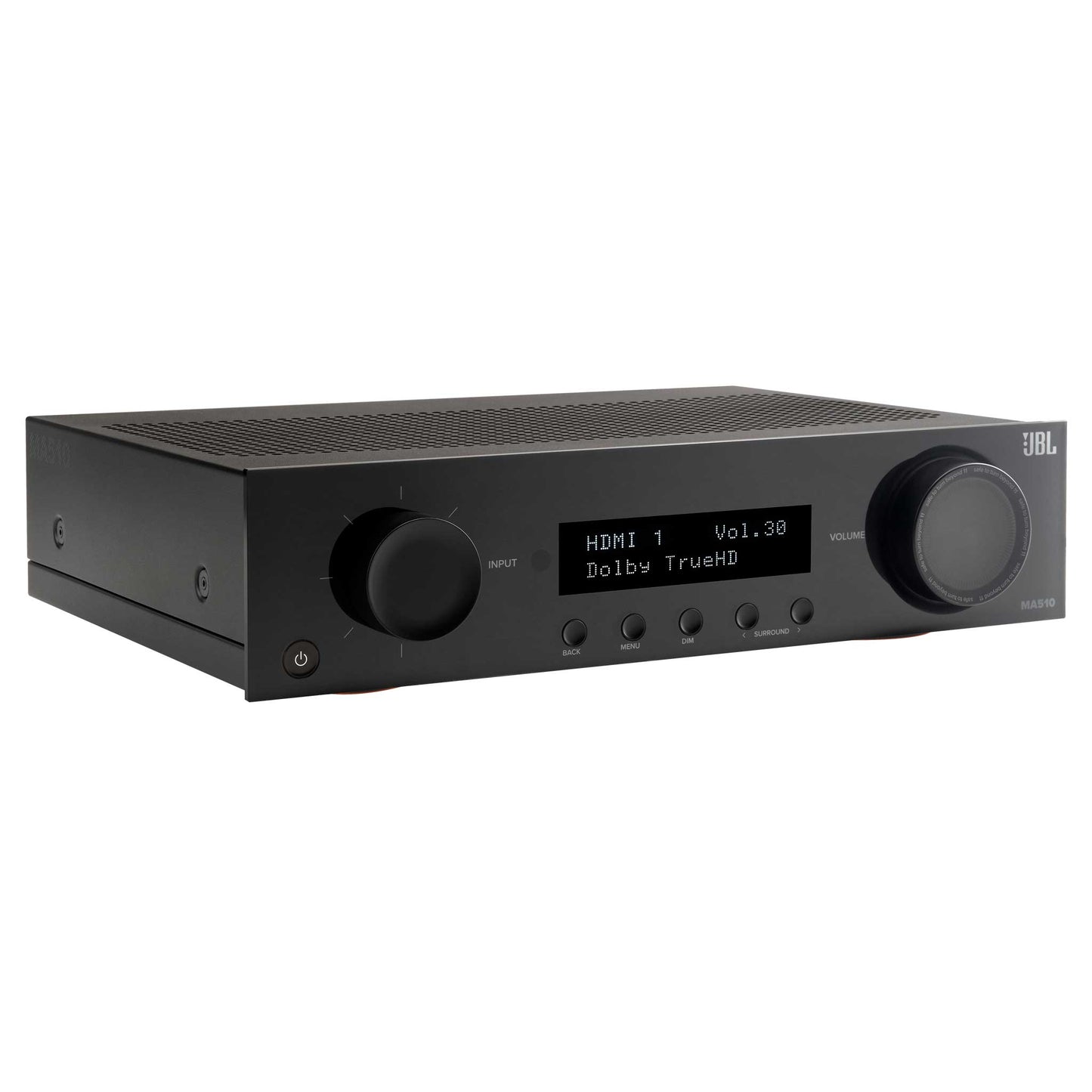

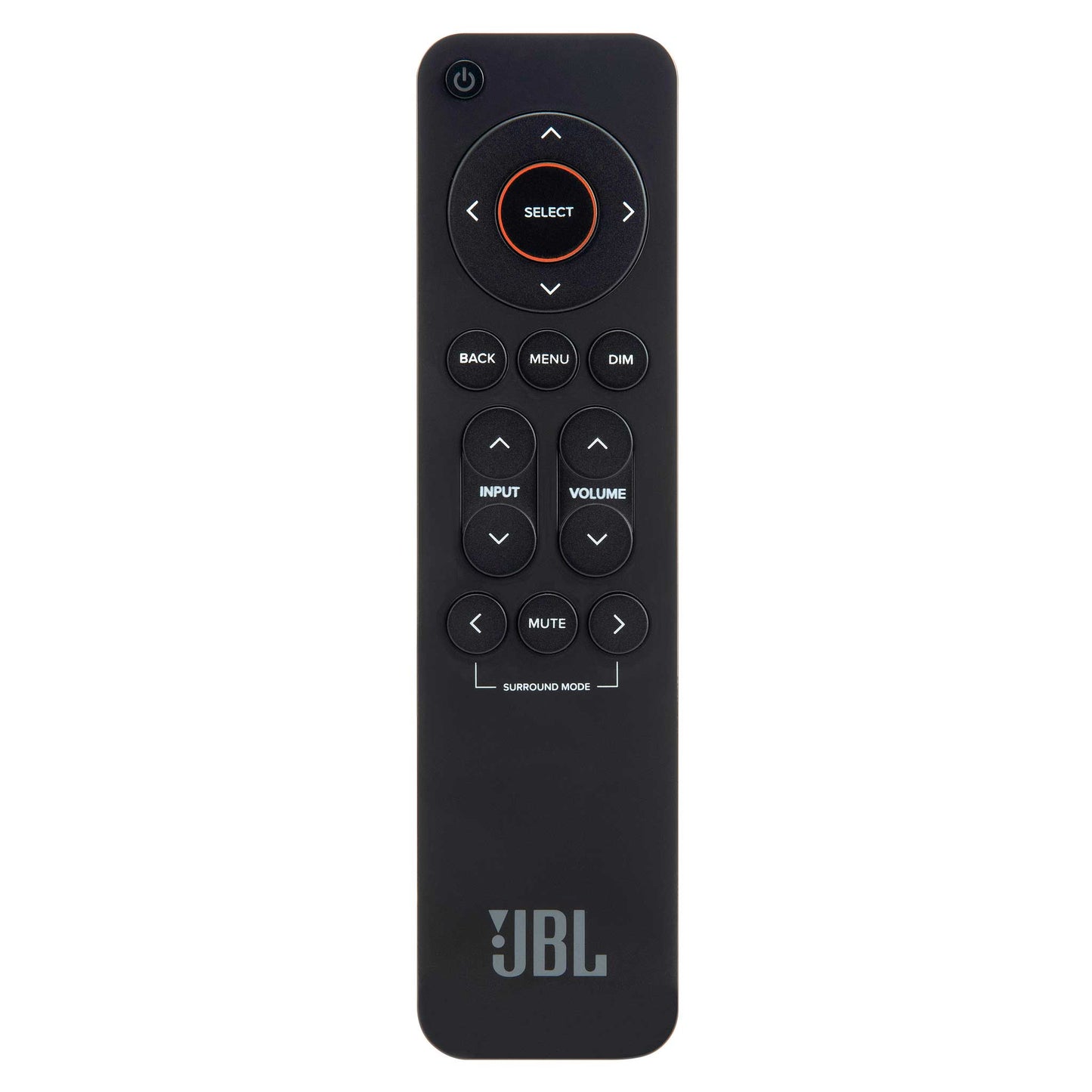

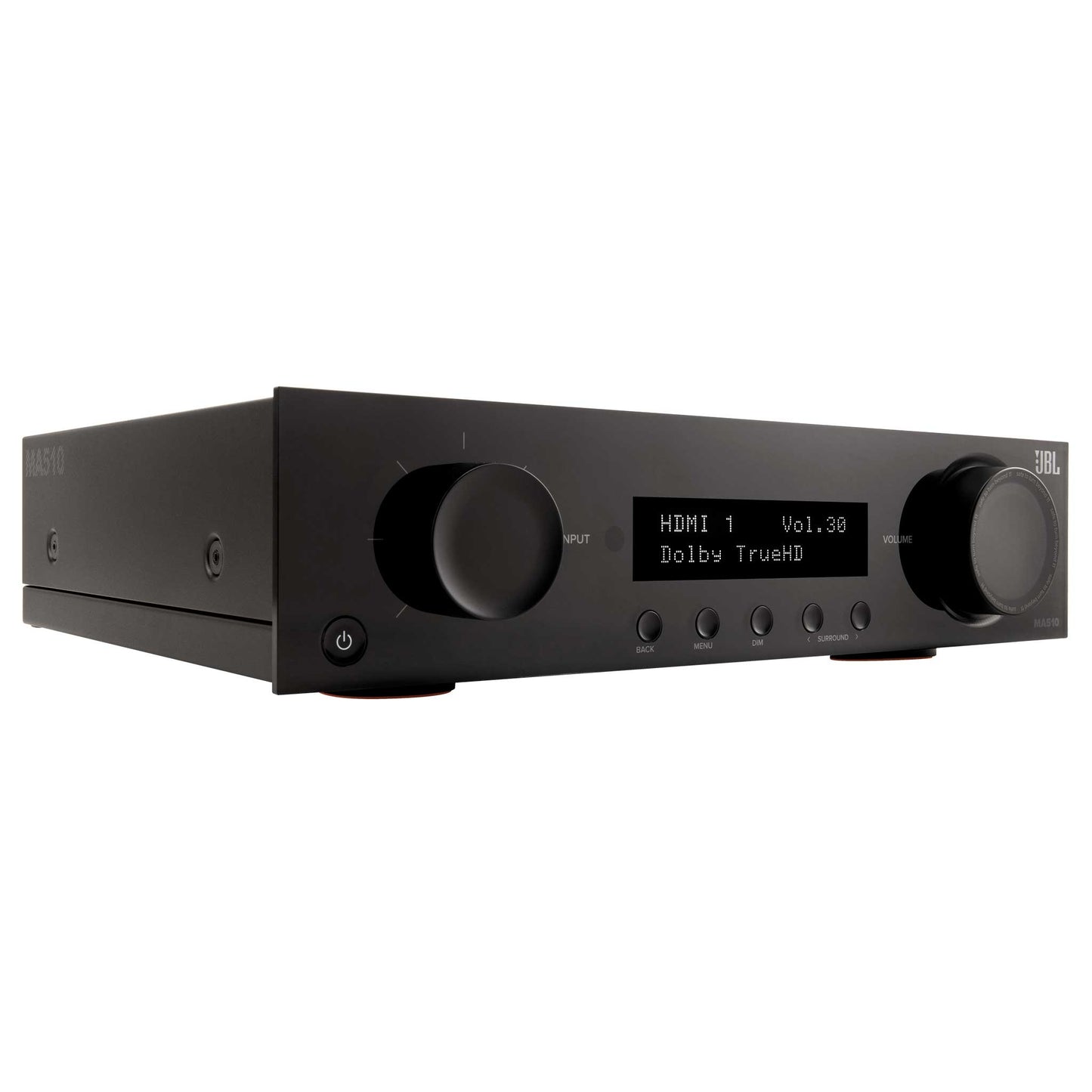

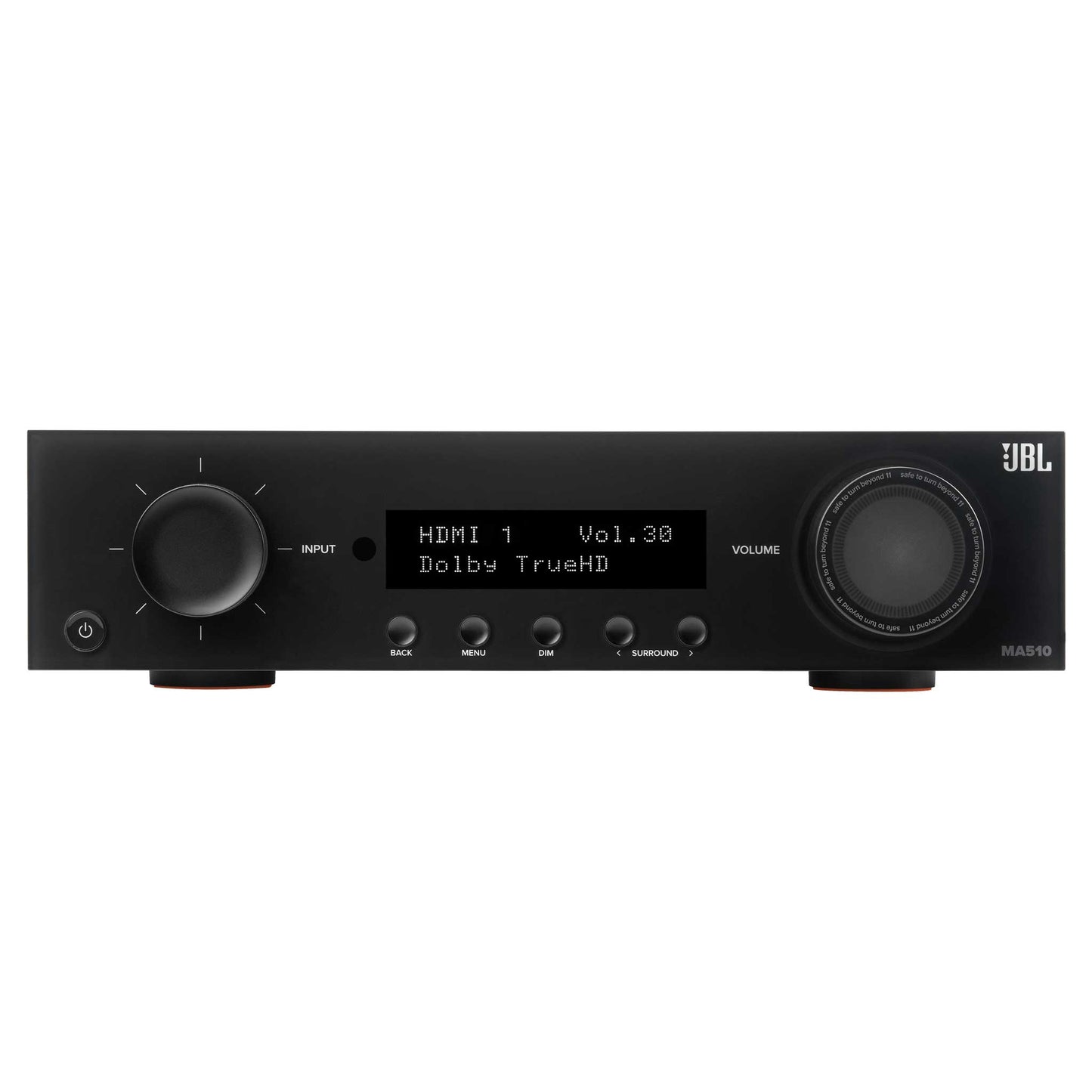

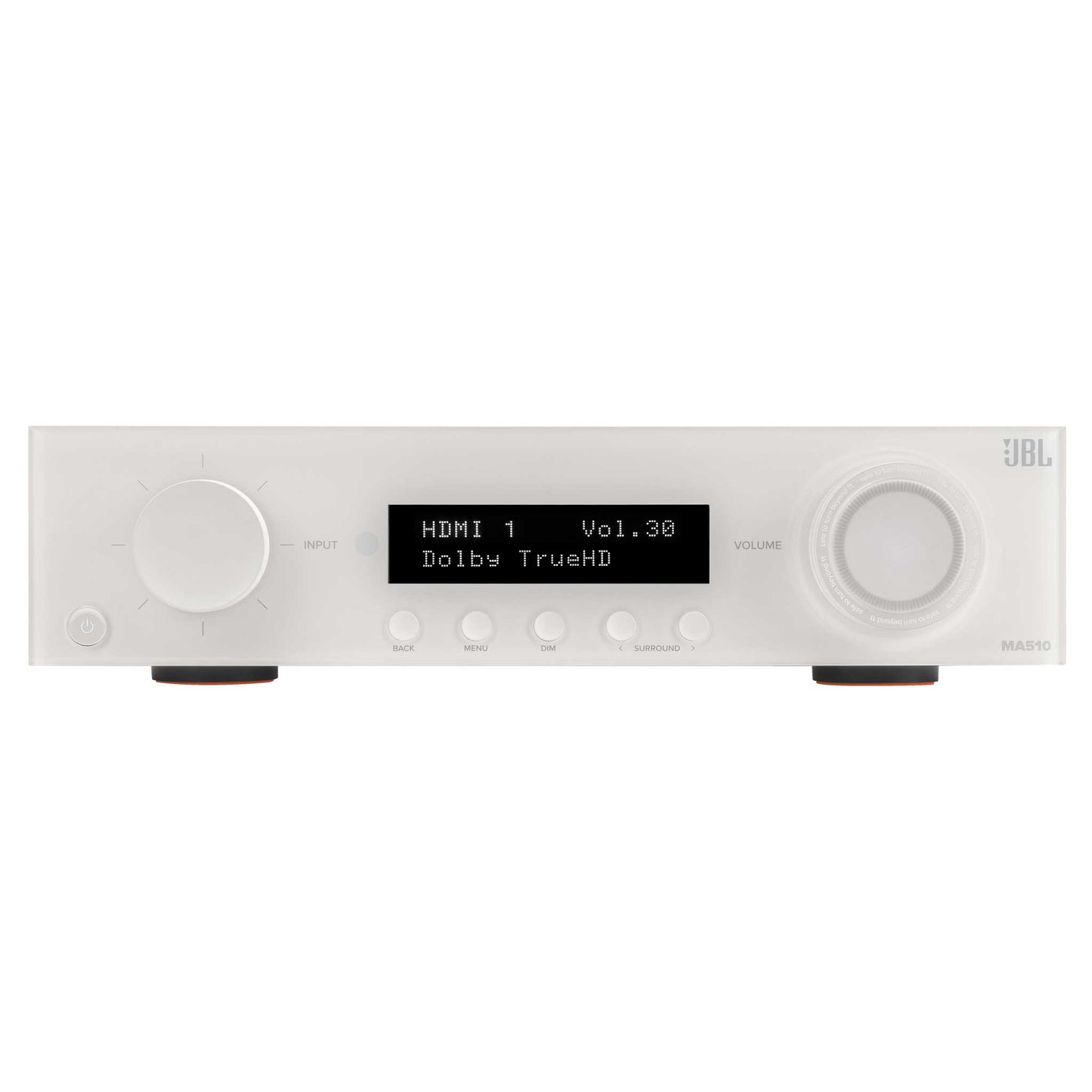

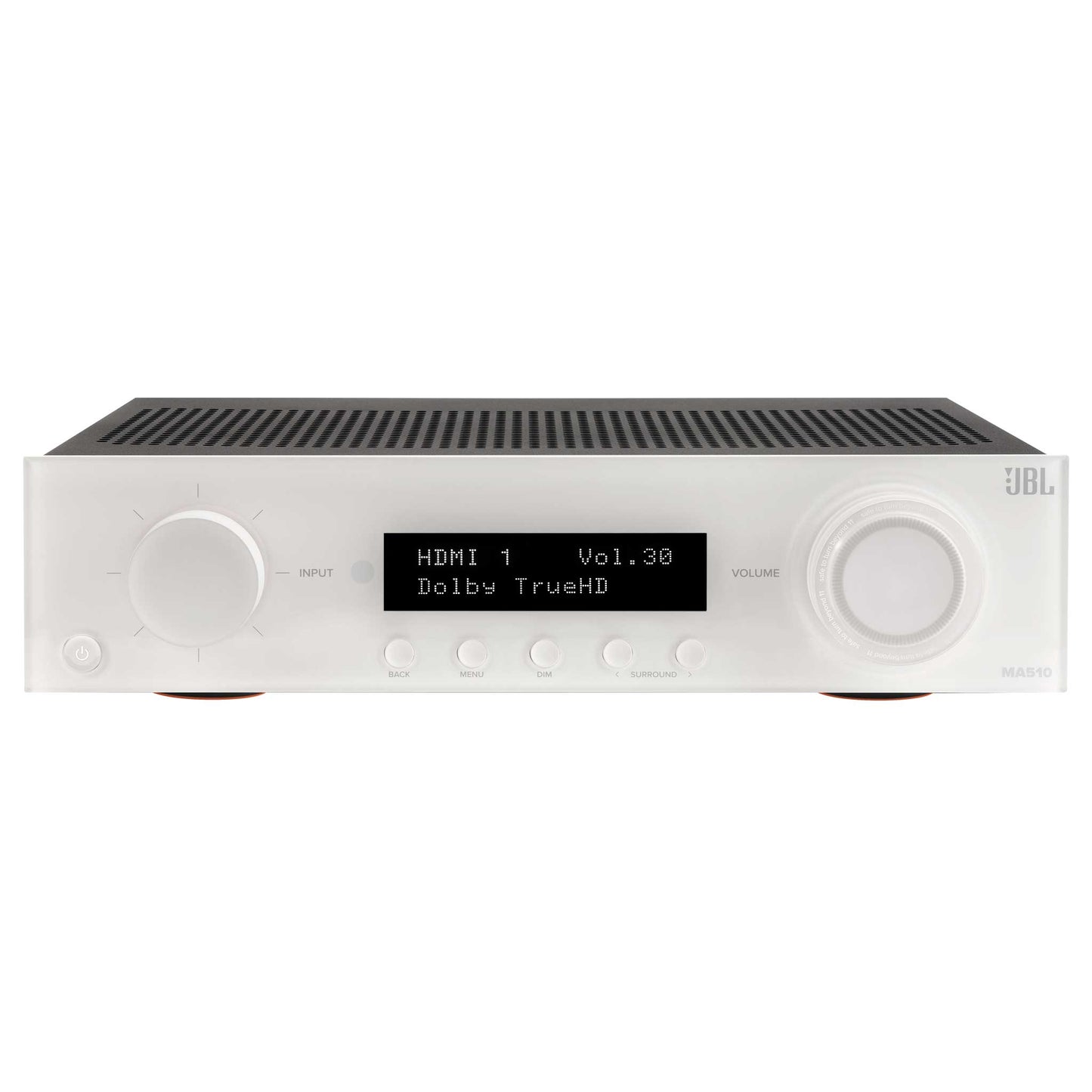

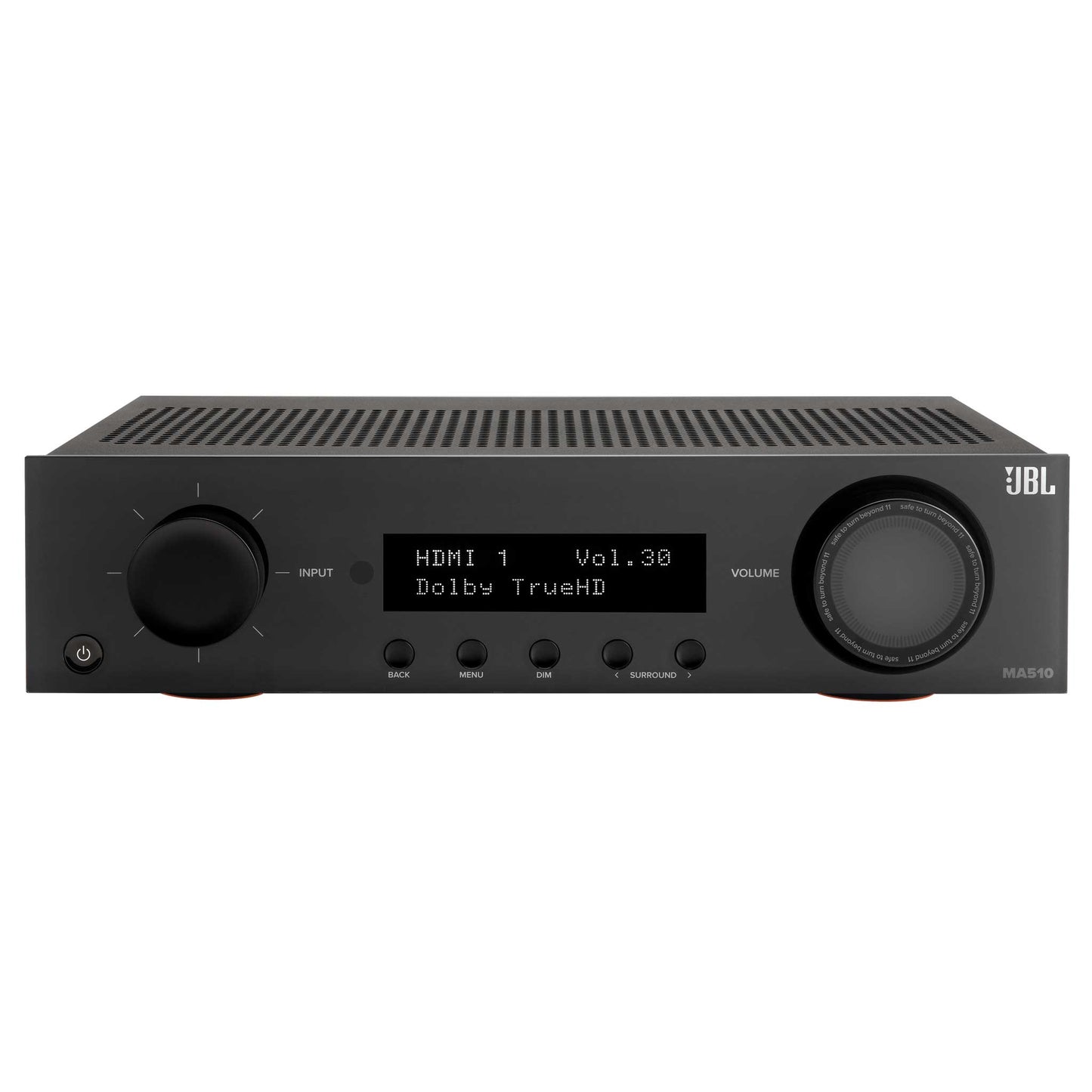

The JBL MA510’s front panel boasts just two control dials and six buttons, making it user-friendly and stylishly uncluttered. The remote control follows the same minimalist design, featuring only the most essential buttons in a clear, logical layout.
Upgrade your sound and simplify your home4 entertainment with the JBL MA510 AV Amplifier
Specifications
Specifications
Amplifier Section |
|
Channels |
5.2 |
Rated Power @ 8Ω (1kHz, 2 channels driven, 0.5% THD max) |
75 W RMS |
Rated Power @ 4Ω (1kHz, 2 channels driven, 0.5% THD max) |
100 W RMS |
Video Features |
|
HDMI eARC |
Yes |
HDMI Audio Return Channel |
Yes |
4K HDMI input connectors (HDMI 2.1, HDCP 2.3 up to 4K/120Hz, 8K/60Hz |
4 |
HDMI 2.1 enhanced gaming features |
Gaming-VRR, ALLM, QFT, HFR (4K@120Hz) |
HDR 10+, Dolby Vision |
Yes |
Audio Features |
|
File Formats |
MP3 / MPEG-4 AAC: up to 48 kHz / 320kbps |
Pure Direct |
Yes |
EZ/Set EQ |
Yes |
DA converter |
192kHz/24-bit |
Connectivity |
|
HDMI Input/Output |
4 / 1 |
Wi-Fi |
Yes (2.4, 5Ghz) |
Bluetooth receive |
Yes (v4.1, Low Energy) |
Digital Audio Input |
1 Coax, 1 Optical |
Stereo analog input |
2 single-ended RCA |
Pre-Out (single ended RCA) |
Subwoofer 1, Subwoofer 2 |
General |
|
Mains voltage |
110 – 240V, 50–60Hz |
Max. power consumption |
300W |
Standby power consumption |
<0.5W |
Dimensions incl. feet and speaker terminals (H x W x D) |
4.3” x 17.0” x 13.7” (109.9mm x 432.0mm x 347.6mm) |
Weight |
5.4kg |
Supplied accessories |
IR remote, 2x AAA batteries, Bluetooth antenna, |
