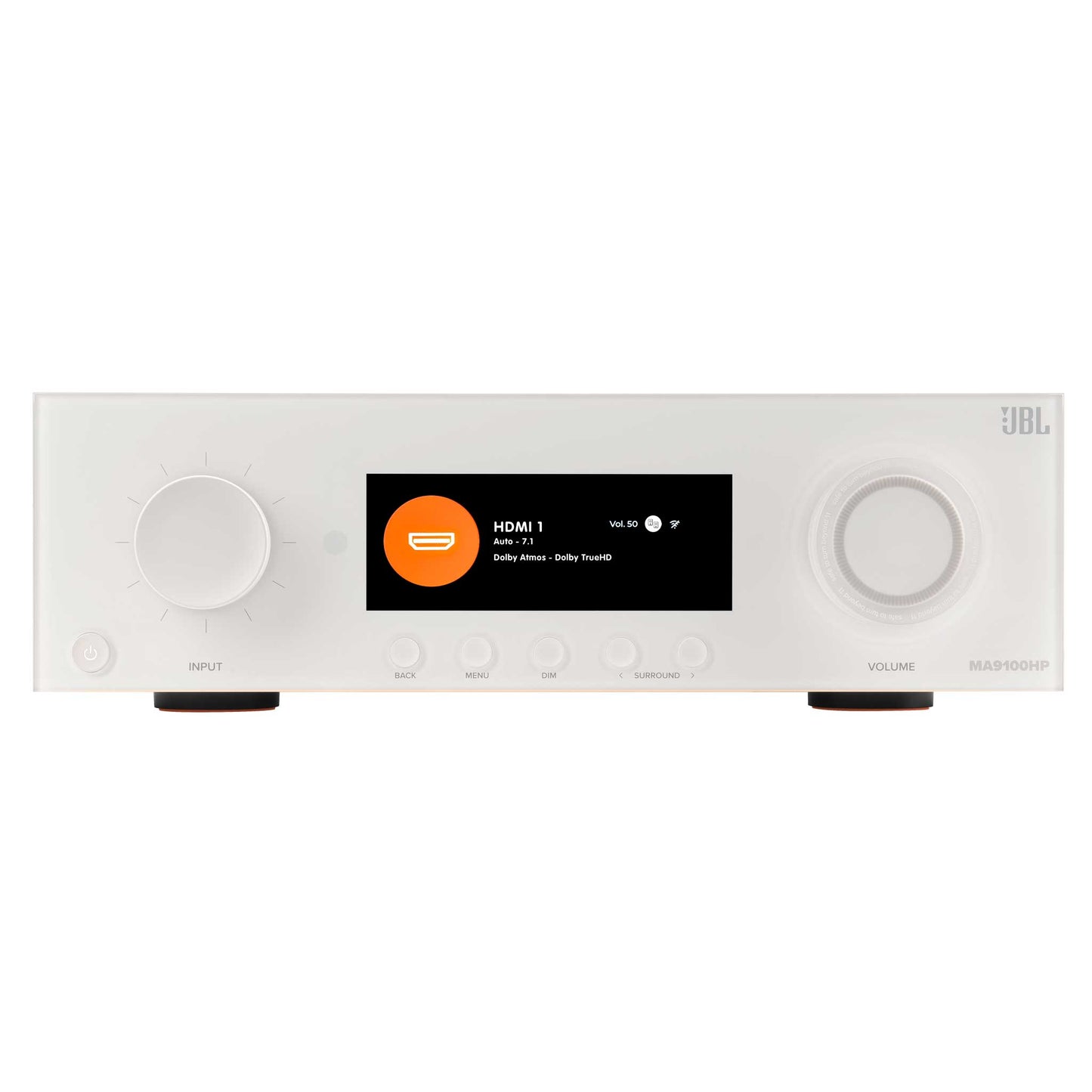

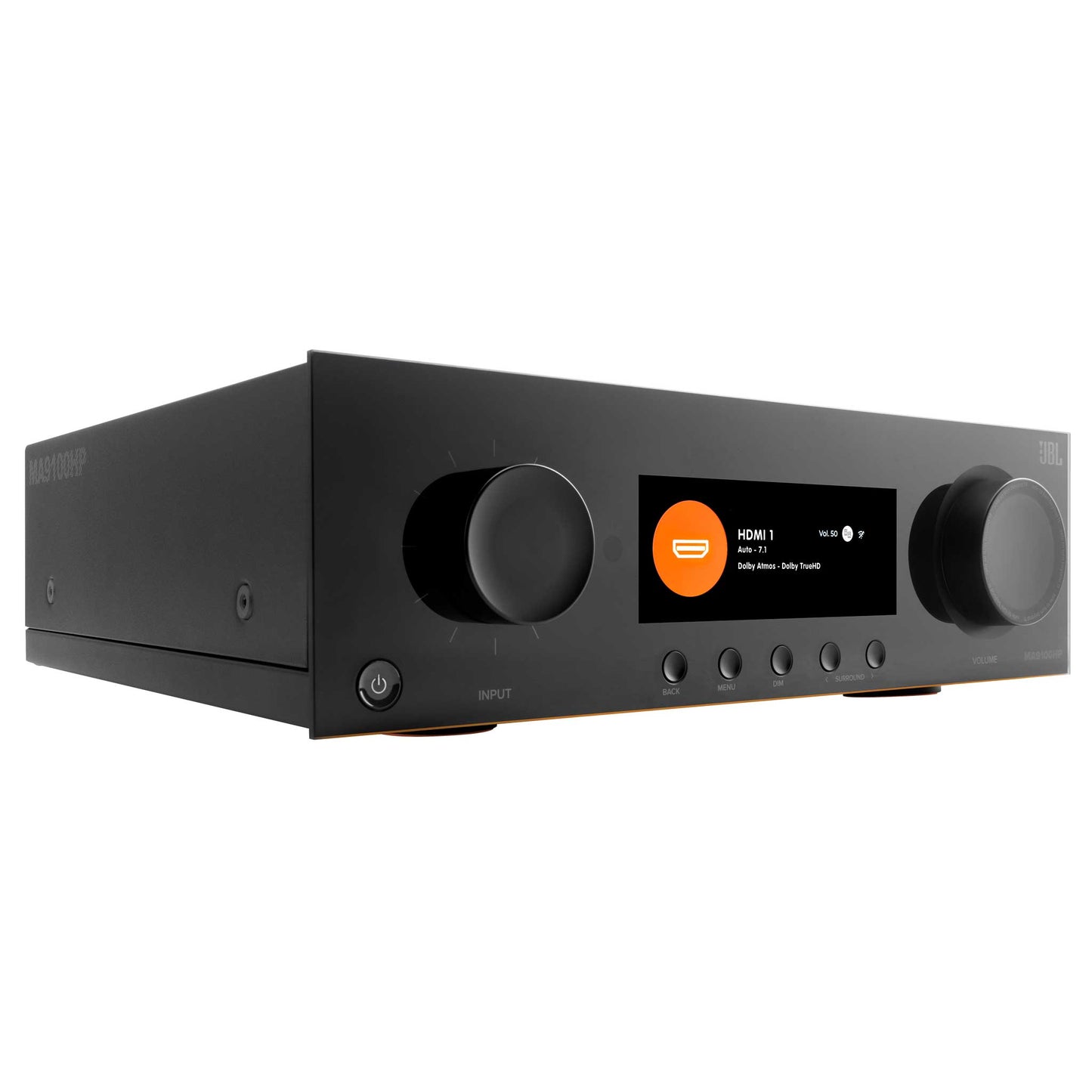

Enjoy Exceptional Audio and Video Performance with the JBL MA9100HP 9.2ch AV Receiver
The MA9100HP is the flagship model in JBL’s impressive MA Series of AV Receivers. This 9.2ch receiver delivers a dynamic and powerful performance and is packed with all the features you need to deliver an authentic home cinema experience, including the latest HDMI specifications and native 9-channel decoding of 3D immersive audio formats from Dolby Atmos and DTS:X. Whether you're watching the latest blockbuster movie or bingeing a new box-set the MA9100HP will maximise your home entertainment experience.
Powerful Class D Digital Amplification
The MA9100HP features nine channels of low-noise Class D amplification to deliver high-quality, real-world power to all 9 channels. The fully digital amplification keeps it cool and is energy-efficient.
Versatile Music Streaming
With Bluetooth aptX Adaptive, AirPlay 2 and Google Chromecast built-in, you can easily pair the MA9100HP with your smartphone, tablet, or laptop to stream music wirelessly. Connect this receiver via the built-in Wi-Fi and enjoy quick and easy access to your stored music or stream from popular services like Spotify, Tidal or Apple Music. When Wi-Fi isn’t available just connect using Bluetooth, with support for aptX HD and aptX Adaptive you can even enjoy Hi-Res audio streams. For vinyl lovers a built-in moving magnet phono stage allows for easy connection to a turntable.
Immersive Surround Sound and More
The MA9100HP supports a nine-channel Dolby Atmos or DTS speaker configuration, providing incredibly immersive 3D surround sound that fills the room. Alternatively, you can opt for a seven-channel surround system and then use the two spare channels to extend your music to another room. The “Party” mode even allows you to send stereo sound from the main zone to speakers in another room, ensuring everyone enjoys the music.
Tailor the Sound to Your Space
JBL’s EZ Set EQ calibration software makes it easy to fine-tune the sound to match your room's acoustics. Simply download the EZ Set EQ app (available for Android™ and iOS®) and follow the step-by-step guide. You can use your iOS device's built-in microphone for calibration, while Android users are advised to use a third-party microphone (sold separately) for optimal results.
For more demanding acoustic environments, the MA9100HP is compatible with Dirac Live®, one of the industry’s top room correction systems. This advanced software takes precise sound measurements and creates a personalized EQ correction curve tailored to your room's unique acoustic challenges. Note that a separate license and microphone are required to use this feature.
Specifications
Specifications
Amplifier Section |
|
Channels |
9.2 |
Front channel bi-amp |
Yes |
Digital signal processing |
up to 24-bit/192kHz |
Rated Power @ 8Ω (1kHz, 2 channels driven, 0.5% THD max) |
140 W RMS |
Rated Power @ 4Ω (1kHz, 2 channels driven, 0.5% THD max) |
240 W RMS |
Video Features |
|
HDMI eARC |
Yes |
HDMI Audio Return Channel |
Yes |
HDMI inputs |
6 (3 x HDMI 2.1, HDCP 2.3 up to 4K/120Hz / 8K/60Hz) |
HDMI 2.1 enhanced gaming features |
Gaming-VRR, ALLM, QFT, HFR (4K@120Hz) |
HDR10, HDR 10+, Dolby Vision |
Yes |
Audio Features |
|
File Formats |
MP3 / MPEG-4 AAC: up to 48 kHz / 320kbps |
Pure Direct |
Yes |
EZ/Set EQ |
Yes |
Dirac Live Ready* |
License purchased separately |
DA converter |
192kHz/24-bit |
Connectivity |
|
HDMI Input/Output |
6 / 2 |
Wi-Fi |
Yes (2.4, 5Ghz) |
Bluetooth receiver |
Yes (v5.3, Low Energy, APTX HD, APTX Adaptive) |
Digital Audio Input |
1 Coax, 1 Optical, 1 USB |
Stereo analogue input |
2 single-ended RCA (line level), 1 Moving Magnet Phono input + Ground |
Pre-Out (single ended RCA) |
Stereo Zone 2, Subwoofer 1, Subwoofer 2 |
Ethernet |
RJ45 Gigabit, WiFi Onboard |
General |
|
Mains voltage |
110 – 240V, 50–60Hz |
Max. power consumption |
900W |
Standby power consumption |
<0.5W |
Dimensions incl. feet and speaker terminals (W x H x D) |
432mm x 135mm x 396.4mm) |
Weight |
7.6kg |
Supplied accessories |
IR remote, 2x AAA batteries, Bluetooth antenna, power cord |
