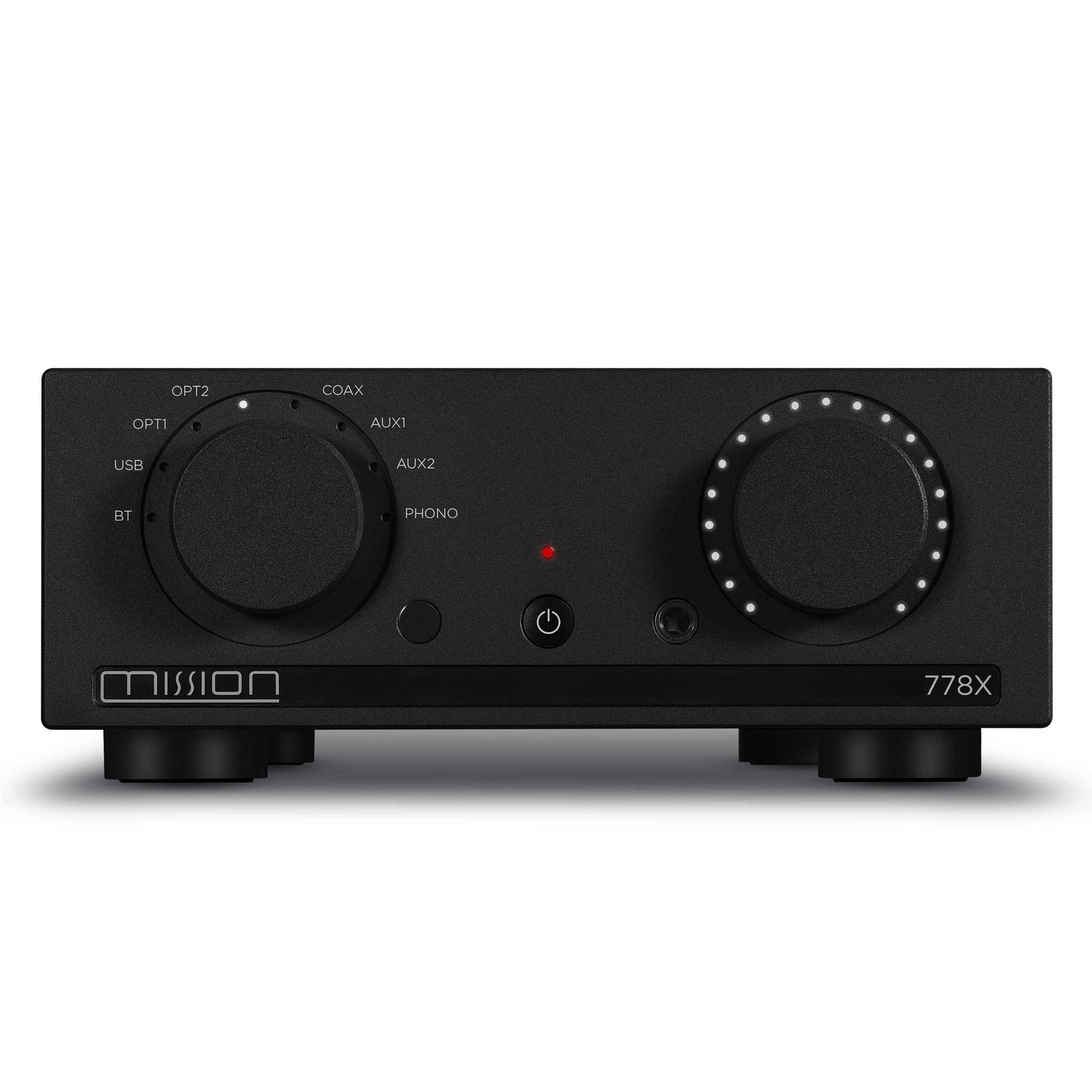

Mission 778x Integrated Amplifier With Bluetooth
The diminutive Mission 778x integrated amplifier pays homage to the original 778, launched over 40 years ago. Like its predecessor, the 778x features a compact, half-width design, delivering sound that surpasses its small size. While it shares the original’s versatility with a range of inputs, the internal circuitry has been completely revamped to meet modern standards. This new model pairs perfectly with a wide range of speakers.
The Mission 778x offers an engaging, detailed, and refined listening experience, excelling in detail, timing, and dynamics, no matter the source or format. Designed for today's audiophile while embracing Mission’s rich heritage, the 778x amplifies your music with vibrant expression and enjoyment.
Available in silver or black, the Mission 778x integrated stereo amplifier is ready to enhance your setup.
Vinyl Ready
The built-in phono stage features a JFET-based circuit with precise RIAA equalization, optimized for MM cartridges. This high-quality, low-noise input eliminates the need for an external phono pre-amp, ensuring your vinyl sounds its best.
Bluetooth Wireless Connectivity
778x features built-in Bluetooth with support for aptX and AAC codecs – this provides CD-quality wireless streaming from your smartphone, tablet, or PC.
Versatile Connectivity
The 778x features a wide range of digital and analogue source inputs including USB, coaxial digital, 2 x optical inputs and twin RCA analogue inputs. RCA Pre-out allows for future upgrade to a more powerful amp if required.
High-Performance DAC
The 778x doesn’t stop at Bluetooth. It features a top-tier ESS ES9018K2M Reference DAC with ESS Technology’s 32-bit HyperStream architecture and Time Domain Jitter Eliminator. This ensures ultra-low noise and high compatibility with digital audio files, supporting sampling rates up to 384kHz (PCM) and DSD256 for superb sound quality.
Headphone Amplifier
The 778x’s built-in headphone amplifier rivals the performance of standalone headphone amplifiers costing more than this complete system, delivering a dynamic, detailed sound for all types of headphones, ensuring an immersive listening experience.
Complete Mission System
Take advanatge of our Mission 778X bundle deal that pairs the 778x with their popular LX-2 MKII bookshelf speakers for only £649, a saving of £129.95 on the individual pricing.
Specifications
Specifications
|
General Description |
Stereo Amplifier, Digital-to-Analogue Converter |
|
Design Philosophy and Core Technology |
• Integrated Amplifier (45 watts @8 ohms, 65 watts @4 ohms) |
|
Inputs |
1 x Coaxial, 2 x Toslink Optical, 1 x PC USB, 1 x Bluetooth (aptX/AAC), |
|
Outputs |
1 x Coaxial, 1 x Toslink Optical, 1 x RCA (PRE Out) |
|
Sampling Frequency |
Optical / Coaxial: 44.1kHz-192kHz; |
|
Preamplifier Section |
|
|
Gain (max.) |
=A8I (Line), +47dB (Phono MM) |
|
Input Sensitivity |
540mV (Line, Volume = 0dB); 2.5mV (Phone MM, Volume = 0dB) |
|
Input Impedance |
10K (AUX); 47K//100pF (Phono MM) |
|
Total Harmonic Distortion (THD) |
<0.003% |
|
Frequency Response (ref. 1kHz) |
20Hz-20kHz (±0.1dB) |
|
PRE Output Level |
2.1Vrms (max.) |
|
PRE Output SNR |
>110dB (A-weighted) |
|
DAC |
|
|
D to A Converter |
ESS Sabre32 ES9018K2M |
|
Resolution |
32-bit |
|
Max. Sampling Frequency |
Optical/Coaxial: 192kHz; |
|
Total Harmonic Distortion (THD) |
< 0.001% (1KHz @ 0dBFS) |
|
Output level (0dBFS, 1KHz) |
2.1Vrms |
|
Power Amplifier Section |
|
|
Gain (max.) |
+31dB |
|
Rated Power Output |
2x45W(@8ohms); 2 x 65W (@ 4 ohms) |
|
Frequency Response (ref. 1kHz) |
20Hz-20KHz (± 0.5dB) |
|
Total Harmonic Distortion (THD) |
<0.005% (30W / 8 ohms) |
|
Input Sensitivity |
540mV (RCA AUX In); 2.5mV (Phono MM) |
|
Signal-to-Noise Ratio (SNR) |
>108dB (ref. 45W, A-weighted) |
|
Crosstalk @1K |
>80dB (ref.1W) |
|
Standby Power Consumption |
<0.5W |
|
Headphone Amplifier |
|
|
Total Harmonic Distortion (THD) |
< 0.01% (1kHz, 50mW ) |
|
Output Impedance |
4.7 ohms |
|
Load impedance |
20-600 ohms |
|
General |
|
|
Dimensions (mm) (W x H x D) |
236x98x380.6 |
|
Carton Size (mm) ( W X H X D) |
450x392x175 |
|
Net Weight |
6.3kg |
|
Finish |
Black / Silver |
|
Power requirements (depending on region) |
220-240V ~ 50/60Hz; 100-120V ~ 50/60Hz |
|
Standard Accessories |
Power Cord, Remote Control, User Manual, Antenna |
