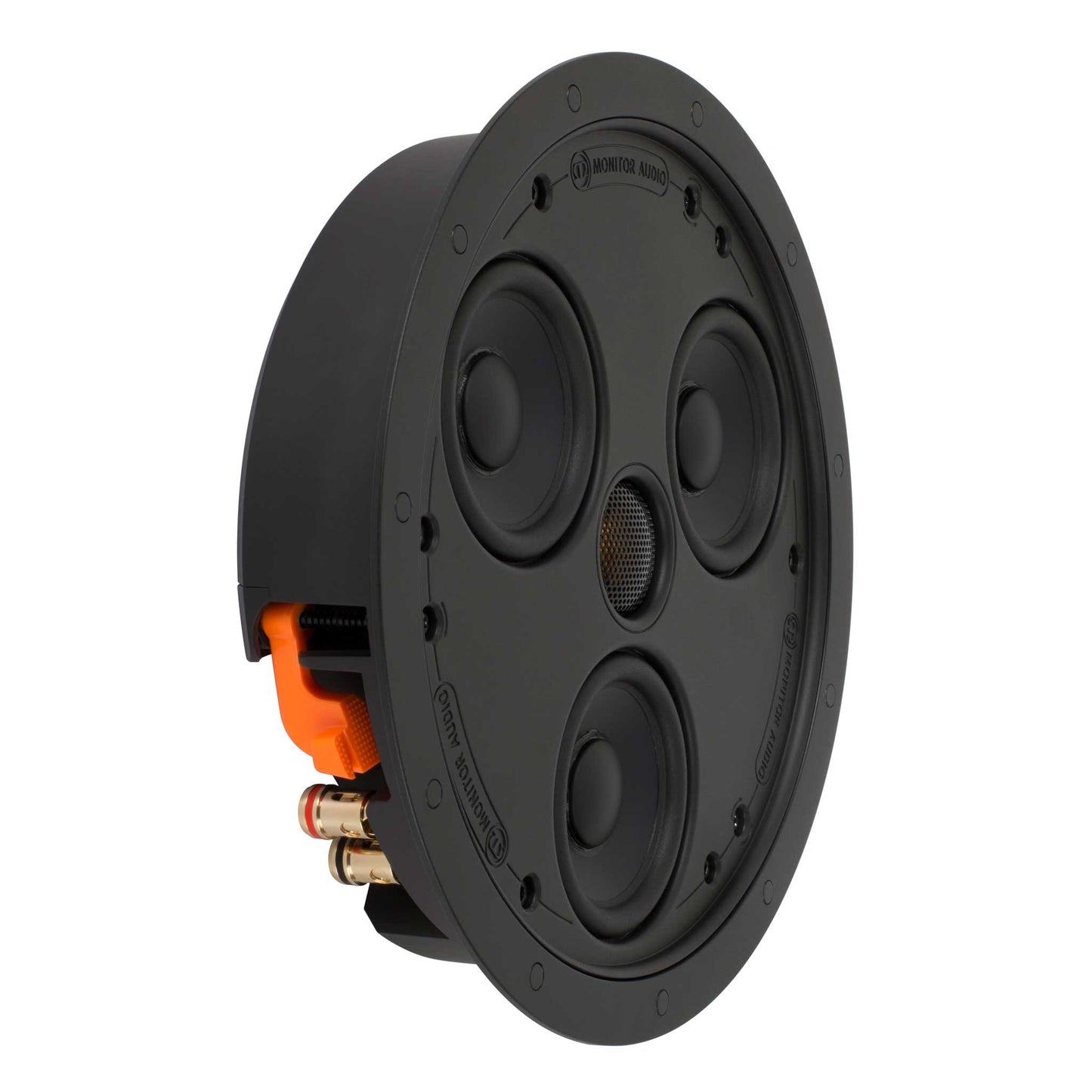

Monitor Audio CSS230 Ultra-Slim Ceiling Speaker (single)
The Monitor Audio CSS230 is a brilliantly innovative ceiling speaker with an impressively shallow mounting depth of only 50mm (2”). The CSS230 incorporates a unique back-box design that helps it to offer hi-fi levels of performance in spaces where no high quality speaker has gone before.
Between 2” stud frames or where pipework or cabling reduces mounting depth, the hybrid back-box construction and proprietary full-range driver array combine to deliver consistent audio quality with exceptional installation versatility.
The hybrid back-box provides the best of all worlds for installer and customer. Combined, the three proprietary 3” mid-bass units achieve the bass output of a 61/2” driver, all from a super-stealthy flush-fitted profile.
In keeping with Monitor Audio’s renowned design rigour, the crossover comprises high quality film capacitors and low loss inductors - selected for signal integrity - ensuring peerless audio detail and dynamics from a speaker of its size and application. When the CSS230 is in ‘ported’ mode, a fine gauze protects the acoustic system from dust ingress.
- Super-slim mounting depth 50mm (2”) designed to fit within 2” stud walls or where space is restricted

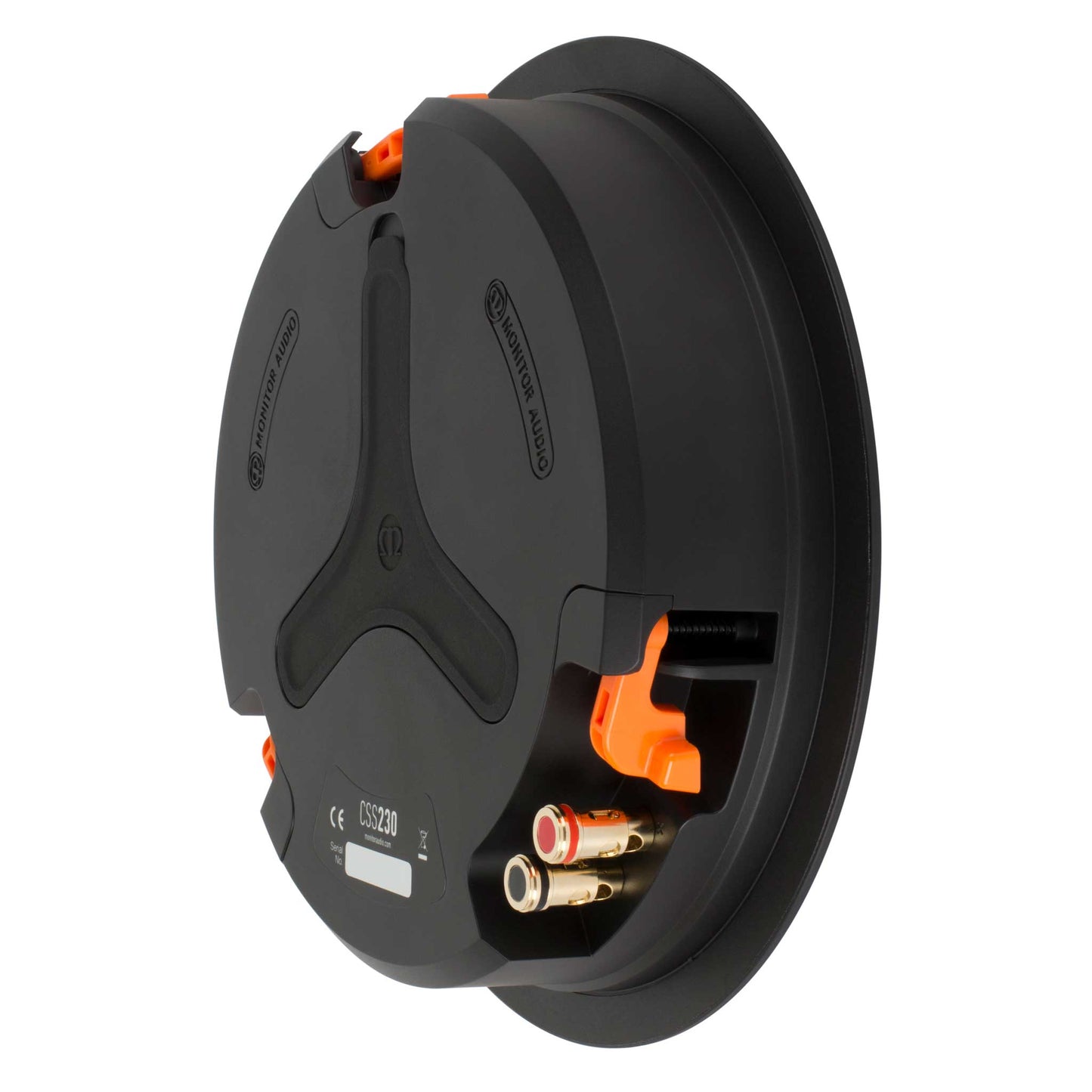

- Hybrid CP ‘Controlled Performance’ style, enclosed or open back-box option provides flexible high performance options and sound isolation in one (pictured right)

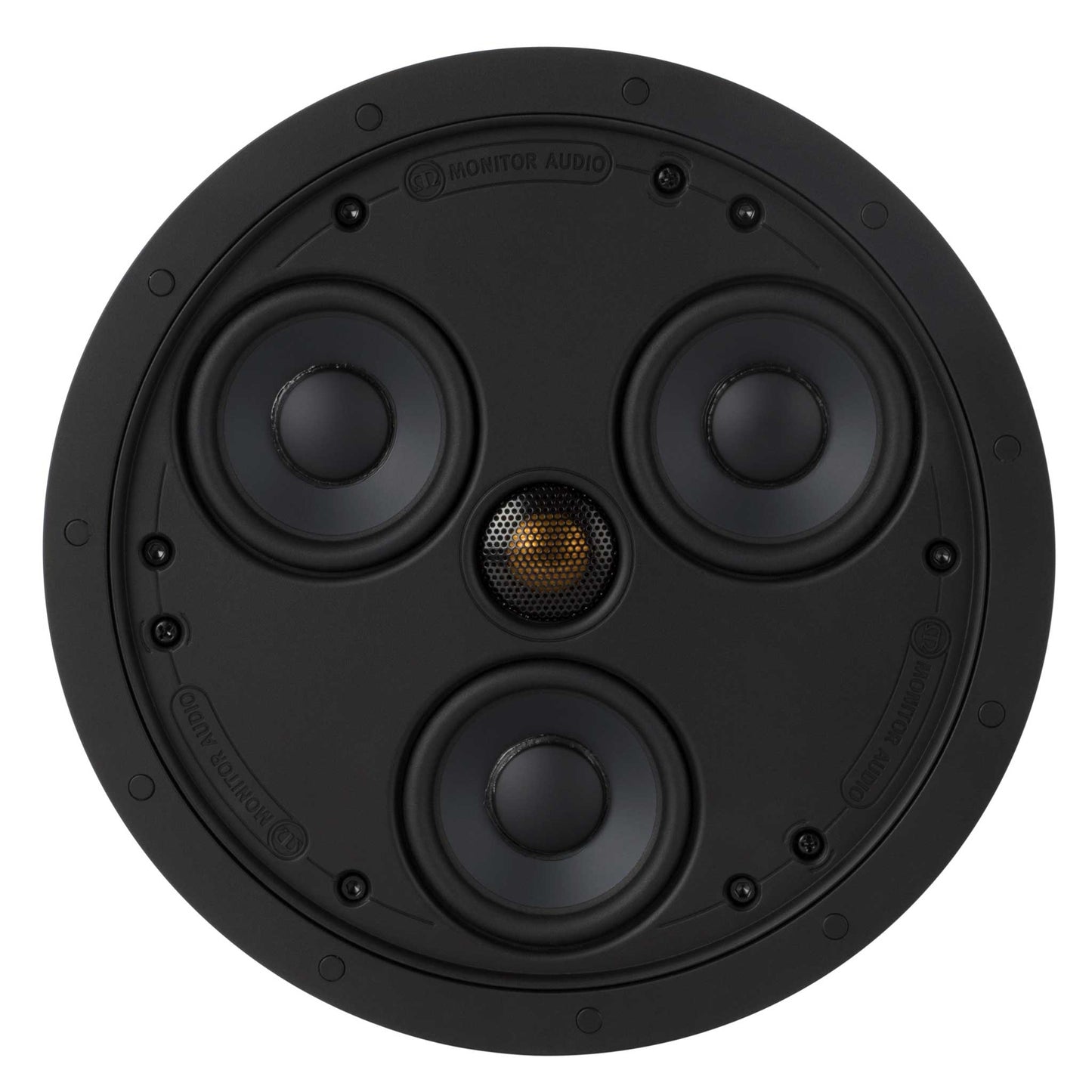

- Driver configuration of three 3” C-CAM bass/mid-range drivers in a radial array around a 19mm C-CAM gold dome tweeter (fixed position) and high quality crossover design offers Monitor Audio’s award-winning signature sound quality
- Gold plated sprung push terminals are reliable and easy to connect

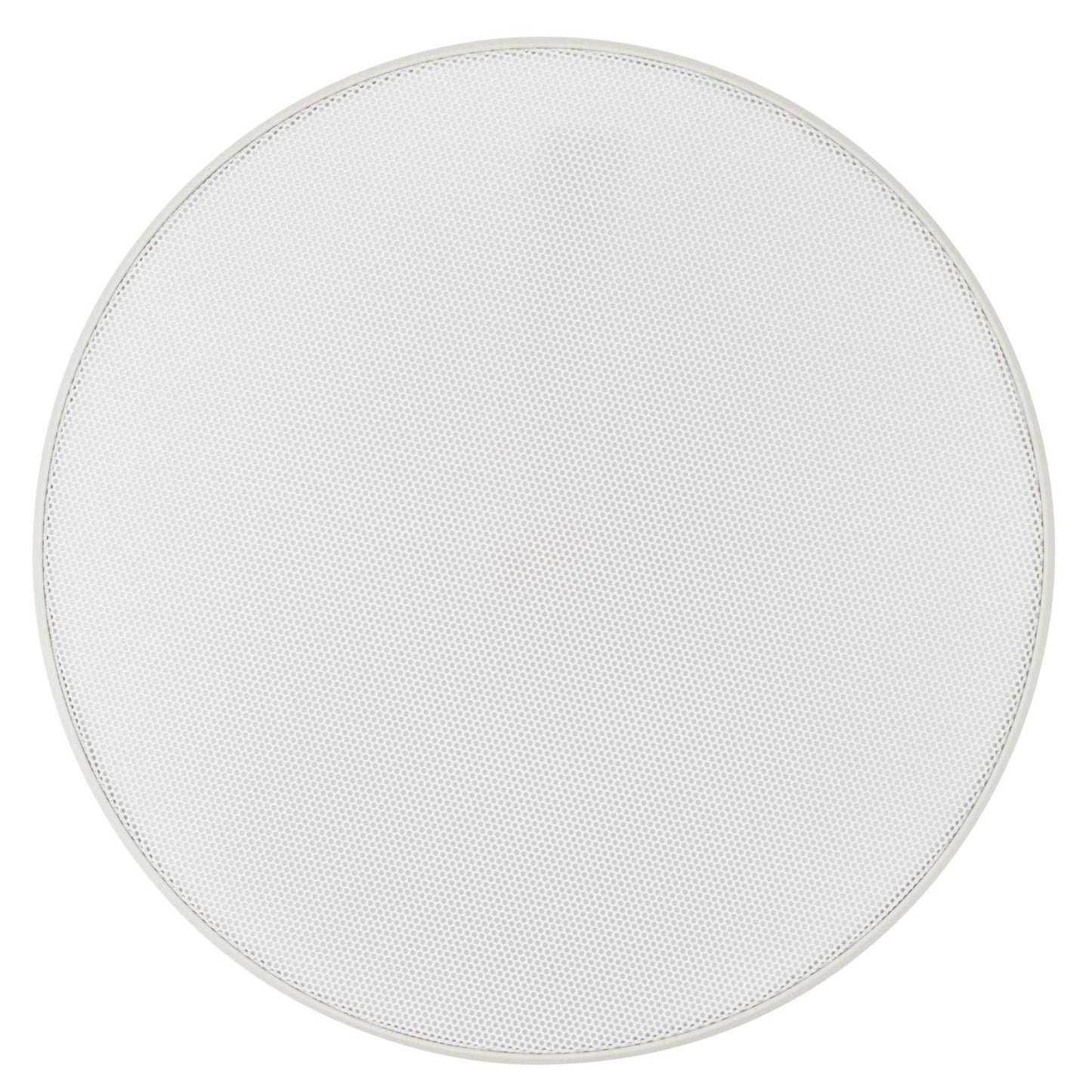

- Magnetically attached ‘Trim-less’ round and square grille options for discreet, reliable and easy servicing, flexible in-wall/ceiling installation, paintable to blend with décor
- Patented Tri-Grip dog leg fixings – Reliable, robust and quick to install
- Existing pre-construction bracket for easier system design and planning
Specifications
Specifications
|
Frequency Response |
100Hz - 30kHz |
|
Impedance (nominal) |
8 ohms |
|
Sensitivity (1W@1M) |
86dB |
|
Maximum SPL (single unit in free space) |
103.8 dBA |
|
Power Handling (R.M.S) |
40 W |
|
Recommended Amp Requirements |
10 - 60 W |
|
Drive Unit Complement |
3 x 3” C-CAM bass-mid driver. |
|
Overall Diameter |
250mm (9 13/16”) |
|
Mounting Depth |
50mm (2”) |
|
Cut-out Hole Diameter |
211mm (8 1/4”) |
|
Fixing Type |
3 position Tri-Grip® dog fixings |
|
Cable Connection |
Gold plated ‘push’ type |
|
Grille Attachment |
Magnetic |
|
Construction Material |
ABS (UL94-V0 rated, RoHS compliant) |
|
Pre-Construction Bracket |
CB5 (Blue) |
