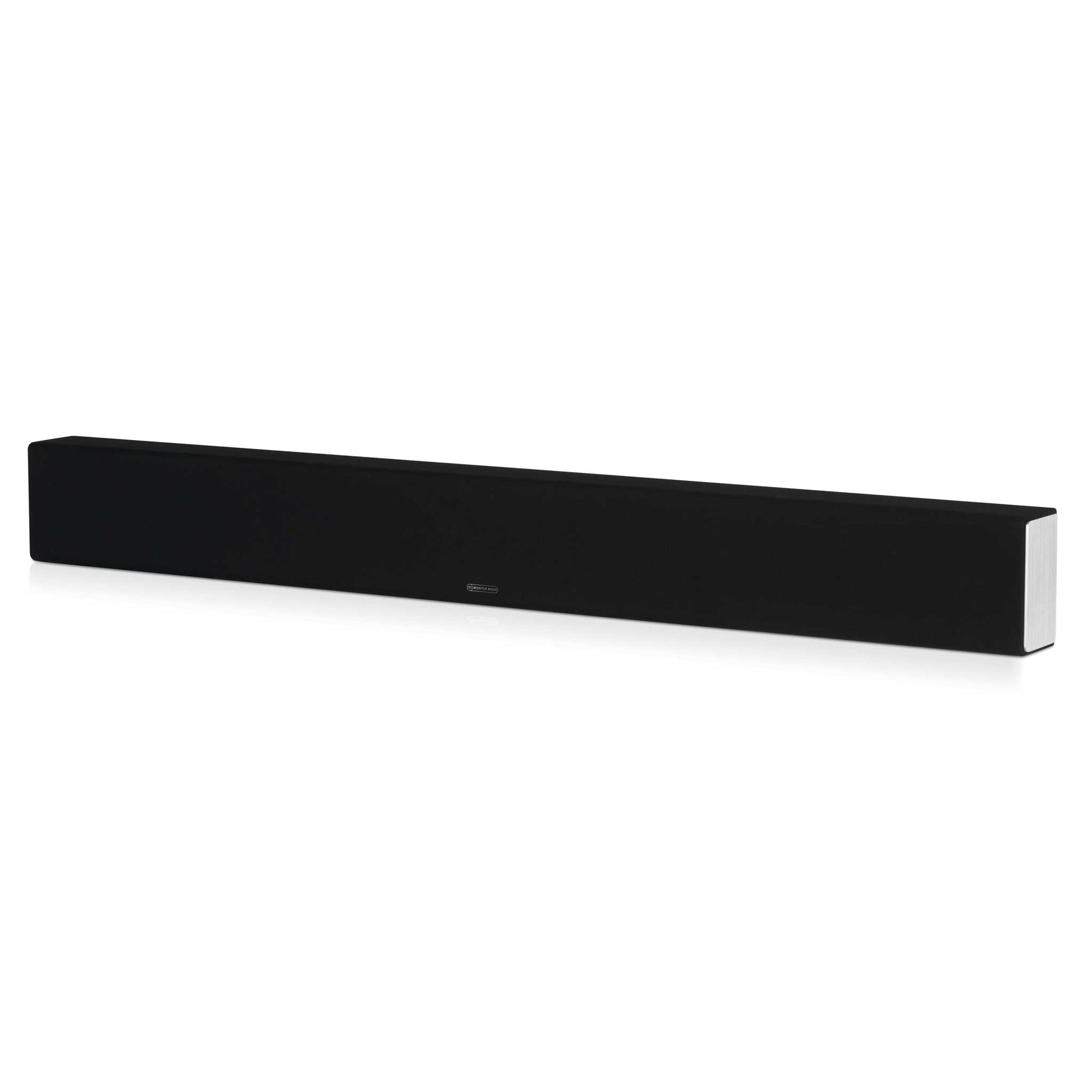

Monitor Audio SB3 One Box LCR Speaker System
The SB3 from Monitor Audio has been designed to offer the convenience of a typical soundbar – easy installation, less clutter and discrete appearance whilst still giving customers the performance and flexibility of a complete AV system.
The SB3 is custom-built for screen sizes above 60" and features three separate driver arrays for front left, centre and front right channels, all in a single stylish cabinet. The important centre channel section includes twin C-CAM bass drivers, twin ABRs (Auxiliary Bass Radiators) and a single C-CAM tweeter to help provide the SB-3 with higher acoustic output and power handling. The left and right sections each employ individual mid-bass, tweeter and sealed ABR drivers.

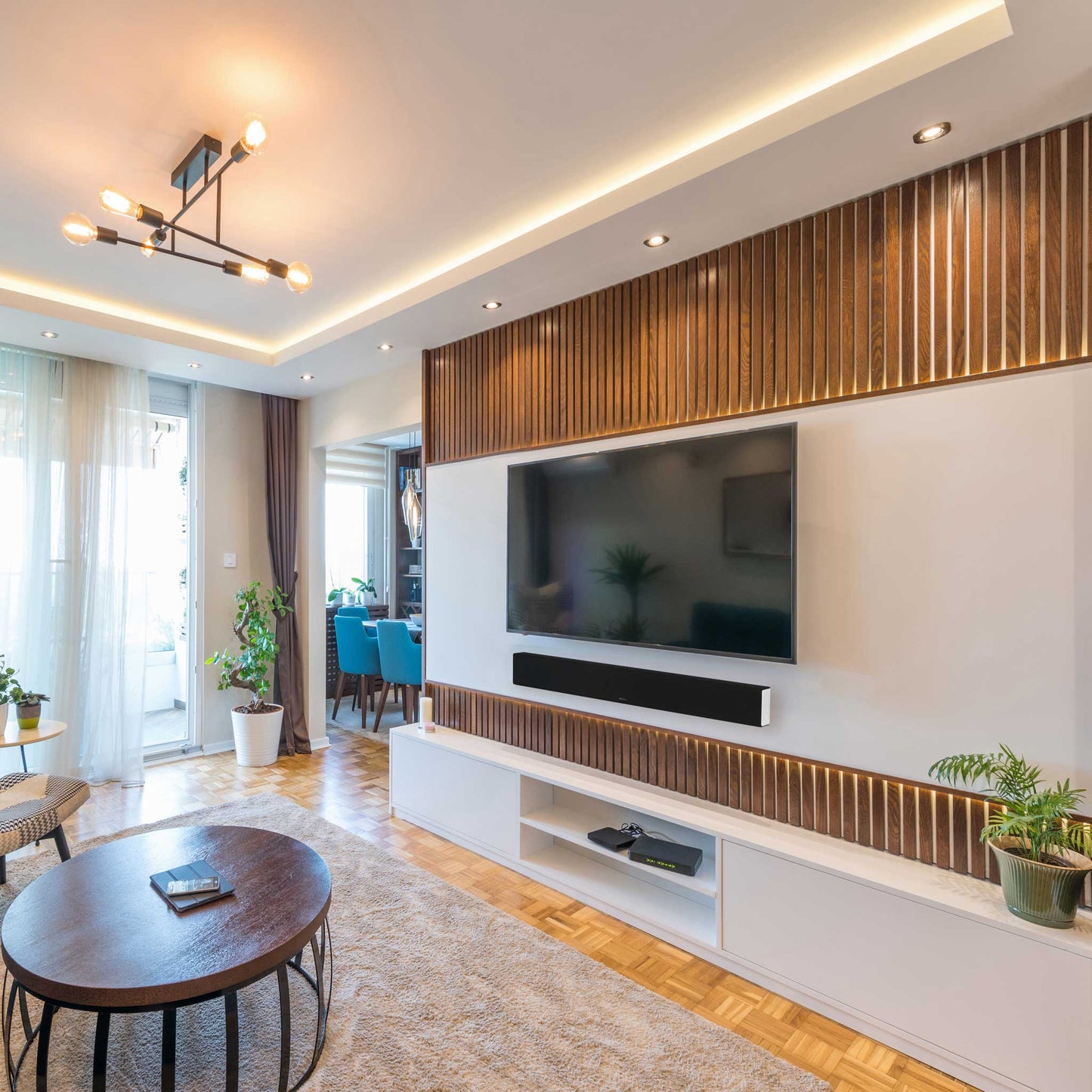

Braced for maximum rigidity and further strengthened by Monitor Audio’s innovative bolt-through driver mountings, the SB3’s high-density cabinet is finished with an acoustically transparent cloth and capped at either end with stylish brushed aluminium finials for a beautifully discreet designer look that will complement the style of any flat screen display.
High quality, low profile terminals are recessed to facilitate flush-to-wall installation (when using the optional low profile wall mount bracket) allowing for easy cable access, pre-alignment and fixing. Integrated Silicon feet provide a secure, stable base should you want to sit the SB3 on top of a cabinet or shelf.
It is also very easy to upgrade the SB3 to a full 5.1 home theatre system simply by adding an active subwoofer and a pair of rear speakers – choose from on-wall, in-ceiling or floorstanding models to complement your decor.
* Please note that the Monitor Audio SB3 is a passive speaker so requires a separate surround sound AV receiver to power it. (please click here to browse our range of AV receivers)
Specifications
Specifications
|
Frequency Response (-3dB) |
80Hz – 30kHz |
|
Sensitivity (1W@1M) |
Left & Right Channels 84dB Centre Channel 87dB |
|
Nominal Impedance |
8 Ohms |
|
Power Handling Single (RMS) |
Left & Right Channels: 40w Centre Channel: 80w |
|
System Power Handling (RMS) |
100W (High pass filter set to 100Hz |
|
Recommended Amp Requirements |
30 - 100W |
|
Recommended High Pass Crossover Frequency |
80 - 120Hz |
|
Maximum SPL (dBA) |
104 (108.8 all channels driven) |
|
Bass Alignment |
Left & Right Channels 2 x Auxiliary Bass Reflex (ABR) Loading Centre Channel 2 x Auxiliary Bass Reflex (ABR) Loading |
|
Drive Unit Complement |
Left & Right Channels: 2 x 4” (100mm) C-CAM cone bass/mid driver, 2 x 1” (25mm) C-CAM gold dome tweeter. Centre Channel: 2 x 4” (100mm) C-CAM cone bass/mid driver, 1 x 1” (25mm) C-CAM gold dome tweeter. |
|
Cabinet Dimensions (H x W x D) |
145 x 1310 x 89mm |
|
External Dimensions Inc Bracket (H x W x D) |
145 x 1310 x 100mm |
|
Weight |
9.1Kg |
