Monitor Audio W380-IDC 3 Way 8" In-Wall Speaker

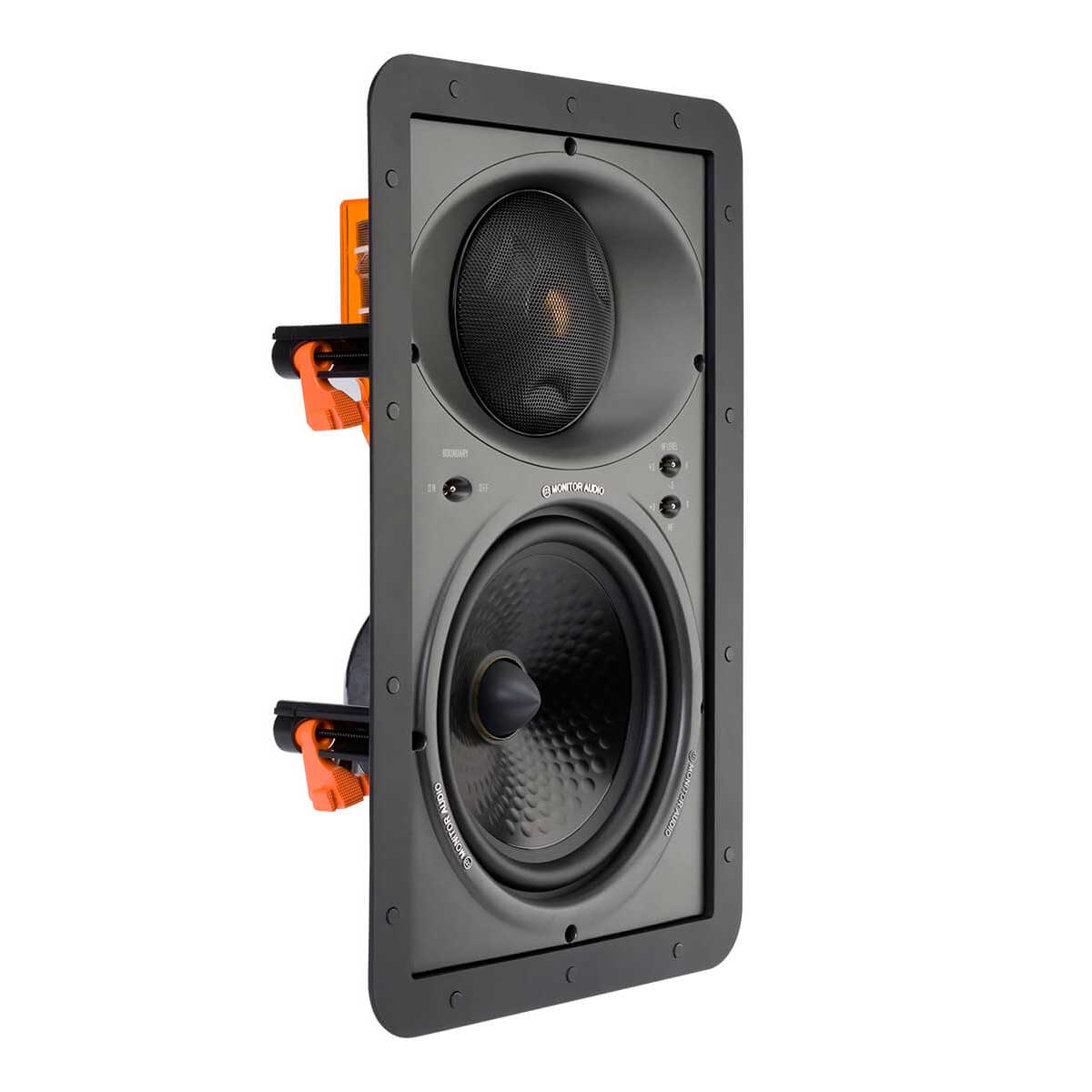

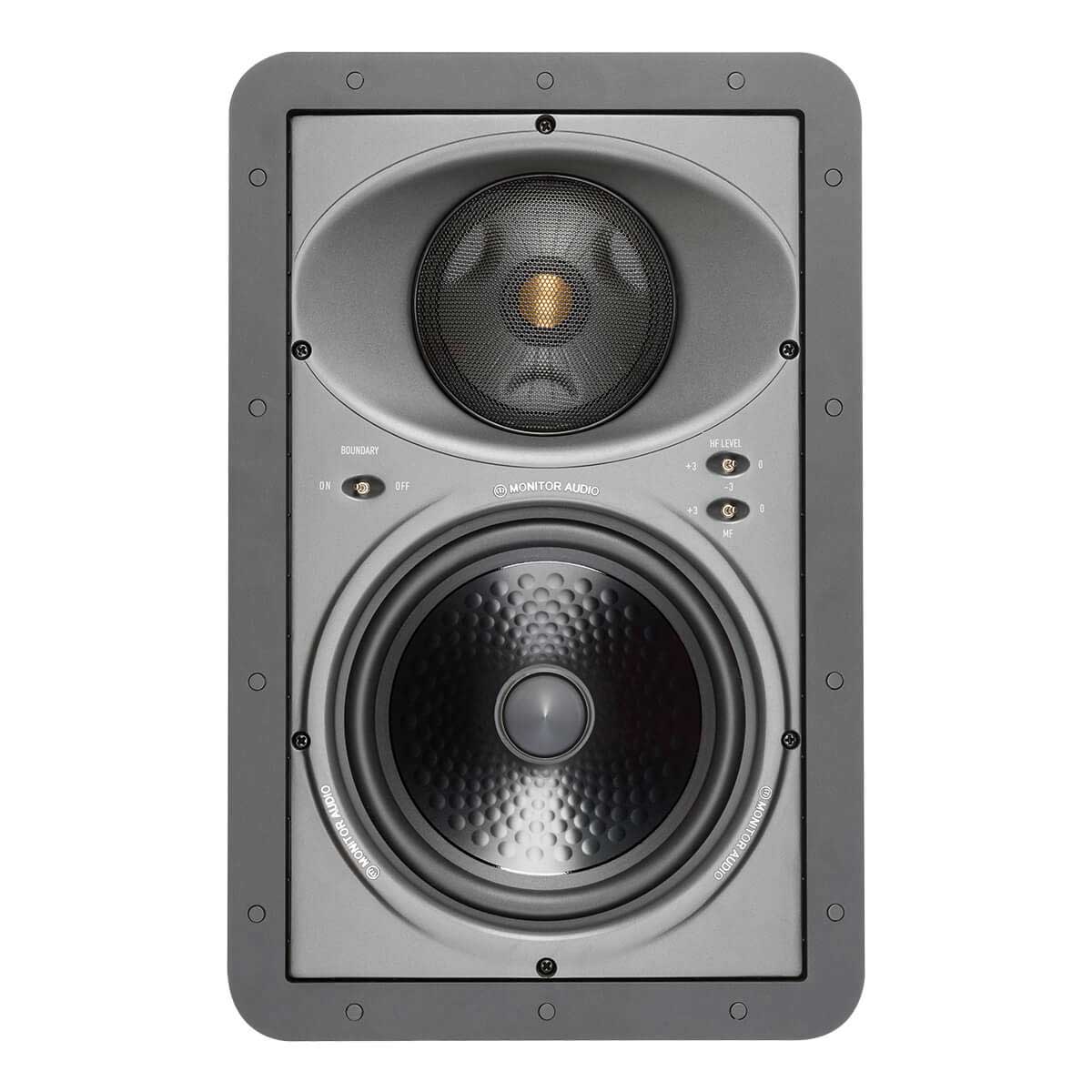

The Monitor Audio W380-IDC features an 8-inch C-CAM bass driver and a pivoting IDC module housing a 4-inch C-CAM RST inverted midrange driver and a 1-inch C-CAM gold dome tweeter.
True 3-way design provides rich midrange detail, higher system output, greater power handling, and superior vocal intelligibility and sound localisation.
Optimum imaging and set-up are established via the pivoting IDC, high frequency (+3dB /0dB / -3dB) level adjustment, and boundary compensation (on / off) controls.
- Unique IDC dual concentric mid-range/ HF module offering up to 18 degrees of pivot in all directions. Easily directed during post install set-up.
- C-CAM drivers throughout, providing coherent tonal balance and sonic signature across the entire audio frequency spectrum.
- Special Inverted C-CAM RST profile mid-range cone provides improved dispersion pattern.
- True 3-way designs.
- High overall efficiency.
- High frequency level adjustment (+/- 3dB).
- Boundary compensation control.
- Audio match with CP range 200 models and Silver Series Hi-Fi speakers.
- Innovative Tri-Grip® fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.

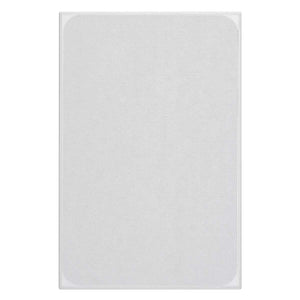

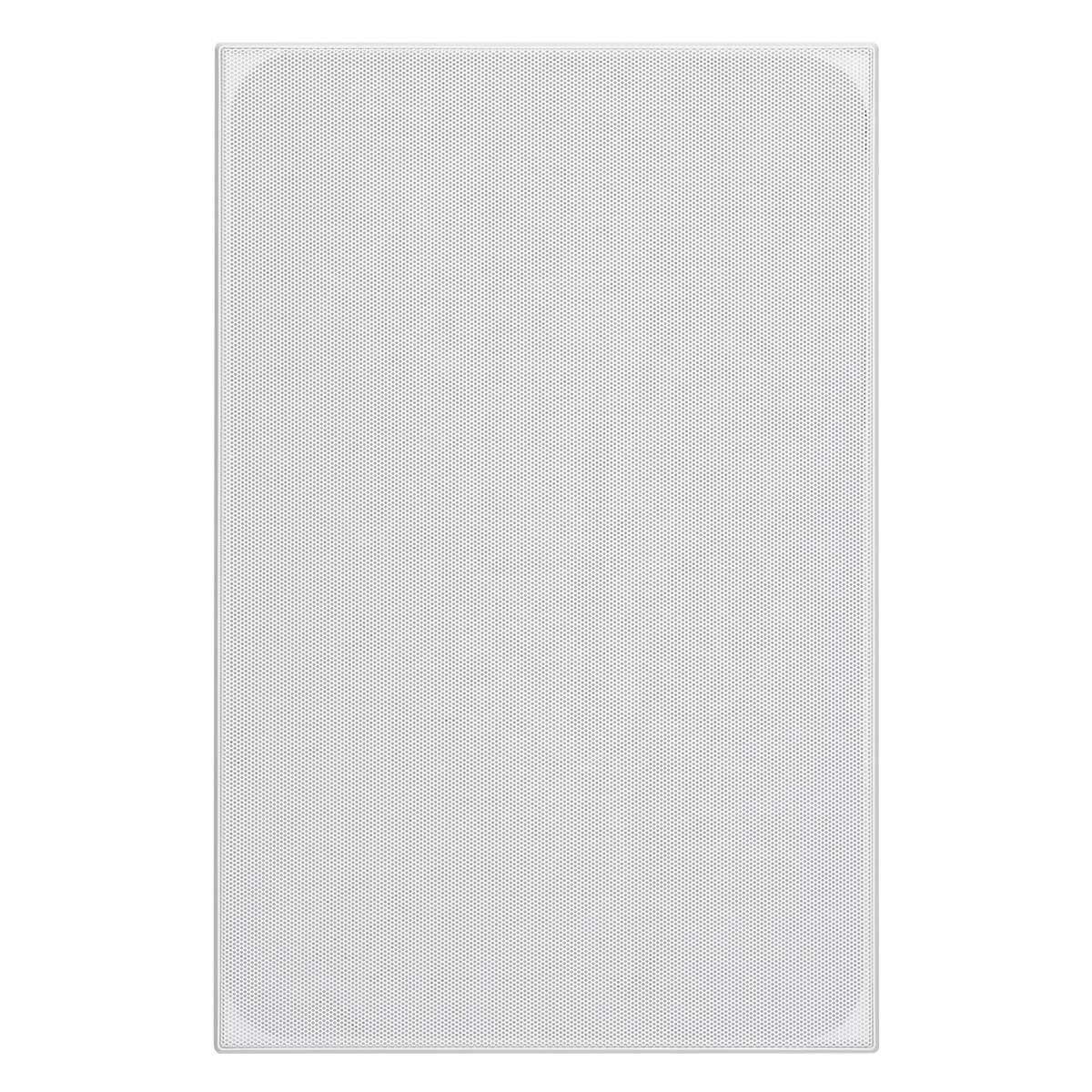

- Magnetic and easily removable steel grille.
- All models are paint-able to blend with the living environment. Additional scrim material is provided for trouble free painting.
- All models use fire retardant materials specified to UL-94 VO rating.
- All models are splash and humidity proof for installation in shower rooms or pool areas.
- All models feature dust protection covers that are designed to prevent the ingress of dirt or dust into the driver and crossover.
Specifications
Specifications
Frequency Response
45 Hz - 30 kHz
Impedance (Nominal)
6 Ohms
Sensitivity (1W@1M)
90 dB
Maximum SPL
111.6 dBA
Power Handling (RMS)
150 W
Recommended Amp Requirements
40 - 150 W
Drivers Unit Complement
8” C-CAM cone bass driver featuring RST, pivoting IDC module housing:
4" C-CAM RST inverted mid range driver
1” C-CAM® gold dome tweeter
Adjustment Controls
HF Level Switch
(+3dB / 0dB / -3dB)
HF Level Switch
(+3dB / 0dB / -3dB)
Boundary Compensation Switch
Overall Dimensions:(including grille) (HxW)
441 mm x 288 mm
Overall Depth:(including grille)
104 mm
Cut Out Dimensions:(HxW)
387 mm x 234 mm
Mounting Depth
100 mm
Fixing Type
6 position Tri-Grip® dog leg fixings
Construction Material
Mineral Filled ABS Plastic
(UL V0 Fire Retardant, RoHS2 Compliant)
Weight
4.1kg
