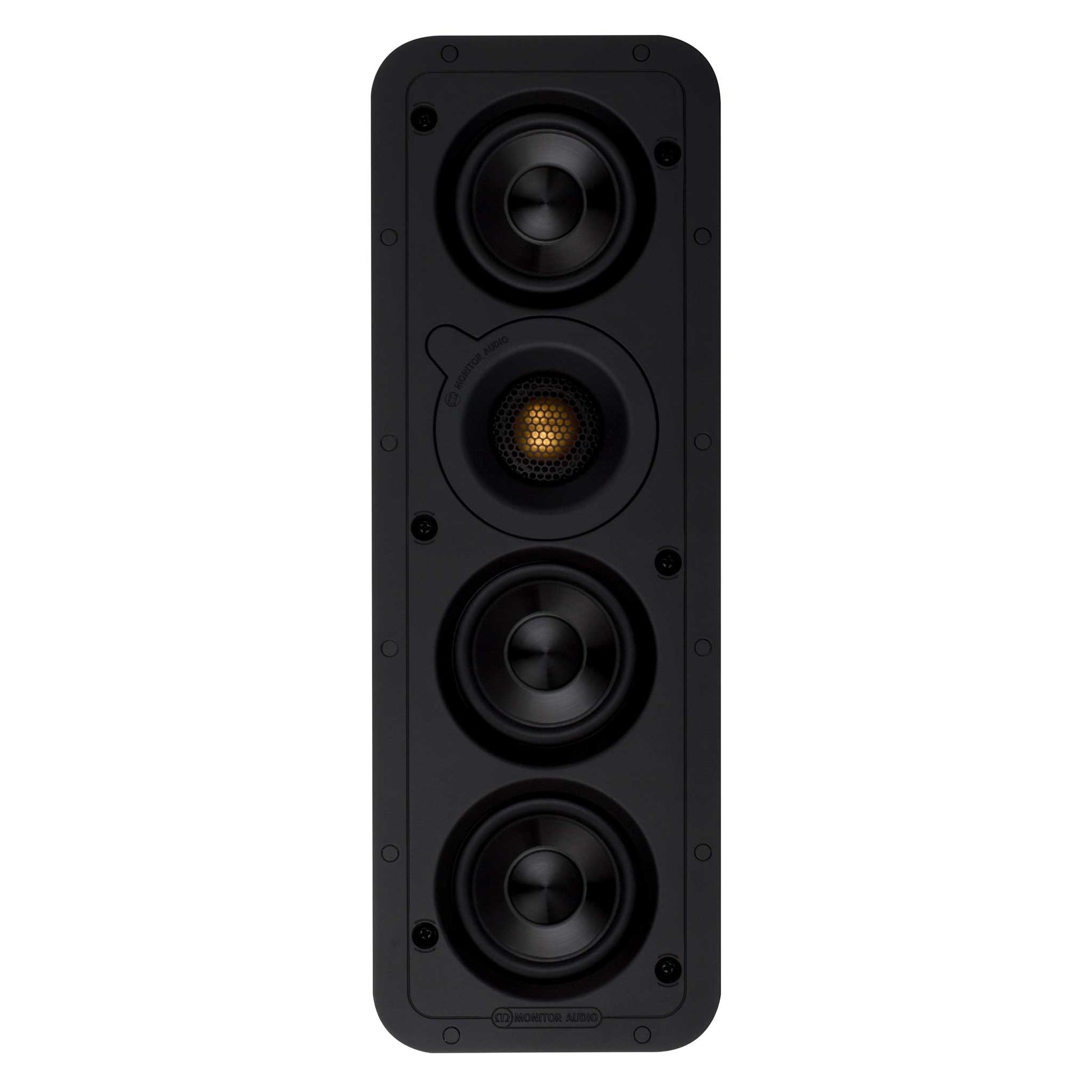

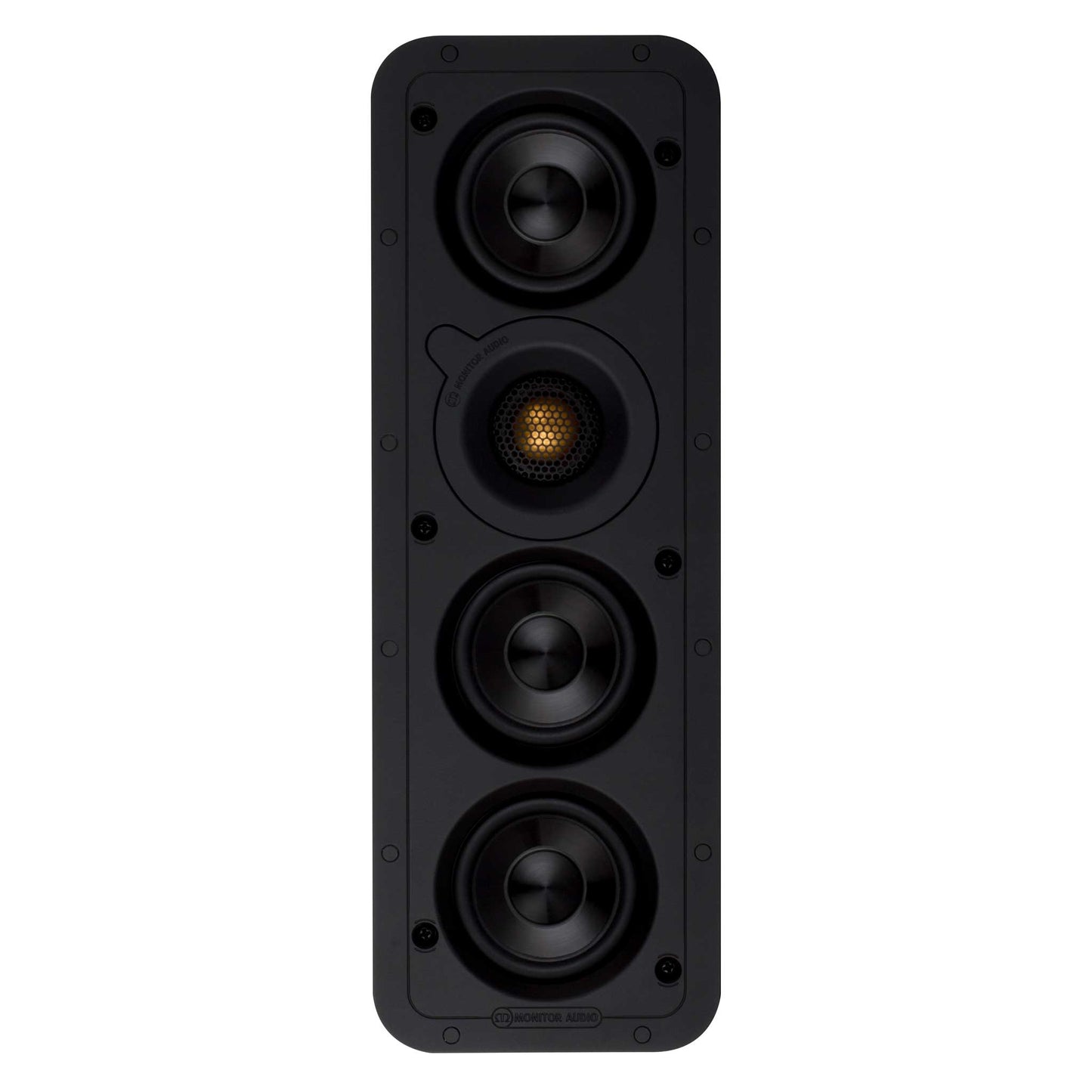

Monitor Audio WSS130 Super Slim In-Wall Speaker
Marking the entry point into the Super Slim in-wall speaker range, the WSS130 is perfectly suited to multi-room audio and home cinema installations
Featuring three bass/mid-range drivers plus one tweeter, the speakers have been smartly designed to enable the performance of a significantly larger monitor. The three-driver layout is key here, as it helps keep the frontal profile look slender, as well as deliver a depth of a mere 50 mm. The WSS130 features MMP II cone drivers, augmented by a 25 mm Gold Dome tweeter. This MMP cone technology allows for a simple crossover design and smooth overall sound character.
The WSS130 includes Monitor Audio’s patented ‘tri-grip’ mounting system meaning you get a robust fixing. This system has been proven over the last decade in the CT and WT ranges, so you know it works brilliantly. All three models share the same footprint and pre-constriction bracket, providing simplicity as well as the option of specifying a higher performance model in the range before completion
- Super-Slim depth 50 mm (2") – designed to fit in 2" stud walls or where space is restricted
- Designed for portrait or landscape installation – fits between standard 14" stud bays
- Elegant, slim profile only 385 x 140 mm wide
- Three, 3" bass/mid-range drivers featuring incremental technology and performance benefits – MMP II, C-CAM and dished C-CAM cones
- 25 mm C-CAM Gold Dome tweeter
- High quality crossover components – Selected and voiced for amazing sonic performance

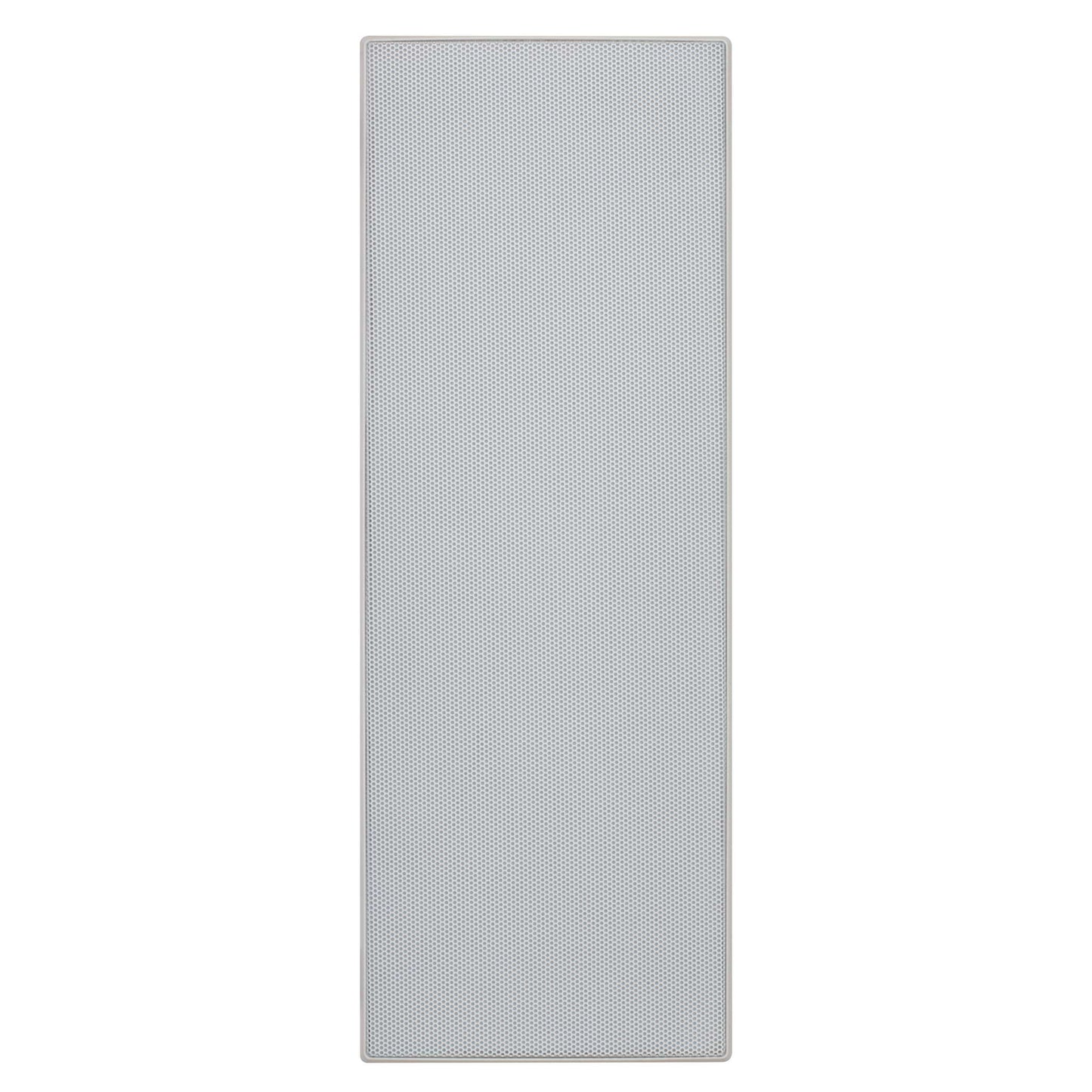

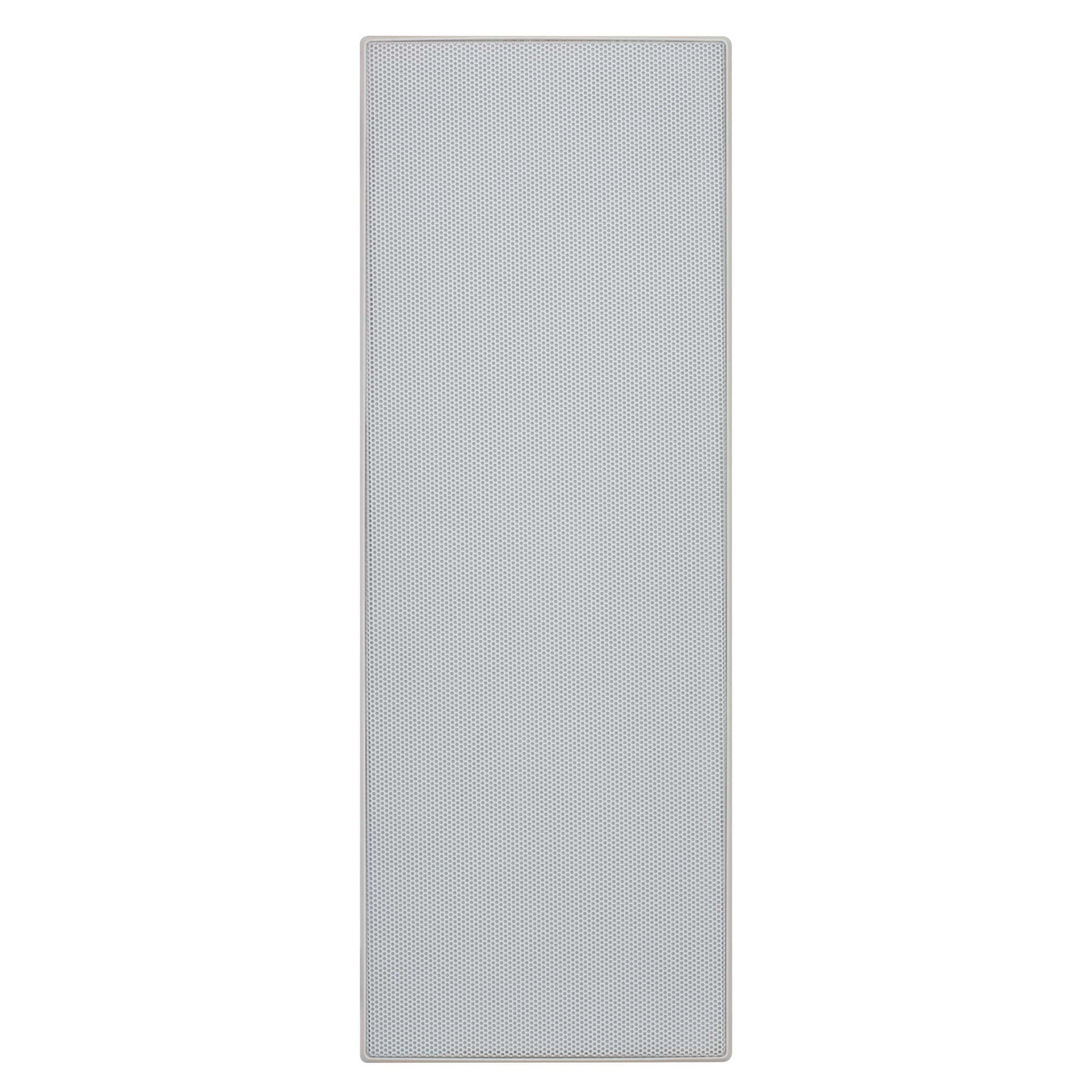

- Magnetically attached ‘trim-less’ grille – discreet, reliable, and easy servicing

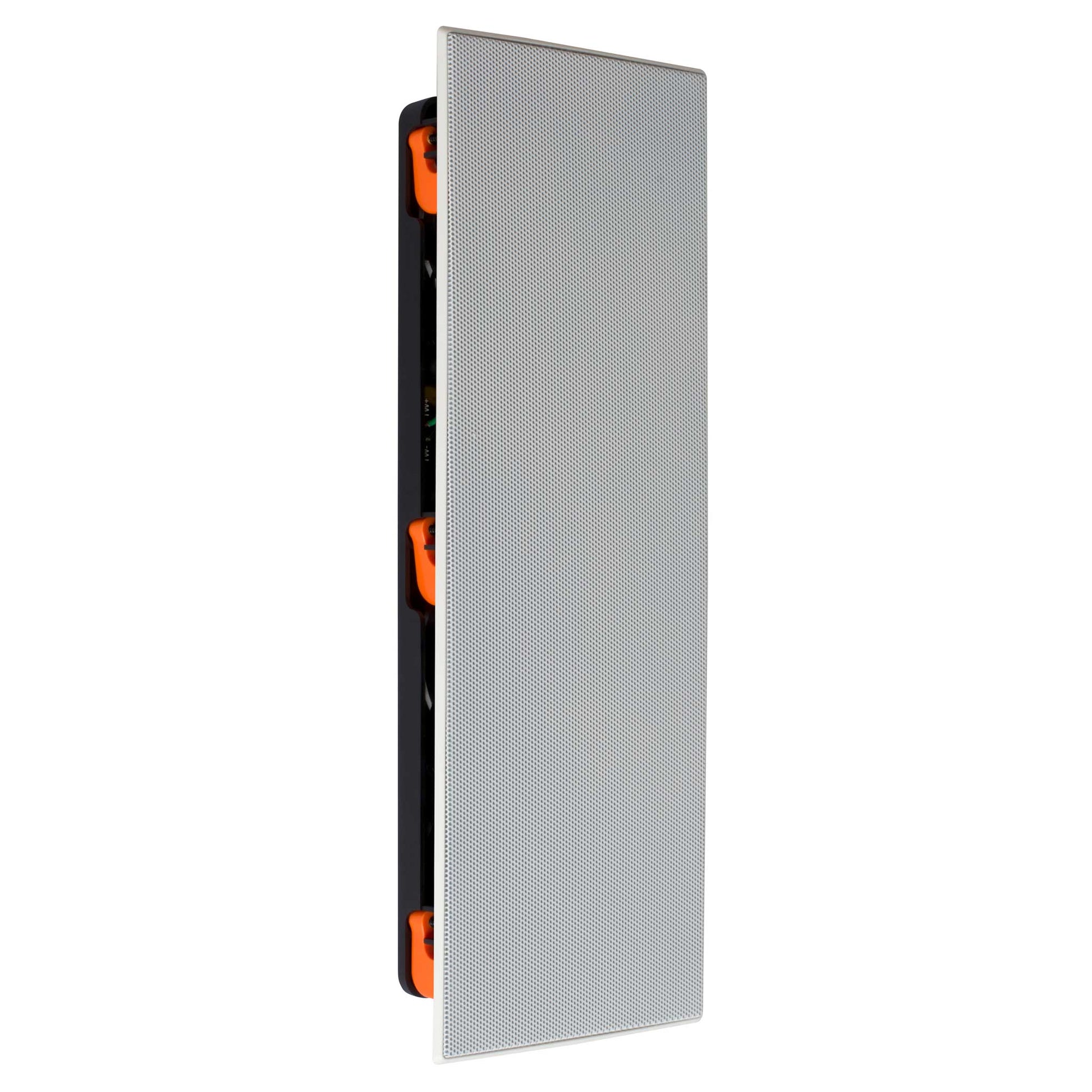

- Tri-Grip Dog leg fixings – reliable, robust, and quick to install

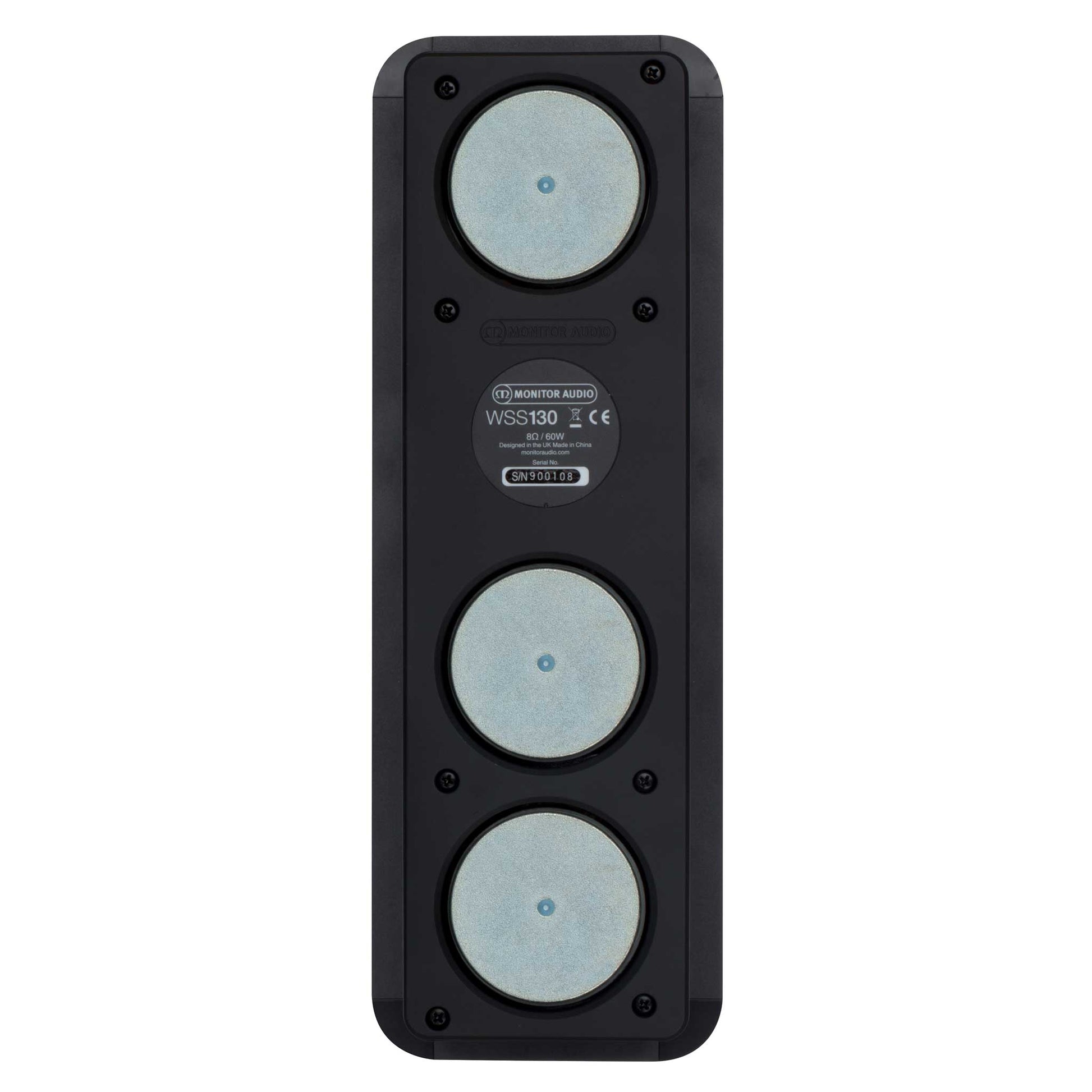

- Gold plated sprung push terminals – easy to connect and reliable
- Paintable grille – to complement and blend with décor
- WB3 (dark blue) Optional pre-construction bracket available separately
*Pleaes note WSS130 are sold singly
Specifications
Specifications
Frequency Response
75 Hz - 30 kHz
Impedance (Nominal)
8 Ohms
Sensitivity (1W@1M)
87 dB
Maximum SPL
105.6 dBA
Power Handling (RMS)
60 W Full Range, 100 W with crossover set to 100Hz
Recommended Amp Requirements
10 - 100 W
Drivers Unit Complement
3 x 3” MMP®II cone bass driver
1 x 1” C-CAM® gold dome tweeter
Overall Dimensions:(including grille) (HxW)
385 mm x 140.5 mm
Overall Depth:(including grille)
54.25 mm
Cut Out Dimensions:(HxW)
346 mm x 101 mm
Mounting Depth
50 mm
Fixing Type
6 position Tri-Grip® dog leg fixings
Construction Material
Mineral Filled ABS Plastic
(UL V0 Fire Retardant, RoHS2 Compliant)
Pre-Construction Bracket
WB3 (Dark Blue)
Weight
1.4kg
