Naim Nait XS 3 Integrated Amplifier
Naim Nait XS 3 Integrated Amplifier
Couldn't load pickup availability
- Free Delivery
- Demo Available
- 5 year Warranty
Share
Details
Description

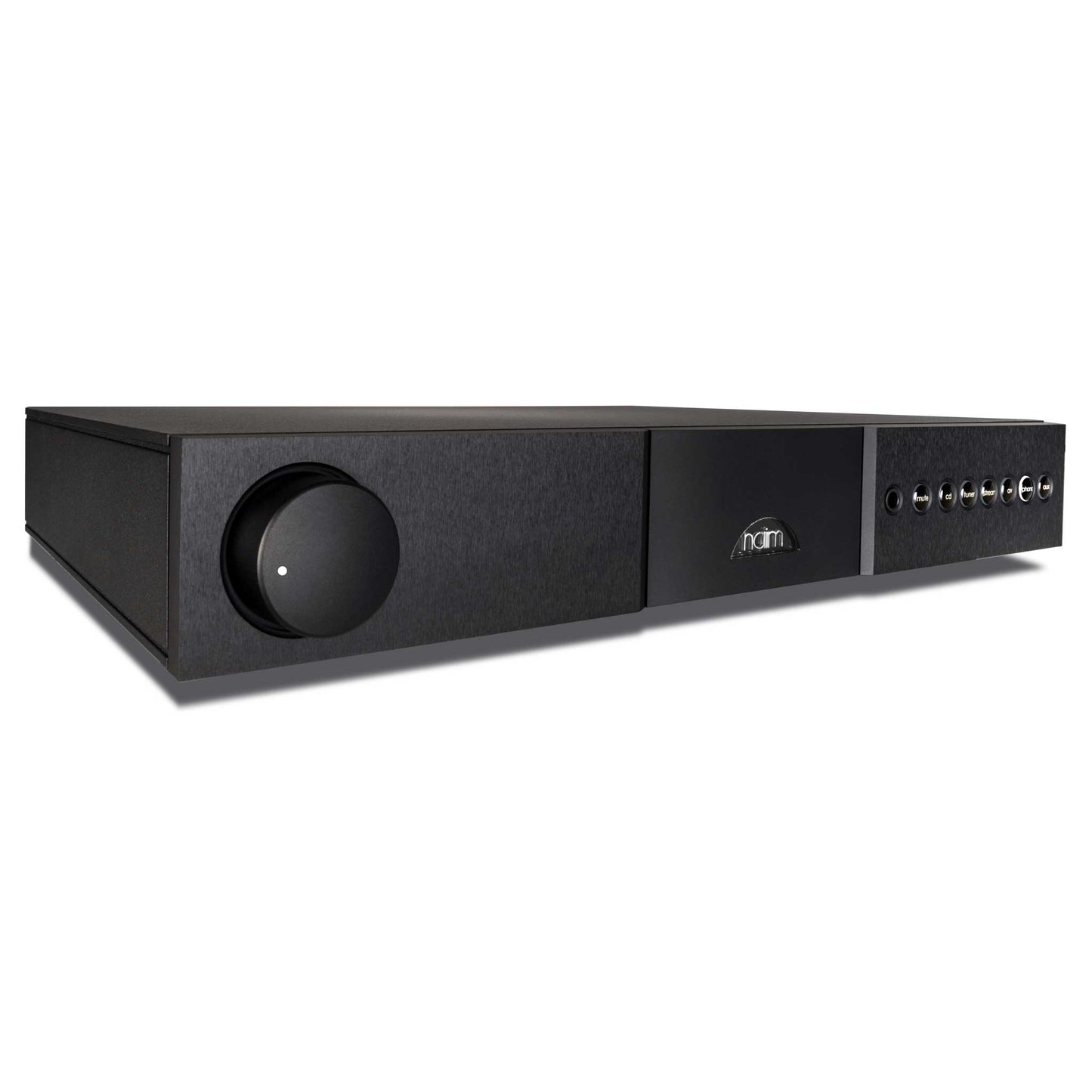

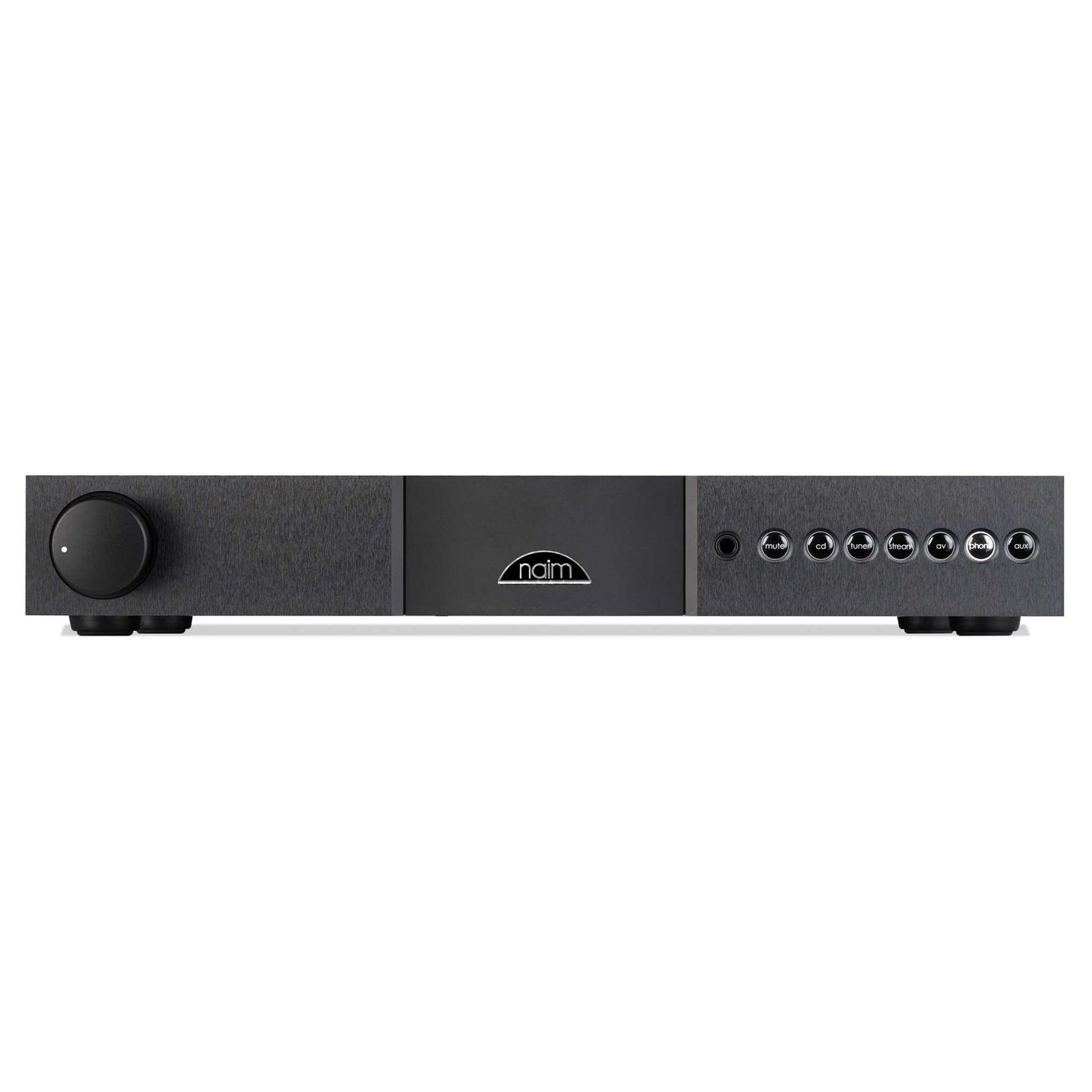

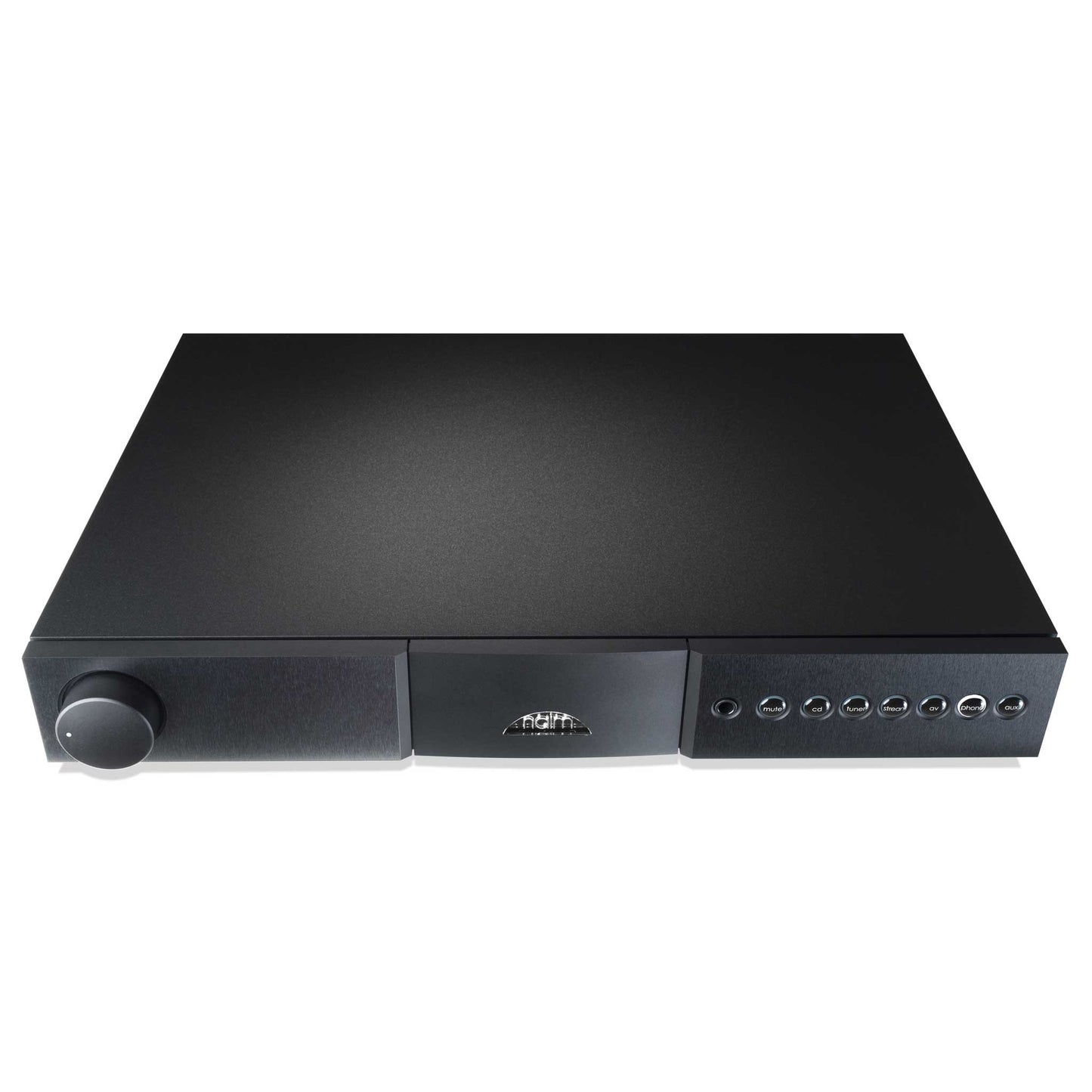

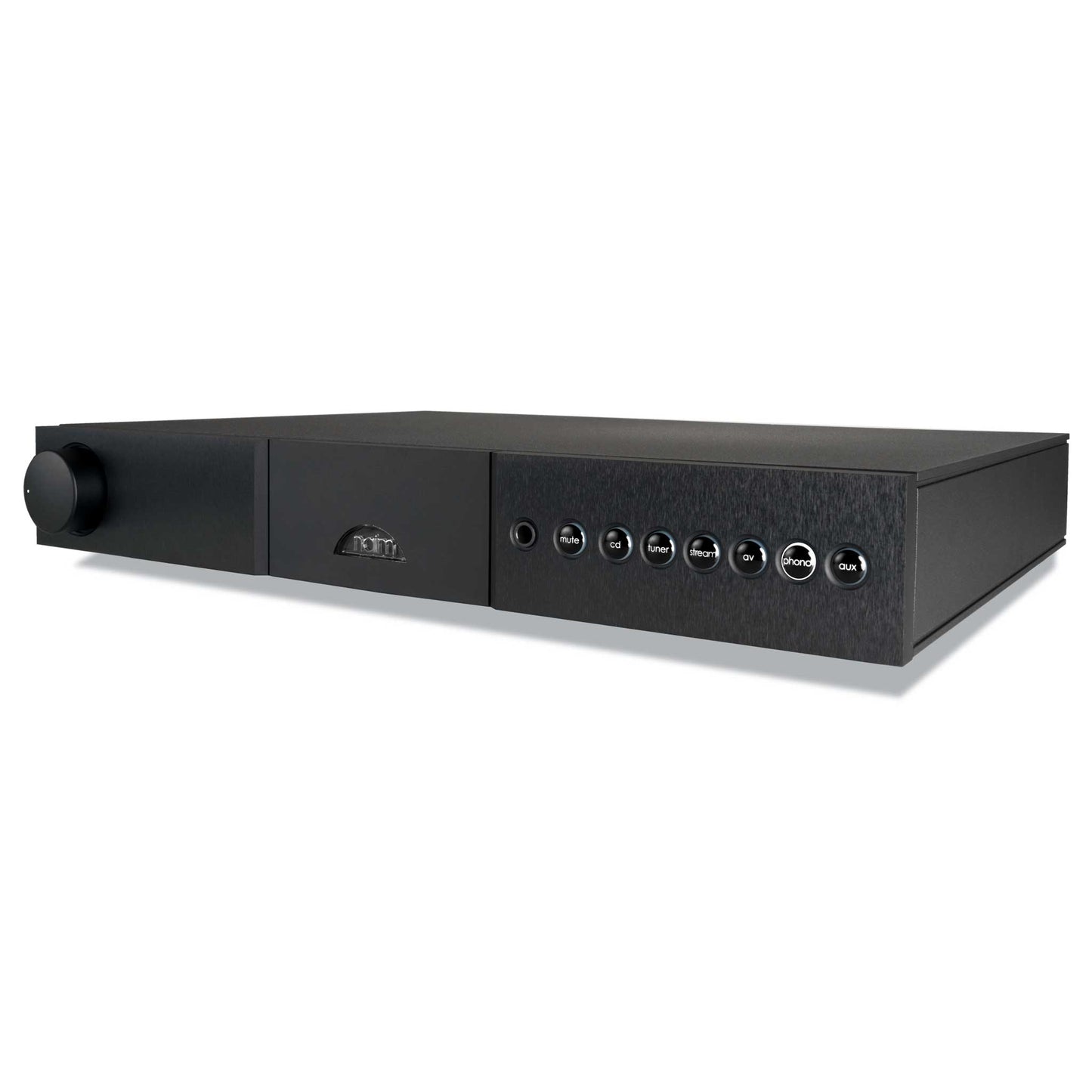

Naim NAIT XS 3 Stereo Integrated Amplifier
In the six years since the last NAIT integrated amplifiers were released, Naim’s research and development team have worked on a range of amplifier improvements. The result is upgraded power amplifier sections for NAIT XS 3, delivering greater pace and intimacy to their musical delivery – whether it's driving a pair of loudspeakers or your favourite pair of headphones.
The NAIT XS 3 has received significant performance upgrades, including a built-in phono stage, making it a perfect partner for turntables, as well as for streamers, CD players, or any other music source people want to enjoy with the signature Naim sound.
The NAIT XS 3 offers much of the performance of their reference quality SUPERNAIT 3 in a simpler, slimmer package combining a 70W power amplifier with five analogue inputs plus a phono stage. Its high-performance preamplifier stage is as transparent as you would expect from a Naim Audio amplifier, and it also shares the single-ended class-A headphone output of its larger sibling.
The NAIT XS 3 can be upgraded with Naim’s external power supplies, power amplifiers and even cabling upgrades to get the best from all sources.
Key Features:
- Class A headphone amplification
- Alps Blue Velvet volume control
- Reed relay input selection
- Ceramic insulators for the power transistors
- Galvanically isolated microprocessor control section
- Microphonic-isolating PCB mounts
Specifications
Specifications

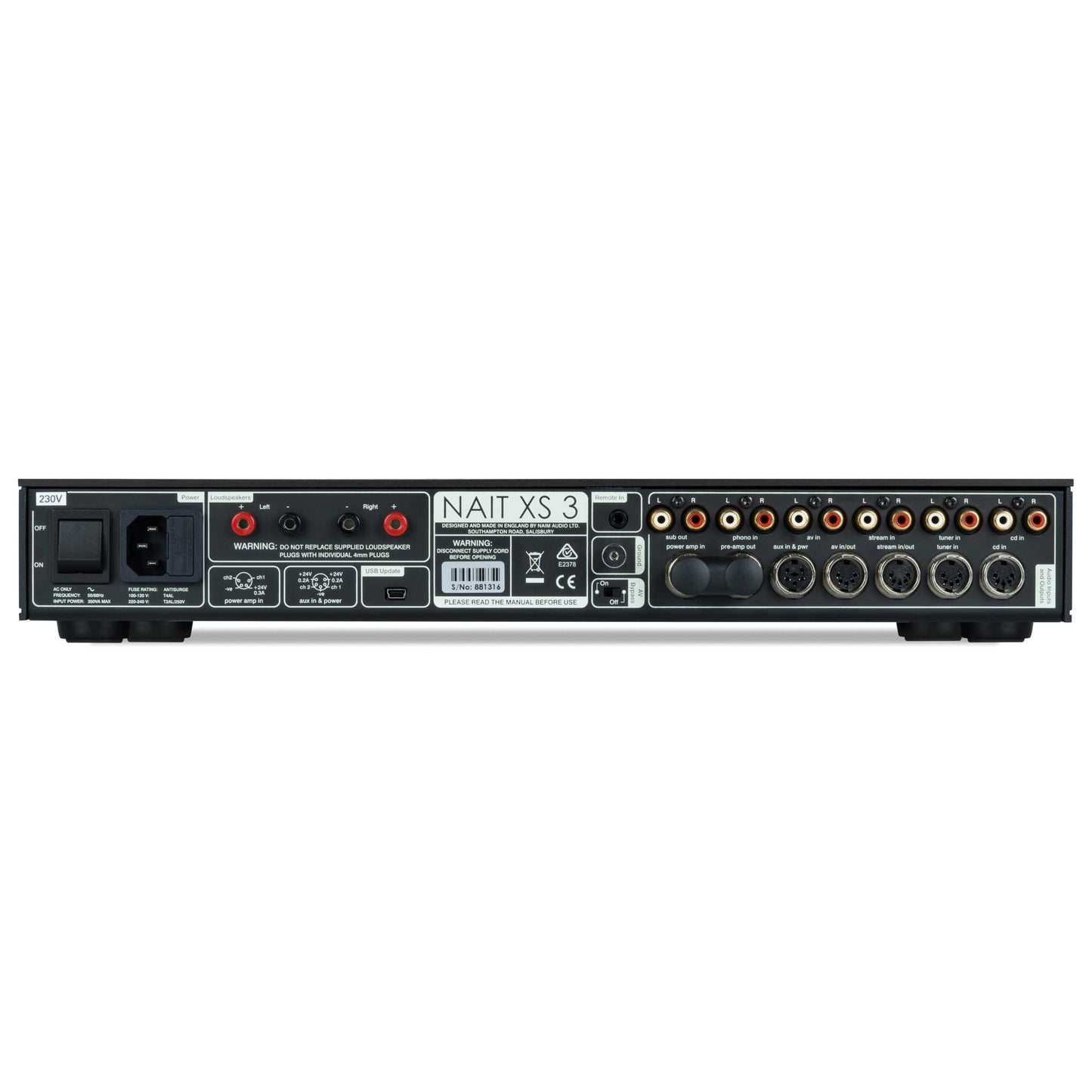

Audio Inputs
|
MM Phono Input |
via RCA, 47k parallel 470pF input impedance, suitable for 5mV cartridges |
|
Line Level Inputs |
130mV sensitivity, 47k input impedance, suitable for 2V |
|
Power Amp In |
DIN Socket |
Audio Outputs
|
Powered Accessory Sockets |
+24V for Naim phono amplifier |
|
Speaker Outputs |
70W per channel into 8 ohms (4mm sockets), 100W per channel into 4 ohms |
|
Line Outputs Variable (level) |
Pre-amp (DIN), Sub (RCA pair) 775mV, <50 ohms |
|
Line Outputs Fixed (level) |
AV (DIN), Stream (DIN) 130mV, 600 ohms |
|
Headphone Output |
1/4 inch (6.35mm) TRS Socket |
Connectivity
|
Updates |
1 x USB mini-B |
|
Remote Input |
1 x 3.5mm Jack on rear |
Finish
|
Case |
Black powder coated |
|
Front |
Brushed and black anodised |
Physical
|
Shipping Weight |
12 kg |
|
Shipping Dimensions |
200 x 590 x 500 mm |
|
Weight |
8.5 kg |
|
Dimensions (HxWxD) |
70 x 432 x 314 mm |
Power
|
Power Consumption (max.) |
350VA |
|
Mains Supply |
115V, 230V; 50 or 60Hz |
|
Power Consumption (quiescent) |
16VA |
Supplied with
|
Supplied with |
NARCOM-5 Remote Control, Mains Lead, Link Plug and Safety Manual |
User Control
|
Front Panel |
Volume control and front panel buttons |
|
Remote Control |
Infra-Red (RC5) |
