Naim

Naim NSC 222 Streaming Pre-Amplifier

Naim NSC 222 Streaming Pre-Amplifier

Regular price £6,200.00
Regular price Sale price £6,200.00
Sale Sold out
Shipping calculated at checkout.
  • Demo Available
  • 5 year Warranty

View full details

Details

Description

Naim NSC 222 - Sleek design meets audiophile quality

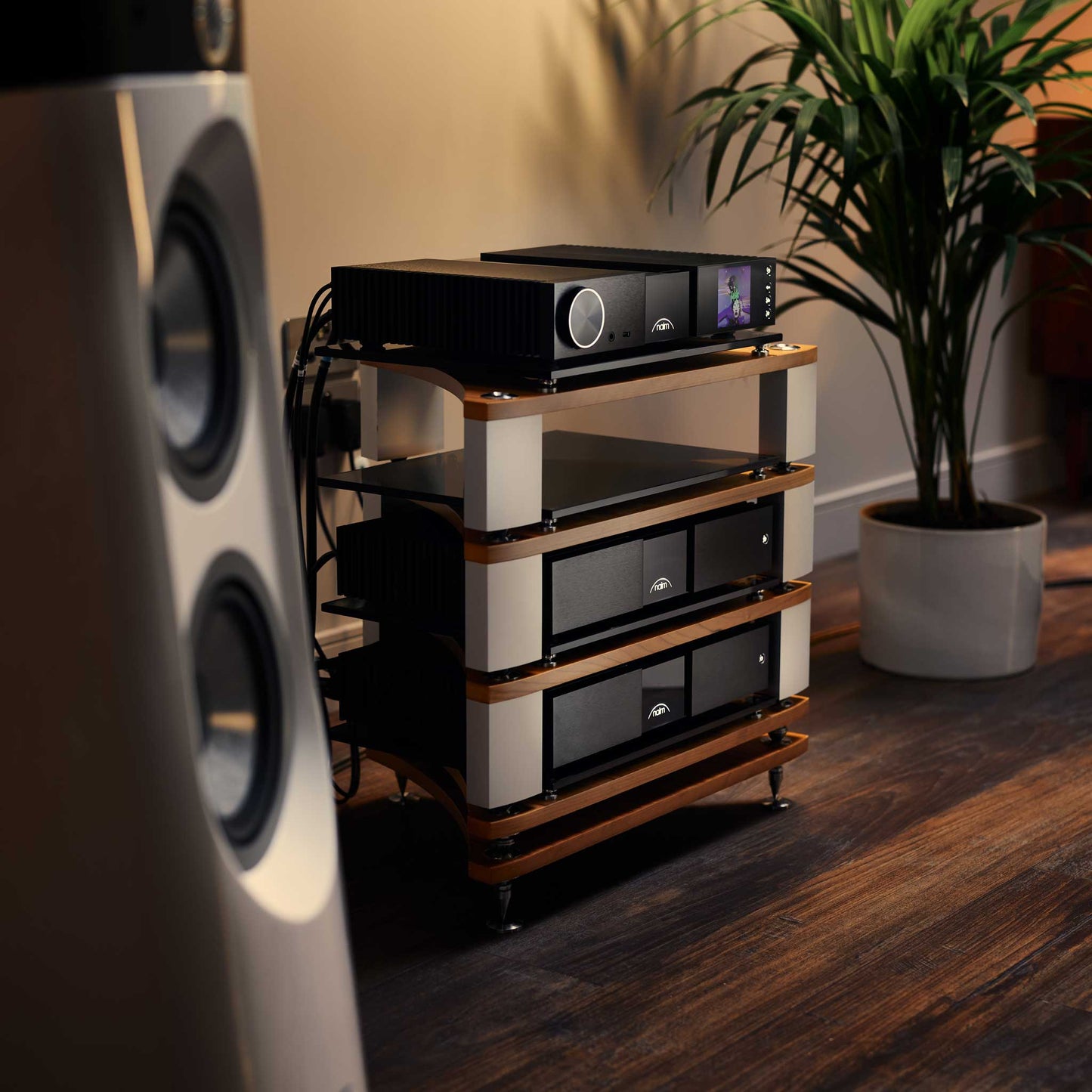

Naim NSC 222 is an easy-to-use streaming preamplifier with multiple functions, offering uncompromising sound quality. With its high-precision engineering and exclusive British design from Naim, this product brings you a world of streamed music and radio, handling vinyl and audio headphones, as well as creating a high-performance analogue preamplifier. Combine it with the NAP 250 power amplifier for an exceptional assembly: just add loudspeakers

Highly versatile

Begin your New Classic musical journey with the highly versatile NSC 222 preamplifier. Access a wide range of music streaming platforms (Spotify, TIDAL, Qobuz, etc.), a very large number of online radio stations, handling bitrates of up to 32bit/284kHz.

Want to enjoy vinyl? The NSC 222 has a MM phono input. Do you like headphones and want to dive into a world of solo listening? NSC 222 is also equipped with the full Naim technology for headphone listening, which is inherited from the Uniti Atom Headphone Edition: our amplifier-DAC, the recipient of several awards all around the world.

A unique streaming platform

NSC 222 incorporates the very latest Naim streaming platform. Made by their experts in Salisbury, it sets new standards in terms of its prowess, functionality and ease of use. It is designed to offer true Hi-Fi performance, with the legendary Naim sound. Play all your favourite radio stations non-stop, as well as any music you choose from Spotify Connect, Apple Music, TIDAL, TIDAL Connect, Qobuz, AirPlay 2, Chromecast, UPnP™ servers, USB key, Roon Ready, and more.

Easy App control – in one room or many

The Naim App – available for Apple and Android devices – makes it simple to control your NSC 222, and even link up other music systems around your home into a stunning multi-room set-up. Use the App to access all your music, including your favourite radio stations, streaming services and playlists, and explore artist discographies and biographies.

Simple and enjoyable to use

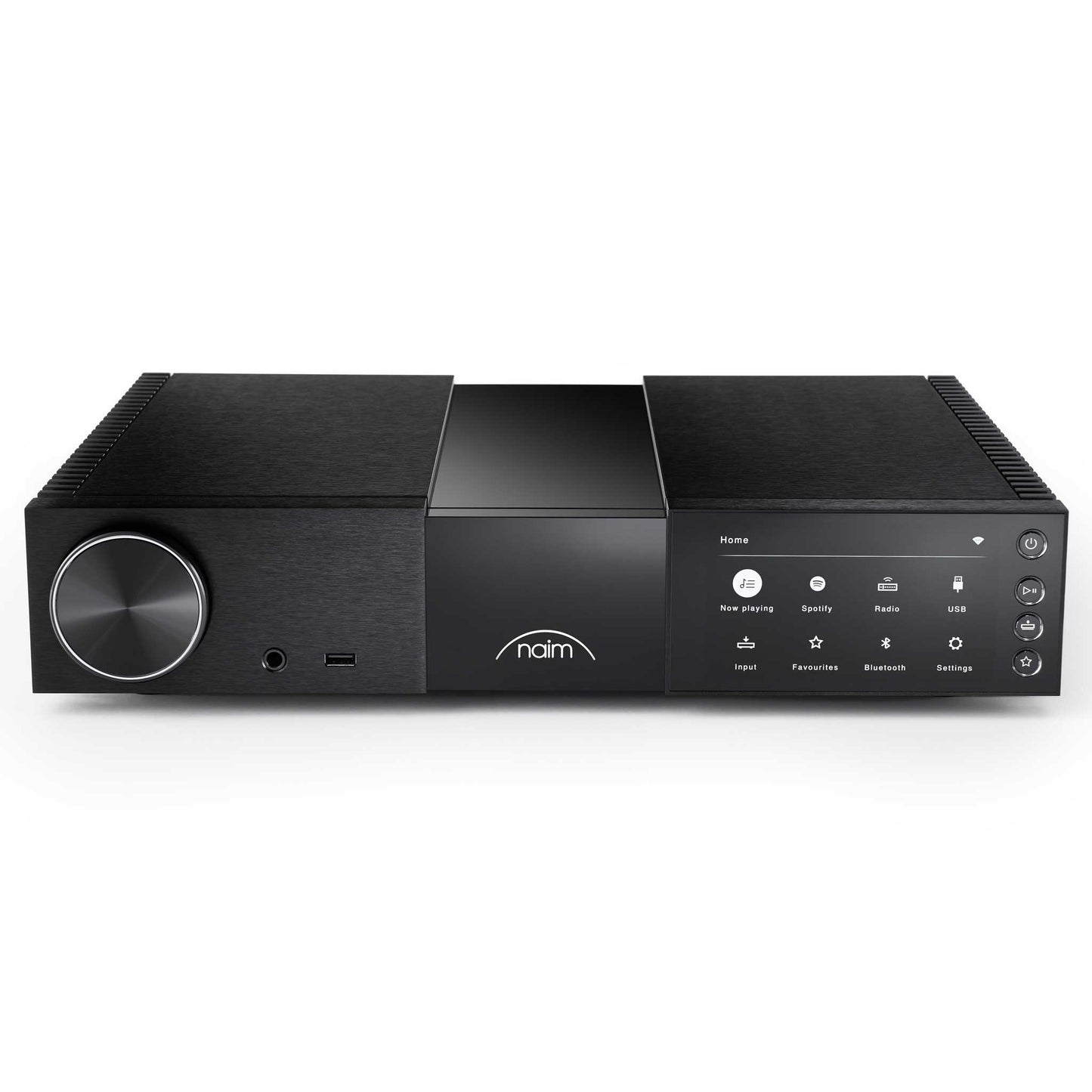

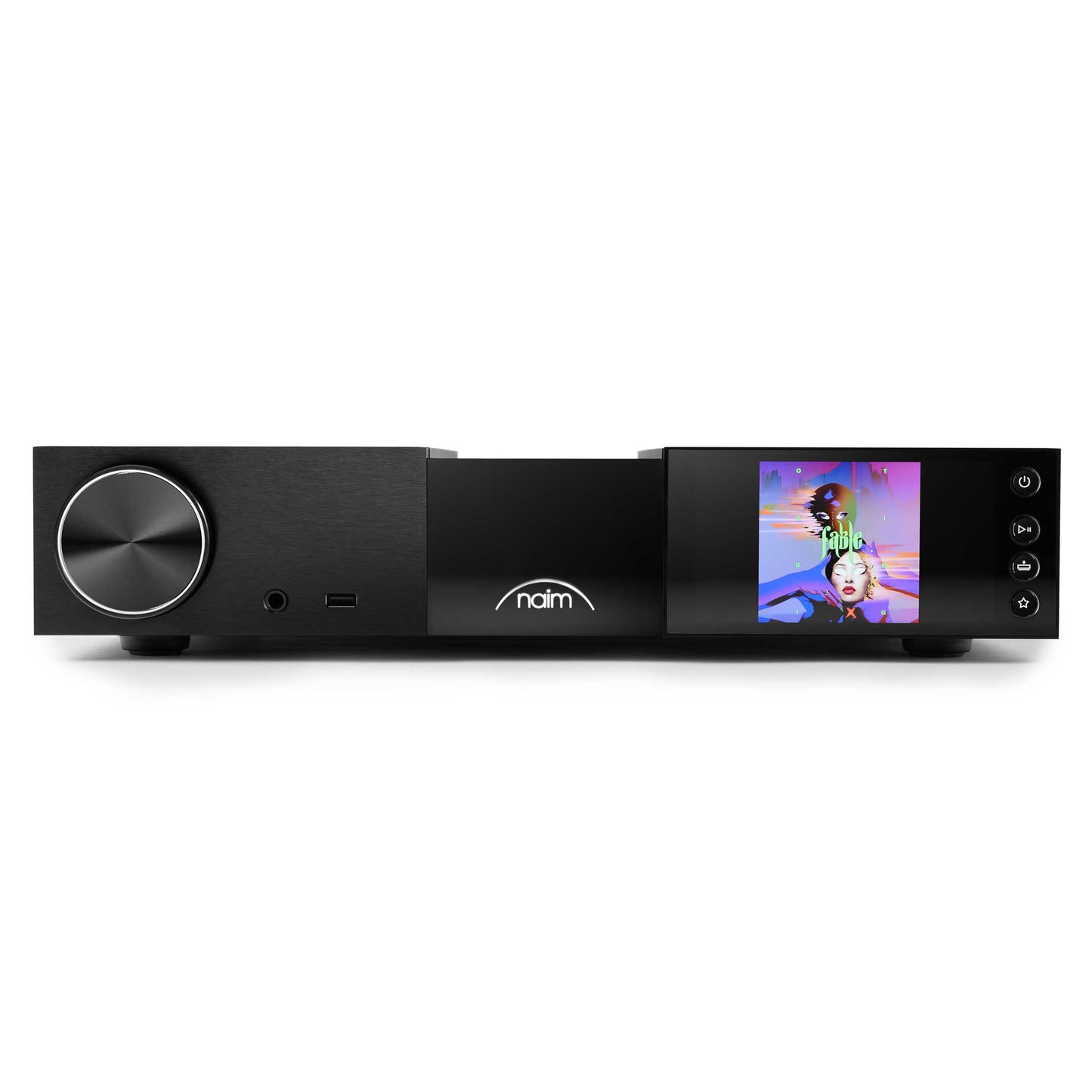

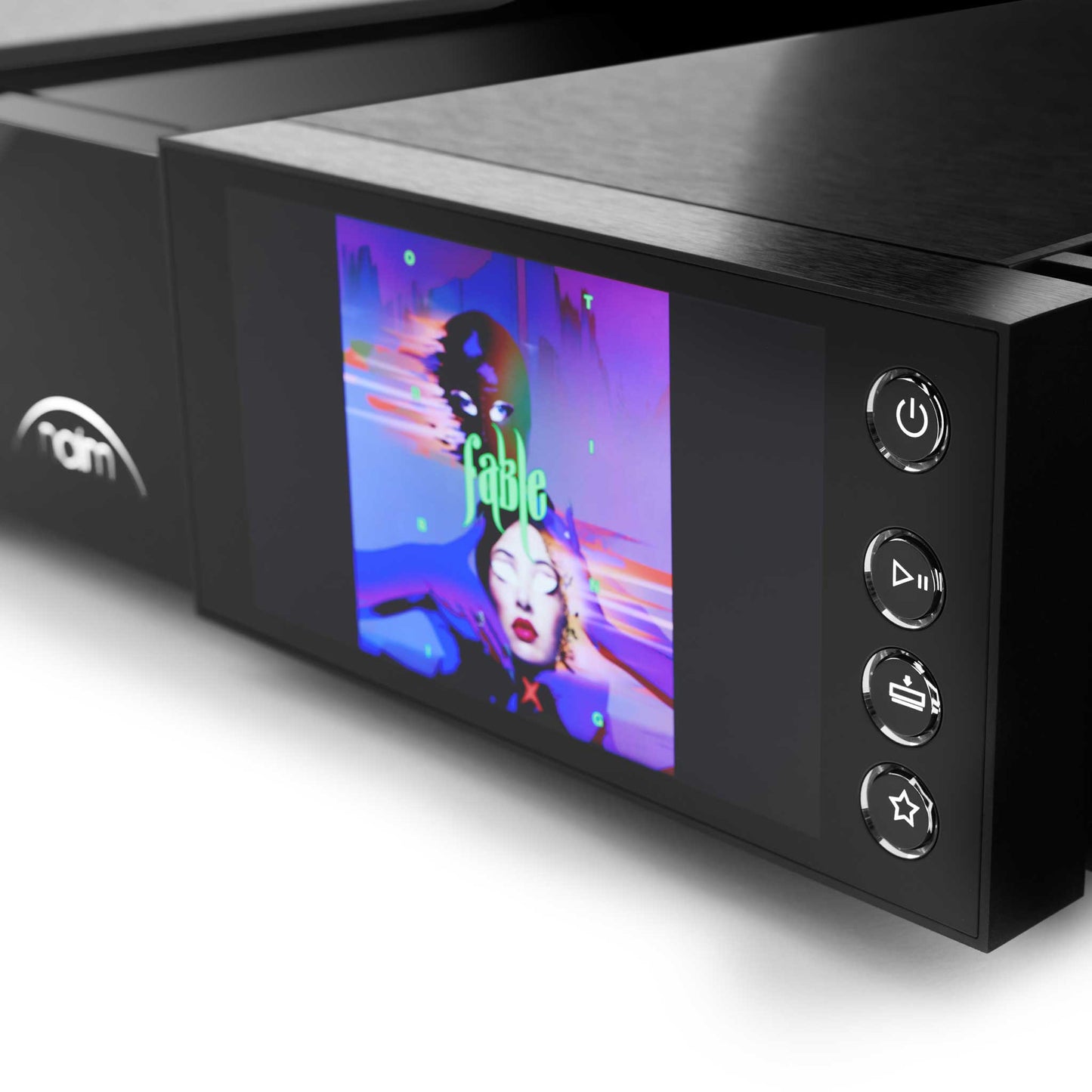

The NSC 222 is very simple to use – you can easily control it using the Focal & Naim app, available on iOS and Android, but also with the Zigbee smart remote control supplied. Of course, you can also access many features via the NSC 222 itself, and its backlit volume button. For your listening pleasure, the 5.5” colour screen displays the tracks being played.

Naim know-how

Under the guidance of Naim’s Technical Director, their specialist engineers have developed simple but elegant circuits, combined with their acclaimed and high-performing DR technology, guaranteeing the stable and fluid power supply so essential for superior performance. Naim’s engineering team opt for the highest-quality components and perform ultra-precise measurements for an uncompromising result.

A timeless design

Naim products are designed to be both contemporary and timeless. Their creations forego any unnecessary decoration that does not contribute to performance targets or add to the sound quality. The design of the NSC 222 streamer and preamplifier combines extreme precision, impressive functionality, sleek design and innovative materials to make it easy and enjoyable to use.

Specifications

Specifications

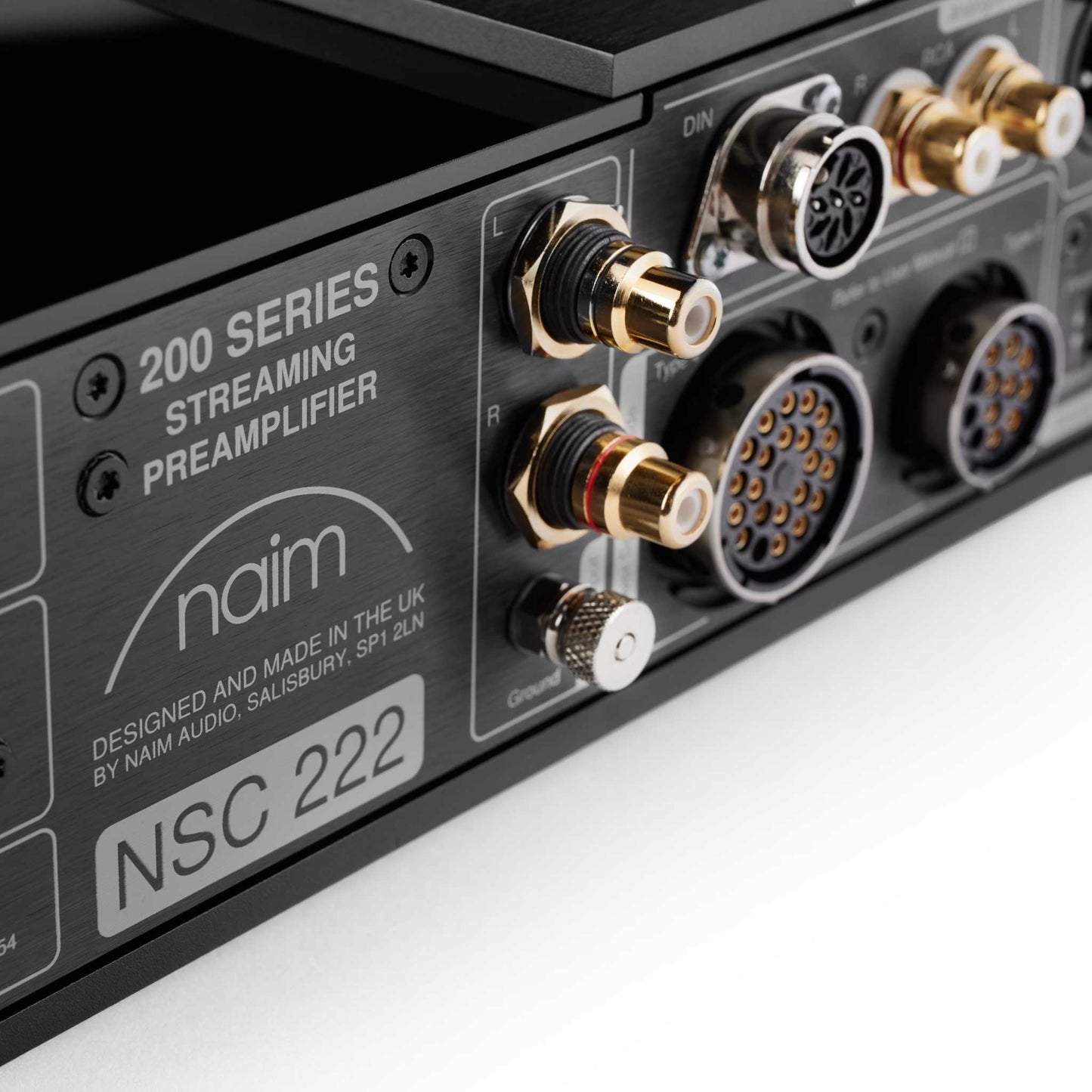

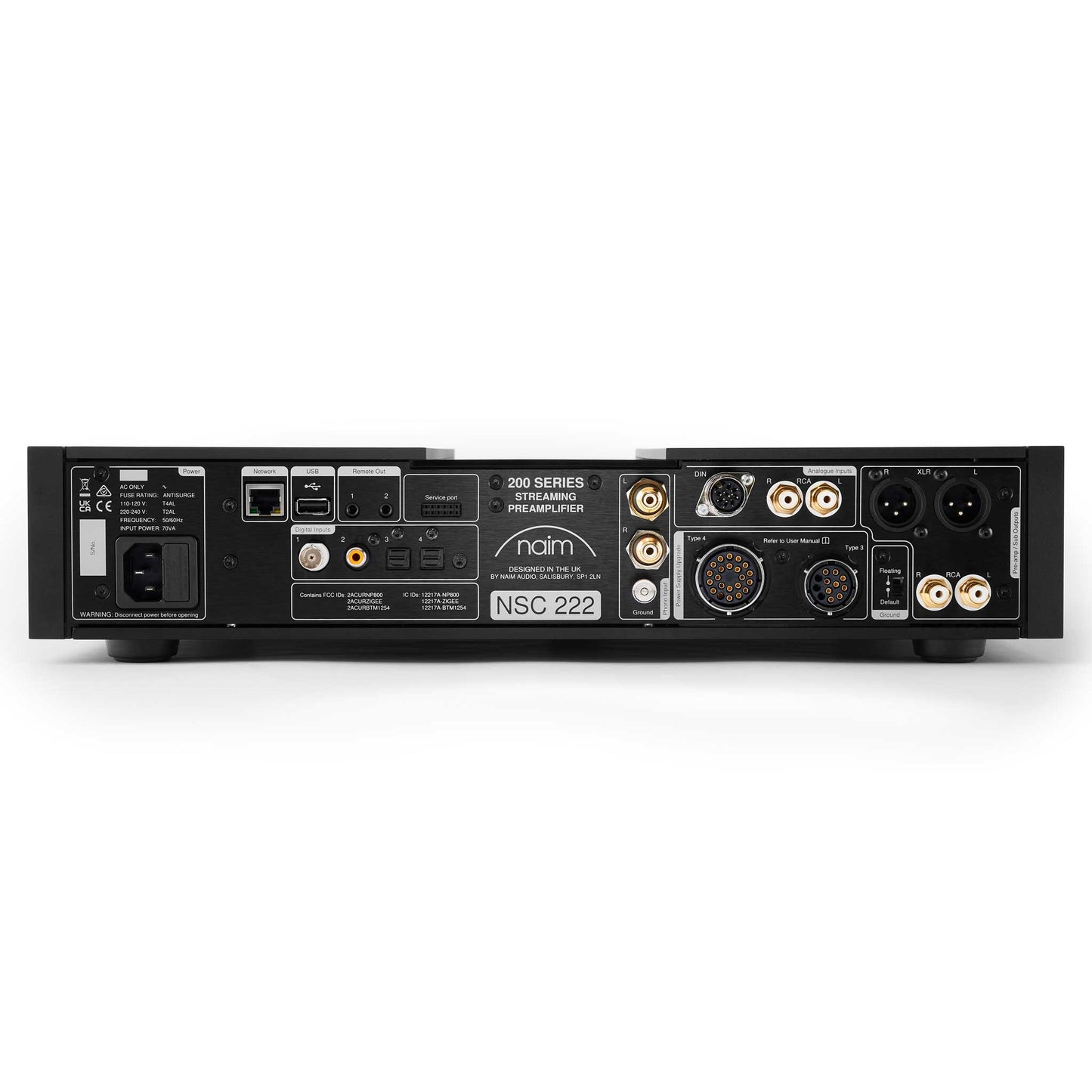

Audio Inputs

USB

2 x USB Type A socket (front and rear - 1.6A charge)

Digital (S/PDIF)

2 x Optical TOSLINK (up to 24bit/96kHz)
1 x coaxial RCA (up to 24bit/192kHz, DoP 64Fs)
1 x coaxial BNC (up to 24bit 192kHz, DoP 64Fs)

Audio Input

1 x moving magnet phono
1 x 8-pin DIN (compatible with 5-pin DIN cables)
1 x RCA stereo pair
Line level inputs (RCA/DIN): Impedance 47k, 2.2V typical, 7.5Vrms Max
8 pin DIN has +/-18V for compatible external phono stages such as Solstice NVC TT
Compatible with 5 pin DIN
MM phono: 47k/470pF, 5mV, 23dB overload (75mV max)

Audio Outputs

Audio Outputs

Analogue
1 x XLR pair (Stereo XLR balanced impedance 7Vrms max)
1 x RCA pair (Stereo RCA 7Vrms max)
1 x 6.35mm headphone jack (Headphone 1.5W into 16)

Crosstalk

MM: 90dB at 1kHz, volume at 0dB
Line: 90dB at 1kHz, volume at 0dB
 (Line: 70dB at 20kHz, volume at 0dB)
Digital: 90dB at 1kHz, volume at 0dB

Analogue

Pre-amplifier at max volume 15.5dB
Phono stage MM 40dB

Signal-to-noise ratio

MM 80dB ref 5mV A-wtd volume at 0dB
Line 104dB ref 2.2V A-wtd volume at 0dB
Digital 102dB ref 0dBFS A-wtd volume at 0dB

Frequency response

MM: -3dB at 10Hz, RIAA +/-0.1dB
Line: 3Hz to 40kHz -3dB
Digital: 3Hz to 27kHz -3dB

Connectivity

Network

Ethernet (10/100Mbps), Wi-Fi (802.11 b/g/n/ac)

Formats

Audio Formats

WAV - up to 32bit/384kHz
FLAC and AIFF - up to 24bit/384Hz
ALAC (Apple Lossless) - up to 24bit/384Hz
MP3 - up to 48kHz, 320kbit (16 bit)
AAC - up to 48kHz, 320kbit (16 bit)
OGG and WMA - up to 48kHz (16 bit)
DSD - 64 and 128Fs
M4A - up to 48kHz, 320kbit (16 bit)
Gapless playback supported on all formats

App Control

App Control

App control (iOS and Android), bi-directional ZigBee remote and front panel
Optical 3.5mm output for synchronised control of compatible products

Physical

Weight

11.0 kg

Dimensions (HxWxD)

91.5 x 432 x 317 mm

Power

Mains supply

115v or 230v, 50/60Hz

Power consumption

Typical use consumption:  25W
Network standby mode consumption: <2W
Standby mode consumption: <0.5w

Supplied with

Power-Line Lite power lead



Remote control



2 x Link Plugs
