Ortofon
Ortofon 2M Blue Stylus
Ortofon 2M Blue Stylus
Couldn't load pickup availability
- Free Delivery
- 2 year Warranty
Share
Details
Description

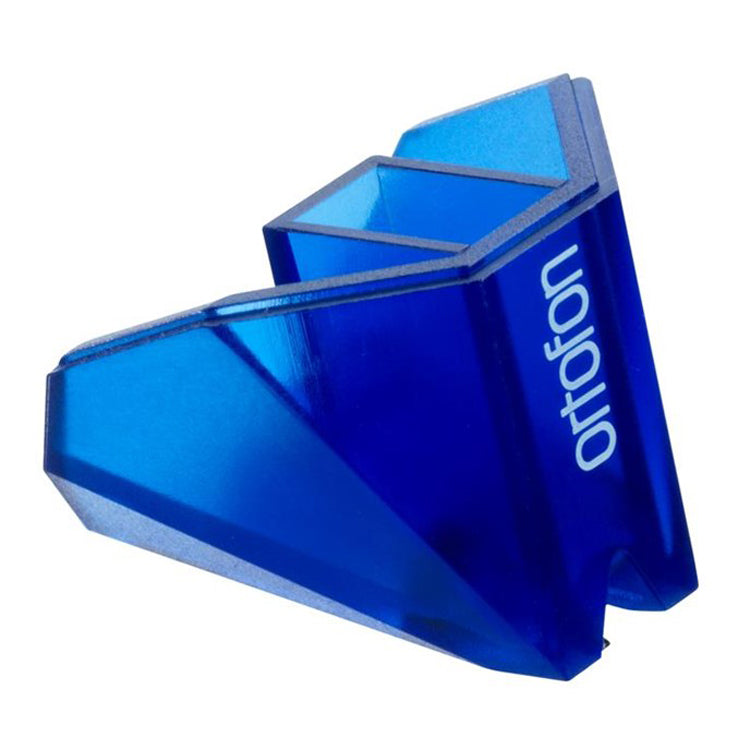

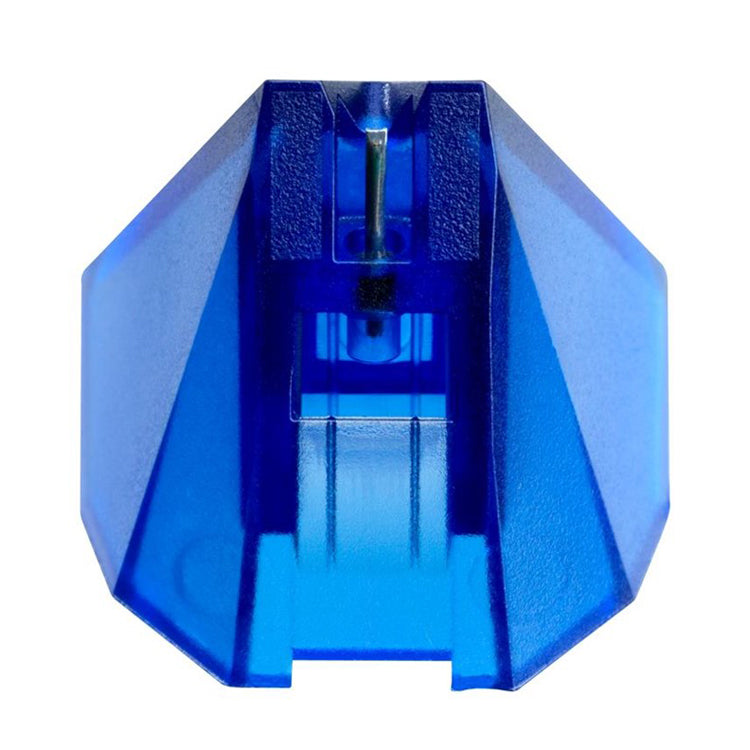

Ortofon 2M Blue Replacement Stylus
Original replacement stylus for the 2M Blue Cartridge.
Alternatively upgrade your 2M Red Cartridge with this 2M Blue Stylus and enjoy improved accuracy and detail. Featuring a Nude Elliptical stylus, the 2M Blue creates a wider contact with the groove than the 2m Red model. It’s this increased contact that gives the 2M Blue a more dynamic sound with improved depth and crisper treble. A wider contact also means less wear to your precious records.
Specifications
Specifications
|
OUTPUT VOLTAGE (@ 1000HZ, 5CM/SEC.) |
4 mV |
|
CHANNEL BALANCE (@ 1000HZ) |
2 dB |
|
CHANNEL SEPARATION (@ 1000HZ) |
22 dB |
|
CHANNEL SEPARATION (@ 15000HZ) |
15 dB |
|
FREQUENCY RANGE (@ -3DB) |
20 - 250000 Hz |
|
FREQUENCY RESPONSE ±2DB |
20 - 20000 Hz |
|
TRACKING ABILITY (@ 315HZ AT RECOMMENDED TRACKING FORCE) |
65 μm |
|
COMPLIANCE, DYNAMIC, LATERAL |
20 μm |
|
STYLUS TYPE |
Tipped Elliptical |
|
TRACKING FORCE RANGE |
1.5 - 2.0 g |
|
RECOMMENDED TRACKING FORCE |
1.75 g |
|
TRACKING ANGLE |
20 ° |
|
INTERNAL IMPEDANCE |
750 Ω |
|
INTERNAL INDUCTANCE |
450 mH |
|
CANTILEVER MATERIAL |
Aluminium Tube |
|
RECOMMENDED LOAD IMPEDANCE |
47000 Ω |
|
RECOMMENDED LOAD CAPACITANCE |
200 - 500 pF |
|
CARTRIDGE WEIGHT |
5 g |
