Ortofon 2m Red MM Cartridge
Ortofon 2m Red MM Cartridge
Couldn't load pickup availability
- Free Delivery
- 2 year Warranty
Share
Details
Description

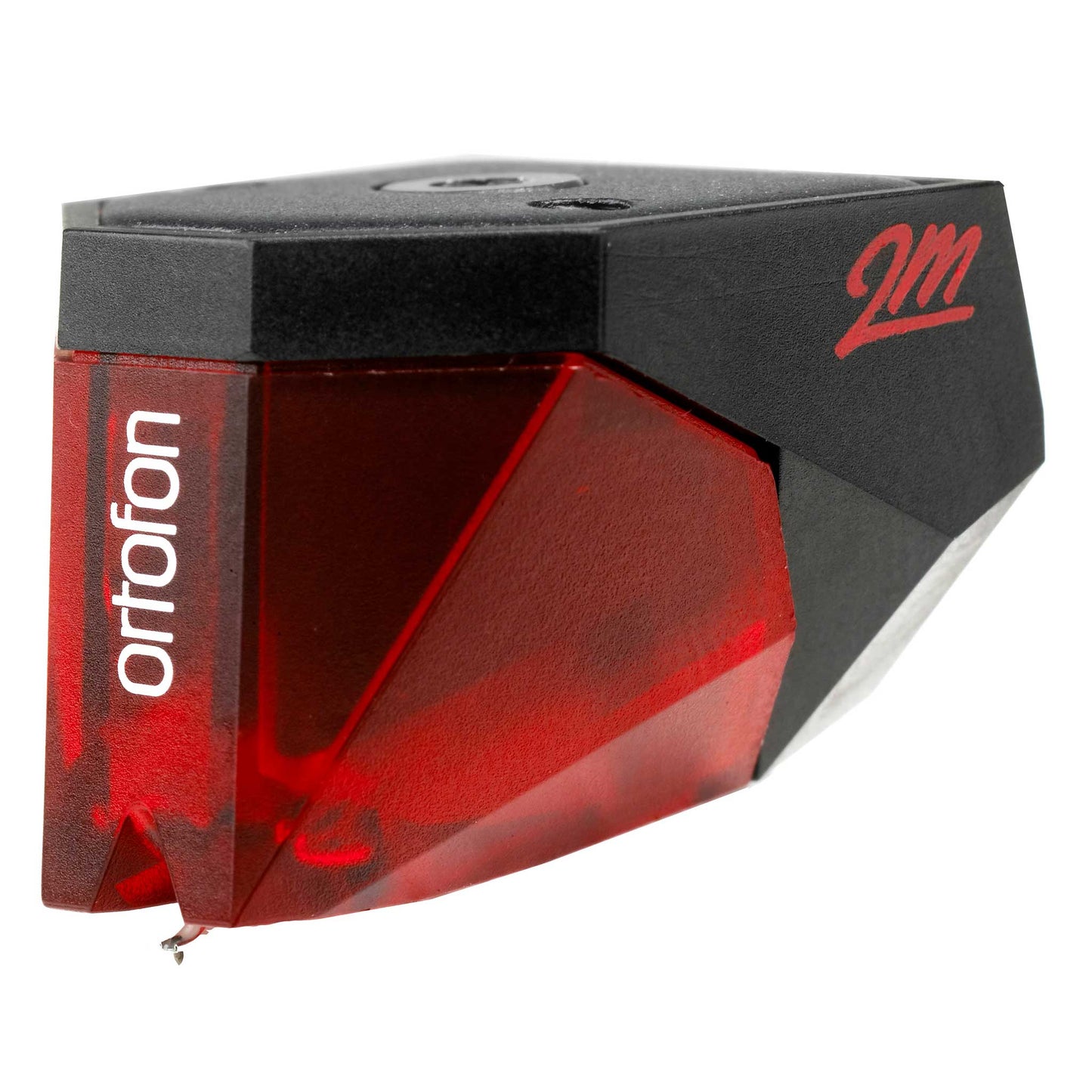

Ortofon 2M Red Moving Magnet (MM) Cartridge
The 2M Red is an excellent choice for those looking to upgrade from their existing budget cartridge. With the 2M Red, you will hear the music come to life, it delivers an open, dynamic sound with a slight touch of warmth.
Featuring Ortofon's unique split pole pins, the 2M Red gives an even and balanced response making the music sound as natural as possible. The highly polished, tipped elliptical diamond gives excellent tracking without causing excessive wear to your vinyl, and as it's supplied with a simple to use fitting kit.
Future upgrade
The Ortofon 2M Red is a superb cartridge but there also simple upgrade paths should you want to improve the performance even further, simply unclip the stylus and swap to a 2M Blue for an even more detailed and revealing sound.
Compatibility
The 2M Series is designed for easy installation and is available in three different variants: the 2M for most common turntables on the market, the 2M Verso, for bottom mount headshells and the 2MR, which has a reduced height form factor making it suitable for turntables and tonearms with a requirement for low-form factor cartridges.
Maximise your music with the Ortofon 2M Red.
Specifications
Specifications
|
OUTPUT VOLTAGE (@ 1000HZ, 5CM/SEC.) |
5.5 mV |
|
CHANNEL BALANCE (@ 1000HZ) |
1.5 dB |
|
CHANNEL SEPARATION (@ 1000HZ) |
22 dB |
|
CHANNEL SEPARATION (@ 15000HZ) |
15 dB |
|
FREQUENCY RANGE (@ -3DB) |
20 - 220000 Hz |
|
FREQUENCY RESPONSE ±2DB |
20 - 20000 Hz |
|
TRACKING ABILITY (@ 315HZ AT RECOMMENDED TRACKING FORCE) |
70 μm |
|
COMPLIANCE, DYNAMIC, LATERAL |
20 μm |
|
STYLUS TYPE |
Tipped Elliptical |
|
TRACKING FORCE RANGE |
1.6 - 2.0 g |
|
RECOMMENDED TRACKING FORCE |
1.8 g |
|
TRACKING ANGLE |
20 ° |
|
INTERNAL IMPEDANCE |
1300 Ω |
|
INTERNAL INDUCTANCE |
700 mH |
|
CANTILEVER MATERIAL |
Aluminium Tube |
|
RECOMMENDED LOAD IMPEDANCE |
47000 Ω |
|
RECOMMENDED LOAD CAPACITANCE |
150 - 300 pF |
|
CARTRIDGE WEIGHT |
7.2 g |
