Ortofon Concorde Music Black Cartridge
Ortofon Concorde Music Black Cartridge
Couldn't load pickup availability
- Free Delivery
Share
Details
Description

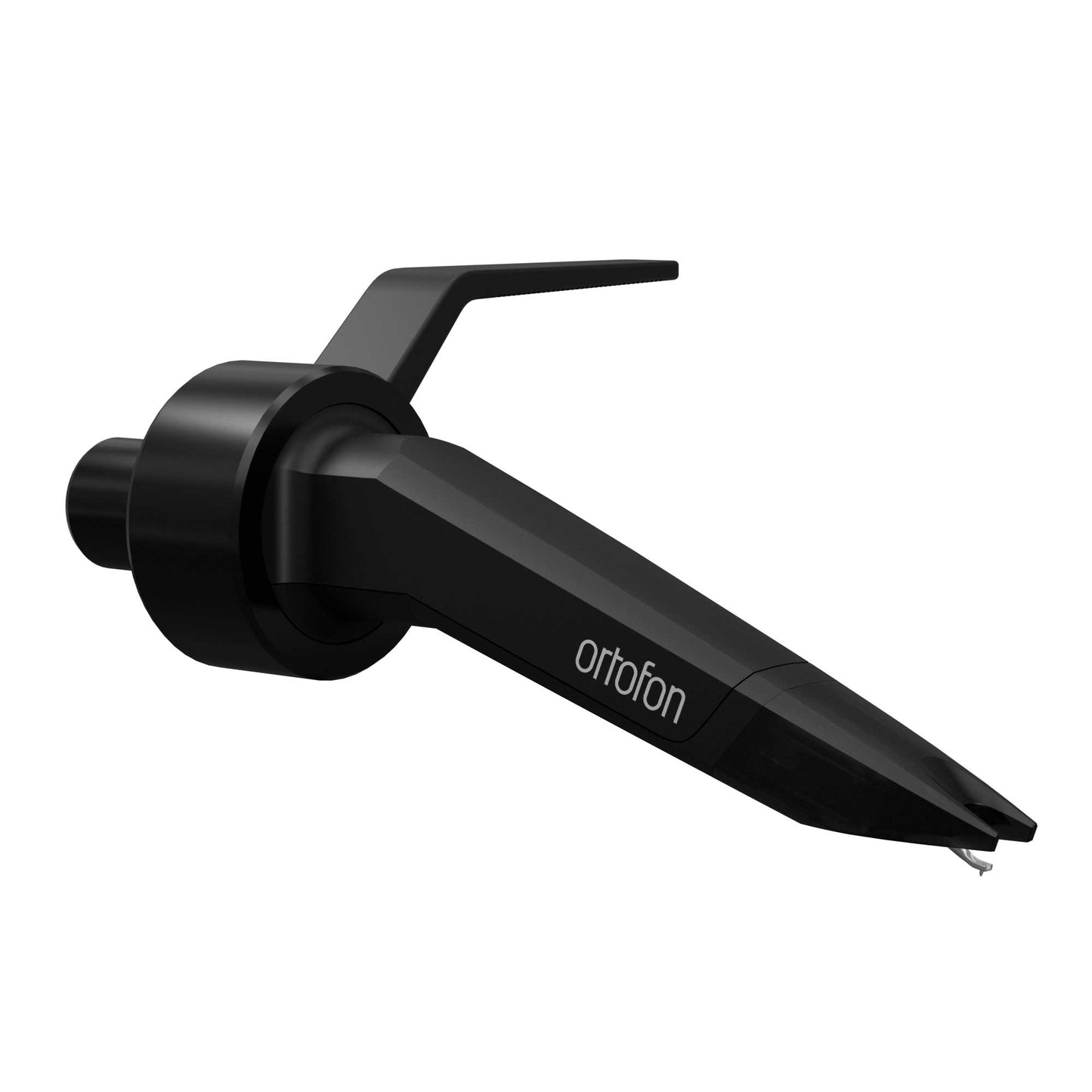

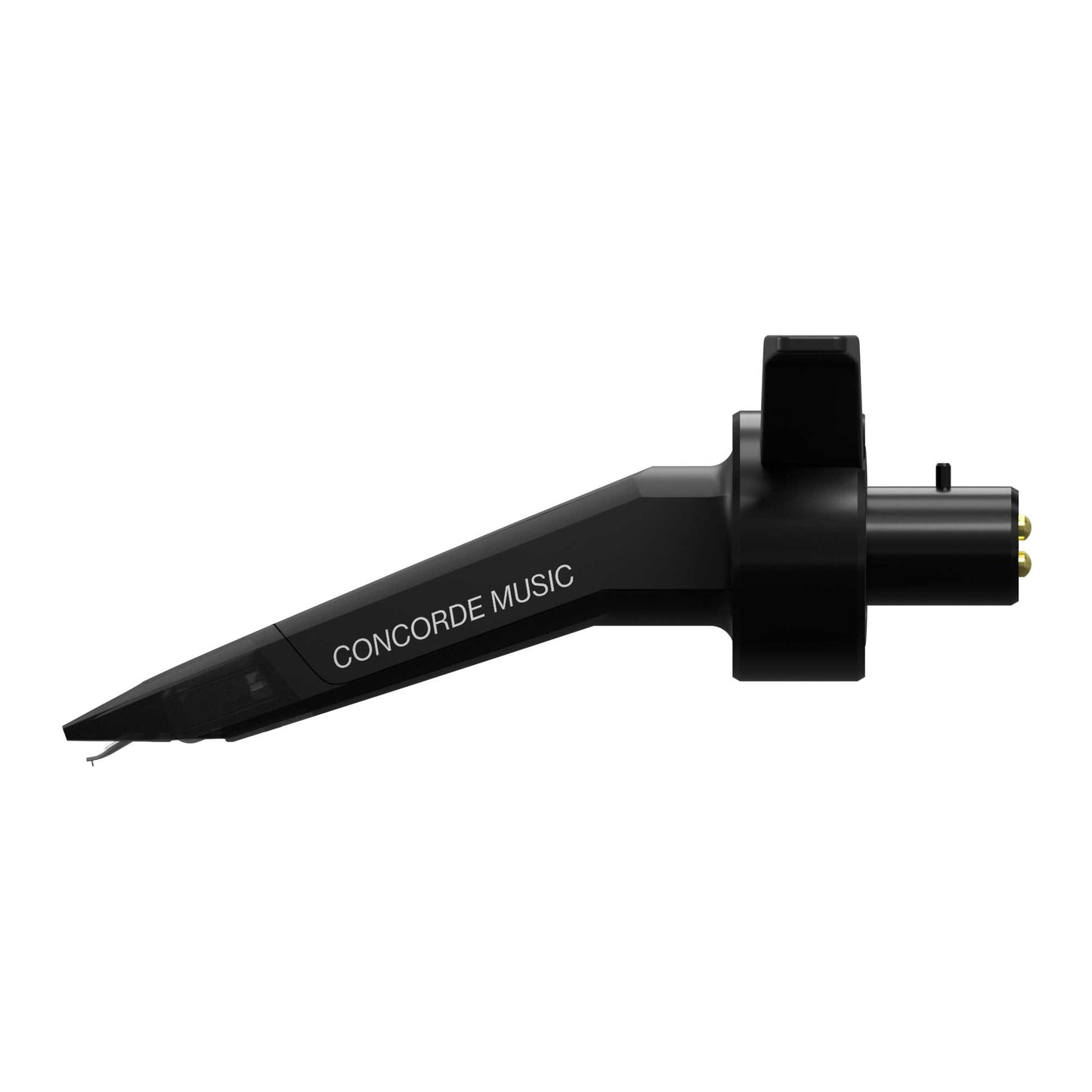

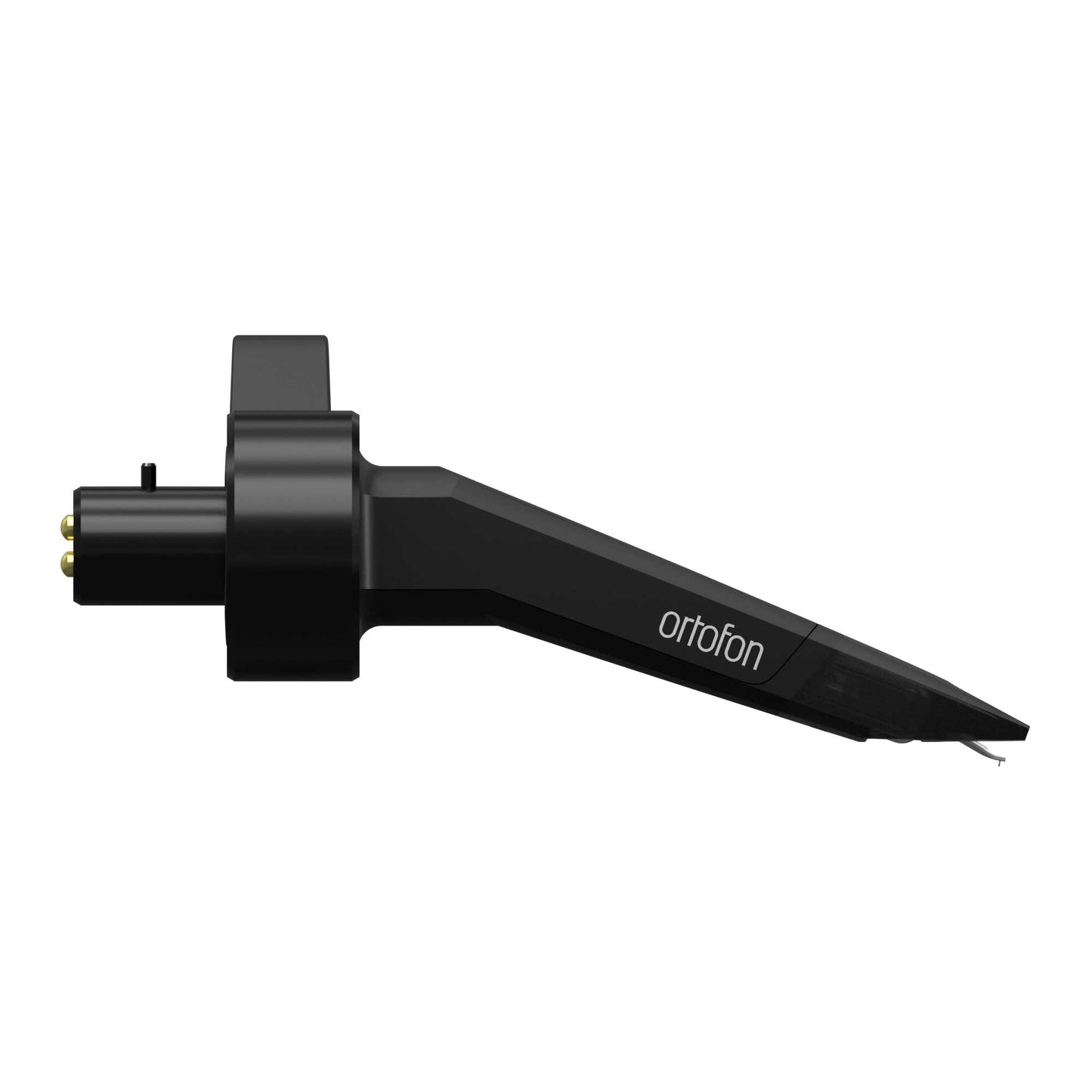

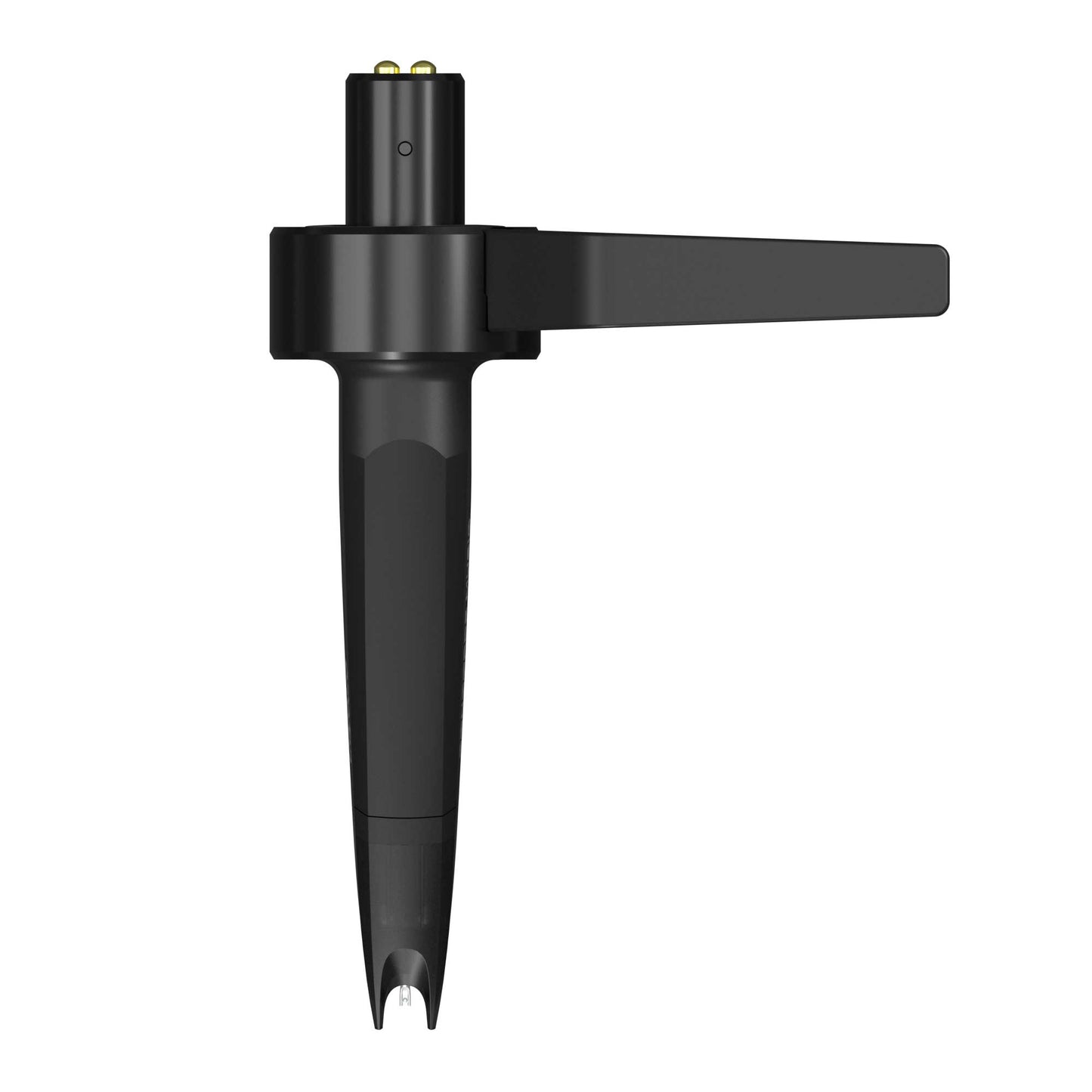

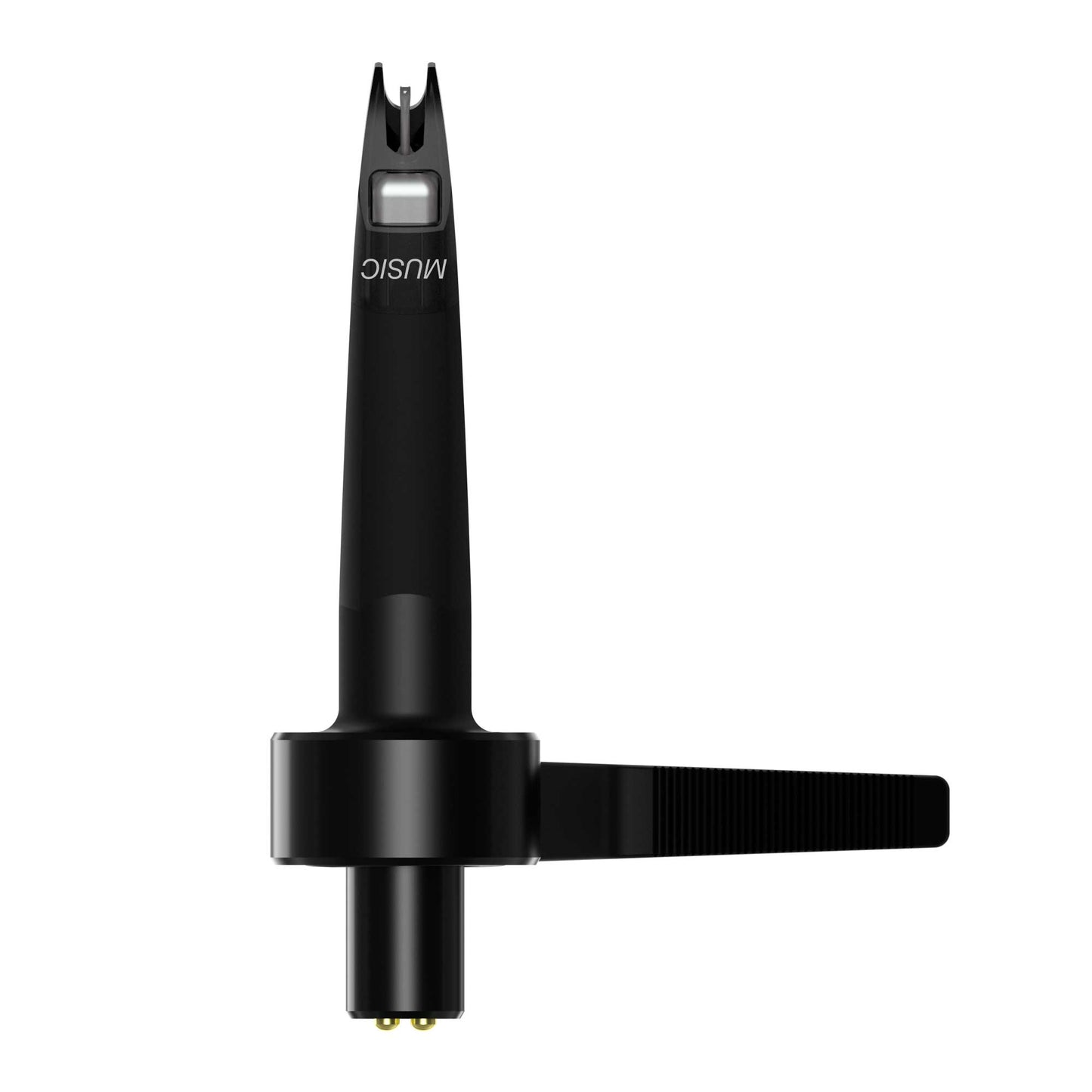

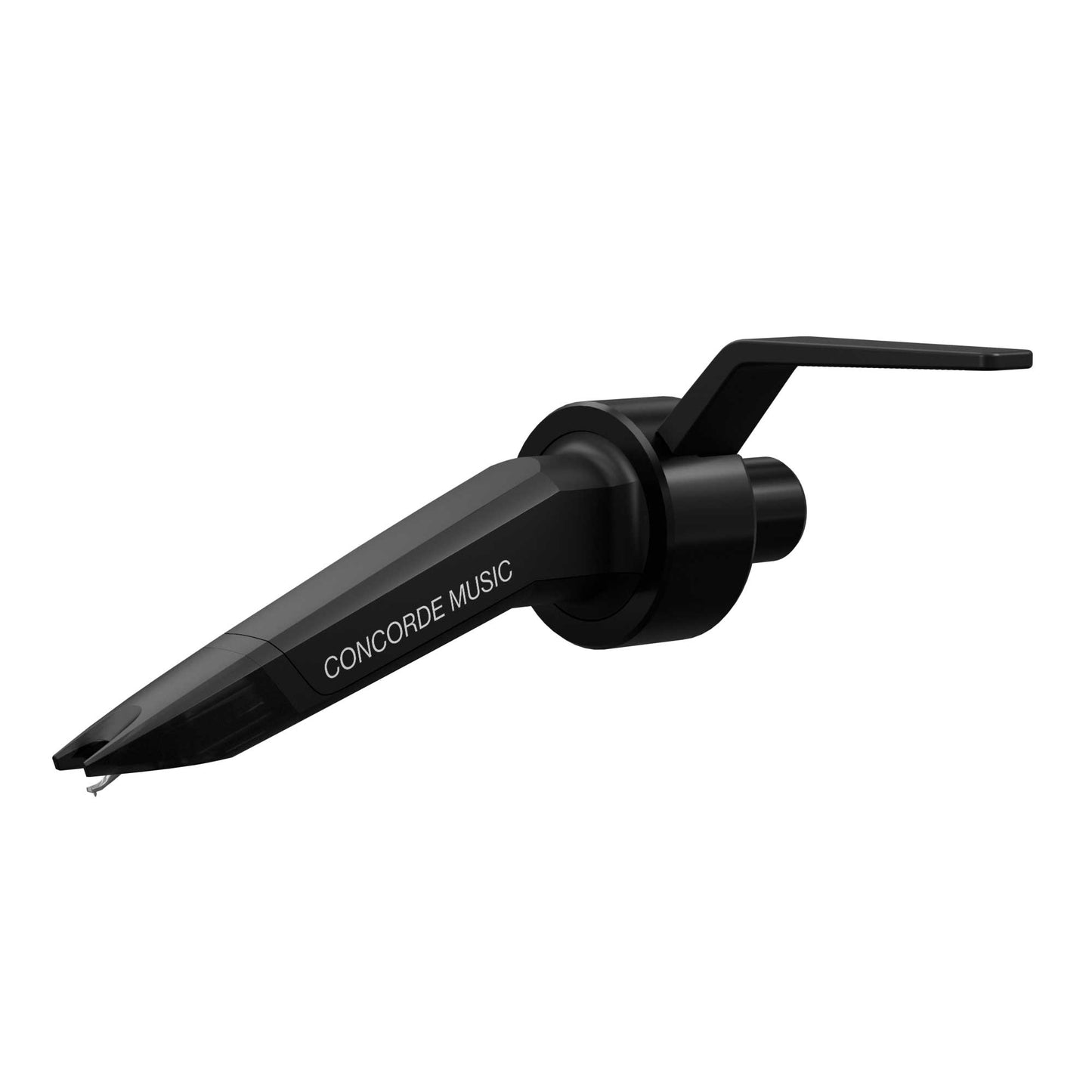

Ortofon Concorde Music Black Cartridge
Experience transparent and articulate sound quality with the Ortofon Concorde Music Black cartridge. The Concorde Music Black features a Nude Shibata stylus mounted on an Aluminium cantilever.
The Shibata is very close to the original cutting stylus, which ensures the most accurate reproduction, low distortion, and extended frequency range.
Perfect fit for S-shaped tonearms
Installing the Concorde Music cartridge on your turntable is easy and straightforward; no tools are required, making it hassle-free and convenient for all users. This is thanks to the bayonet connector, which makes it compatible with all S-shaped tonearms.
Future Upgrade Path
The Concorde Black cartridge can be upgraded in the future by fitting a replacement Concorde Music Black LVB 250 stylus.
Specifications
Specifications
|
OUTPUT VOLTAGE (@ 1000HZ, 5CM/SEC.) |
6 mV |
|
CHANNEL BALANCE (@ 1000HZ) |
1 dB |
|
CHANNEL SEPARATION (@ 1000HZ) |
26 dB |
|
FREQUENCY RESPONSE +2 / -1 dB |
20 Hz - 20 kHz |
|
TRACKING ABILITY (@ 315HZ AT RECOMMENDED TRACKING FORCE) |
80 μm |
|
COMPLIANCE, DYNAMIC, LATERAL |
15 μm |
|
STYLUS TYPE |
Nude Shibata |
|
CANTILEVER MATERIAL |
Aluminium Tube |
|
Stylus Tip Radius (r/R) |
6/50 μm |
|
RECOMMENDED TRACKING FORCE |
1.8 g |
|
INTERNAL IMPEDANCE |
1.27 Ω |
|
INTERNAL INDUCTANCE |
815 mH |
|
RECOMMENDED LOAD IMPEDANCE |
47 Ω |
|
RECOMMENDED LOAD CAPACITANCE |
150 - 300 pF |
|
CARTRIDGE WEIGHT |
18 g |
