Ortofon Concorde Music Blue Cartridge
Ortofon Concorde Music Blue Cartridge
Couldn't load pickup availability
- Free Delivery
- 2 year Warranty
Share
Details
Description

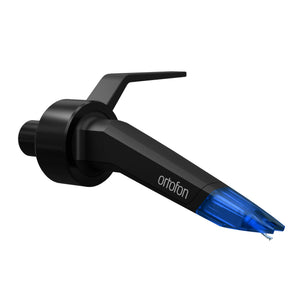

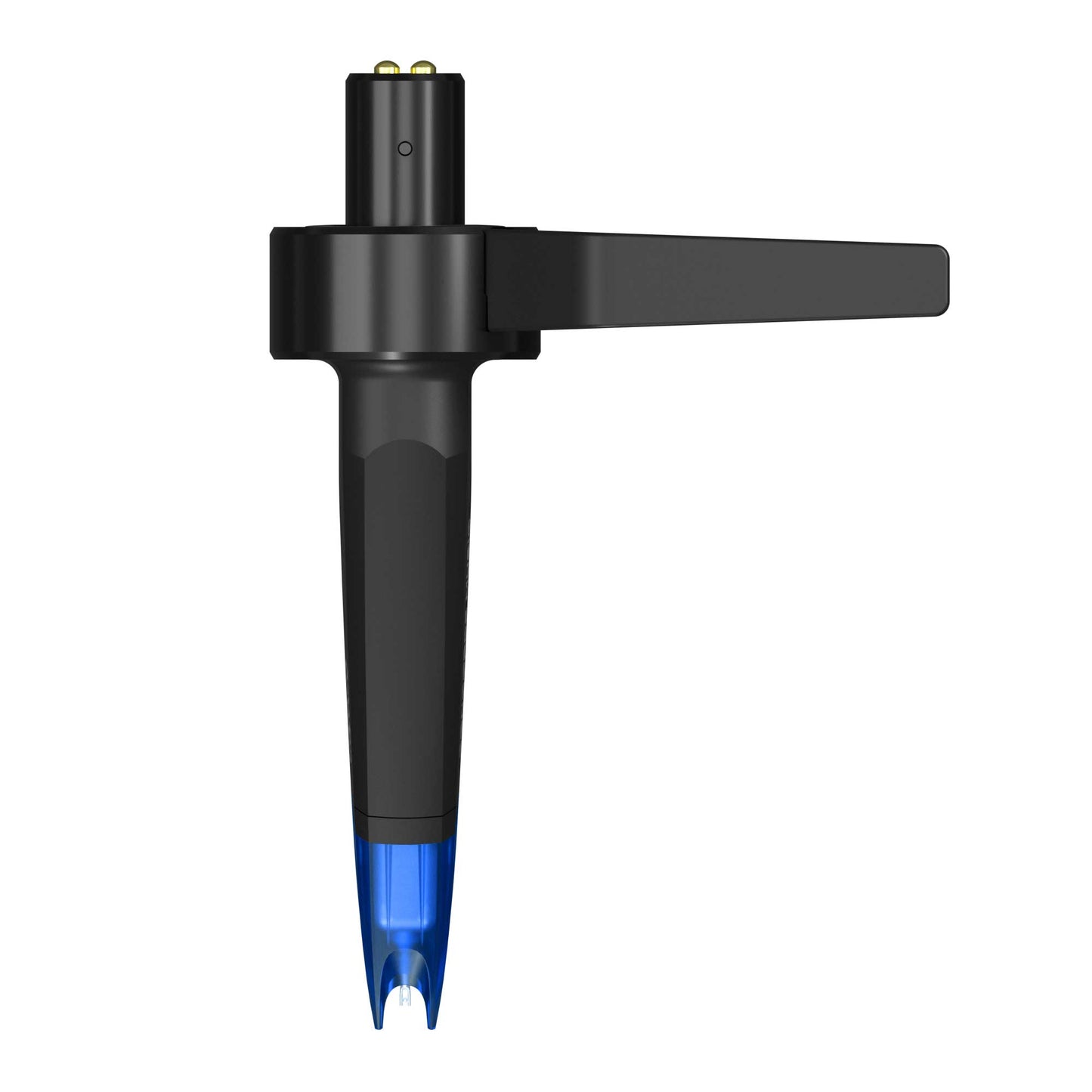

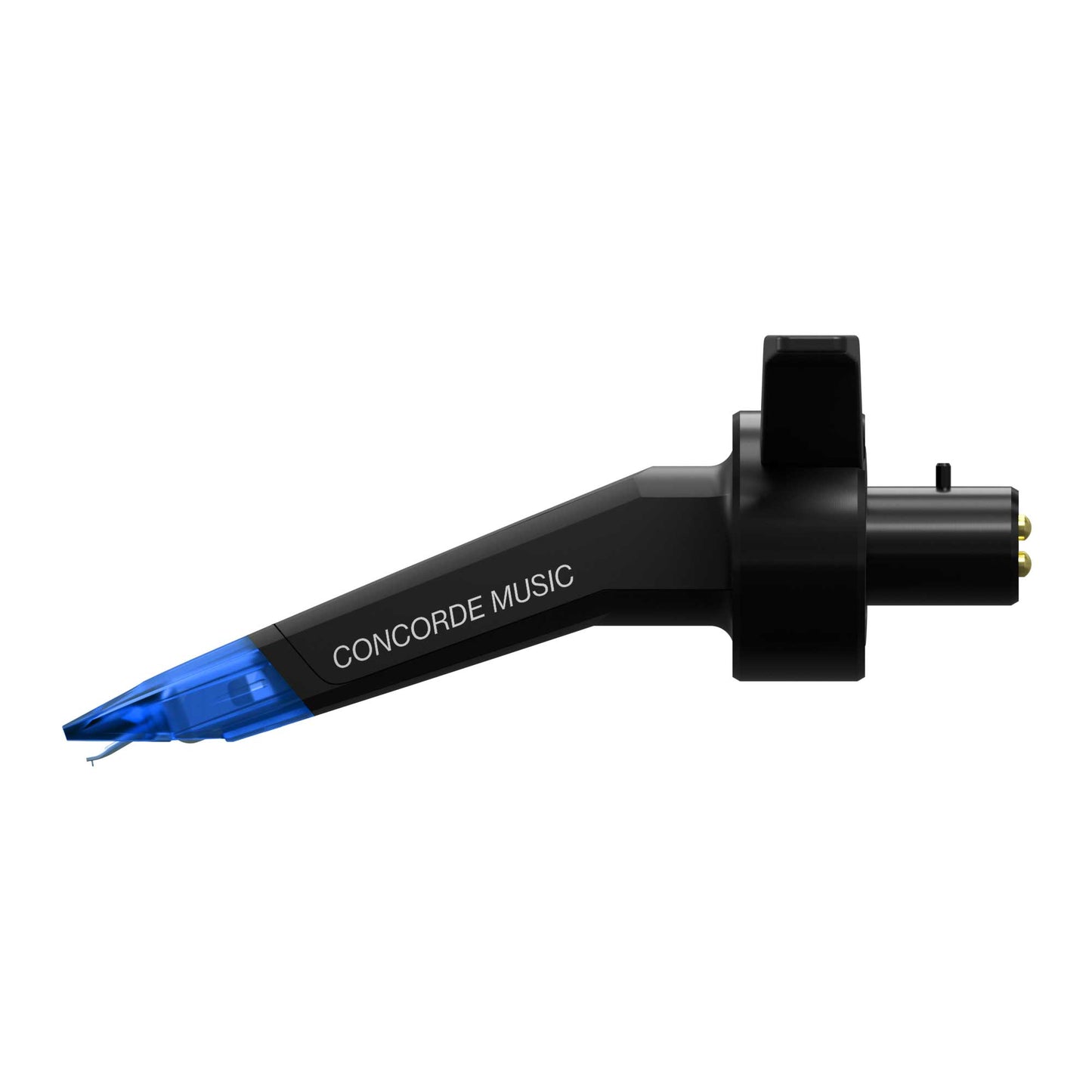

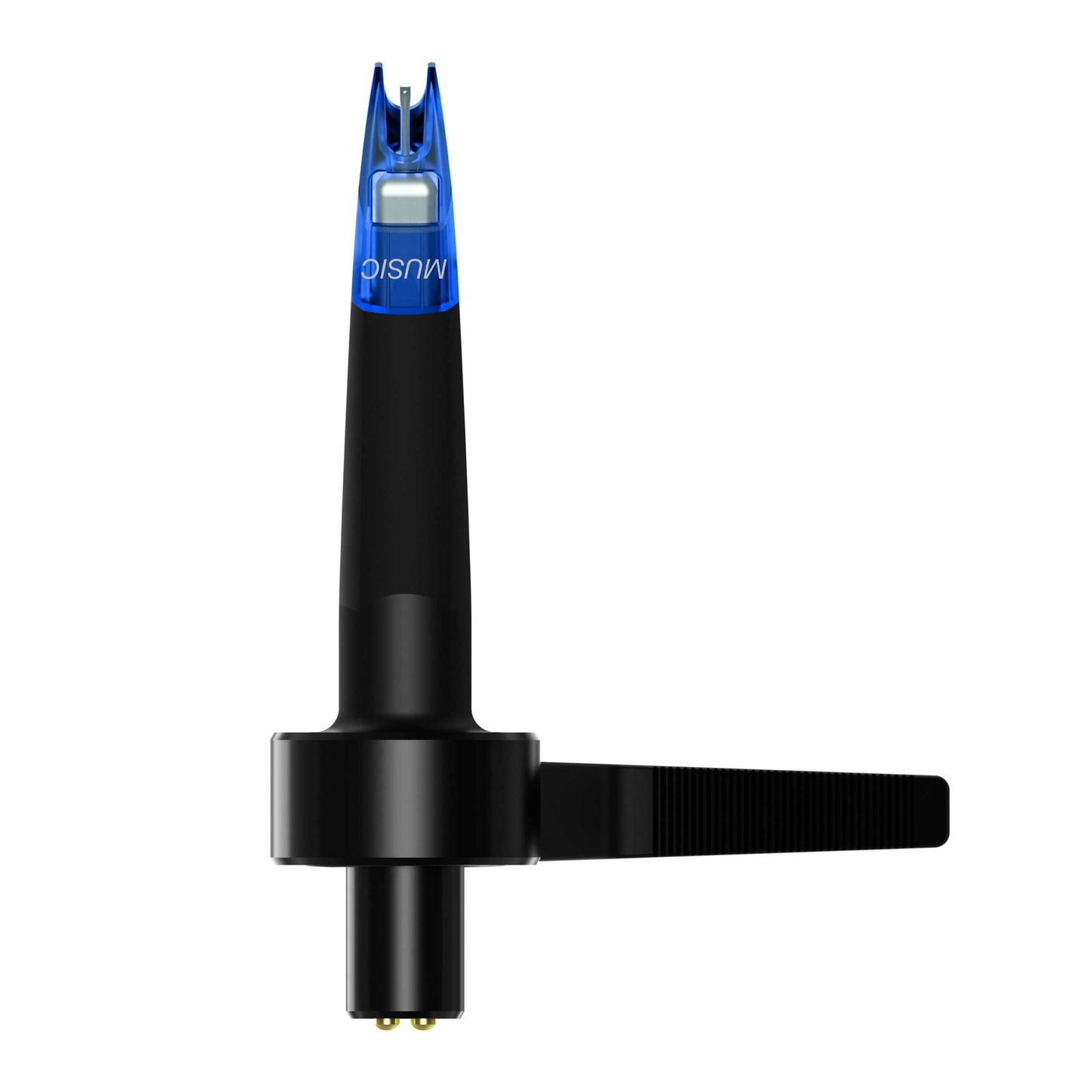

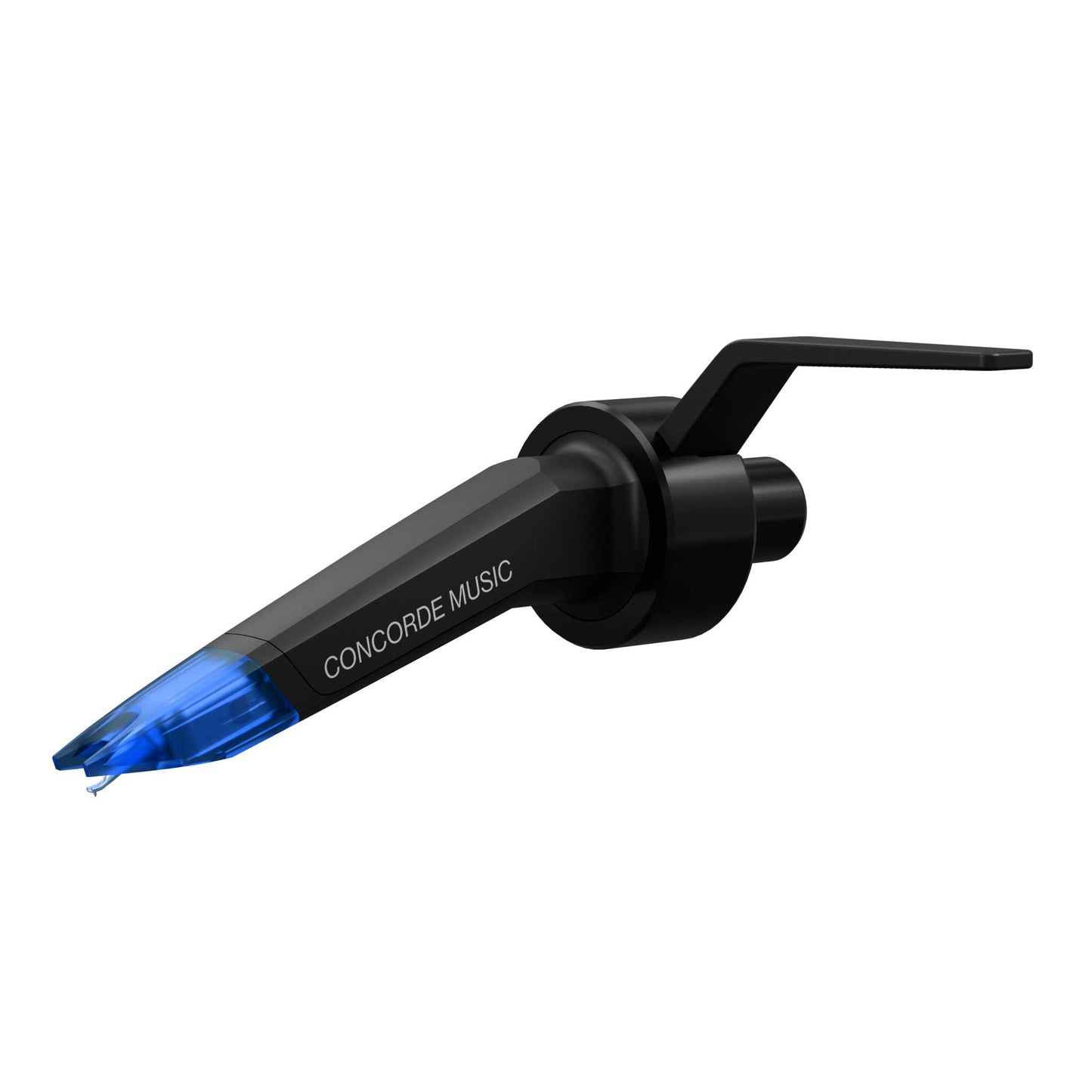

Ortofon Concorde Music Blue Cartridge
Experience a refined performance with excellent dynamics and a detailed, open sound with the Concorde Music Blue cartridge. With a range of Concorde Music HiFi cartridges and styli available you can enjoy seamless future upgrades simply by replacing the stylus, from the Concorde Music Bronze to the Concorde Music Black LVB 250.
The Concorde Music series
Developed by music lovers, for music lovers, the Concorde Music HiFi cartridges blend premium performance with an iconic design. Concorde Music represents a dedication to the profound impact music has on our lives, turning every listening session into a captivating journey.
Installing a Concorde Music cartridge on a turntable is easy and straightforward, requiring no tools, making it hassle-free and convenient.
- Dynamic cartridge with increased resolution and a more open sound
- Concorde cartridge for direct-mounting into SME-style tonearms
- Nude Elliptical diamond stylus profile
Specifications
Specifications
|
OUTPUT VOLTAGE (@ 1000HZ, 5CM/SEC.) |
6 mV |
|
CHANNEL BALANCE (@ 1000HZ) |
1.5 dB |
|
CHANNEL SEPARATION (@ 1000HZ) |
25 dB |
|
CHANNEL SEPARATION (@ 15000HZ) |
15 dB |
|
FREQUENCY RESPONSE 20 Hz - 20 kHz |
+2 / -1 dB |
|
TRACKING ABILITY (@ 315HZ AT RECOMMENDED TRACKING FORCE) |
80 μm |
|
COMPLIANCE, DYNAMIC, LATERAL |
15 μm |
|
STYLUS TYPE |
Nude Elliptical diamond on Aluminium cantilever |
|
RECOMMENDED TRACKING FORCE |
1.8 g |
|
TRACKING ANGLE |
20 ° |
|
INTERNAL IMPEDANCE |
750 Ω |
|
INTERNAL INDUCTANCE |
450 mH |
|
RECOMMENDED LOAD IMPEDANCE |
47000 Ω |
|
RECOMMENDED LOAD CAPACITANCE |
150 - 300 pF |
|
CARTRIDGE WEIGHT |
18 g |
