Ortofon

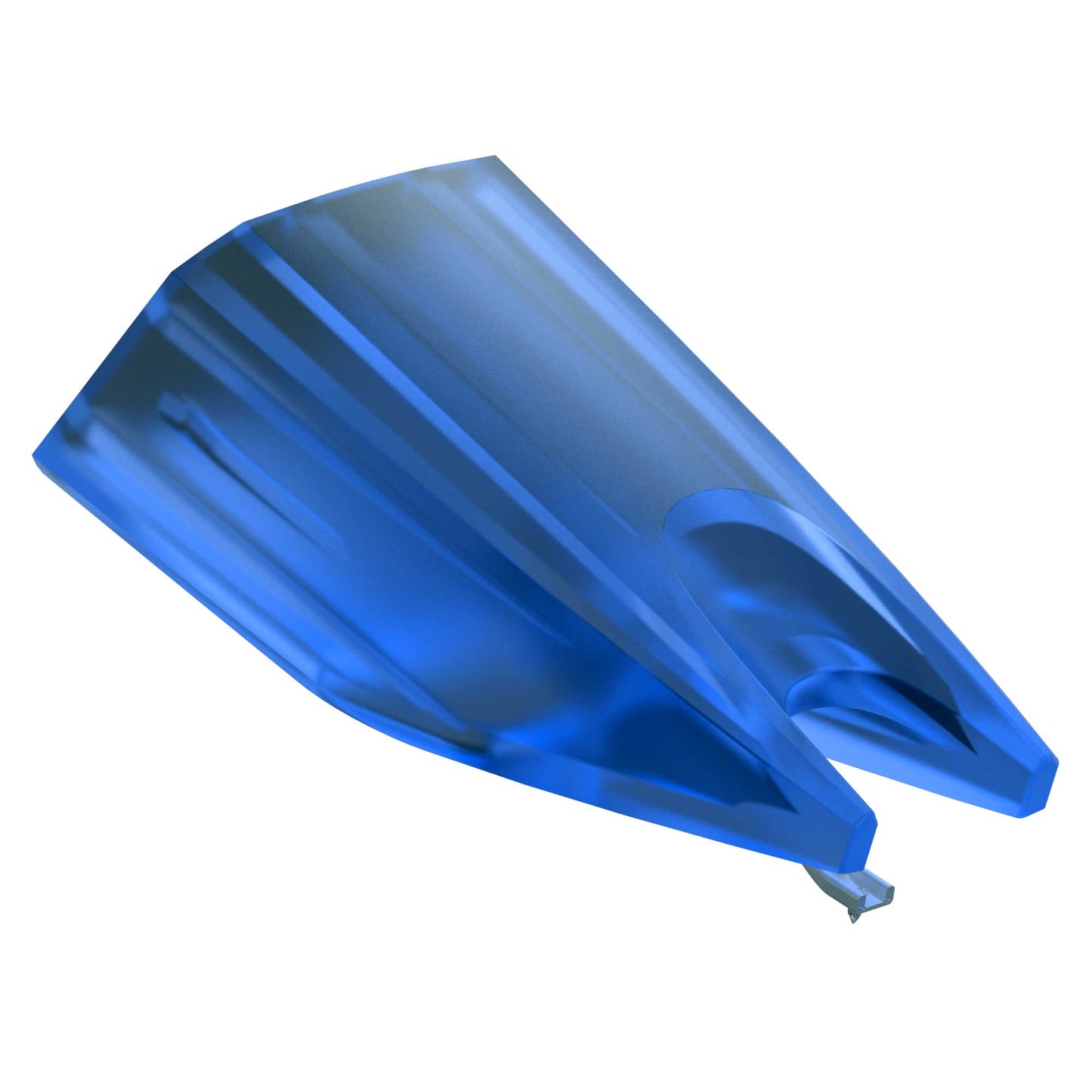

Ortofon Concorde Music Blue Stylus

Ortofon Concorde Music Blue Stylus

Regular price £139.00
Regular price Sale price £139.00
-% Sold out
Shipping calculated at checkout.
  • Free Delivery
  • 2 year Warranty

View full details

Details

Description

Ortofon Concorde Music Blue Replacement Stylus

Original replacement stylus for the Concorde Music Blue Cartridge.

The Concorde Music Blue stylus features a Nude Elliptical diamond on an Aluminium cantilever, providing an upgrade from the Concorde Music Red, and is compatible as a replacement on all Concorde Music cartridge models.

Specifications

Specifications

OUTPUT VOLTAGE (@ 1000HZ, 5CM/SEC.)

6 mV

CHANNEL BALANCE (@ 1000HZ)

1.5 dB

CHANNEL SEPARATION (@ 1000HZ)

25 dB

CHANNEL SEPARATION (@ 15000HZ)

15 dB

FREQUENCY RESPONSE 20 Hz - 20 kHz

+2 / -1 dB

TRACKING ABILITY (@ 315HZ AT RECOMMENDED TRACKING FORCE)

80 μm

COMPLIANCE, DYNAMIC, LATERAL

15 μm

STYLUS TYPE

Nude Elliptical diamond on Aluminium cantilever

RECOMMENDED TRACKING FORCE

1.8 g

TRACKING ANGLE

20 °

INTERNAL IMPEDANCE

750 Ω

INTERNAL INDUCTANCE

450 mH

CANTILEVER MATERIAL

Aluminium Tube

RECOMMENDED LOAD IMPEDANCE

47000 Ω

RECOMMENDED LOAD CAPACITANCE

150 - 300 pF

CARTRIDGE WEIGHT

18 g
