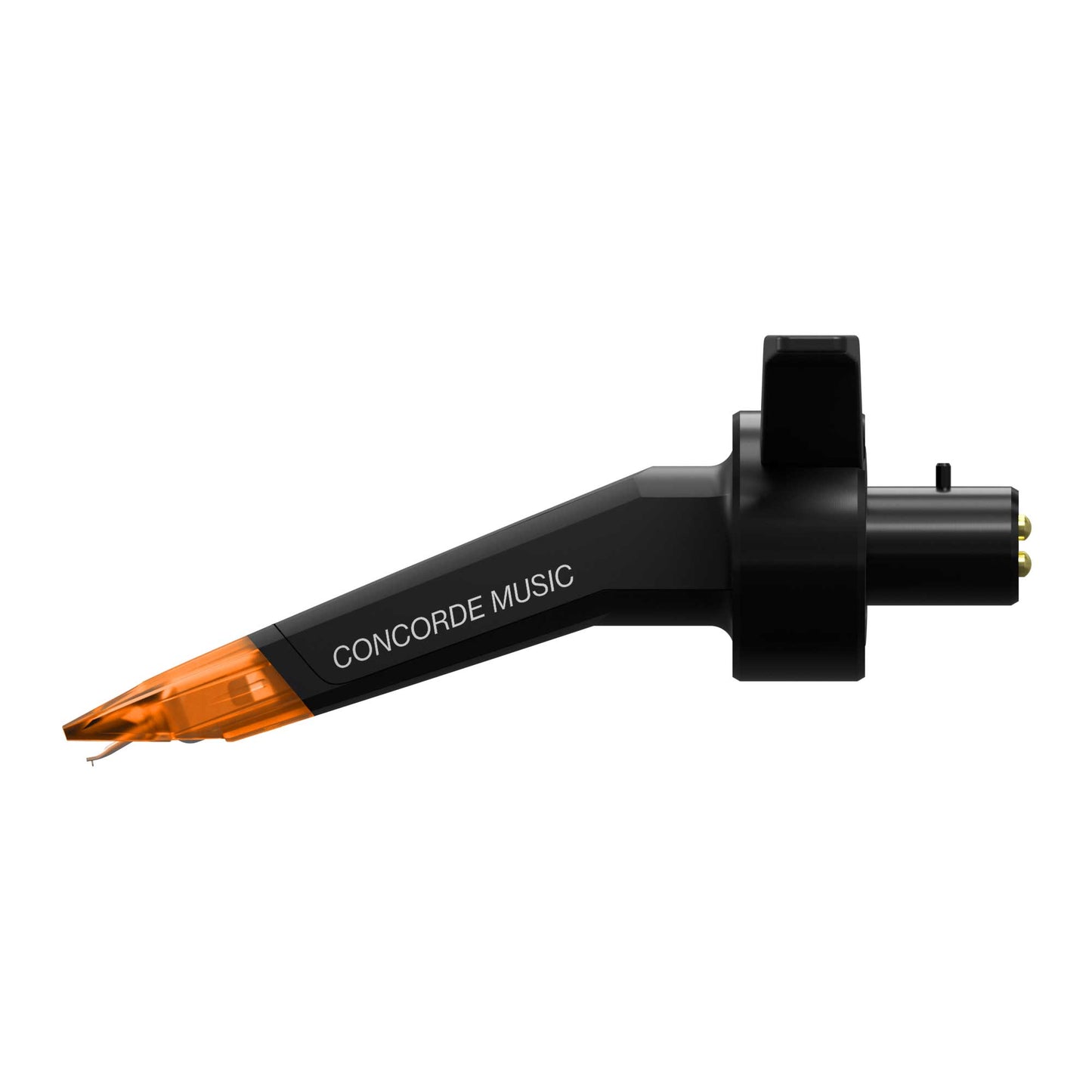

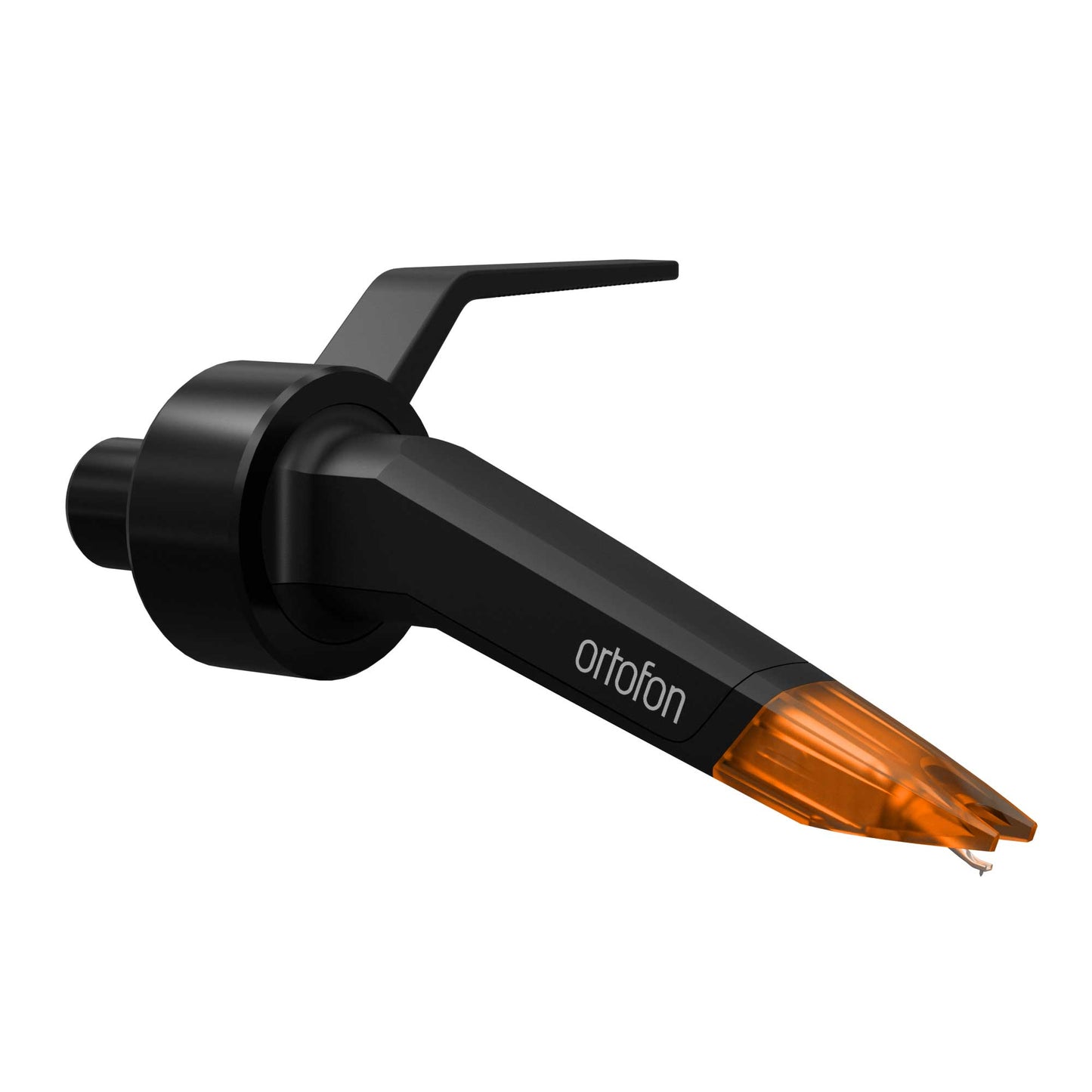

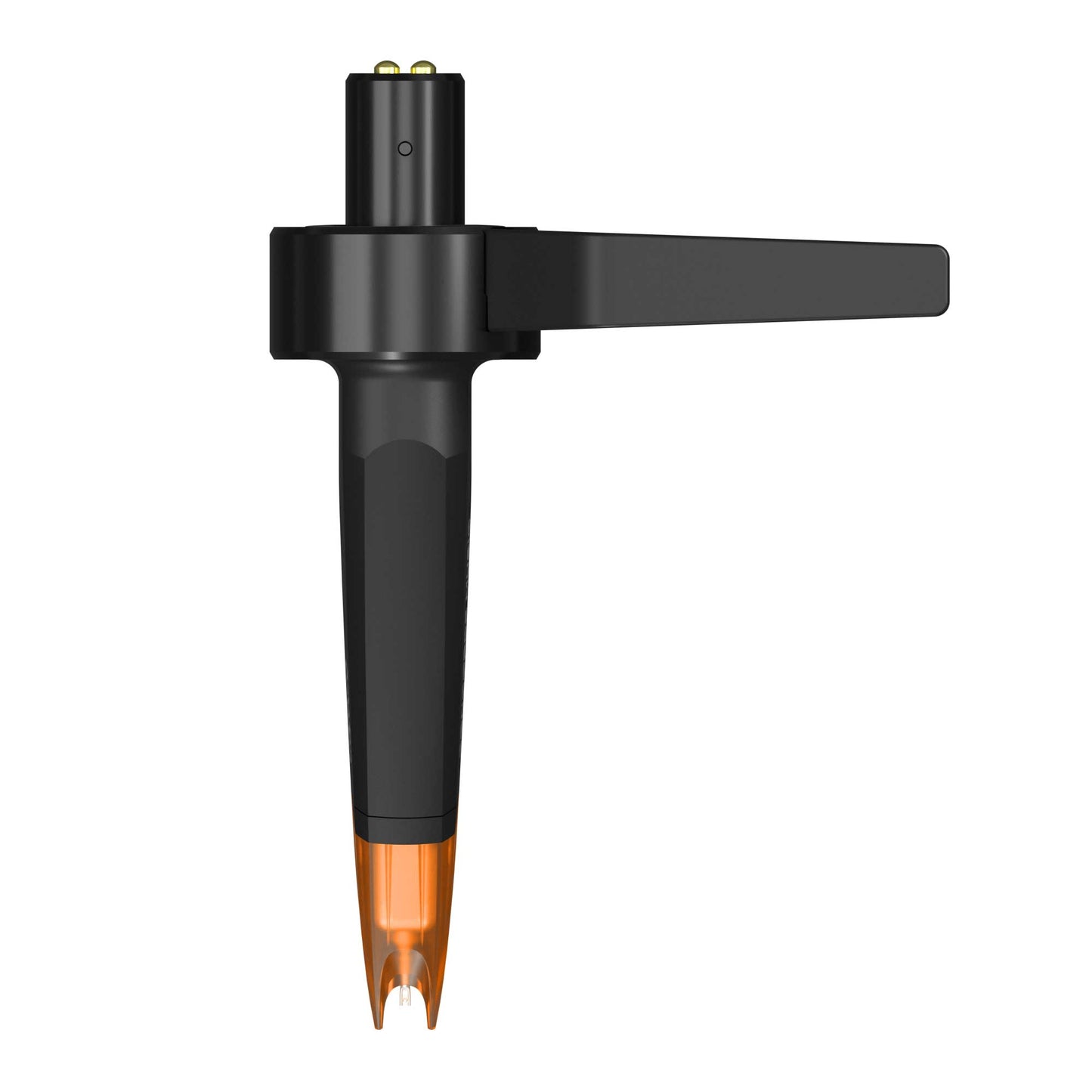

Ortofon Concorde Music Bronze Cartridge
The Concorde Music Bronze, featuring a Nude Fine Line stylus on an Aluminium cantilever, offers an upgrade from the Concorde Music Blue.
The shape of the Nude Fine Line diamond provides more faithful tracking of the groove. Unlike the Elliptical shape, the Fine Line has a narrower profile, yet its prolonged shape ensures sufficient contact with a wide area of the groove. Experience your music with a whole new dimension of precision.
- Inviting soundstage with excellent resolution and detail
- Concorde cartridge for direct-mounting into SME-style tonearms
- Nude Fine-Line diamond stylus
The Concorde Music series
Developed by music lovers, for music lovers, the Concorde Music HiFi cartridges blend premium performance with an iconic design. Concorde Music represents a dedication to the profound impact music has on our lives, turning every listening session into a captivating journey.
Installing a Concorde Music cartridge on a turntable is easy and straightforward, requiring no tools, making it hassle-free and convenient.
Specifications
Specifications
|
OUTPUT VOLTAGE (@ 1000HZ, 5CM/SEC.) |
6 mV |
|
CHANNEL BALANCE (@ 1000HZ) |
1 dB |
|
CHANNEL SEPARATION (@ 1000HZ) |
26 dB |
|
FREQUENCY RESPONSE +2 / -1 dB |
20 Hz - 20 kHz |
|
TRACKING ABILITY (@ 315HZ AT RECOMMENDED TRACKING FORCE) |
80 μm |
|
COMPLIANCE, DYNAMIC, LATERAL |
15 μm |
|
STYLUS TYPE |
Nude Fine Line |
|
CANTILEVER MATERIAL |
Aluminium Tube |
|
Stylus Tip Radius (r/R) |
8/40 μm |
|
RECOMMENDED TRACKING FORCE |
1.8 g |
|
TRACKING ANGLE |
20 ° |
|
INTERNAL IMPEDANCE |
1.27 Ω |
|
INTERNAL INDUCTANCE |
815 mH |
|
RECOMMENDED LOAD IMPEDANCE |
47 Ω |
|
RECOMMENDED LOAD CAPACITANCE |
150 - 300 pF |
|
CARTRIDGE WEIGHT |
18 g |
