Ortofon OM 5E MM Cartridge
Ortofon OM 5E MM Cartridge
Couldn't load pickup availability
- 2 year Warranty
Share
Details
Description

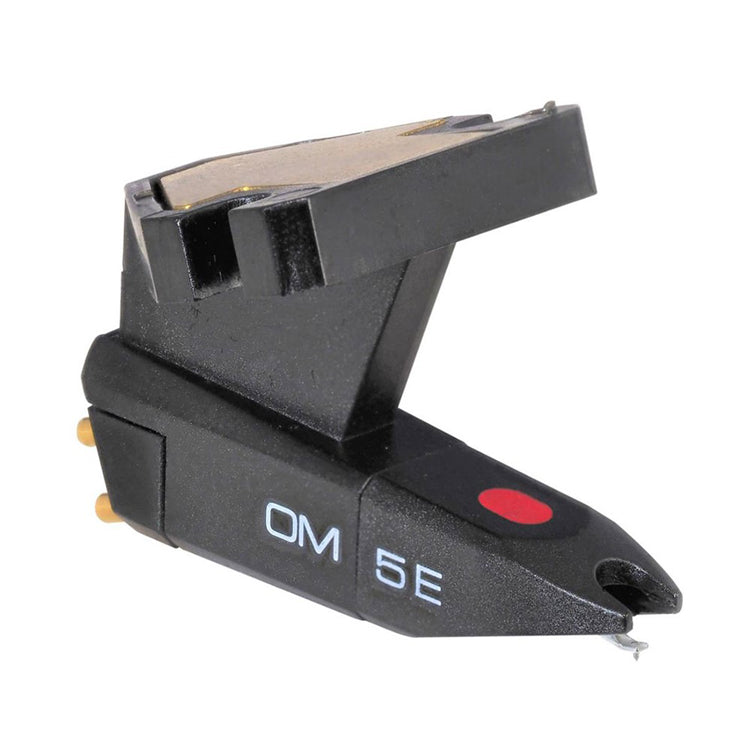

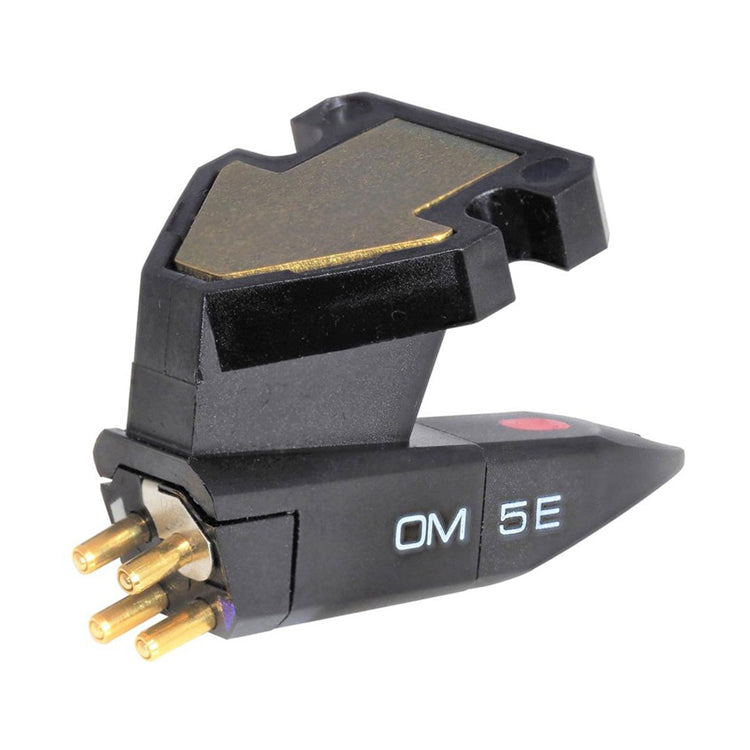

Ortofon OM 5E MM Cartridge With Elliptical Diamond

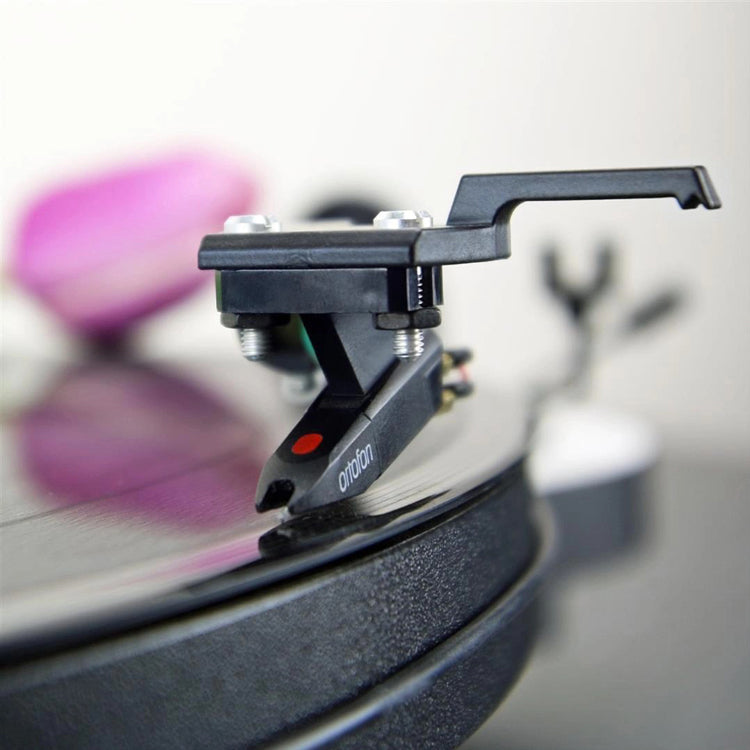

The OM 5E is a true icon of the affordable vinyl playback world, offering great sound at a low price. The OM 5E offers a minimal design profile for easy mounting and alignment. As well as being easy to fit to any tonearm/headshell system, the OM 5E cartridge also benefits from a removable weight, housed above the mounting bracket. For standard tonearms you can leave the weight in place. However, for low-mass tonearms you have the ability to remove it, reducing the overall cartridge weight to just 2.5g.
The OM 5E features an Elliptical (E) stylus that provides balanced and distortion-free playback. Elliptical diamonds are able to follow the groove oscillations more accurately than spherical diamonds due to their contoured shape. This results in better tracking and less distortion.
Replacement Styli
There are a number of upgrade stylus options available including the Stylus 5E, Stylus 10, Stylus 20, Stylus 30, Stylus 40 and the 78 RPM Stylus 78.
Specifications
Specifications
|
OUTPUT VOLTAGE (@ 1000HZ, 5CM/SEC.) |
4 mV |
|
CHANNEL BALANCE (@ 1000HZ) |
2 dB |
|
CHANNEL SEPARATION (@ 1000HZ) |
22 dB |
|
CHANNEL SEPARATION (@ 15000HZ) |
15 dB |
|
FREQUENCY RANGE (@ -3DB) |
20 - 250000 Hz |
|
FREQUENCY RESPONSE ±2DB |
20 - 20000 Hz |
|
TRACKING ABILITY (@ 315HZ AT RECOMMENDED TRACKING FORCE) |
65 μm |
|
COMPLIANCE, DYNAMIC, LATERAL |
20 μm |
|
STYLUS TYPE |
Tipped Elliptical |
|
TRACKING FORCE RANGE |
1.5 - 2.0 g |
|
RECOMMENDED TRACKING FORCE |
1.75 g |
|
TRACKING ANGLE |
20 ° |
|
INTERNAL IMPEDANCE |
750 Ω |
|
INTERNAL INDUCTANCE |
450 mH |
|
CANTILEVER MATERIAL |
Aluminium Tube |
|
RECOMMENDED LOAD IMPEDANCE |
47000 Ω |
|
RECOMMENDED LOAD CAPACITANCE |
200 - 500 pF |
|
CARTRIDGE WEIGHT |
5 g |
