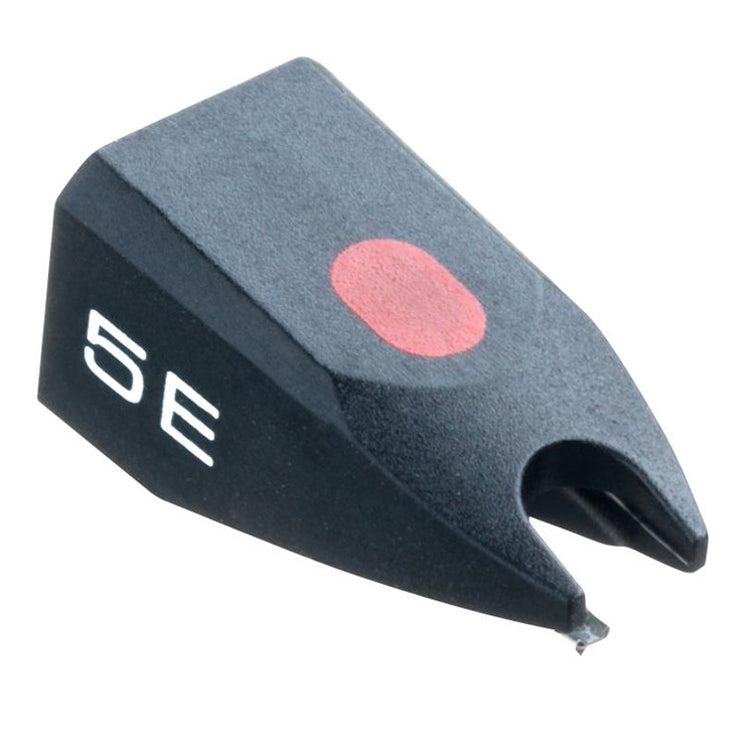

Ortofon OM Series Stylus 5E
The OM 5E is a true icon of the affordable vinyl playback world, offering great sound at a low price.

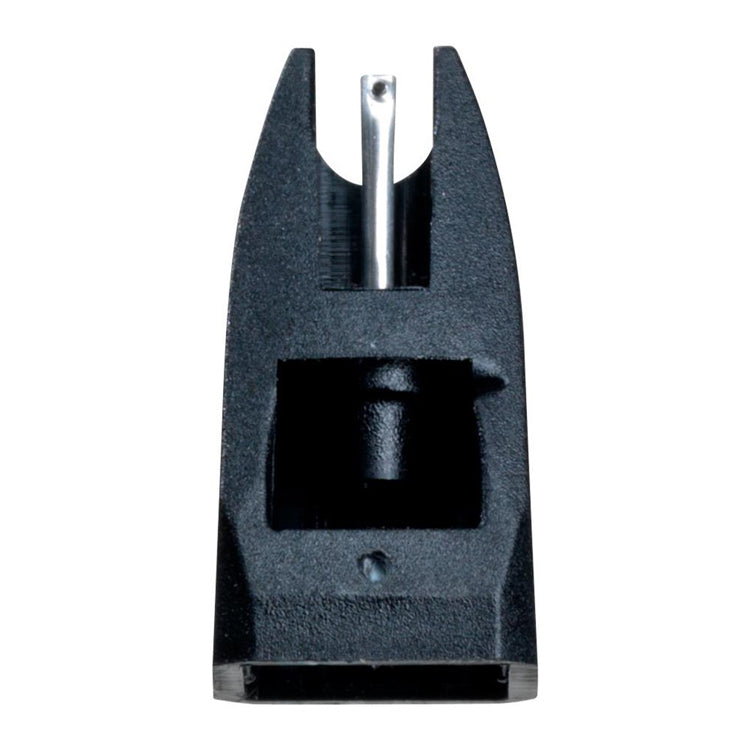

Tipped Elliptical diamond stylus profile
Replacement stylus only, recommended for the following cartridge models: OM 5E, Super OM 5, OMP 5E, OMB 5E, and OMT 5E
Specifications
Specifications
OUTPUT VOLTAGE (@ 1000HZ, 5CM/SEC.) |
4 mV |
CHANNEL BALANCE (@ 1000HZ) |
2 dB |
CHANNEL SEPARATION (@ 1000HZ) |
22 dB |
CHANNEL SEPARATION (@ 15000HZ) |
15 dB |
FREQUENCY RANGE (@ -3DB) |
20 - 250000 Hz |
FREQUENCY RESPONSE ±2DB |
20 - 20000 Hz |
TRACKING ABILITY (@ 315HZ AT RECOMMENDED TRACKING FORCE) |
65 μm |
COMPLIANCE, DYNAMIC, LATERAL |
20 μm |
STYLUS TYPE |
Tipped Elliptical |
TRACKING FORCE RANGE |
1.5 - 2.0 g |
RECOMMENDED TRACKING FORCE |
1.75 g |
TRACKING ANGLE |
20 ° |
INTERNAL IMPEDANCE |
750 Ω |
INTERNAL INDUCTANCE |
450 mH |
CANTILEVER MATERIAL |
Aluminium Tube |
RECOMMENDED LOAD IMPEDANCE |
47000 Ω |
RECOMMENDED LOAD CAPACITANCE |
200 - 500 pF |
CARTRIDGE WEIGHT |
5 g |
