Pro-Ject Tube Box DS3 B Audiophile-Grade Phono Preamplifier

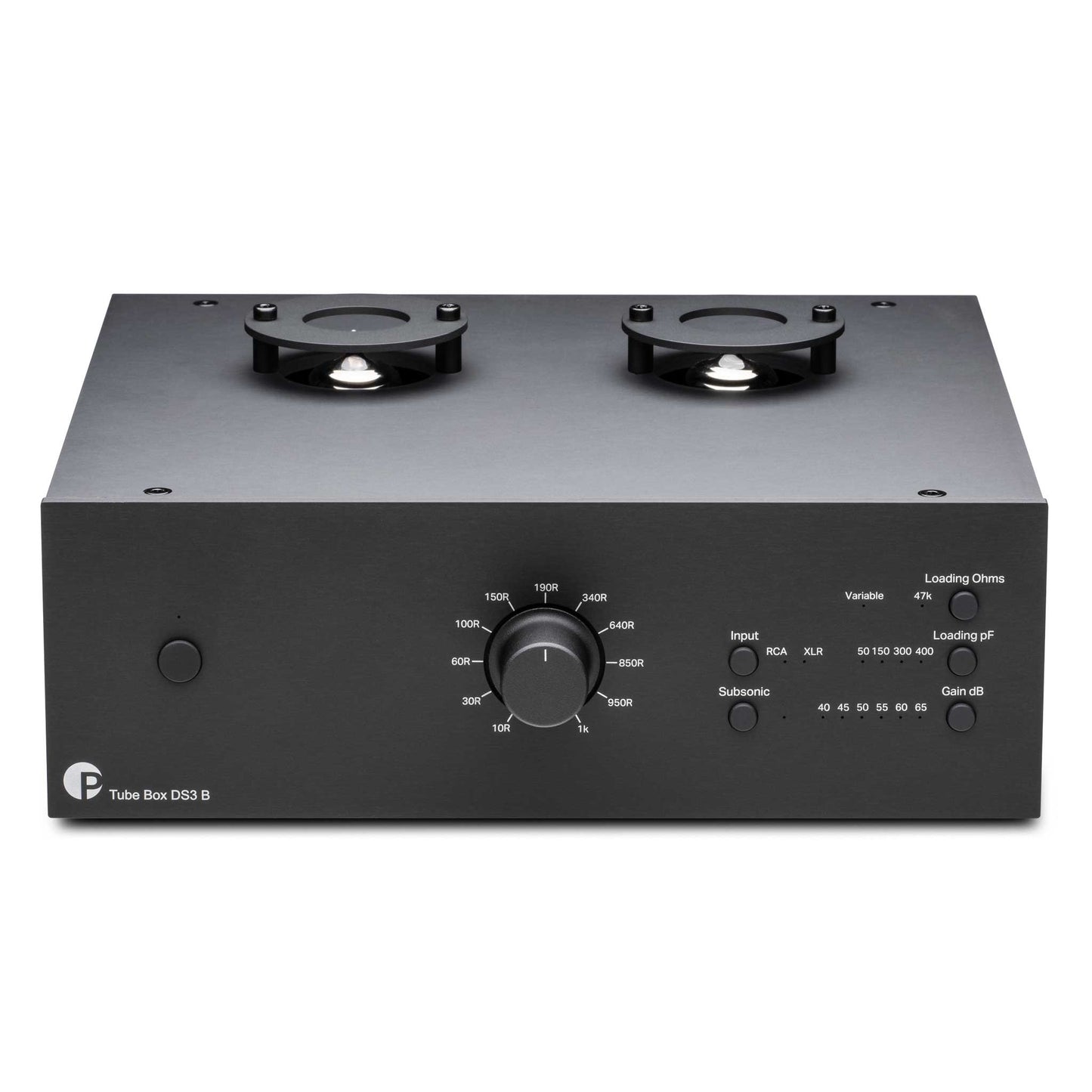

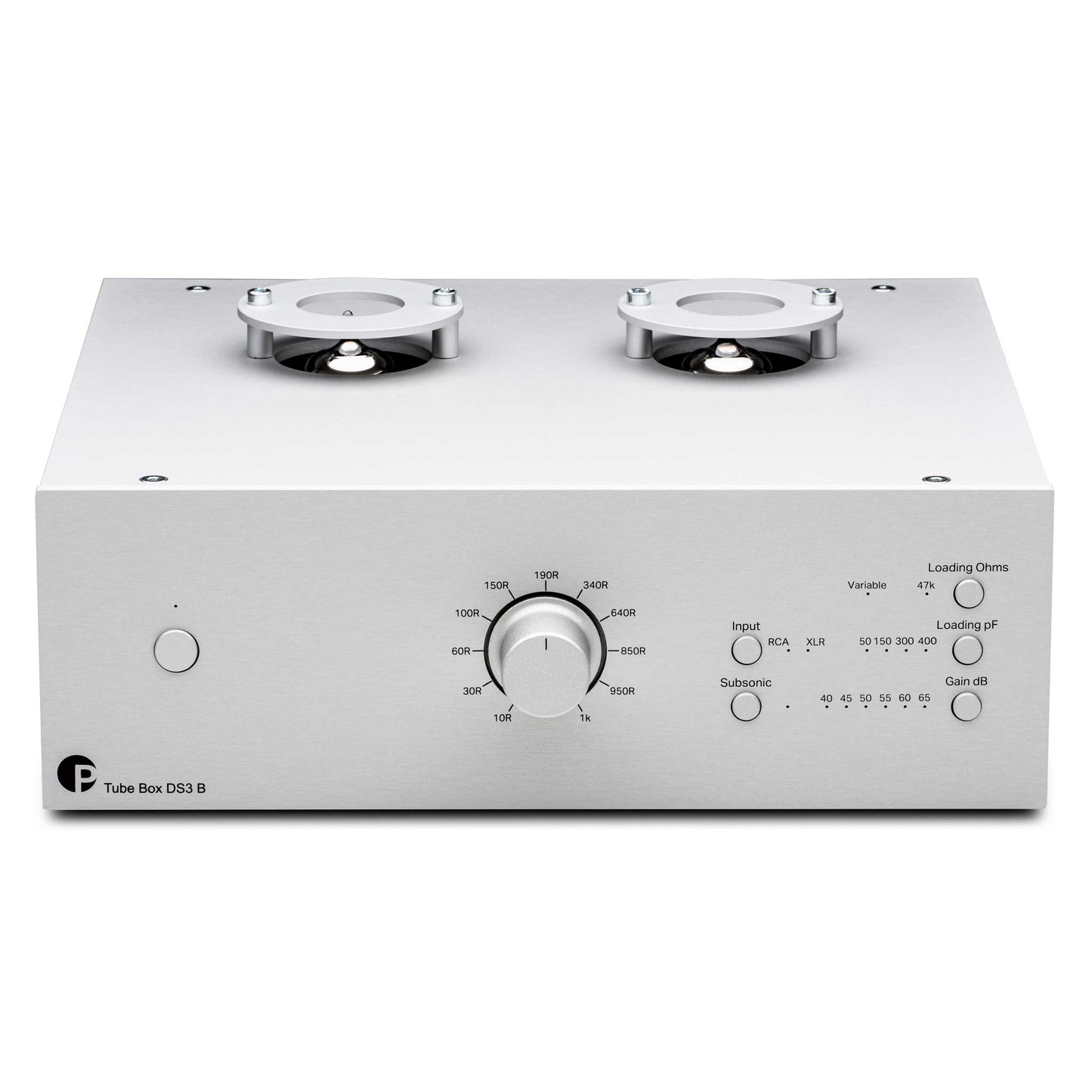

The Tube Box DS3 B is a sophisticated phono pre-amplifier designed for MM and MC cartridges, benefiting from a dual-mono electrical layout, valve output stage and balanced connection options. Pro-Ject’s fully adjustable impedance dial on the front panel allows for fine adjustment with moving coil cartridge systems.
Pro-Ject’s Tube Box phono stages have been a part of the range for many years and are enduringly popular for their high-end sound performance. The Tube Box DS3 B is the first to add balanced input and output options to the mix as part of Pro-Ject’s True Balanced Connection concept. The result is an even cleaner and clearer musical performance thanks to the reduced noise and higher gain from using a balanced connection.
The Tube Box DS3 B still features RCA connection options as well, meaning you can connect two turntables or tonearms at the same time. The input settings for Loading, Gain, Capacitance, and the Subsonic filter – all accessed clearly on the front panel – are stored in the memory as you switch between RCA and XLR input options.
Pro-Ject’s load impedance dial, as featured on its other high-end phono stages, is included on the Tube Box DS3 B. This handy tool allows for very fine, seamless adjustment of the impedance during playback, so you can easily assess the impact of different loading options on your cartridges and style of music.

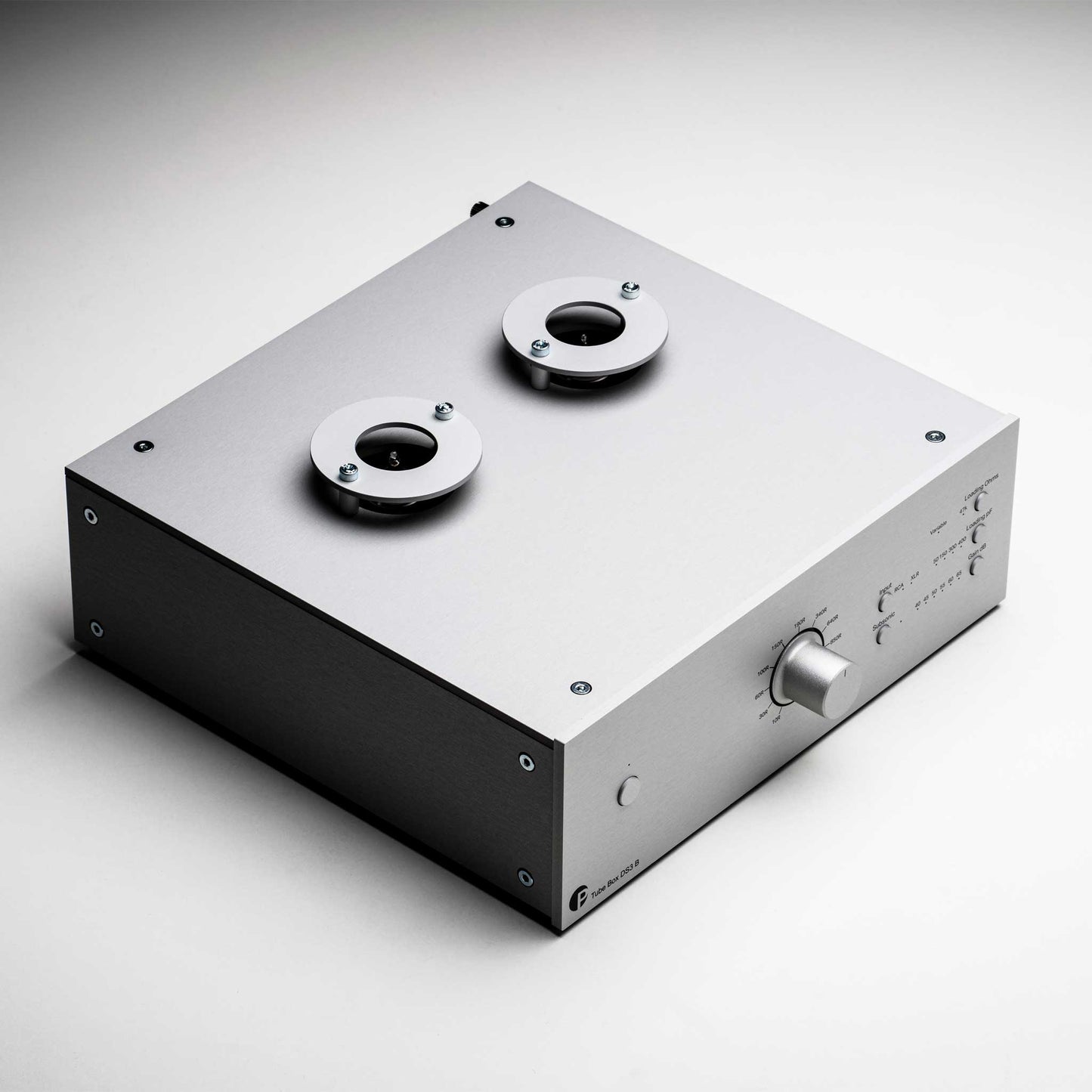

The Tube Box DS3 B is made with premium components throughout, all housed in an aluminium casing that protects against interference. It benefits from an external power adapter for reduced noise and electrical interference around the sensitive electronics, but can also be upgraded further with a linear power supply upgrade. As with other DS Line electronics, the Tube Box DS3 B can also be visually upgraded with magnetically attached wooden side panels for a more retro aesthetic
Specifications
Specifications
| Tube assembly | 2x E88CC / 6922 |
| Input Impedance | stepless 10-1000 Ohms, fix 47 kOhms |
| Capacitance | 50 / 150 / 300 / 400 pF |
| Gain | 40 / 45 / 50 / 55 / 60 / 65 dB |
| Output Voltage | 500 mV/1kHz at 5mV/1kHz (at 40dB) |
| Signal-to-noise ratio | >87dBV - ‚A‘ weighted |
| THD | < 0,03% |
| RIAA Accuracy | +/- 0,5dB/20Hz - 20kHz |
| Subsonic filter | at 20Hz with 18dB/octave |

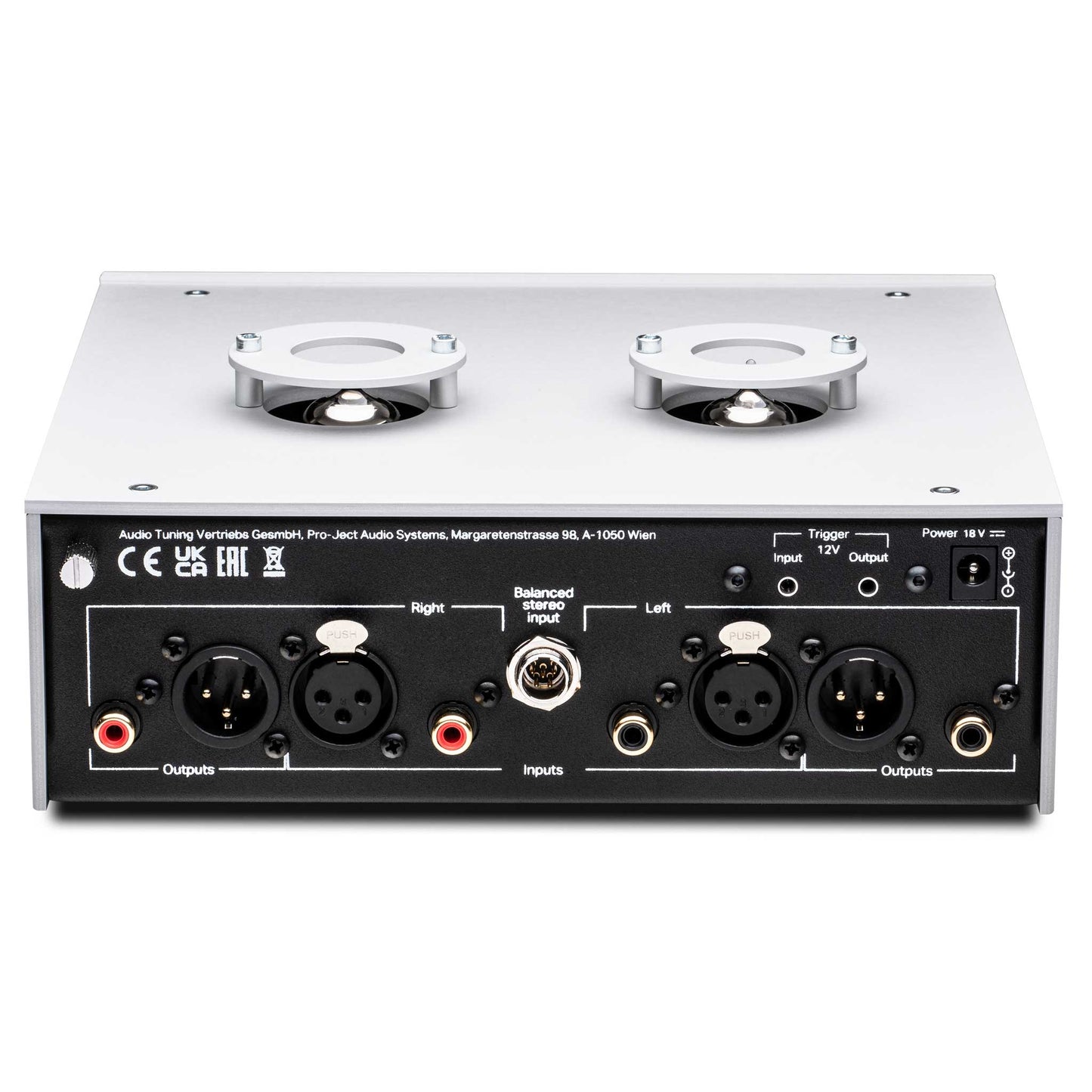

| Input Connectors | 1x 5-pin mini XLR / 1x pair XLR / 1x pair RCA phono |
| Output Connectors | 1x pair RCA, 1x pair XLR |
| Power Consumption | max 750 mA DC / < 0,5 watt standby |
| Power Supply | 18V / 750mA DC; 220-240V, 50Hz |
| Dimensions | 206 x 70 x 194 mm |
| Weight: | 1560g (without PSU) |
