Rotel
Rotel A14 MKII Integrated Stereo Amplifier
Rotel A14 MKII Integrated Stereo Amplifier
Couldn't load pickup availability
- Demo Available
- 2 year Warranty
Share
Details
Description
Rotel A14 Stereo Integrated Amplifier

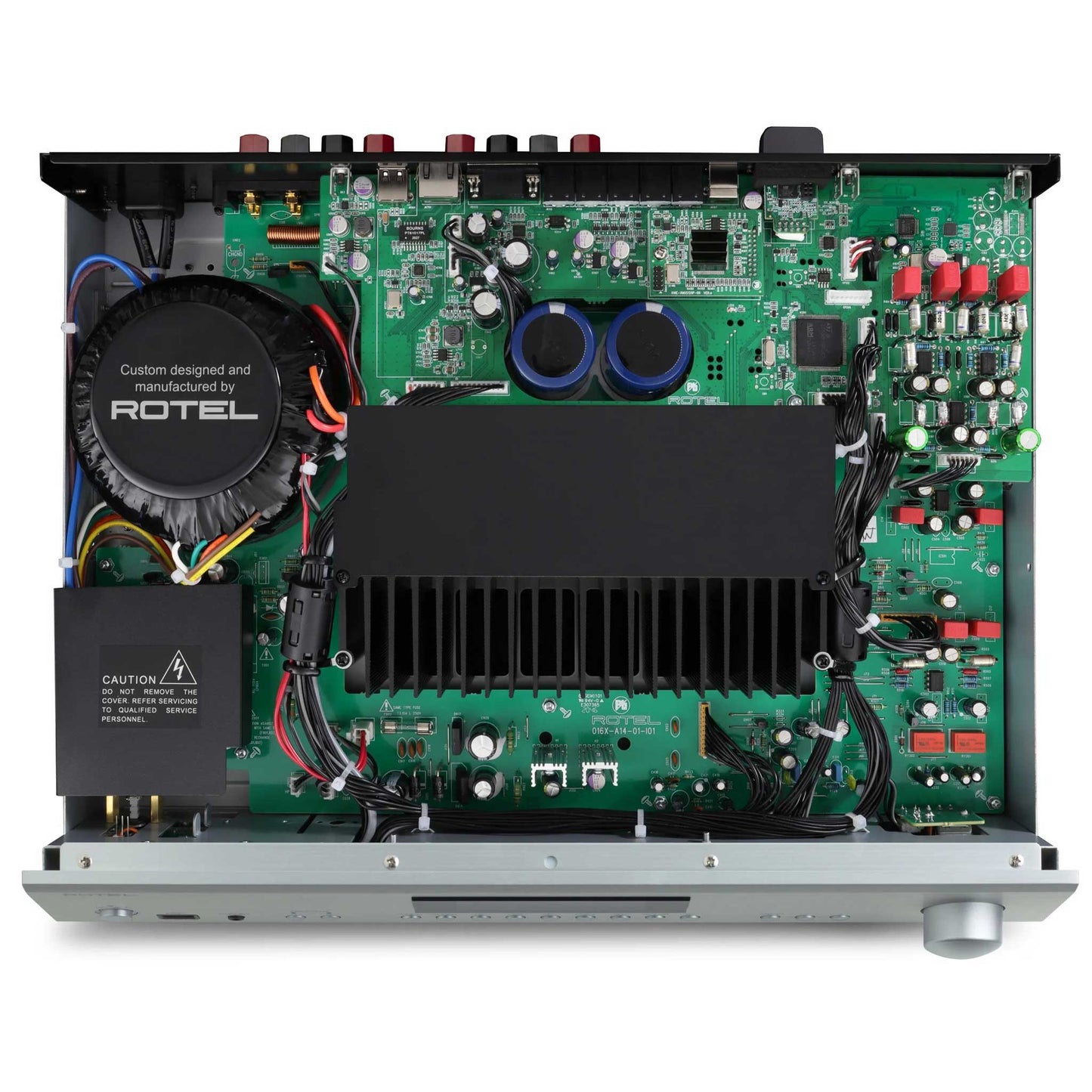

The Rotel A14 MKII is the flagship model in the 14 Series family of Rotel products delivering 80 Watts of Class AB amplification into 8 ohm speakers powered by Rotel’s in-house manufactured, oversized toroidal transformer and an array of 4 high efficiency slit-foil bulk storage capacitors delivering an effortless acoustic performance.
A fully redesigned Digital to Analog circuit topology utilizes a Texas Instruments 32-bit/384kHz DAC with exhaustive tuning and hand selection of all critical components delivering a fuller, richer and more balanced presentation of the music. Improvements to the power supply and amplifier gain stages further refine the audio whether you are listening to a big band orchestra or a solo vocalist.
Tone controls provide treble and bass adjustments in 1dB steps up to +/- 10dB personalizing your experience for all music genres, moods and settings with a BYPASS mode eliminating unwanted noise and distortion.
The A14MKII supports your favorite sources including analog, digital, PC-USB with MQA, high-quality wireless aptX™ and AAC Bluetooth streaming and even a Moving Magnet Phono stage for vinyl fans.
The A14MKII is certified Roon Tested delivering the best experience using Roon software so you can just enjoy the music. Control system integration is available utilizing Ethernet, RS232, 12V-Trigger and remote IR connections.

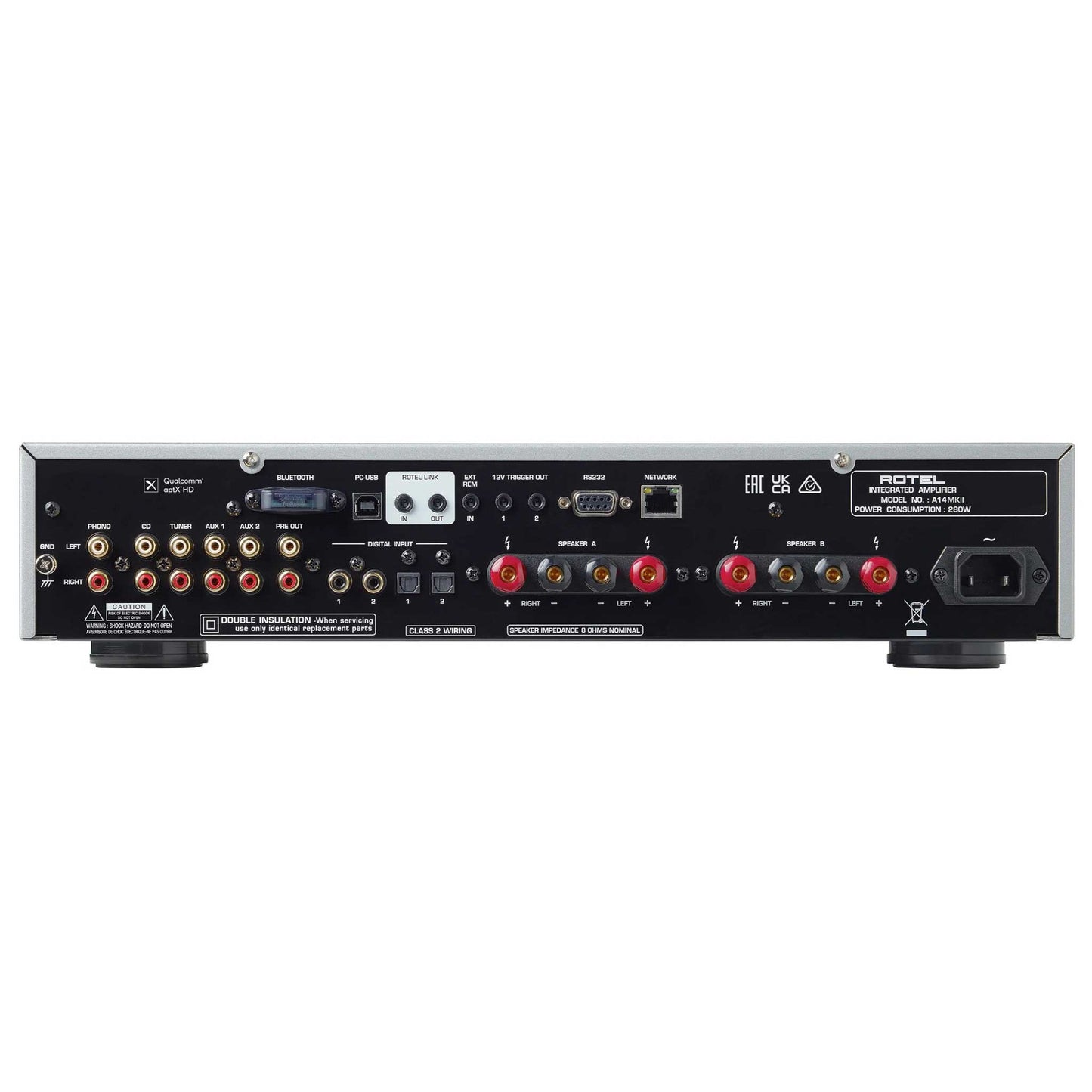

Dual 5-way speaker binding posts allow Zone 2 installations with relay-controlled selection of the A-B speaker outputs. The front panel graphic display includes a large volume indication and audio stream information.
The A14 MKII is comfortable in any setting delivering countless hours of audio entertainment.
· 2 x 80 Watts of robust Class AB power
· iOS control App
· Moving magnet phono input for turntable connection
· Integrated Bluetooth aptX
· AKM premium 32-bit/768kHz Digital to Analog Converter
Specifications
Specifications
|
Model |
A14 MKII |
|
Continuous Power Output |
80Watts/ch (8Ω) |
|
Total Harmonic Distortion (THD) |
< 0.018% at rated power |
|
Intermodulation Distortion (60Hz:7kHz, 4:1) |
< 0.03% at rated power |
|
Frequency Response |
Digital Inputs: 10Hz - 90kHz ±2.0dB Phono input 20Hz-15kHz, ±0.5dB Line Level Inputs 10Hz-100kHz, ±0.5dB |
|
Input Sensitivity / Impedance |
Phono input 3.4mV / (MM) Line Level Inputs (RCA) 230mV Digital Level Inputs: 0dBfs |
|
Input Overload |
Phono input 50mV |
|
Preamp Output / Impedance |
1.2V |
|
Tone Controls - Bass / Treble |
±10 dB at 100Hz / 10kHz |
|
Signal to Noise Ratio (IHF “A” weighted) |
Phono input 90dB Line Level Inputs 100dB Digital inputs 103dB |
|
Pre-out/Impedance |
1.2V/470V (at -20dB) |
|
General |
- |
|
Power Requirements (AC) |
230V, 50Hz (Europe) |
|
Power Consumption |
280Watts |
|
Standby Power Consumption 0.5W |
<0.5Watts |
|
Dimensions (W x H x D) |
430 x 93 x 345mm |
|
Panel Height |
80mm |
|
Weight (Net) |
8.94 kg |
|
Finishes |
Black, Silver |
