Rotel RA-1572 MKII Integrated Stereo Amplifier
Rotel RA-1572 MKII Integrated Stereo Amplifier
Couldn't load pickup availability
- 2 year Warranty
Share
Details
Description
Rotel RA-1572 MKII Stereo Integrated Amplifier
The RA-1572 MKII Integrated Amplifier is an essential component for music lovers leveraging the best of Rotel’s analogue and digital technologies bringing music to life with exceptional fidelity. The role of an integrated amplifier continues to evolve with the RA-1572 MKII optimized in every aspect including the power amplifier delivering 120 Watts of robust Class AB output into 8 ohms, audio circuit design innovations, premium audiophile Digital to Analog Converter and a full complement of source inputs.

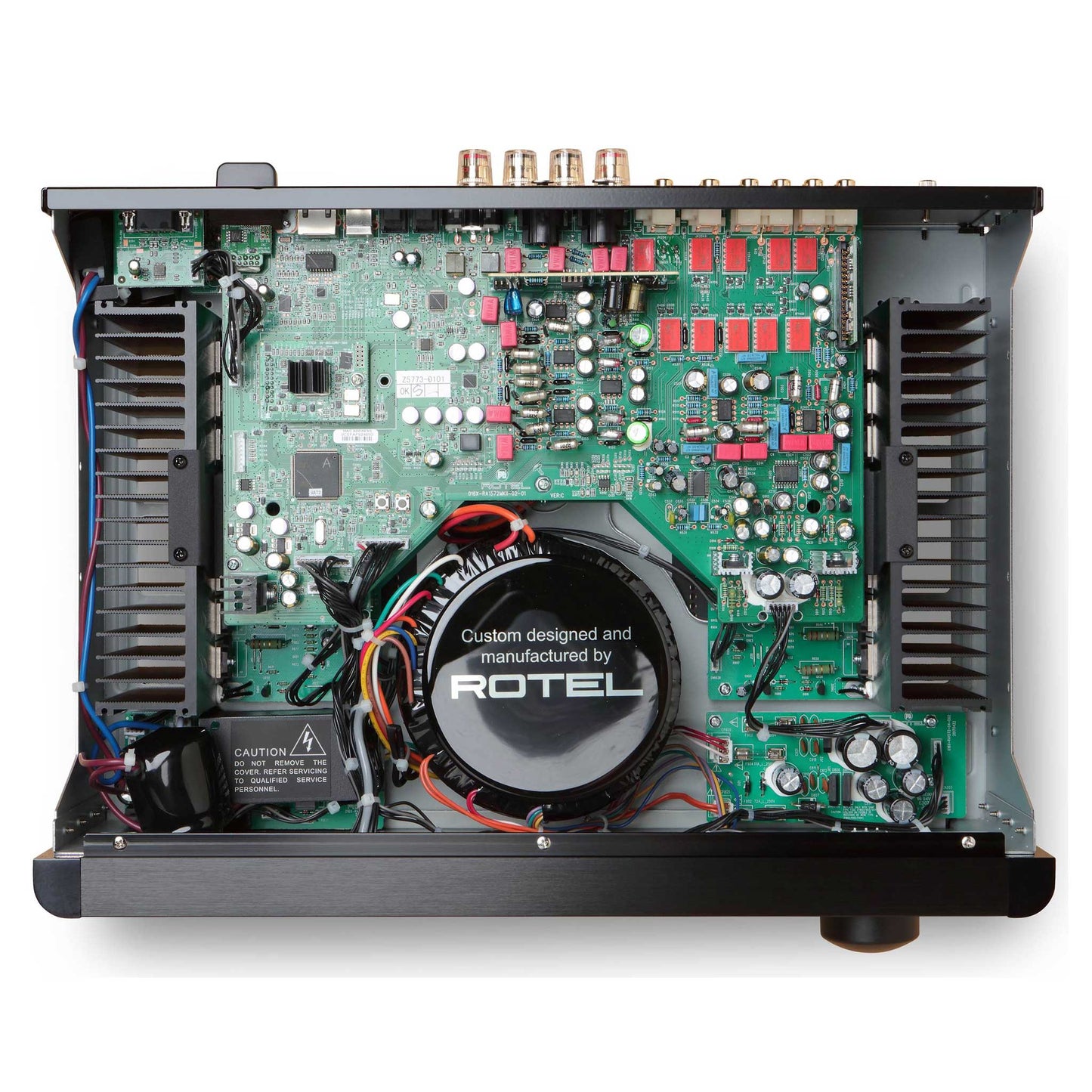

As typical of Rotel amplifiers, the RA-1572 MKII utilizes an in-house manufactured oversized toroidal transformer. The toroidal transformer’s shape helps prevent stray radiation patterns from corrupting audio signals as they pass through adjacent circuits. The transformer feeds a bank of 4 low ESR, high efficiency, T-Network slit-foil storage capacitors for deep, controlled bass energy.
The RA-1572 MKII support digital sources utilizing a Texas Instruments 32-bit/384kHz DAC with critically tuned output filter circuits rendering even the most subtle detail. The preamplifier circuits and linear amplifier gain stages have been custom engineered ensuring natural detail, agility and an immersive soundstage. Analog, digital, PC-USB supporting MQA, aptX™ and AAC wireless Bluetooth streaming, XLR Balanced and Moving Magnet Phono stage inputs ensures connection to your favourite sources.
The RA-1572 MKII is certified Roon Tested delivering the best experience using Roon software so you can just enjoy the music.

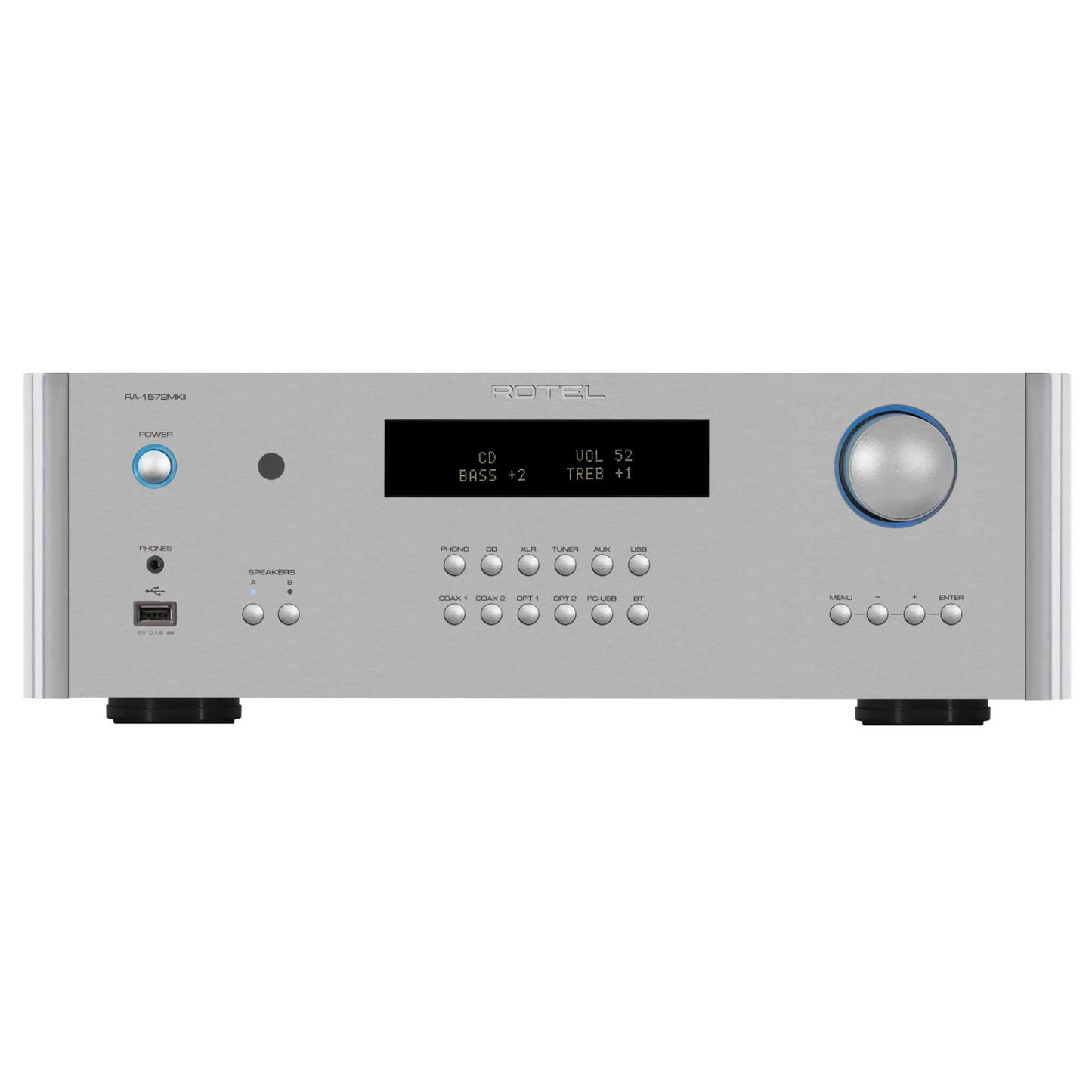

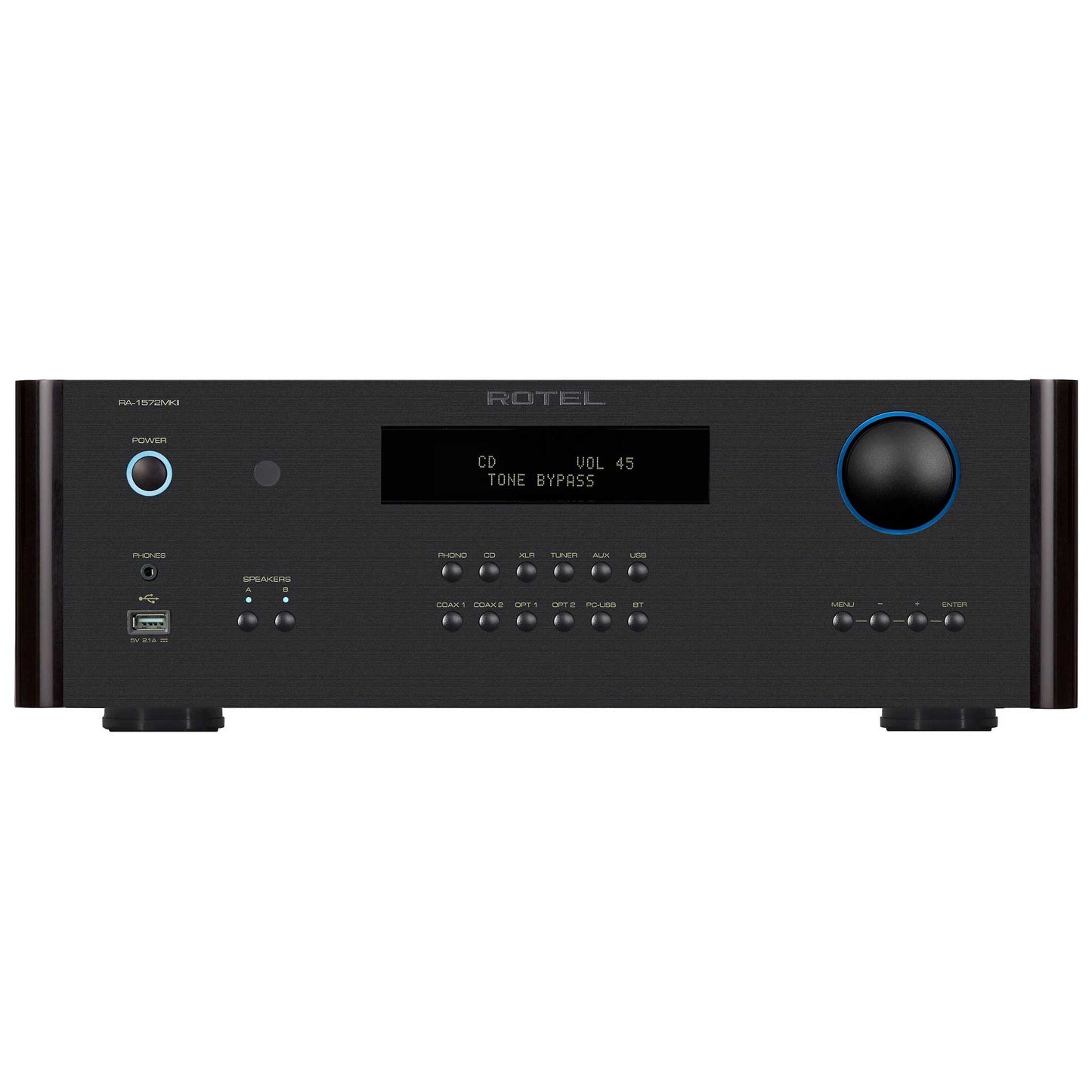

The front panel includes a status display, source and volume controls, Speaker A-B selection for Zone 2, and 3.5mm headphone jack. Ethernet and RS232 connections allow seamless integration with control systems and software updates.
Key Features:
- 120 watts x 2 channels into 8 ohms (20-20,000 Hz) at 0.018% THD
- Class AB amplification with custom-designed toroidal transformer
- premium Texas Instruments 32-bit/384kHz digital to analog converter
- built-in Bluetooth® with high-quality aptX audio coding
- frequency response: 10-100,000 Hz (line inputs, ±0.5dB); 20-20,000 Hz (phono input, ±0.5dB); 10-90,000 Hz (digital inputs±2dB)
- signal-to-noise ratio: 100 dB (line); 80 dB (phono); 100 dB (digital)
- support for MQA and MQA Studio files
- Roon-ready (subscription required)
- detachable power cord
- remote control
Specifications
Specifications
|
Model |
RA-1572 MKII |
|
Continuous Power Output |
120Watts/ch (20-20kHz, < 0.03%, 8 Ω) |
|
Total Harmonic Distortion (20Hz-20kHz) |
< 0.018% at rated power |
|
Frequency Response |
Digital Inputs: 10Hz - 90kHz ±3dB Phono input 20Hz-20kHz, ±0.3dB Line Level Inputs 10Hz-100kHz, ±1dB |
|
Input Sensitivity / Impedance |
Phono input 2.1mV / 47 k Ω Line Level Inputs (RCA) 270mV / 24 k Ω Line Level Inputs (XLR) 440mV / 24 k Ω |
|
Input Overload |
Phono input 32mV |
|
Preamp Output / Impedance |
1.2V / 470 Ω |
|
Tone Controls - Bass / Treble |
±12 dB at 100Hz / 10kHz |
|
Signal to Noise Ratio (IHF “A” weighted) |
Phono input 80dB |
|
Input Sensitivity/Impedance |
0 dBfs/75 Ohms |
|
Pre-out/Impedance |
1.2V/470V (at -20dB) |
|
PC-USB |
USB audio class 1 (up to 24-bit/192kHz) USB audio class 2 (up to 32-bit/384kHz) MQA & MQA Studio (up to 24-bit/384kHz) |
|
General |
- |
|
Power Requirements (AC) |
230V, 50Hz (Europe) |
|
Power Consumption |
400Watts |
|
Standby Power Consumption 0.5W |
0.5Watts |
|
Dimensions (W x H x D) |
431 x 144 x 358mm |
|
Panel Height |
132.6mm |
|
Weight (Net) |
13.63 kg |
|
Finishes |
Black, Silver |
