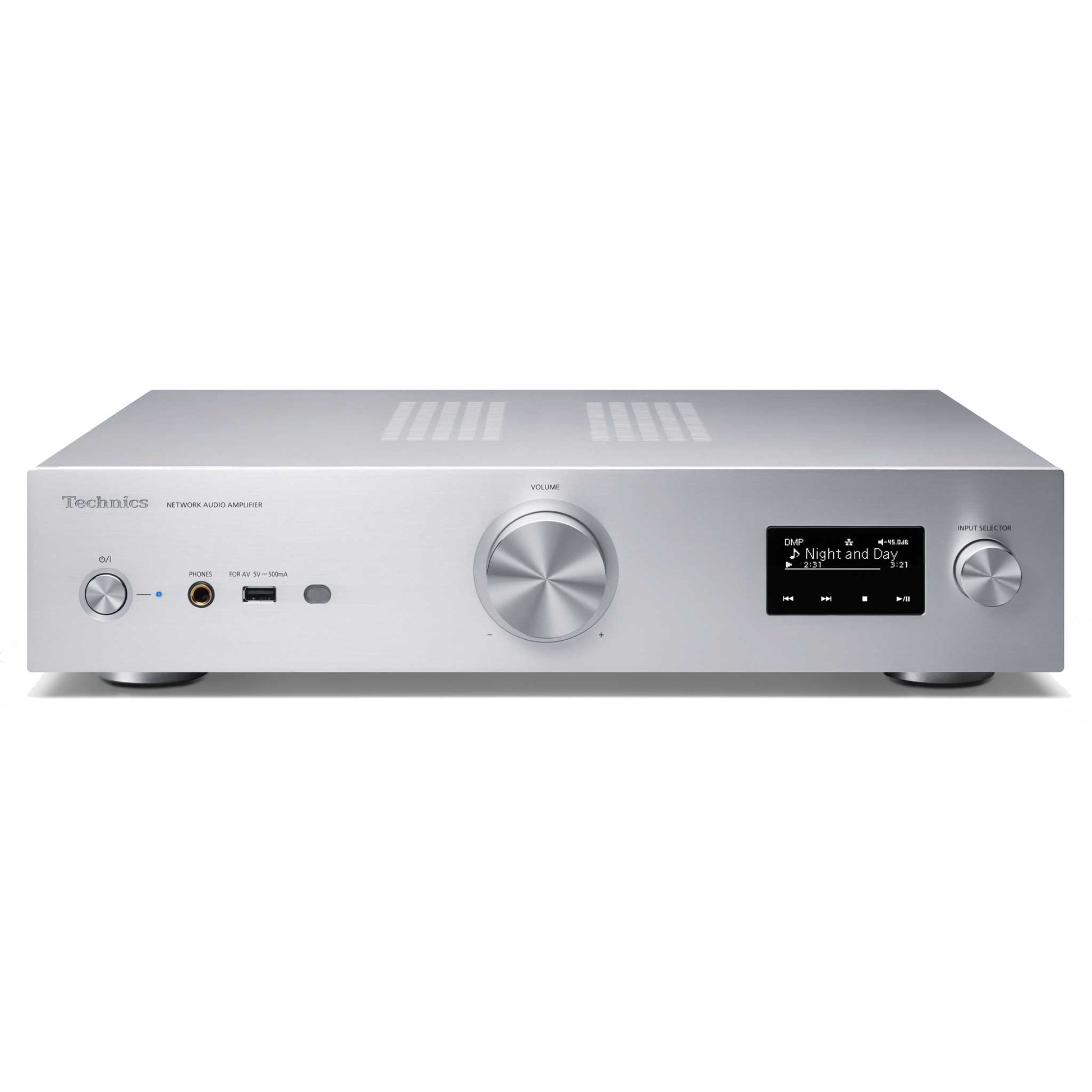

Technics SU-GX70 Network Stereo Amplifier
The Technics SU-GX70 offers high-quality amplification, multiple streaming options, and an HDMI ARC port for easy TV connection. It's an excellent choice for stereo music enthusiasts looking to enhance the sound of TV shows, movies, and video games.
Stream and Play Digital Music Sources

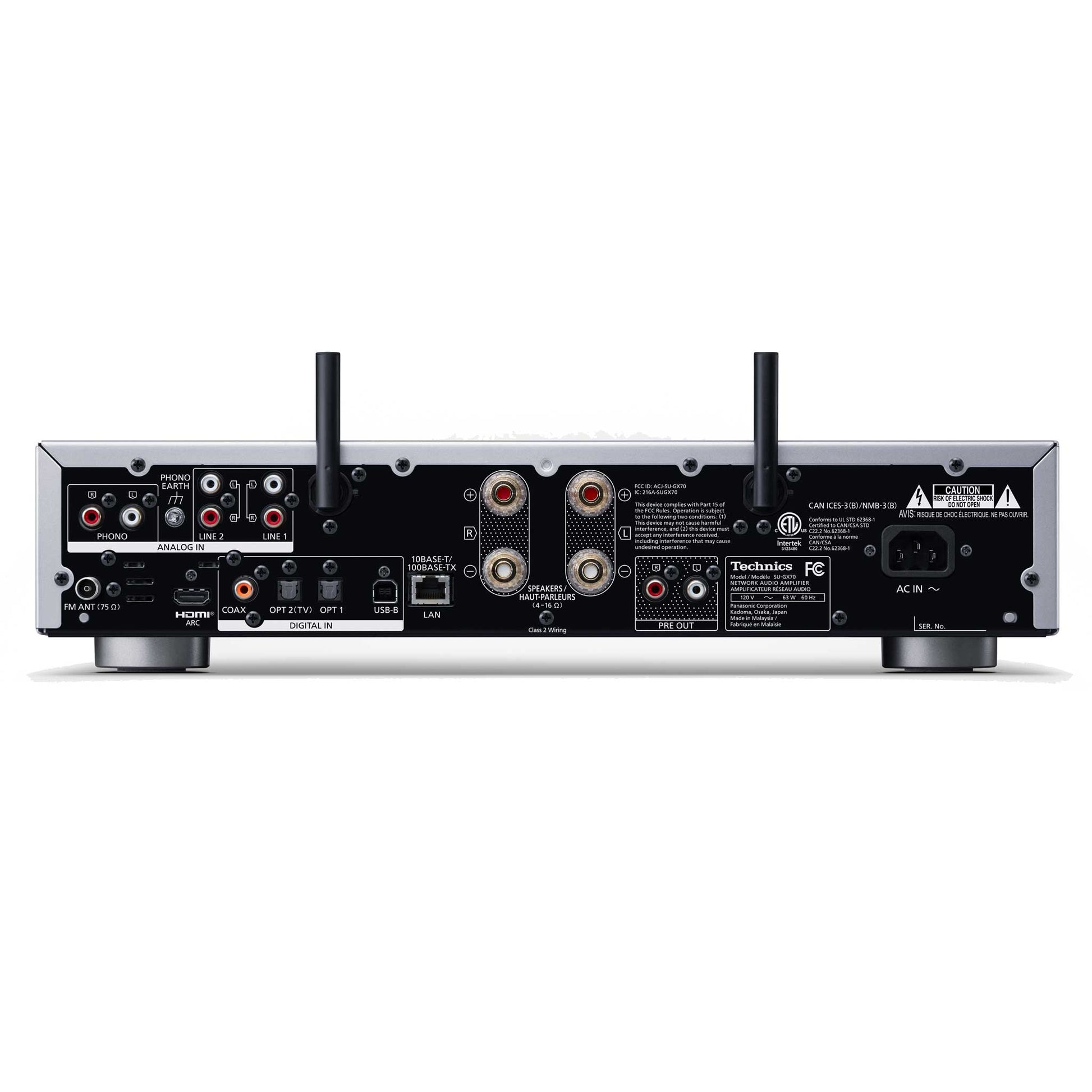

The amplifier’s built-in high-performance DAC ensures optimal sound quality from digital sources. With one coaxial and two optical digital inputs, you can connect devices like a CD player, while a USB Type-B input allows connection to a computer. The SU-GX70 also features built-in Wi-Fi and Bluetooth for streaming music from your phone, tablet, or computer. With Chromecast and Apple AirPlay 2, you can stream content from compatible devices and apps, or even include the SU-GX70 in a multi-room audio setup.
Multiple Connection Options

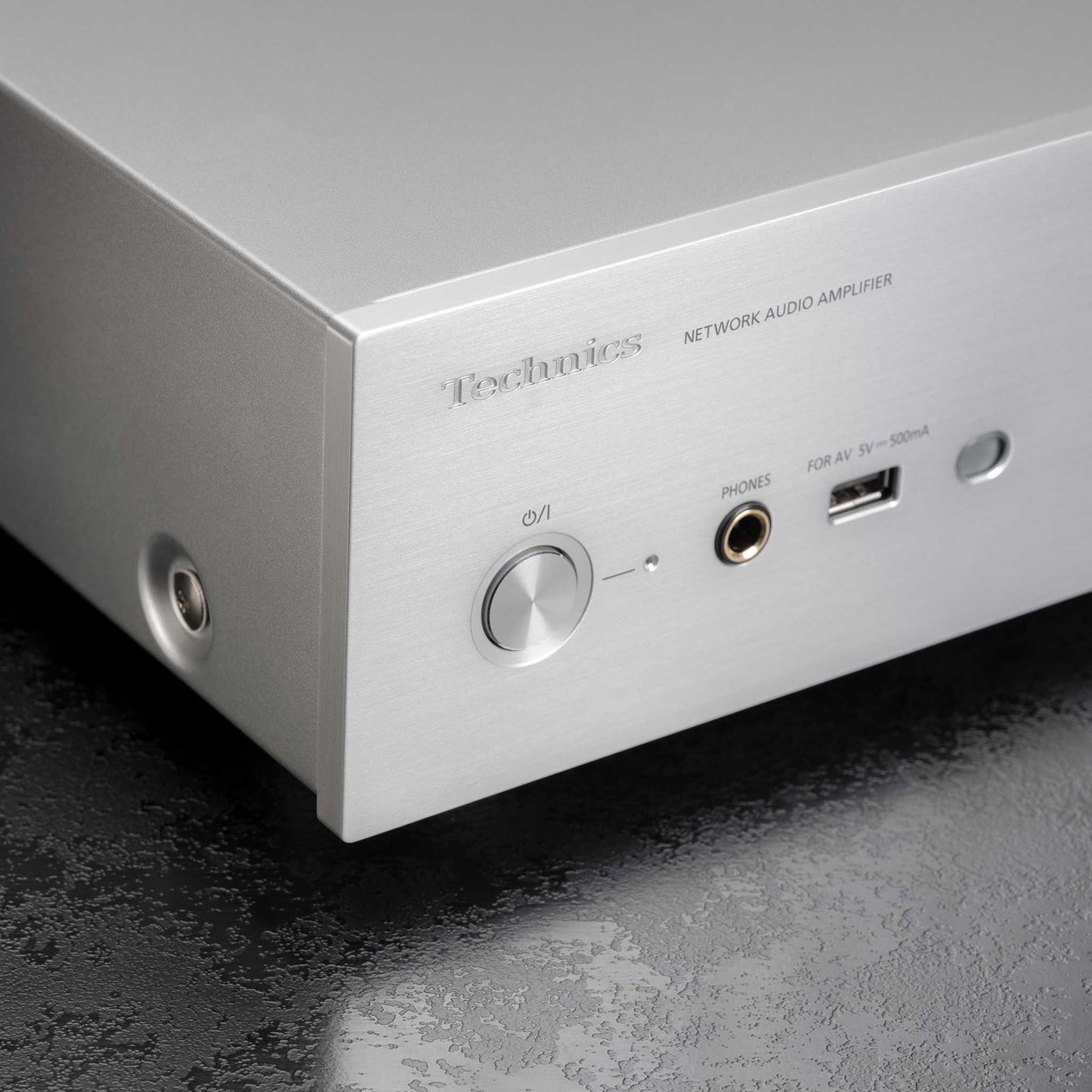

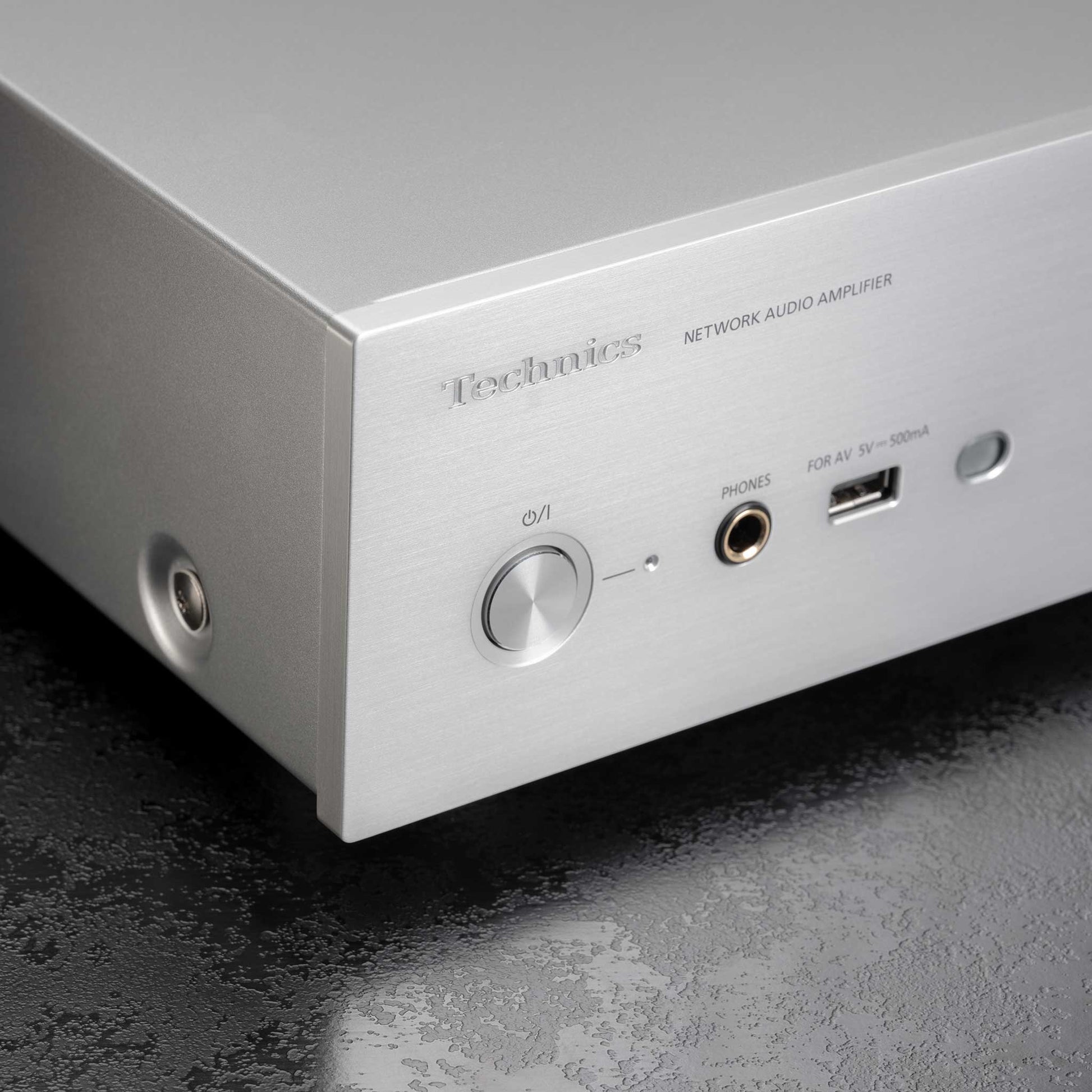

For analogue lovers, the SU-GX70 includes two sets of RCA auxiliary inputs and a dedicated phono stage for turntables with moving magnet cartridges. RCA preamp outputs allow for an upgrade to a more powerful amplifier while keeping the SU-GX70’s amp and DAC. Additionally, a 1/4" headphone jack on the front panel lets you enjoy private listening sessions.
Sleek Design with Classic Build Quality

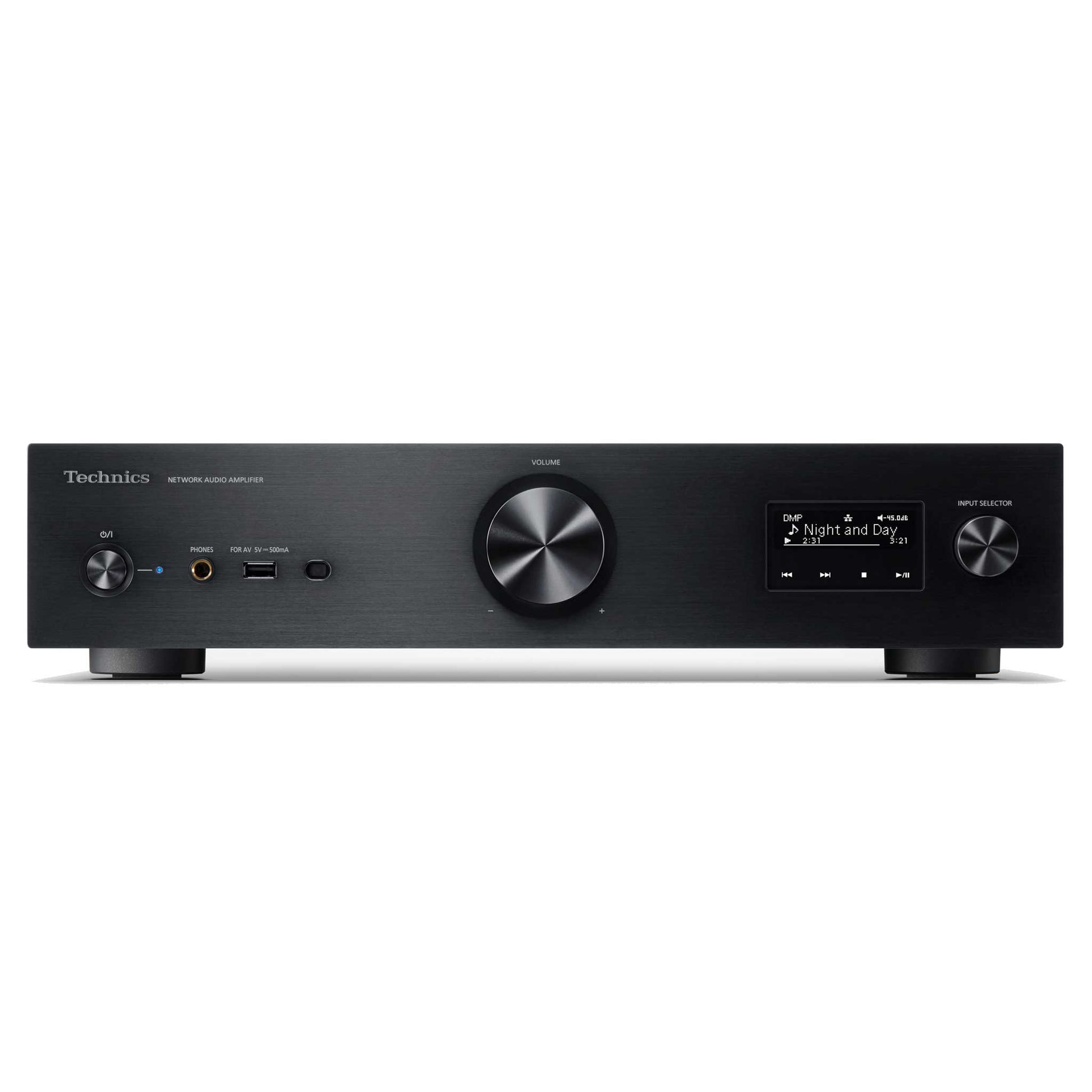

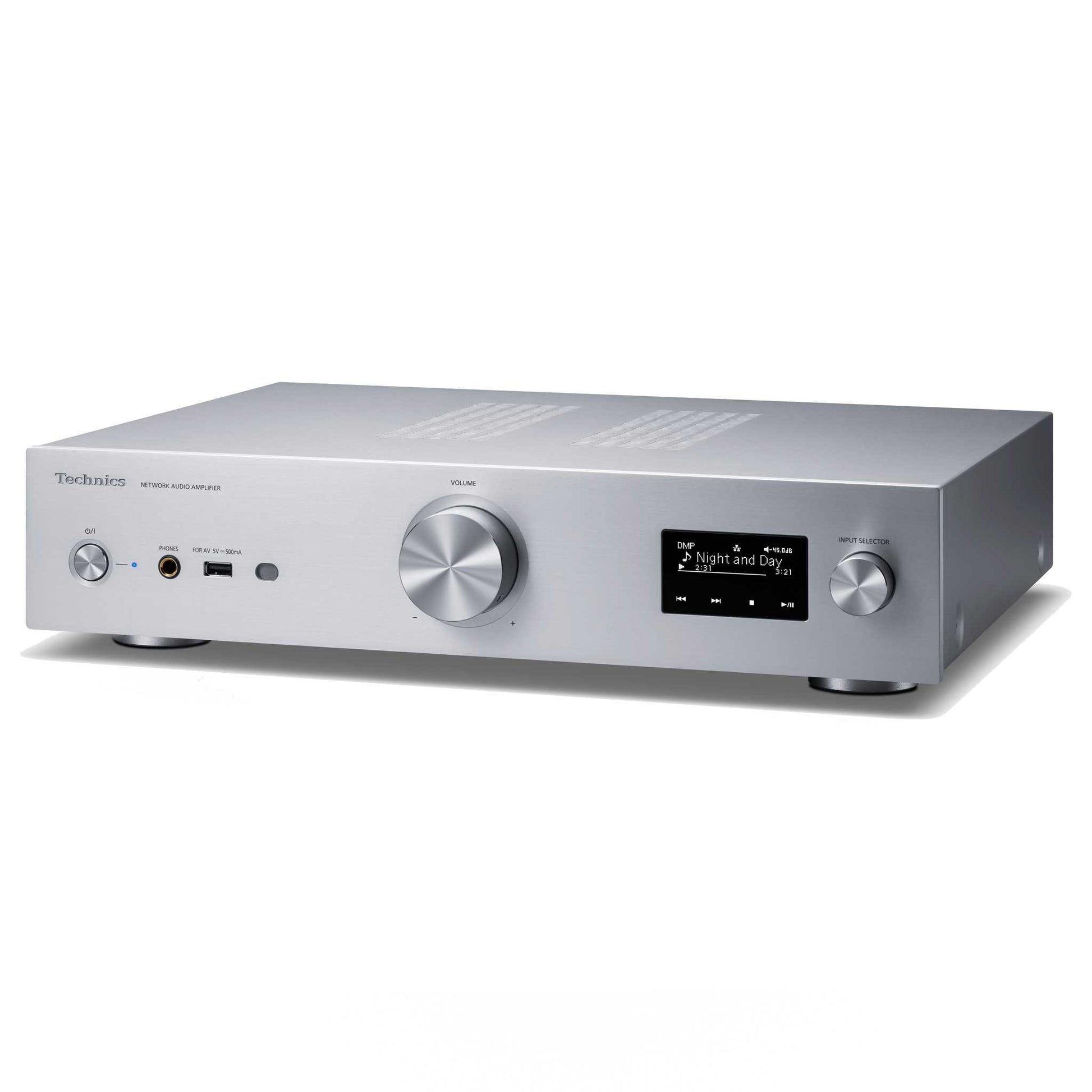

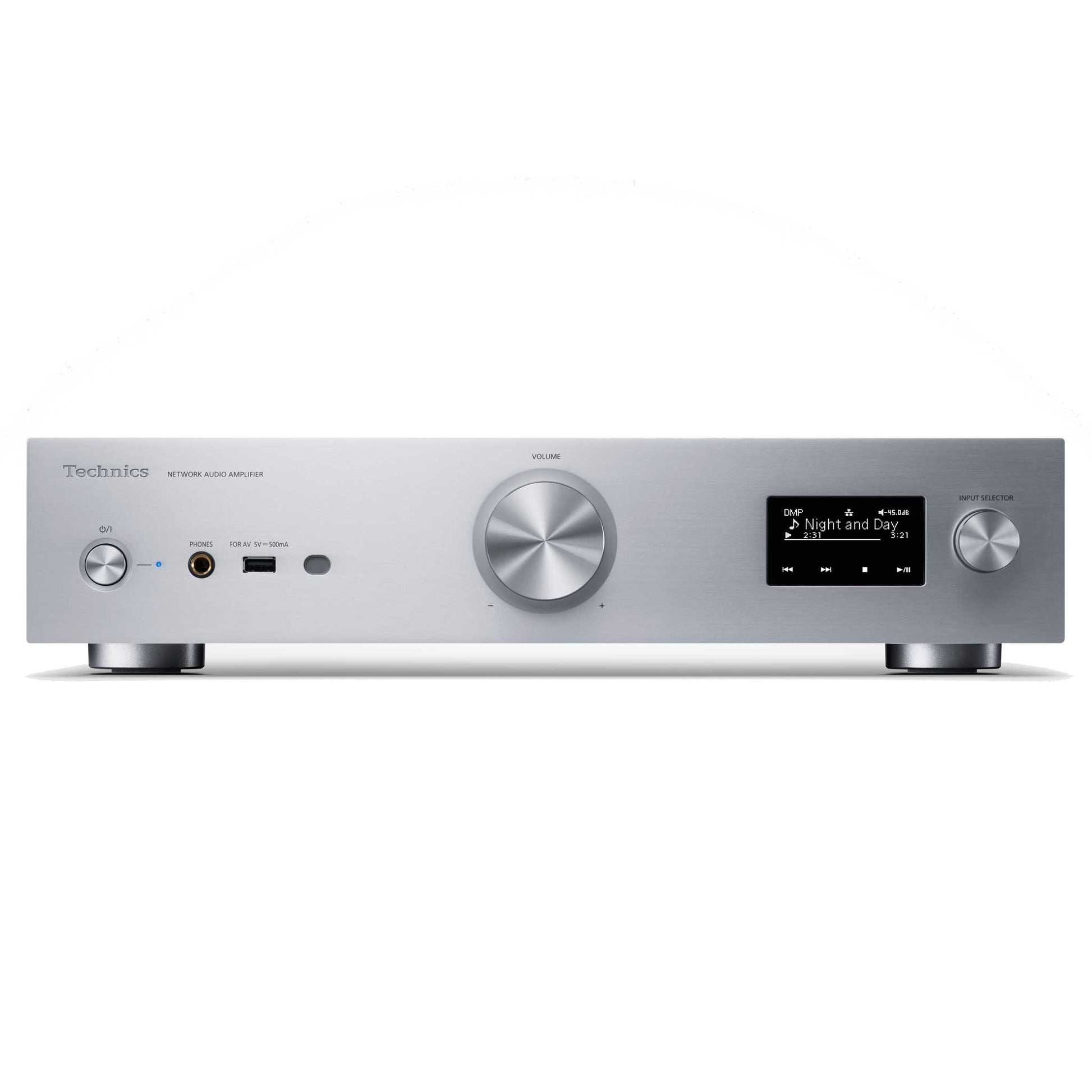

The SU-GX70 combines modern aesthetics with high-end components, from the solid aluminum volume knob to the front-panel display. Drawing inspiration from Technics' premium Grand Class components, it features a symmetrical circuit design, low-noise FETs, thin-film resistors, film capacitors, and electrolytic capacitors for top-tier performance.
Enhanced Speaker Calibration for Accurate Sound
Use the included remote to activate the Load Adaptive Phase Calibration (LAPC) feature, which fine-tunes the amplifier’s output to match your speakers. This process adjusts the sound, similar to room correction found in home theater systems. Additionally, you can fine-tune your setup to your room’s acoustics using the Space Tune™ feature via the Technics Audio Centre app for Apple® devices.
Specifications
Specifications
|
Amplifier Specifications |
|
|
Output Power |
40W+40W(1kHz,T.H.D.1.0%,8Ω,20kHz LPF) |
|
Load Impedance |
4Ω-16Ω |
|
Frequency Response |
|
|
PHONO (MM) |
20Hz - 20kHz ( RIAA DEVIATION ±1dB, 4Ω ) |
|
Line |
20Hz - 40kHz ( -3dB, 4Ω ) |
|
Digital |
20Hz - 80kHz ( -3dB, 4Ω ) |
|
Input Sensitivity / Input Impedance |
|
|
PHONO (MM) |
2.0 mV / 47 kΩ |
|
Line |
200 mV / 23 kΩ |
|
Inputs |
|
|
Analogue Line |
x 2 |
|
PHONO (MM) |
x 1 |
|
Optical digital |
x 2 |
|
Coaxial digital |
x 1 |
|
USB-A |
x 1 |
|
USB-B |
x 1 |
|
Outputs |
|
|
Analogue Pre-Out |
x 1 |
|
HDMI ARC |
x 1 |
|
Headphone Output |
6.3mm |
|
Wireless Connectivity |
|
|
Wi-Fi |
IEEE 802.11a/b/g/n/ac/ax |
|
Google Cast™ |
Yes |
|
AirPlay 2 |
Yes |
|
Bluetooth® (Support codec) |
Yes (AAC, SBC) |
|
Tuner |
DAB/DAB+/FM |
|
General |
|
|
Power Supply |
AC 220 V - 240 V,50/60 Hz |
|
Power Consumption |
63w |
|
Dimensions (W x H x D) |
430 mm × 98 mm × 368 mm |
|
Weight |
Approx. 6.6 kg |
|
Accessories in box |
AC Cord, DAB Indoor Antena, Remote Control, Batteries for Remote Control, Owner's Manual |
